Overview

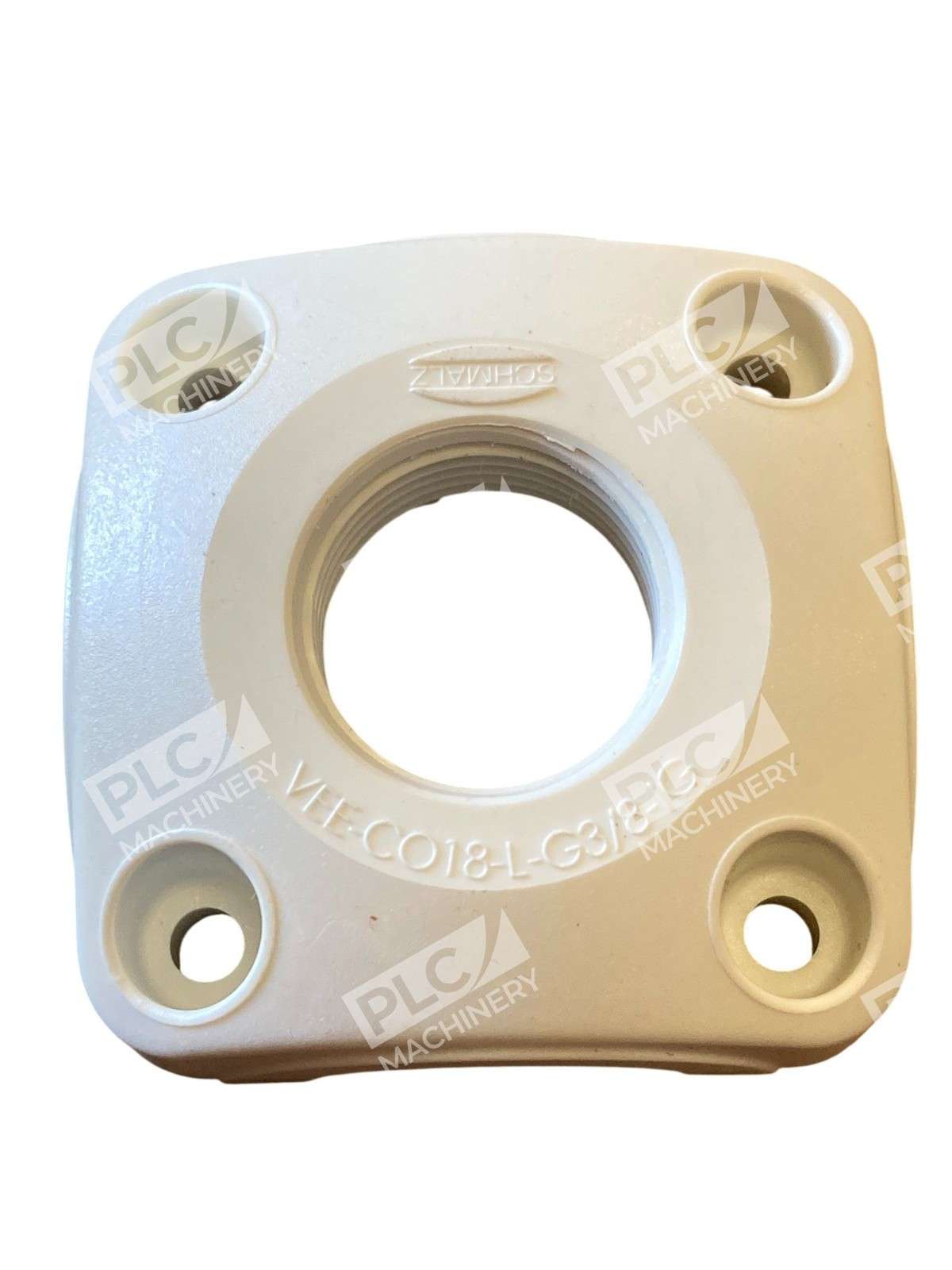

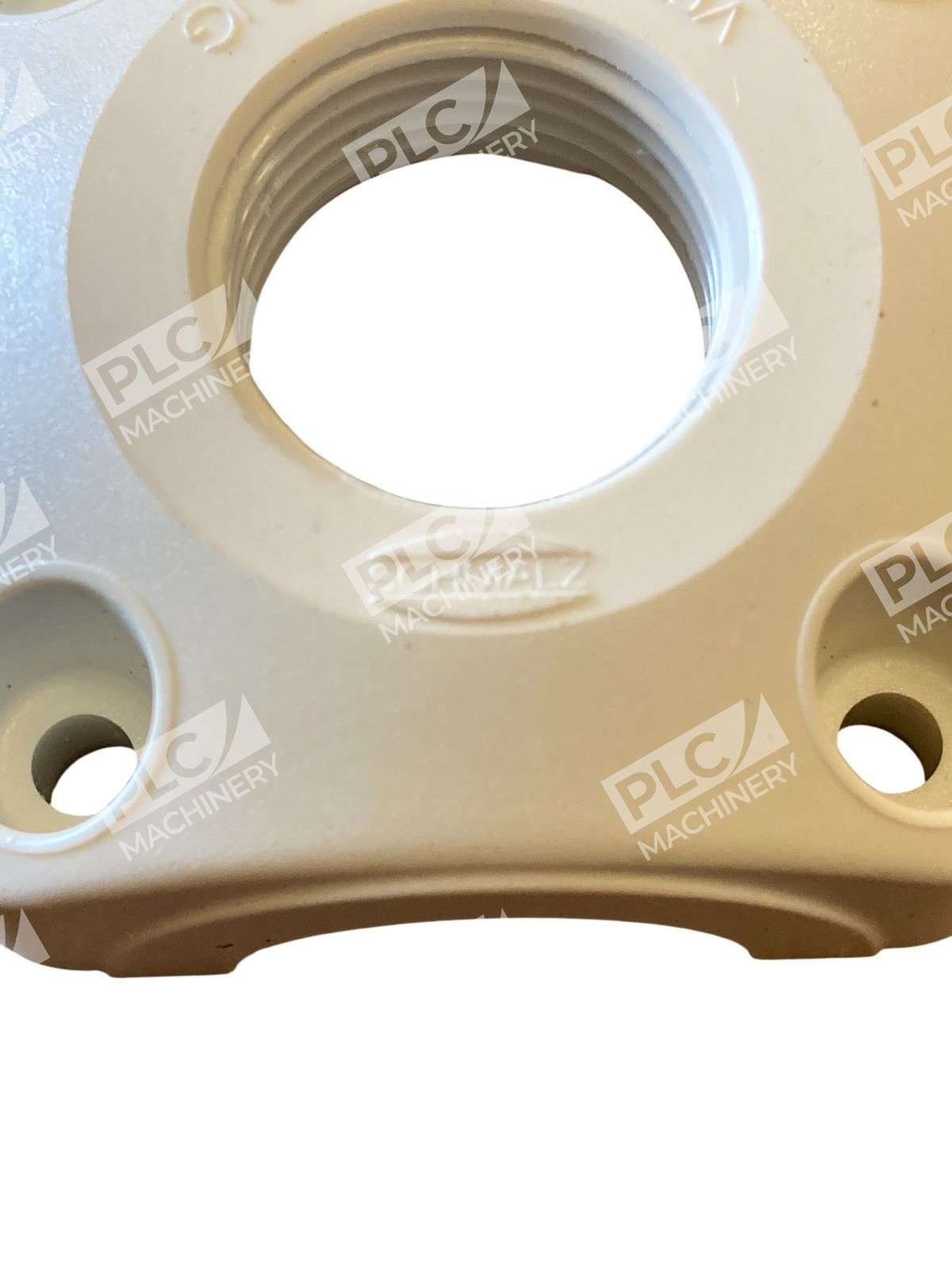

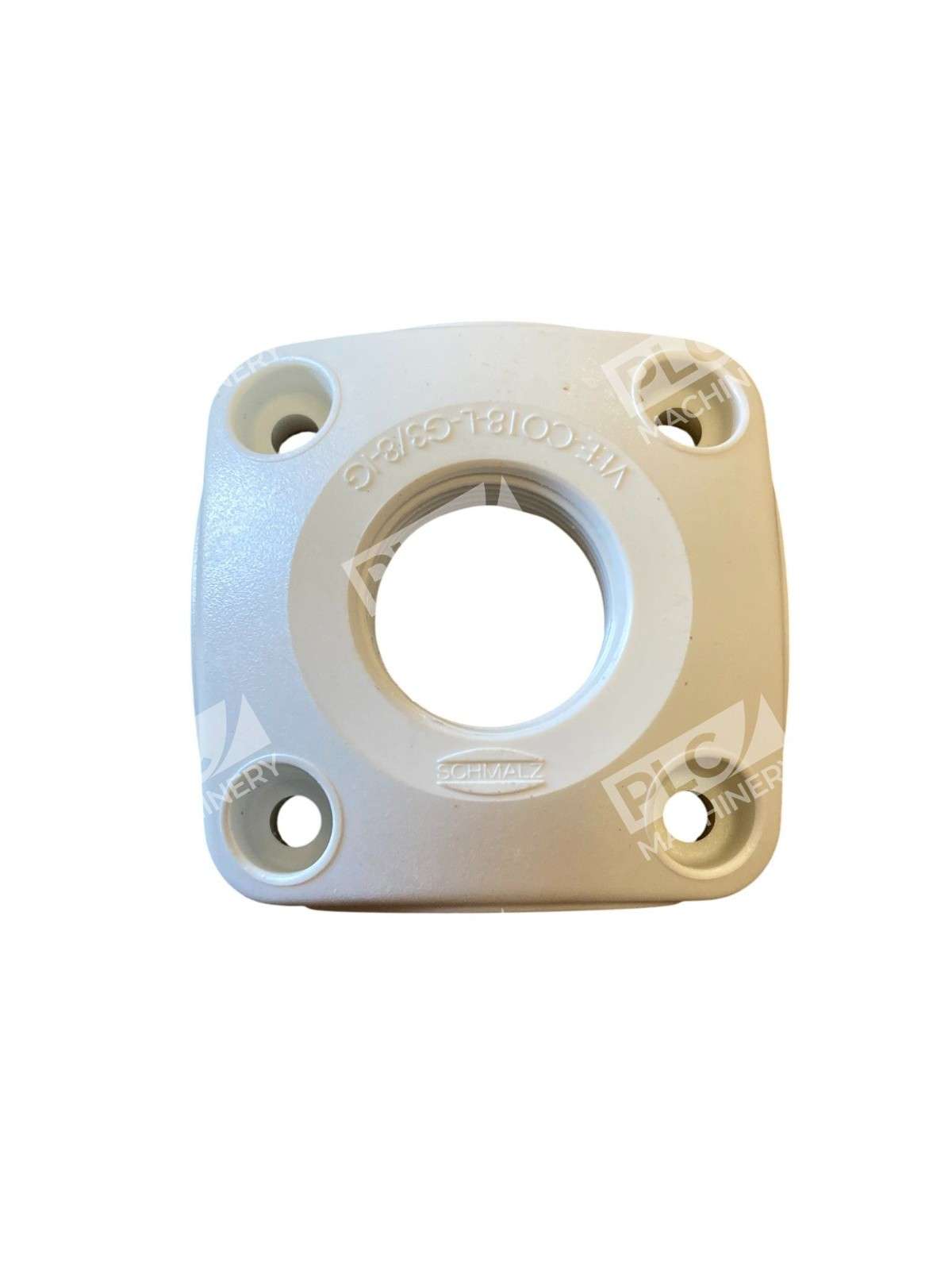

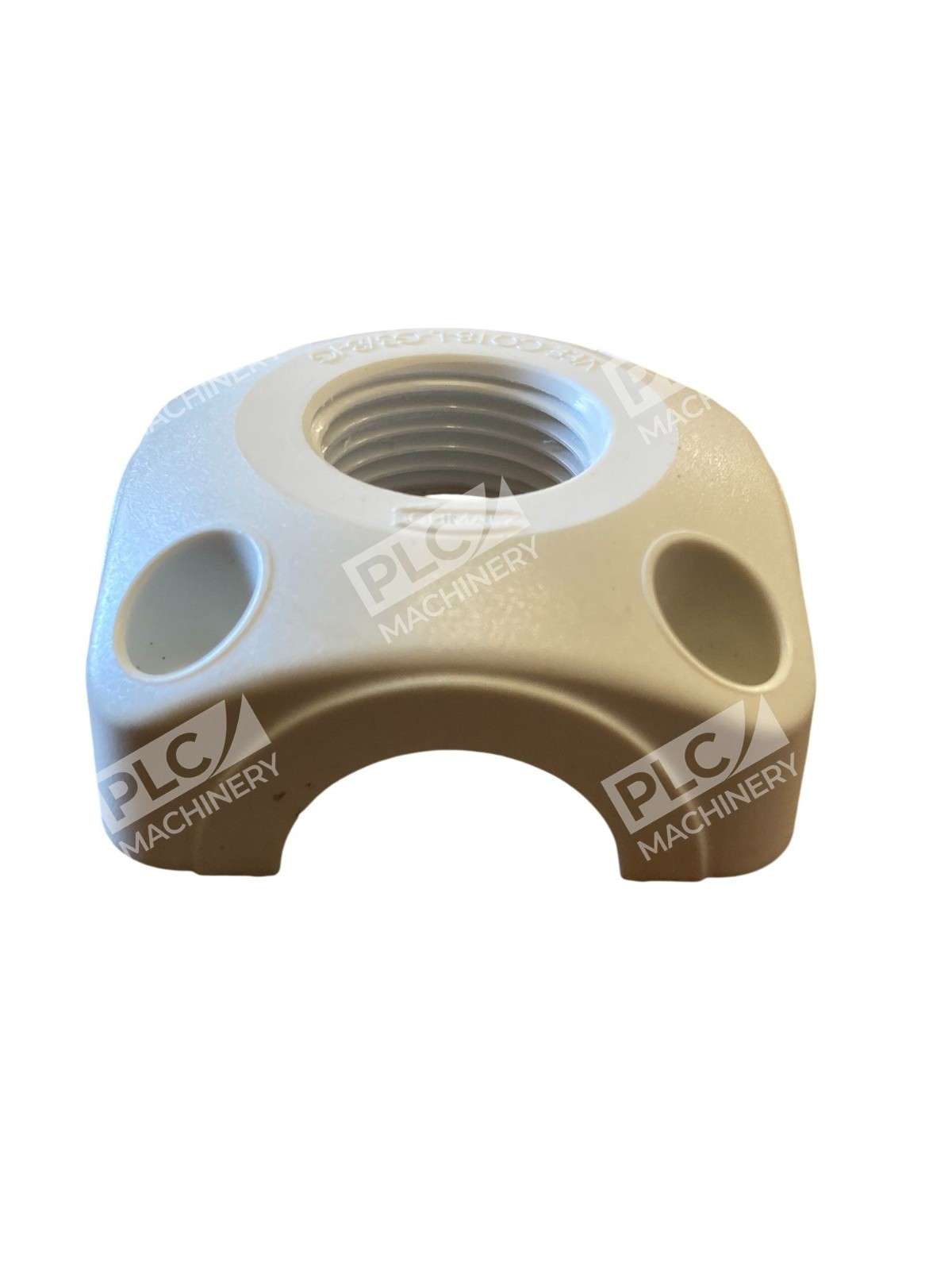

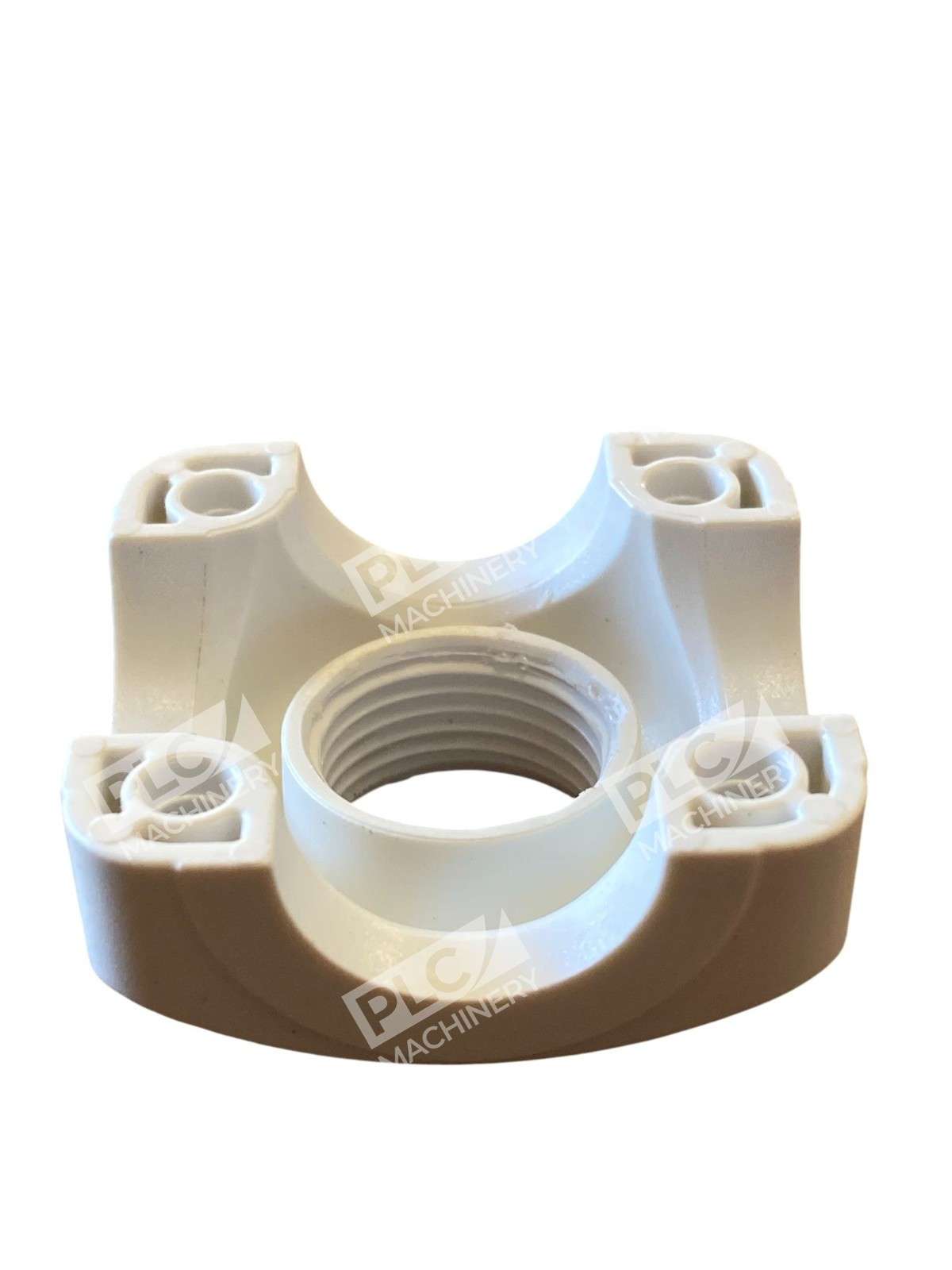

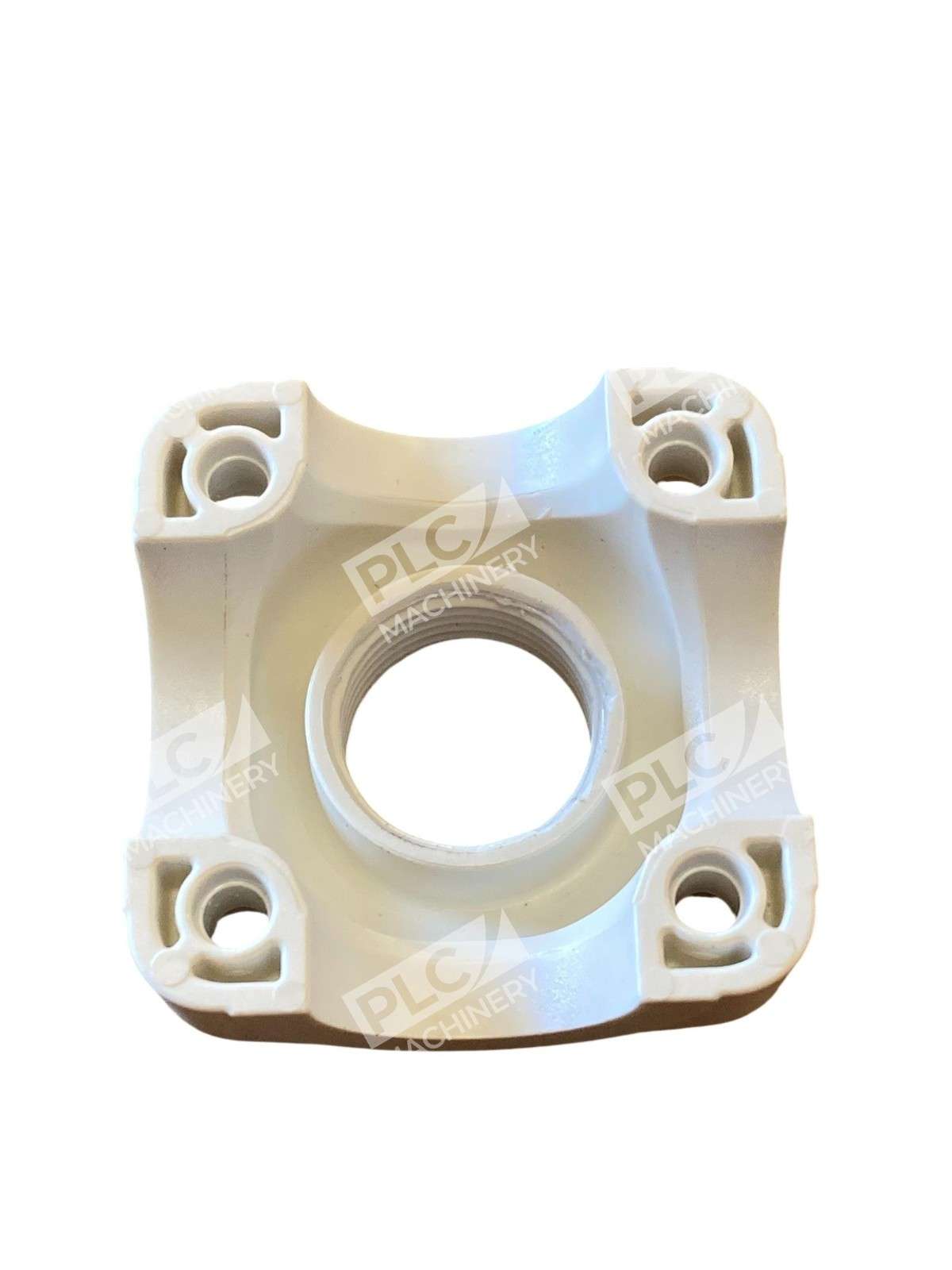

The SCHMALZ VEE-CO18-L-G3/8-IG connector lower shell is a critical component for building modular vacuum end-effector systems. Connector lower shell VEE-CO-L is delivered in packaging units containing 4 pieces. Connector lower shell VEE-CO-L contains sealing element and four screws, enabling fast assembly and reliable nodal connections in vacuum gripping applications. The G3/8-IG designation indicates a G3/8″ female (internal) thread connection, compatible with standard industrial pneumatic and vacuum lines.
Key Features
- Modular Design: Connector lower shell for build-up of connector joints with connector upper shell VEE-CO-U or in combination with basic module VEE-QCF
- Integrated Components: Connector lower shell made from FDA-compliant material polysurethane (PSU), with integrated sealing elements and four securing screws included
- Quick Assembly: Designed for straightforward mechanical and fluidic connections in nodal vacuum configurations
- Industrial Material: FDA-compliant polysulfone (PSU) construction with TPE sealing elements for durability and safety in food and pharmaceutical handling applications
- Thread Standard: G3/8″ female (IG) port for standard ISO thread compatibility
Technical Specifications
- Material: Polysulfone (PSU) body with TPE seals
- Thread Size: G3/8″-F (female/internal)

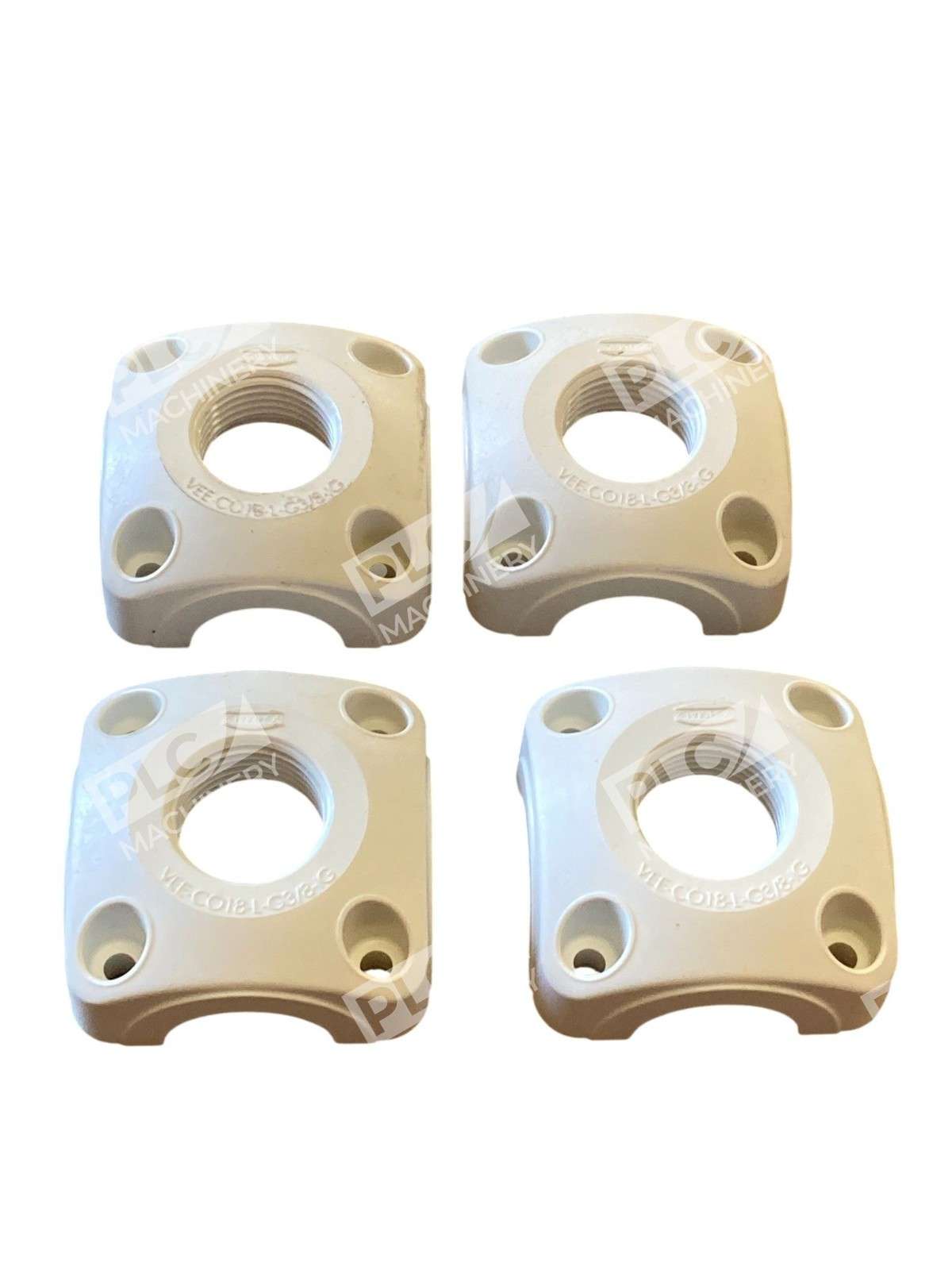

- Packaging Unit: 4 pieces per lot
- Grid: 38 mm standard grid spacing
- Includes: Sealing elements and securing screws
- Connection Type: Nodal connector joint element
- Certifications: FDA-compliant material
Typical Applications
- Robotic gripper end-effector assembly and configuration
- Vacuum cup cluster systems with modular nodal designs
- Flexible gripping architectures requiring customizable vacuum path routing
- Food handling, packaging, and material handling automation
- Precision part transfer and positioning in manufacturing
- Integration into multi-chamber or multi-pad vacuum systems
Compatibility & Replacements
Compatible With
- SCHMALZ VEE connector upper shells (VEE-CO-U series)
- SCHMALZ VEE basic modules (VEE-QCF series)
- SCHMALZ VEE connecting tubes (VEE-TU series)
- SCHMALZ VEE suction pads and gripping systems
- Standard G3/8″ female thread pneumatic lines and fittings
Replaces / Drop-In Replacement For
- Original SCHMALZ VEE-CO18-L-G3/8-IG units (direct OEM part)
- Part number 10.01.36.00020 (SCHMALZ internal designation)
Works With
- SCHMALZ VEE modular end-effector ecosystem
- ISO 4401 and ISO 1219 standard pneumatic/vacuum circuit diagrams
- G3/8″ ISO female thread pneumatic components and quick-change couplers
- Vacuum control systems and suction pad management platforms
