SMC AW30-N03C-Z is a modular type filter regulator designed for reliable pressure regulation in pneumatic and compressed air systems. This combination filter/regulator unit integrates both filtration and pressure control into a single compact module, reducing space requirements and piping complexity.
Overview
The SMC AW30-N03C-Z filter regulator operates within a pressure range of 7–125 psi, making it suitable for standard industrial pneumatic applications. As a modular air preparation unit, it can be stacked and combined with other similarly sized SMC products to build integrated fluid control systems. The unit features a transparent bowl guard that protects the bowl while allowing 360-degree visibility of internal contents, essential for monitoring condensate buildup and maintenance scheduling.
Key Features
- Modular design allows stacking with other AW series units for integrated air prep solutions
- Transparent bowl guard for complete visibility and environmental protection
- Integrated filter and regulator in one compact unit, reducing piping and space

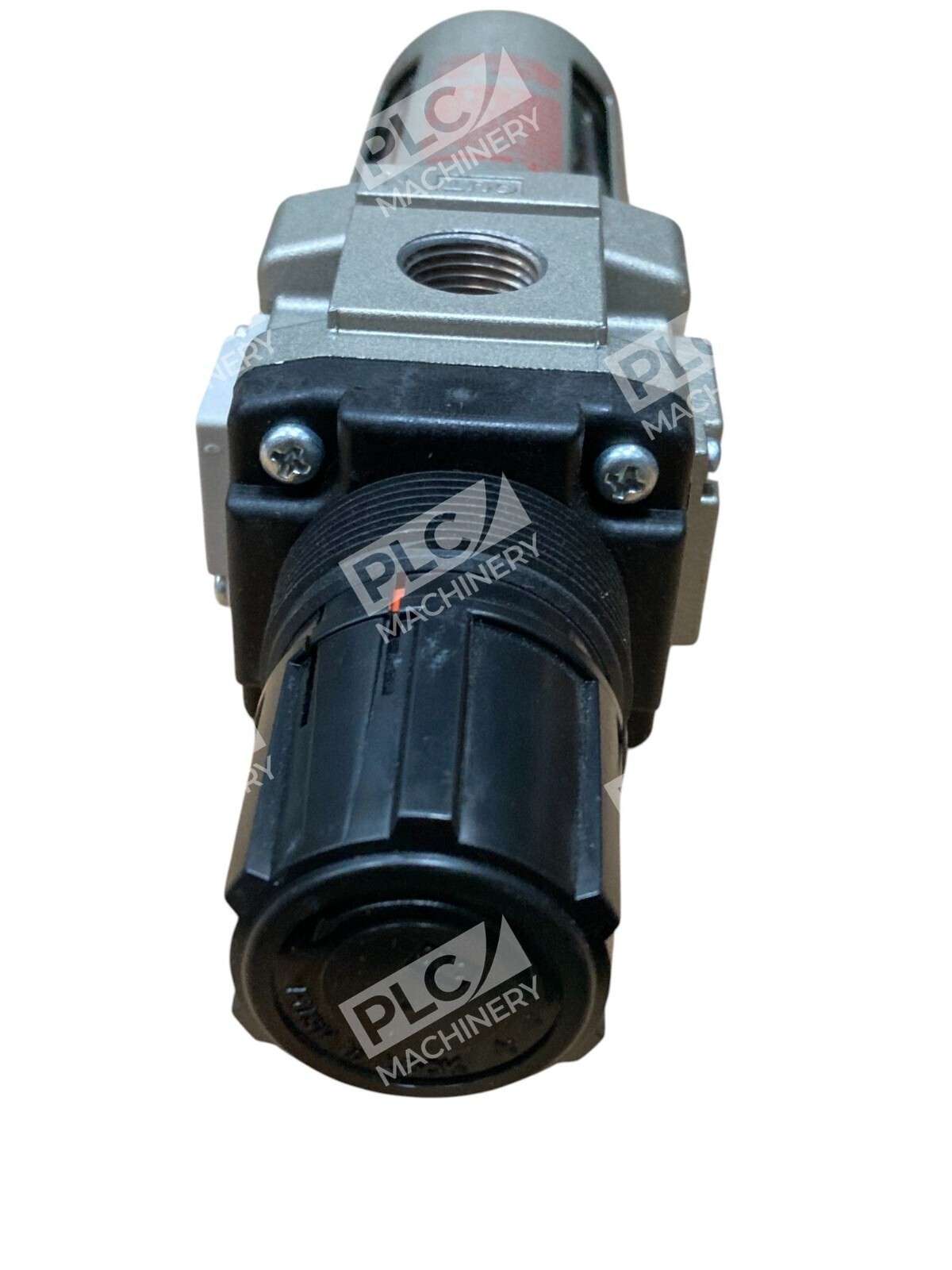

- Operating pressure range of 7–125 psi with adjustable regulator knob
- Available in multiple thread types (NPT, Rc, G) for flexible system integration
- 3/8-inch connection size (N03 designation) for medium-flow applications
Technical Specifications
- Manufacturer: SMC Corporation

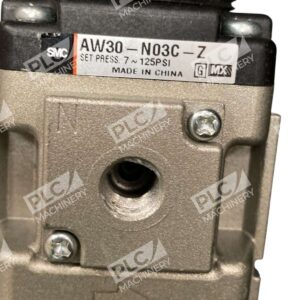

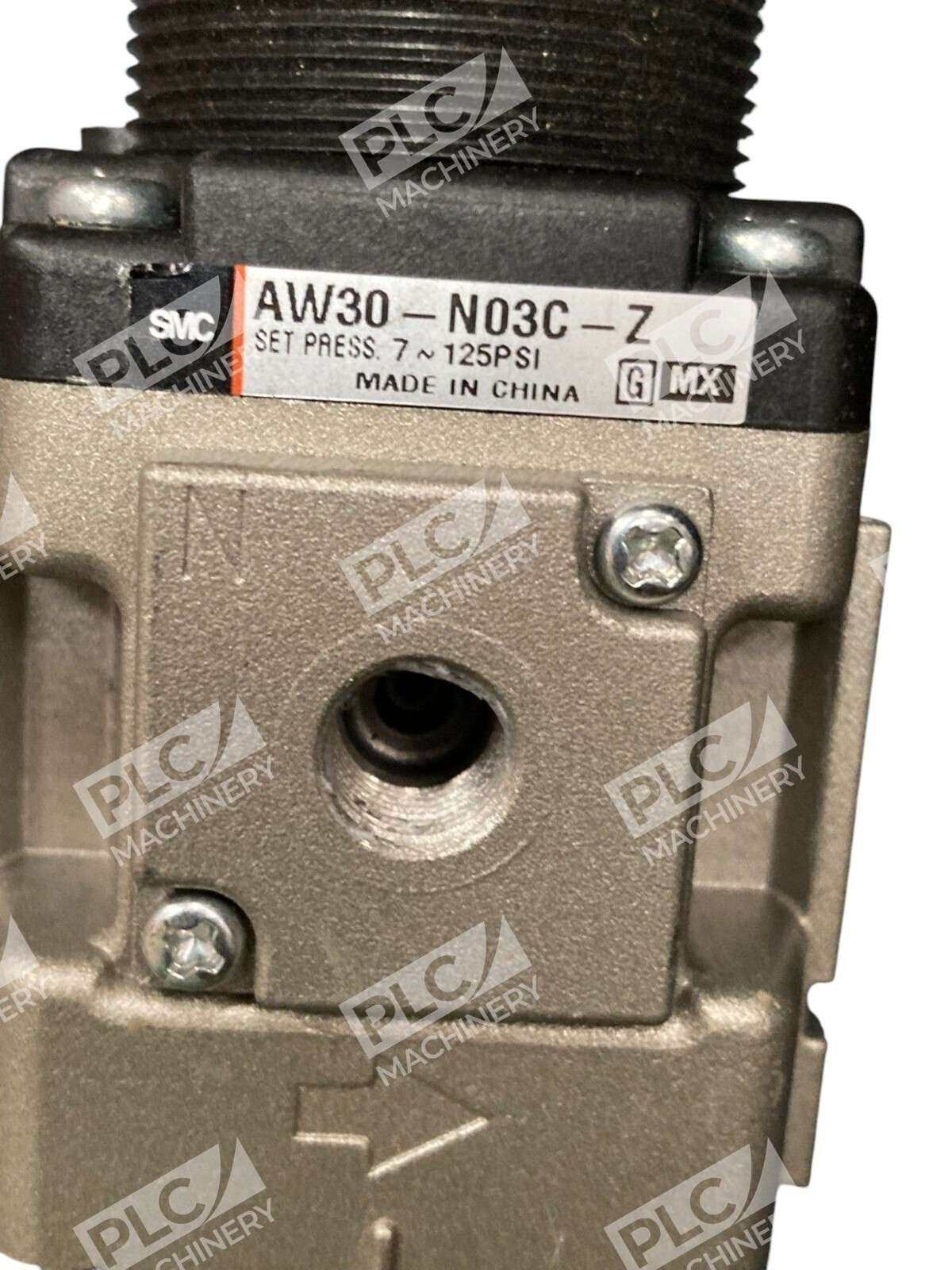

- Model: AW30-N03C-Z
- Body Size: 30 (modular size designation)
- Port Size: 3/8 inch NPT
- Pressure Range: 7–125 psi (0.05–0.9 MPa)

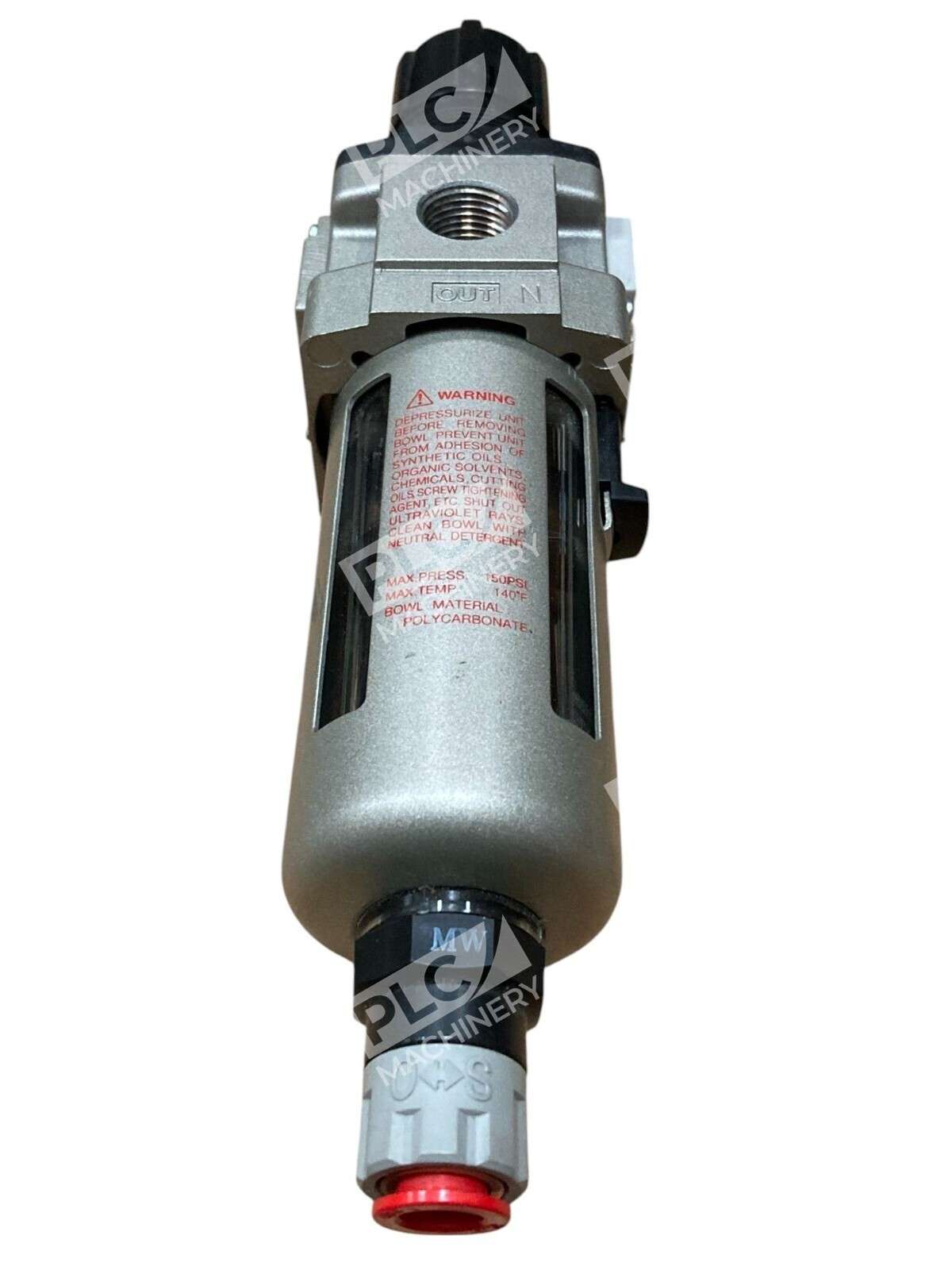

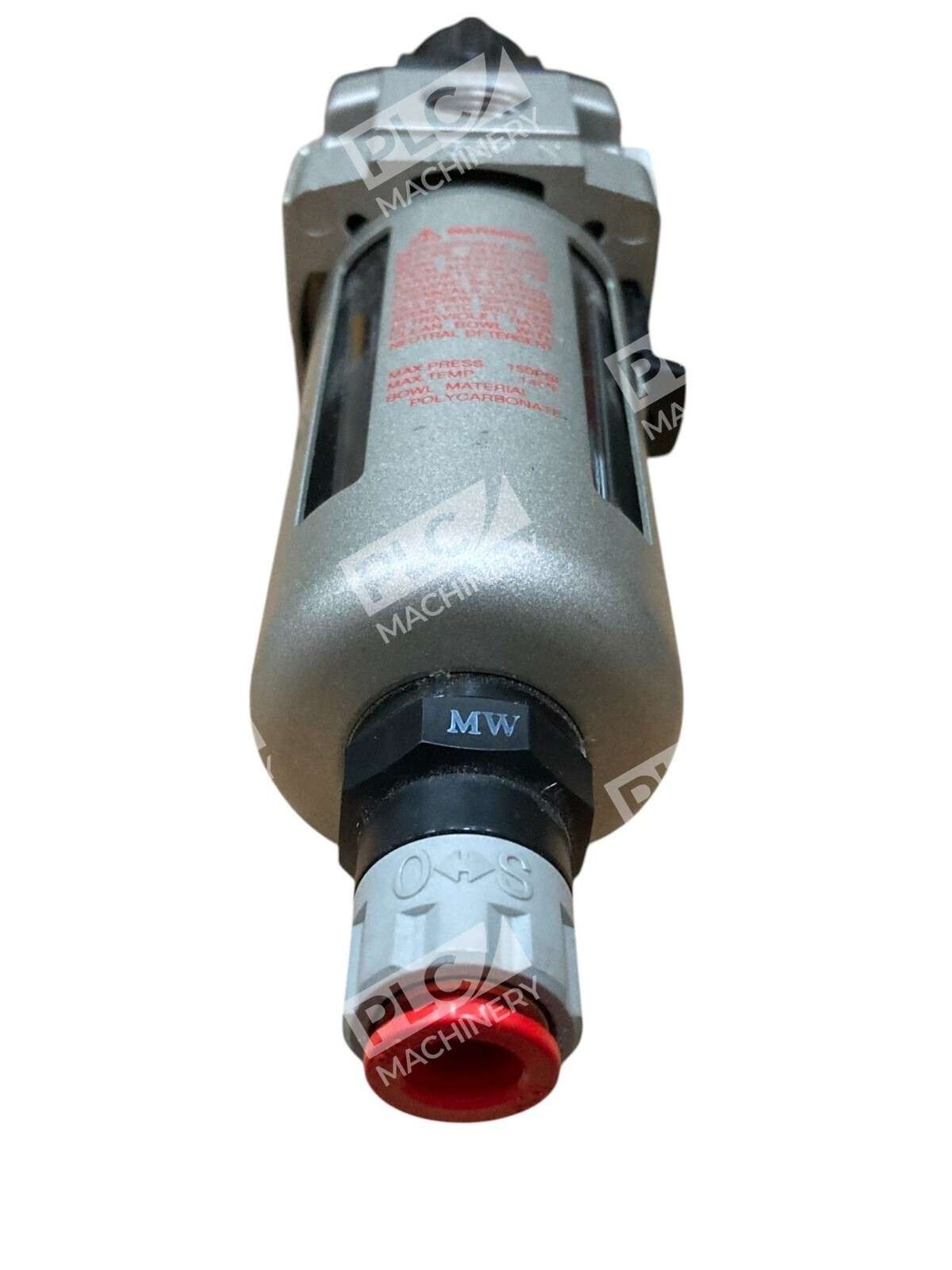

- Bowl Type: Standard plastic with transparent guard
- Flow Direction: Left to right (bidirectional compatible)
- Operating Temperature: –5 to +60°C (typical pneumatic range)
- Element Type: One-piece filter element and bowl assembly for easier maintenance
Typical Applications
- Compressed air systems in manufacturing and assembly lines
- Pneumatic tool preparation and regulation
- Fluid power circuits requiring pressure stabilization
- OEM machinery air prep modules
- Maintenance pneumatic systems in industrial facilities
- Modular control panel installations requiring stackable air components
Compatibility & Replacements
Compatible With
- SMC modular air preparation series (AW10, AW20, AW40, AW60)
- Standard pneumatic systems operating at 7–125 psi
- NPT and G thread pneumatic networks
- Modular control panel mounting applications
- Compressed air distribution headers and manifolds
Replaces / Drop-In Replacement For
- SMC AW30-N03-Z (standard variant without suffix codes)
- Verify specific variant compatibility (A, B, C, Z, or Z-D designation) with your system documentation before ordering
Works With
- SMC pneumatic actuators and cylinders
- Modular air preparation units (stackable with AW series)
- Standard pneumatic valves and solenoid controls
- Compressed air lines and fittings (NPT, Rc, G thread types)
- Industrial air compressor discharge piping
