Overview

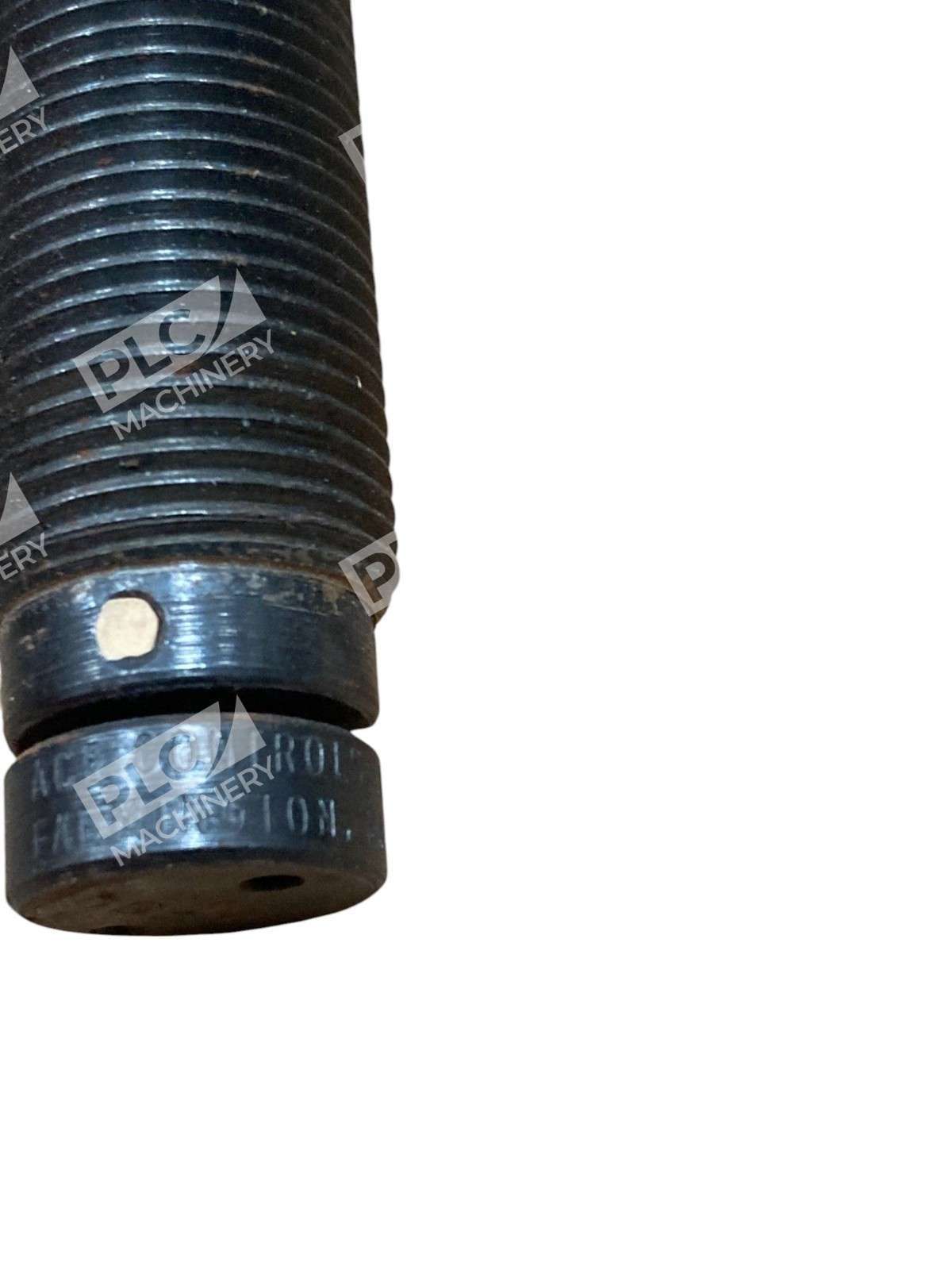

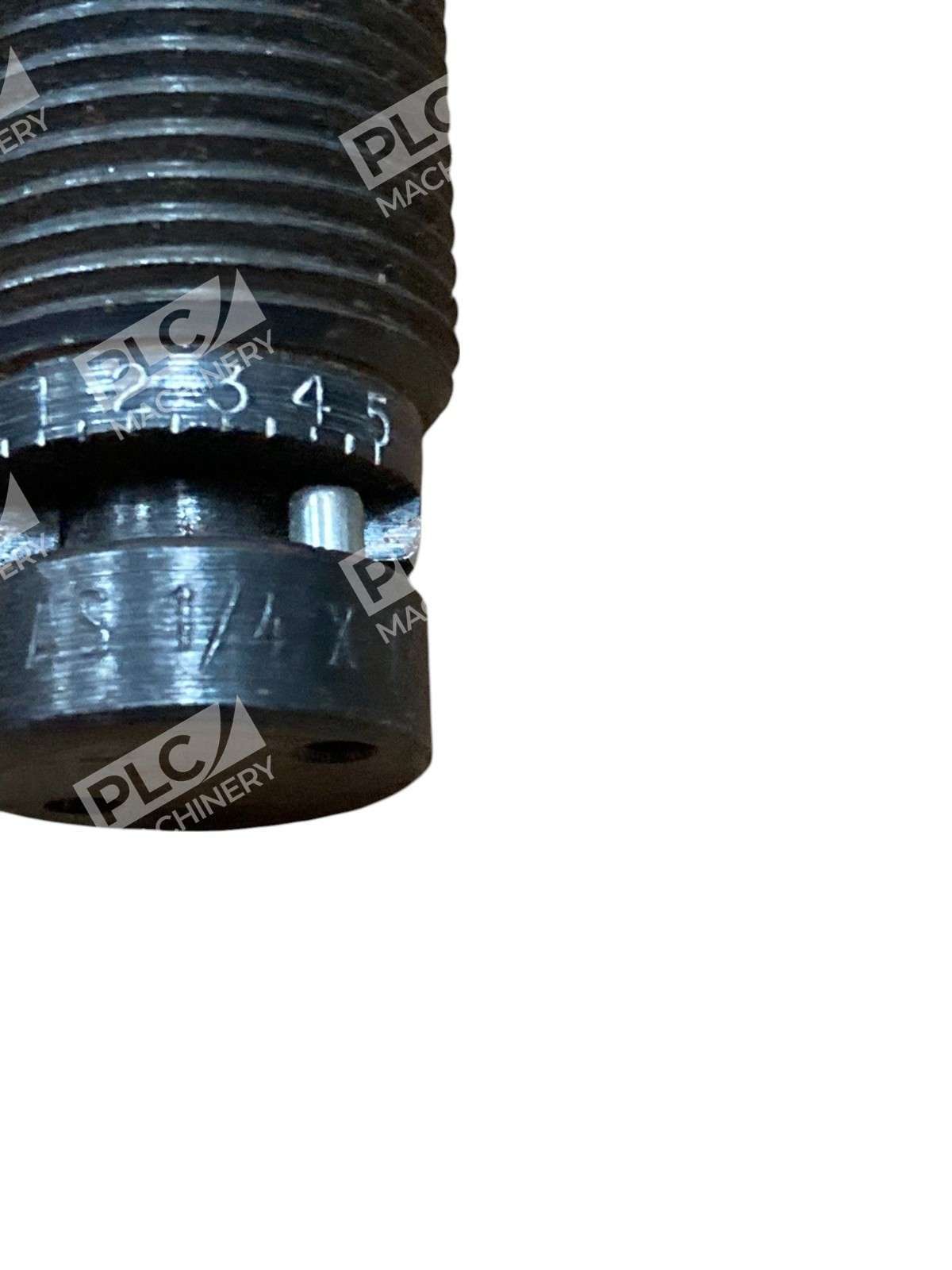

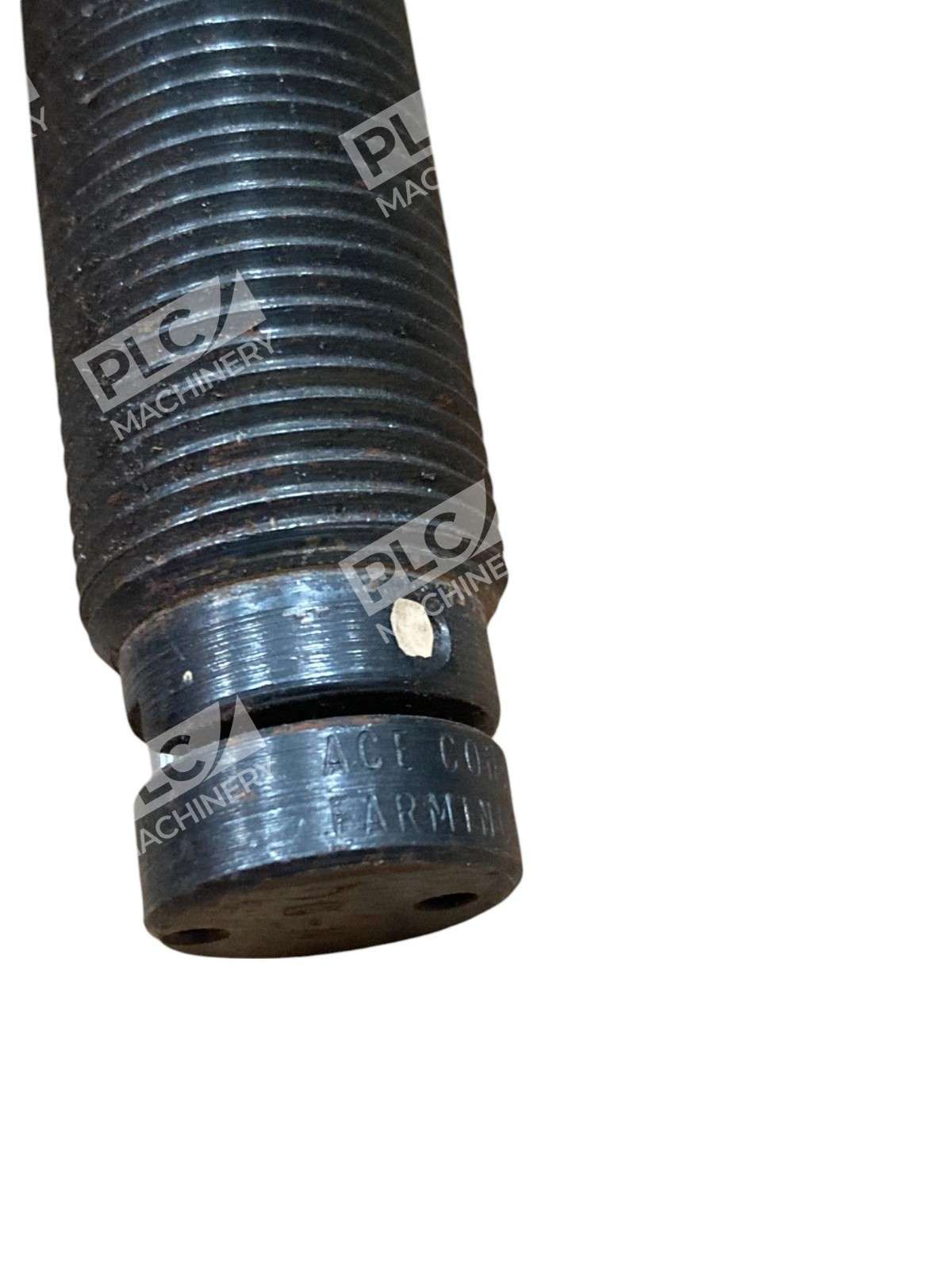

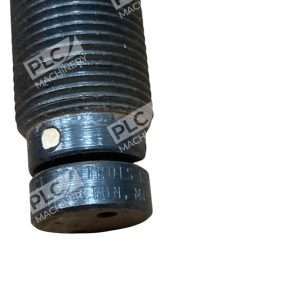

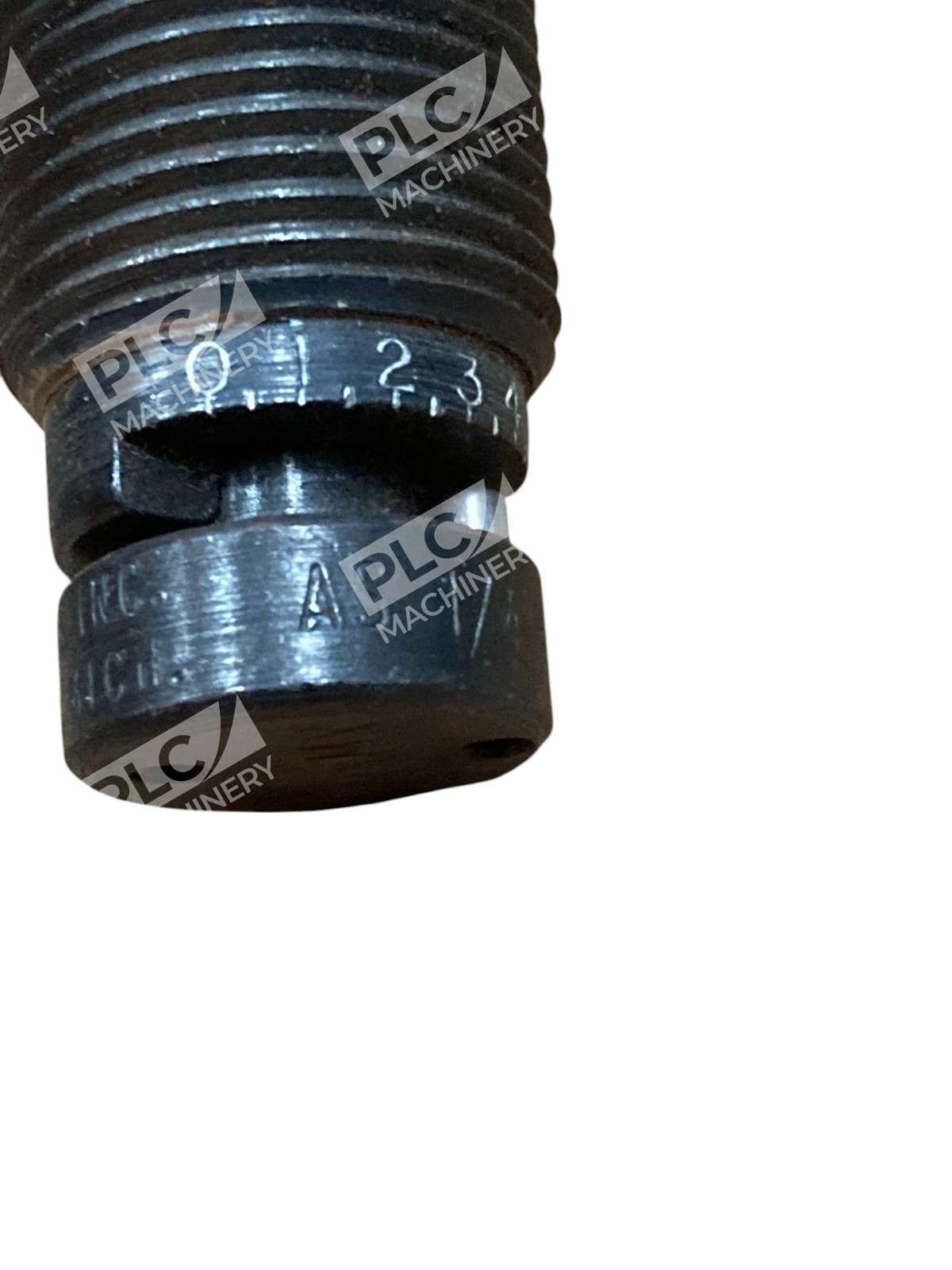

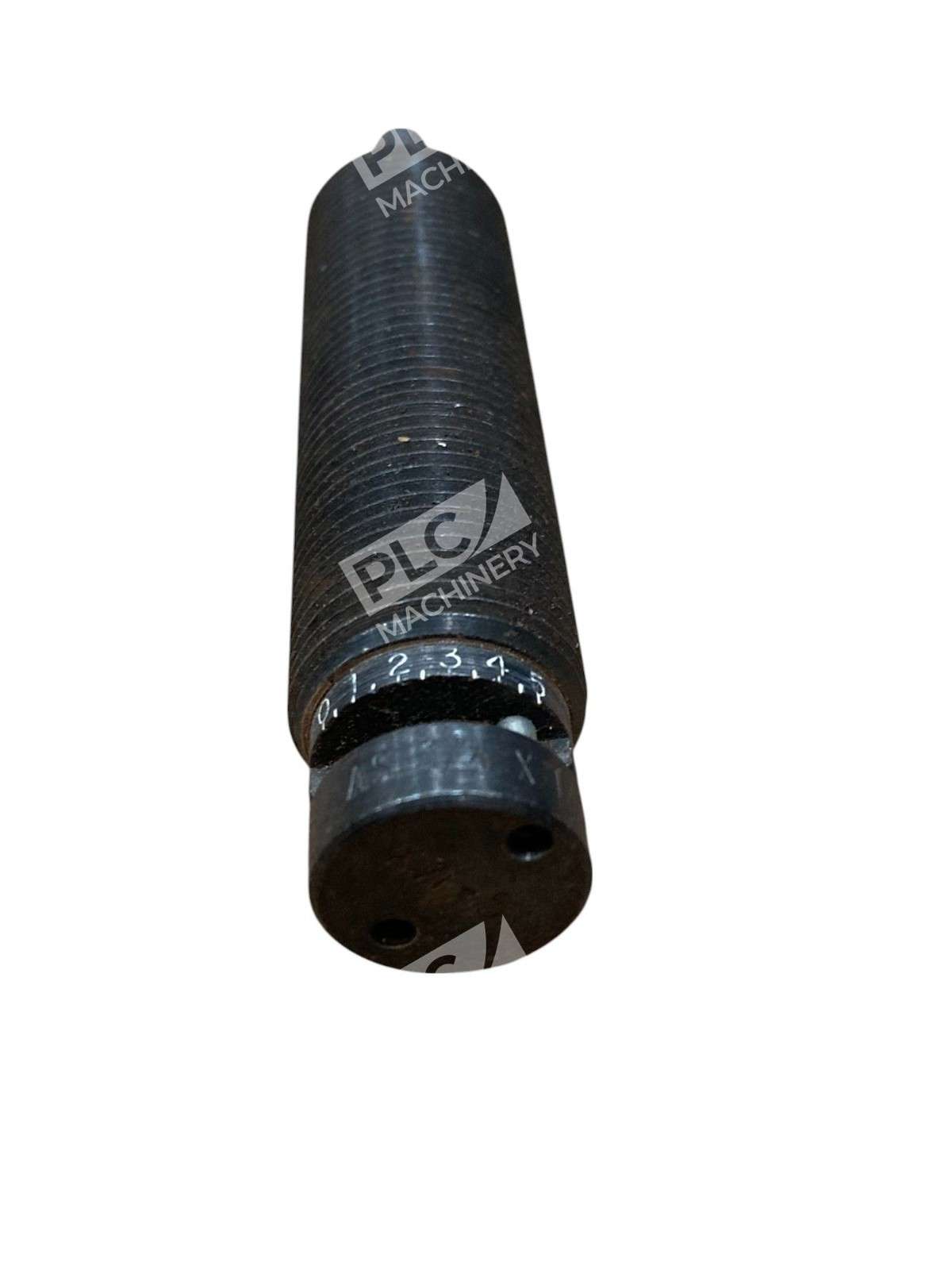

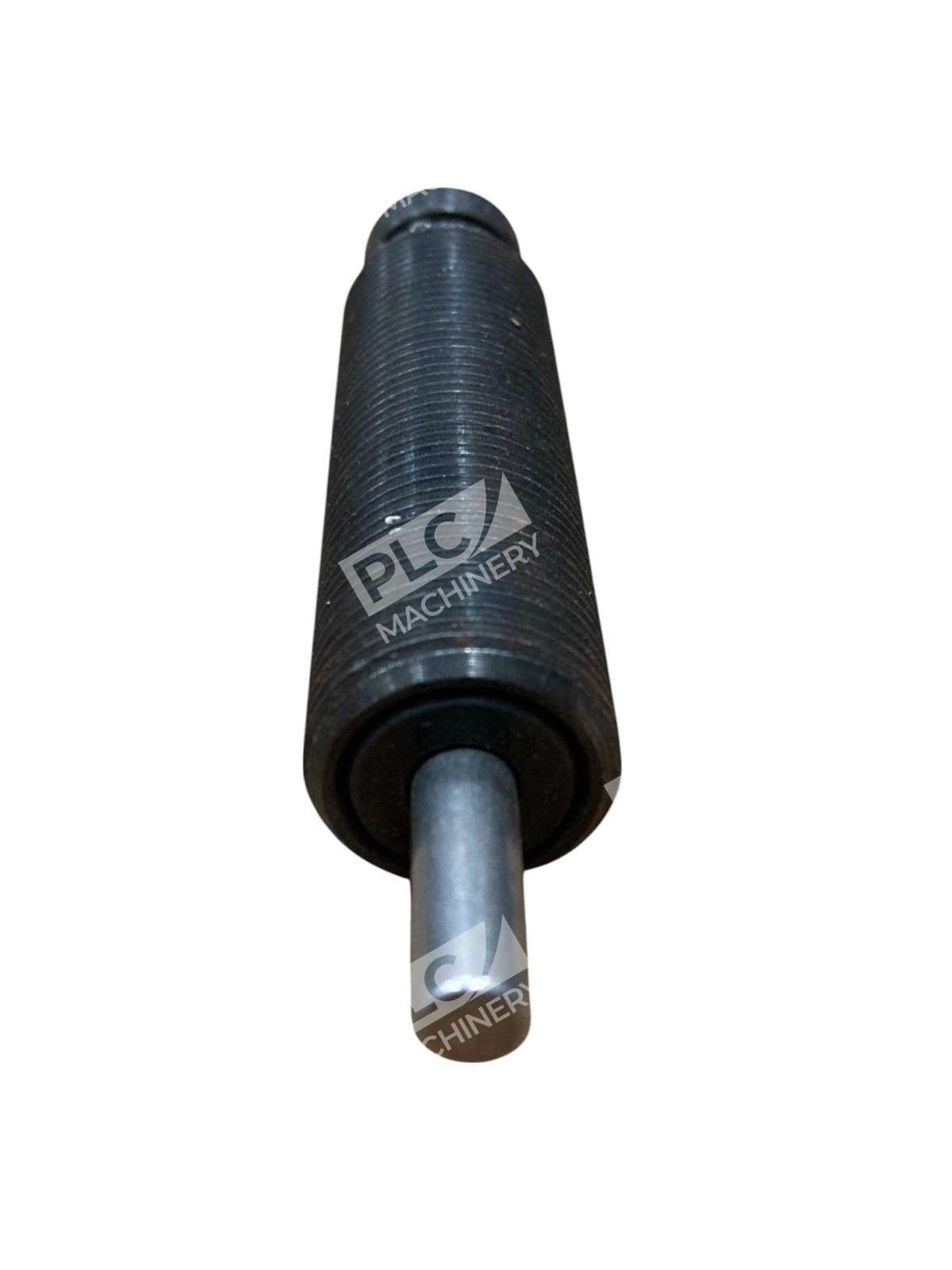

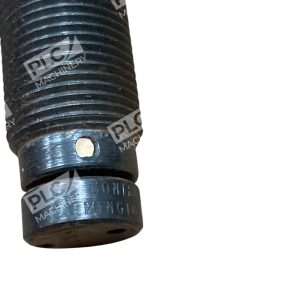

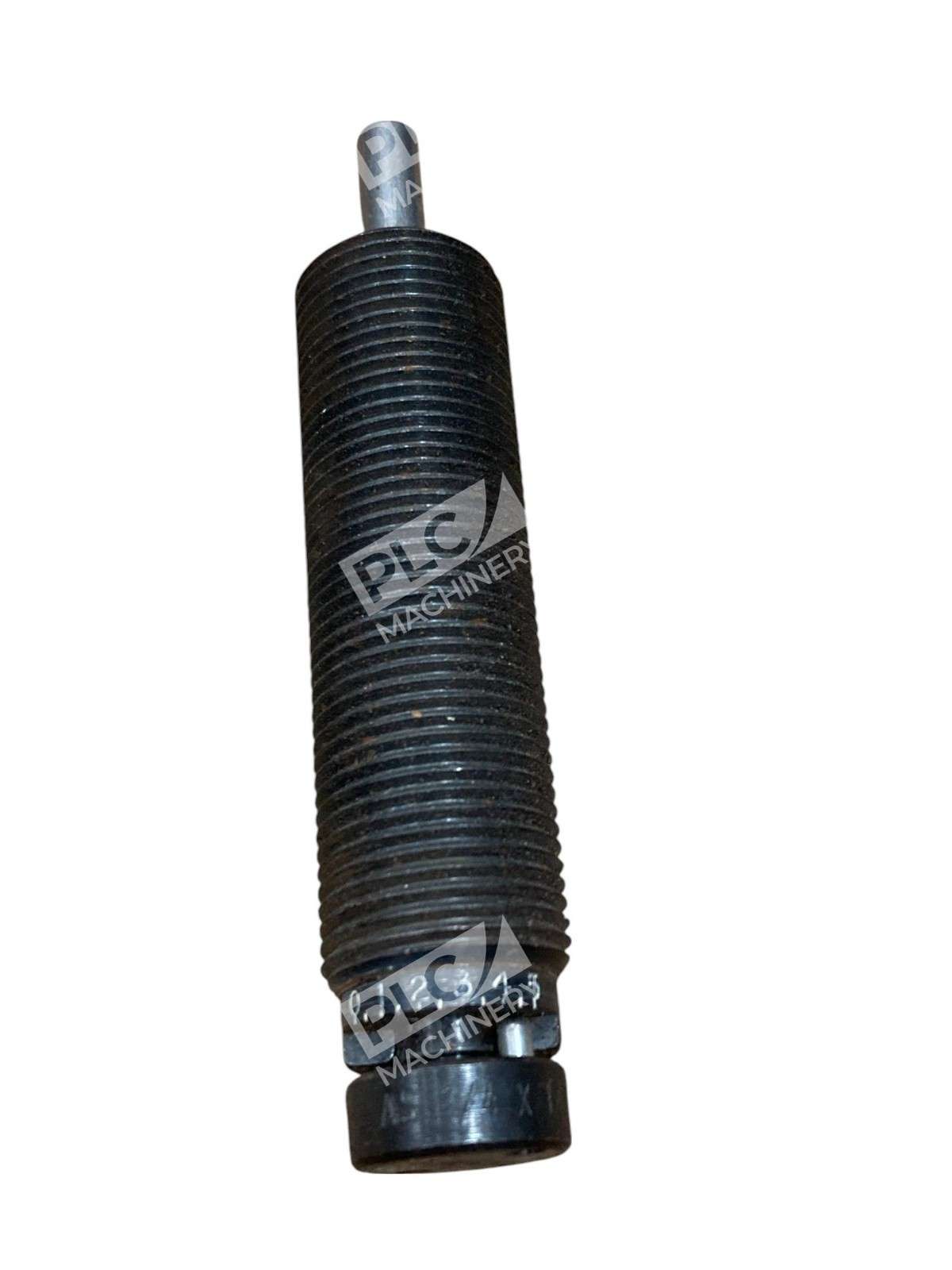

The Ace Controls AS 1/4 X is a miniature shock absorber designed for industrial automation and motion control applications where space is limited. This Ace Controls AS 1/4 X unit converts kinetic energy into heat through its hydraulic damping mechanism, protecting equipment from shock damage and extending machinery life. Manufactured by Ace Controls Inc., a leader in damping technology, this compact absorber is maintenance-free and self-contained, requiring no adjustment during normal operation.
Key Features
- Compact miniature design for space-constrained applications
- Maintenance-free, self-contained hydraulic design
- Multi-orifice system provides consistent linear deceleration
- Smooth motion control regardless of varying load conditions
- Durable hardened steel construction with stainless steel piston rod
- Factory-sealed unit requires no oil refill or adjustment
Technical Specifications
The Ace Controls AS 1/4 X features a 1/4-inch connection size, making it ideal for pneumatic and hydraulic systems requiring compact damping solutions. Built with hardened steel body construction and hardened stainless steel piston rod, the unit withstands demanding industrial environments. The internal multi-orifice design ensures linear deceleration across the full stroke length, reducing peak reaction forces and minimizing wear on connected equipment.
Typical Applications
- Automated machinery with motion control requirements
- Pneumatic and hydraulic systems requiring deceleration
- Assembly machinery where smooth motion is critical
- Packaging equipment with controlled stopping action
- Material handling systems with impact cushioning needs
Compatibility & Replacements
Compatible With
- 1/4-inch pneumatic and hydraulic system connections
- Industrial machinery requiring compact shock absorption
- Systems requiring self-compensating deceleration
- Automation equipment operating in standard temperature ranges
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The AS 1/4 X is designed as a direct replacement for legacy miniature shock absorber applications using 1/4-inch connections. Consult Ace Controls technical support or your OEM documentation to confirm exact replacement compatibility.
Works With
- Standard 1/4-inch pneumatic and hydraulic connections
- ISO-compliant industrial automation systems
- Temperature ranges typical of manufacturing environments
- Multi-directional mounting configurations
