Overview

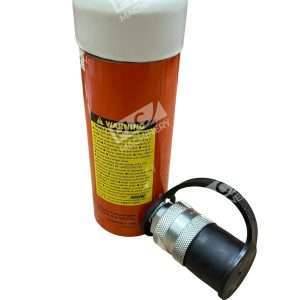

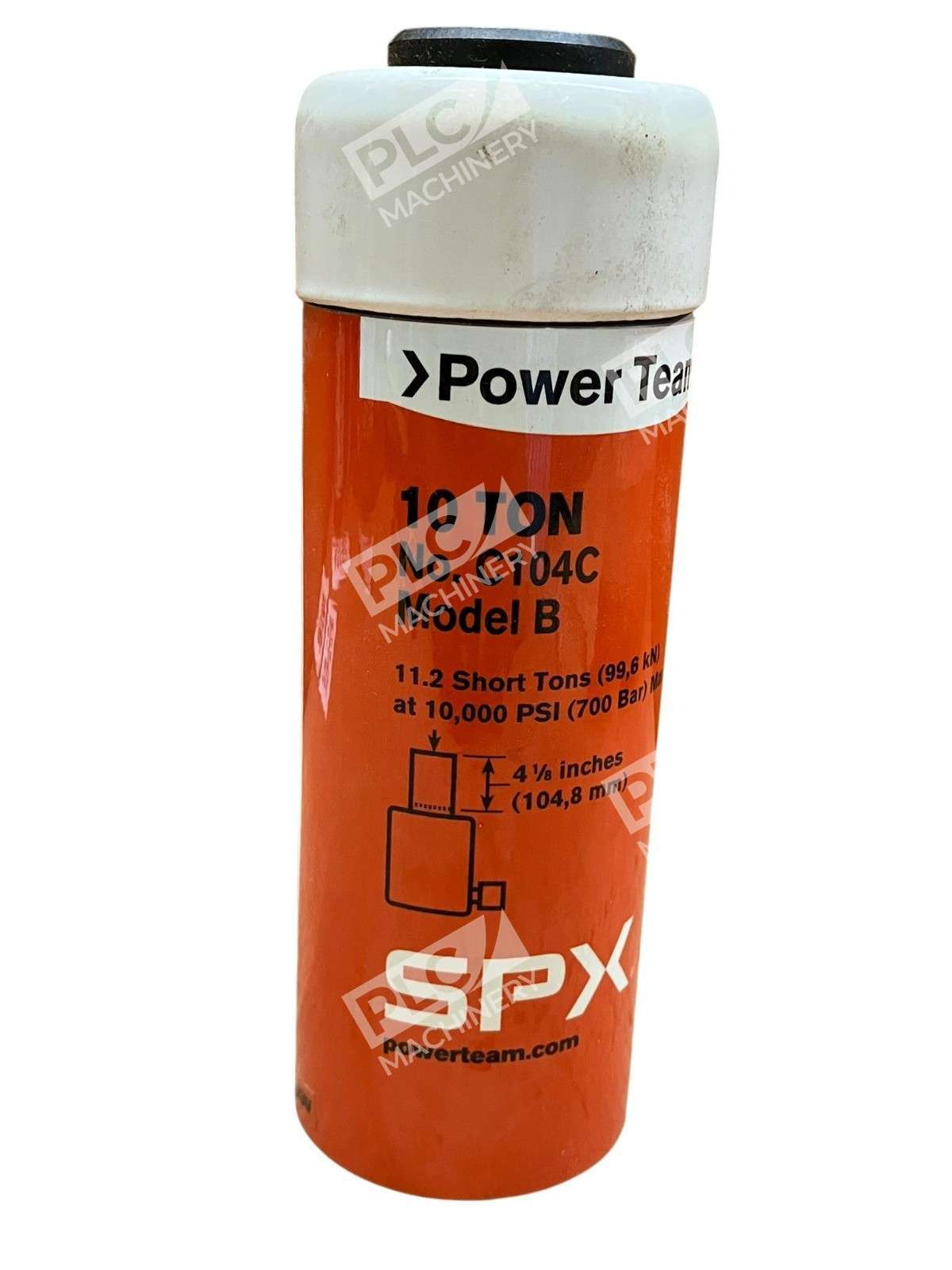

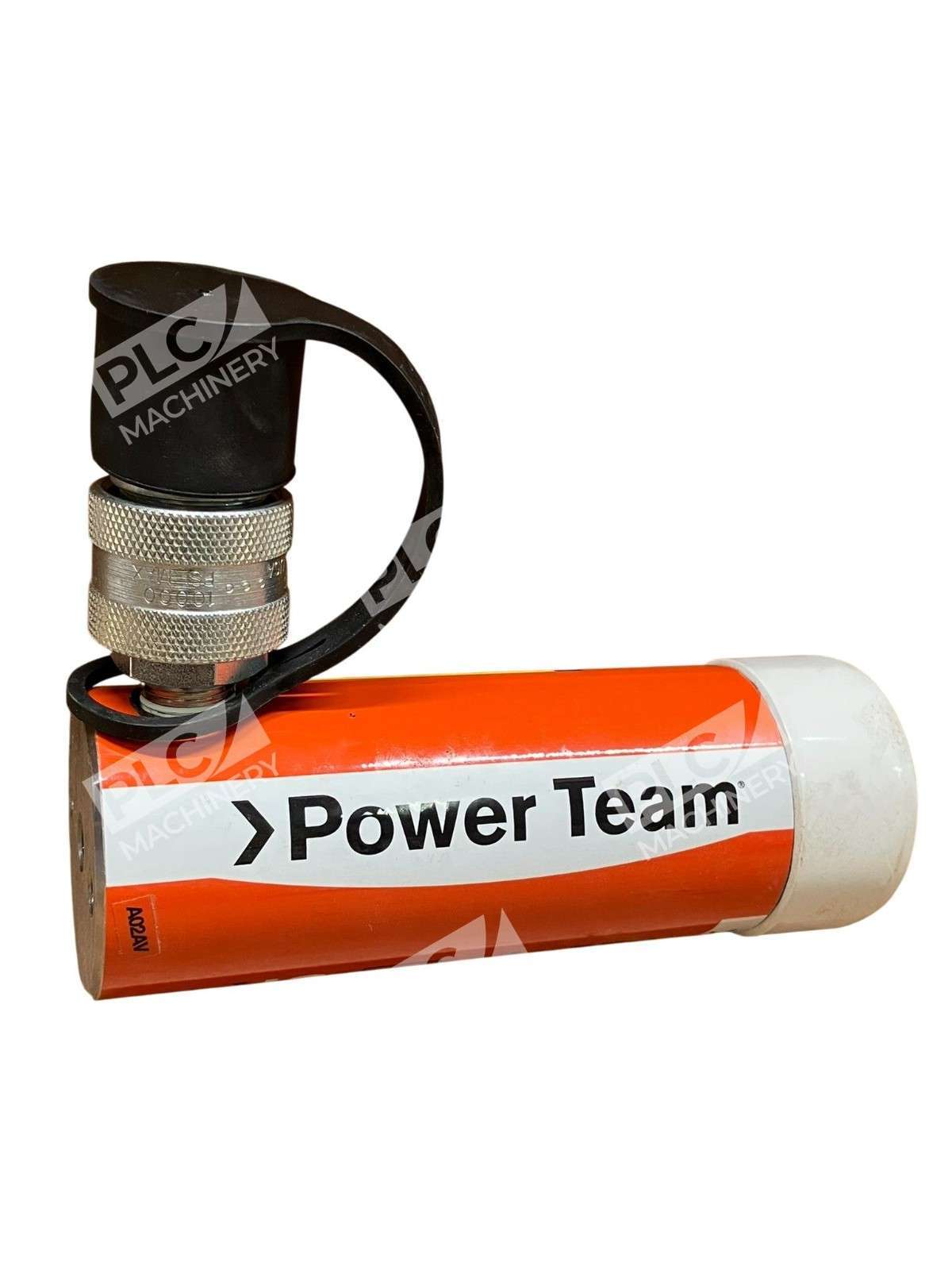

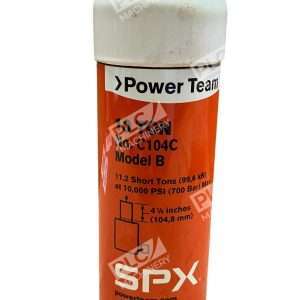

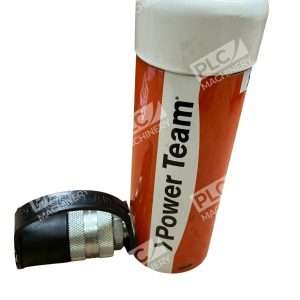

The SPX Power Team C104C is a compact, rugged general-purpose single-acting, spring-return hydraulic cylinder designed for lifting, pressing, and other industrial applications. Operating at pressures up to 10,000 psi, this 10-ton capacity cylinder combines proven durability with cost-effective performance. Made in the United States, the C104C features a solid steel cylinder body, chrome-plated piston rod, and aluminum bronze bearing—the industry standard for reliable shop and field use.
Key Features
- Single-acting, spring-return design—extends under pressure, retracts via spring force
- Solid steel cylinder body for durability and long service life
- Chrome-plated piston rod resists wear and corrosion in harsh environments
- Aluminum bronze bearing reduces wear from off-center loads
- Maximum-sized spring speeds piston return and extends spring life
- 3/8″ NPTF female half-coupler standard; wide accessory compatibility
- Base mounting holes standard for simple field installation
Technical Specifications
- Capacity: 10 tons at maximum pressure
- Maximum Pressure: 10,000 psi
- Stroke/Travel: 4.13 inches (4-1/8″)
- Collapsed Height: 6.75 inches
- Extended Height: 10.88 inches
- Piston Rod Diameter: Chrome-plated steel
- Port Thread: 3/8″ NPTF female (standard half-coupler)
- Cylinder Body: Solid steel construction
- Bearing: Aluminum bronze
- Weight: Approximately 6.7 lbs
- Series: Power Team C Series
- Country of Origin: United States
Typical Applications
- Lifting and pressing operations in manufacturing
- Machine tool work and metalworking shops
- Construction and equipment rigging
- Hydraulic systems paired with hand pumps, air pumps, or electric pump units
- General industrial and mobile equipment
- Maintenance and repair applications requiring compact, portable hydraulic force
Compatibility & Replacements
Compatible With
- Power Team hand hydraulic pumps (P-series models)
- Air/hydraulic pump systems rated to 10,000 psi
- Electric hydraulic pump units (2-speed and single-speed)
- Standard hydraulic tubing and hose 3/8″ NPTF port
- Directional control valves rated to 10,000 psi
- Pressure relief valves and manifold systems compatible with C Series cylinders
Replaces / Drop-In Replacement For
- Earlier generation SPX Power Team C104C units (same part number)
- Compatible with any 10-ton, single-acting, spring-return cylinder system requiring 3/8″ NPTF port and 4.13″ stroke
- Verify compatibility with your system integrator before ordering
Works With
- SPX Power Team C Series catalog and interchangeable accessories
- Hydraulic systems using mineral oil or compatible hydraulic fluid
- Power Team directional control valve systems
- Standard ANSI B30.1-compliant lifting and pressing applications
- Accessory threads on piston rod, collar, and cylinder base for quick mounting
