Overview

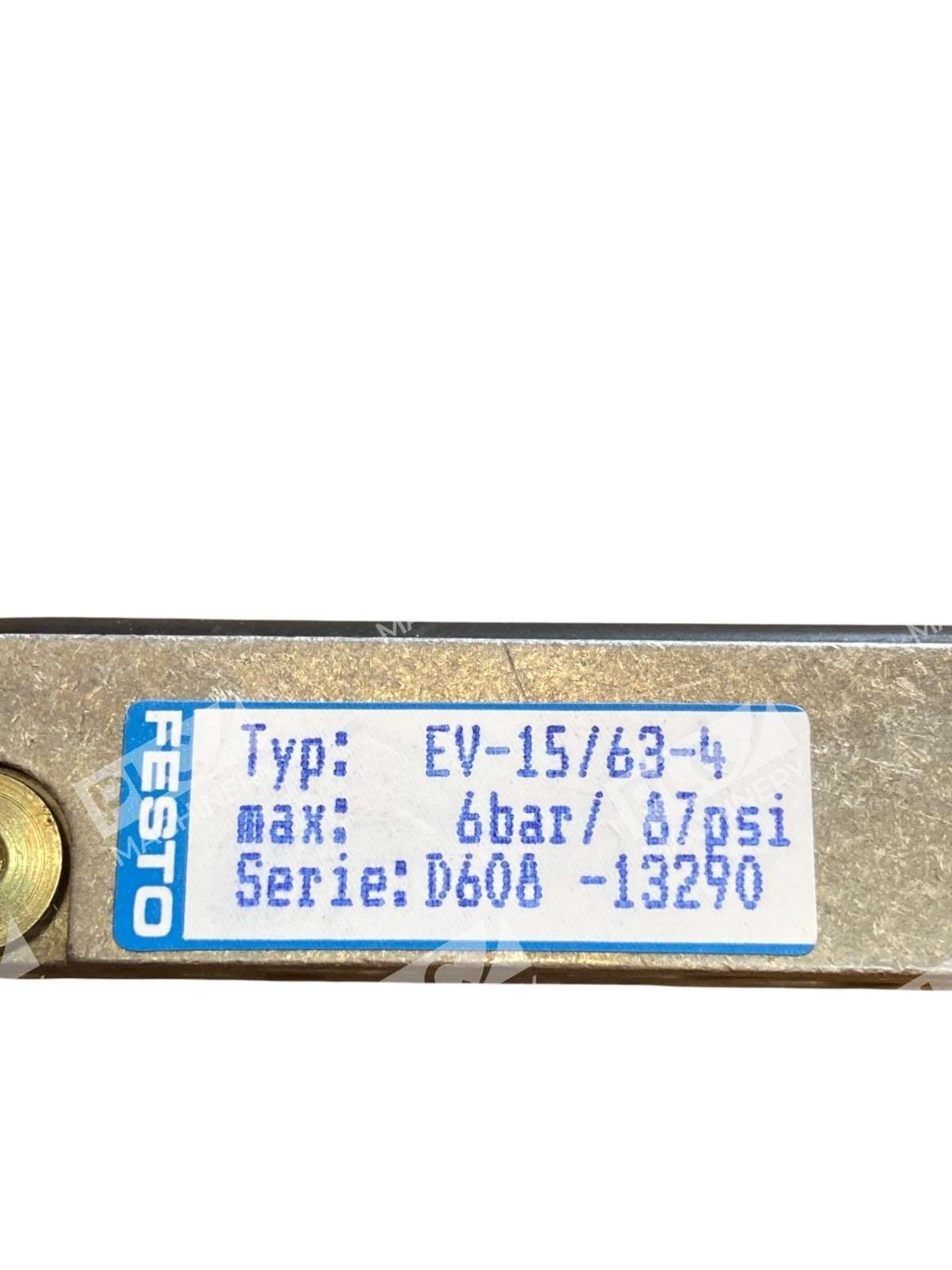

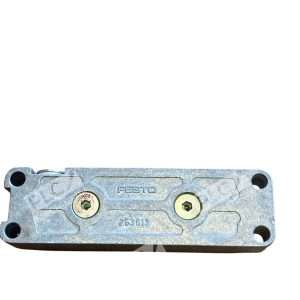

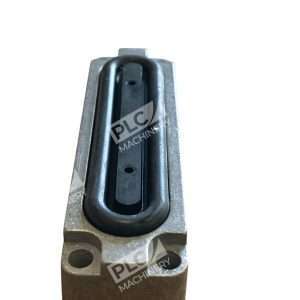

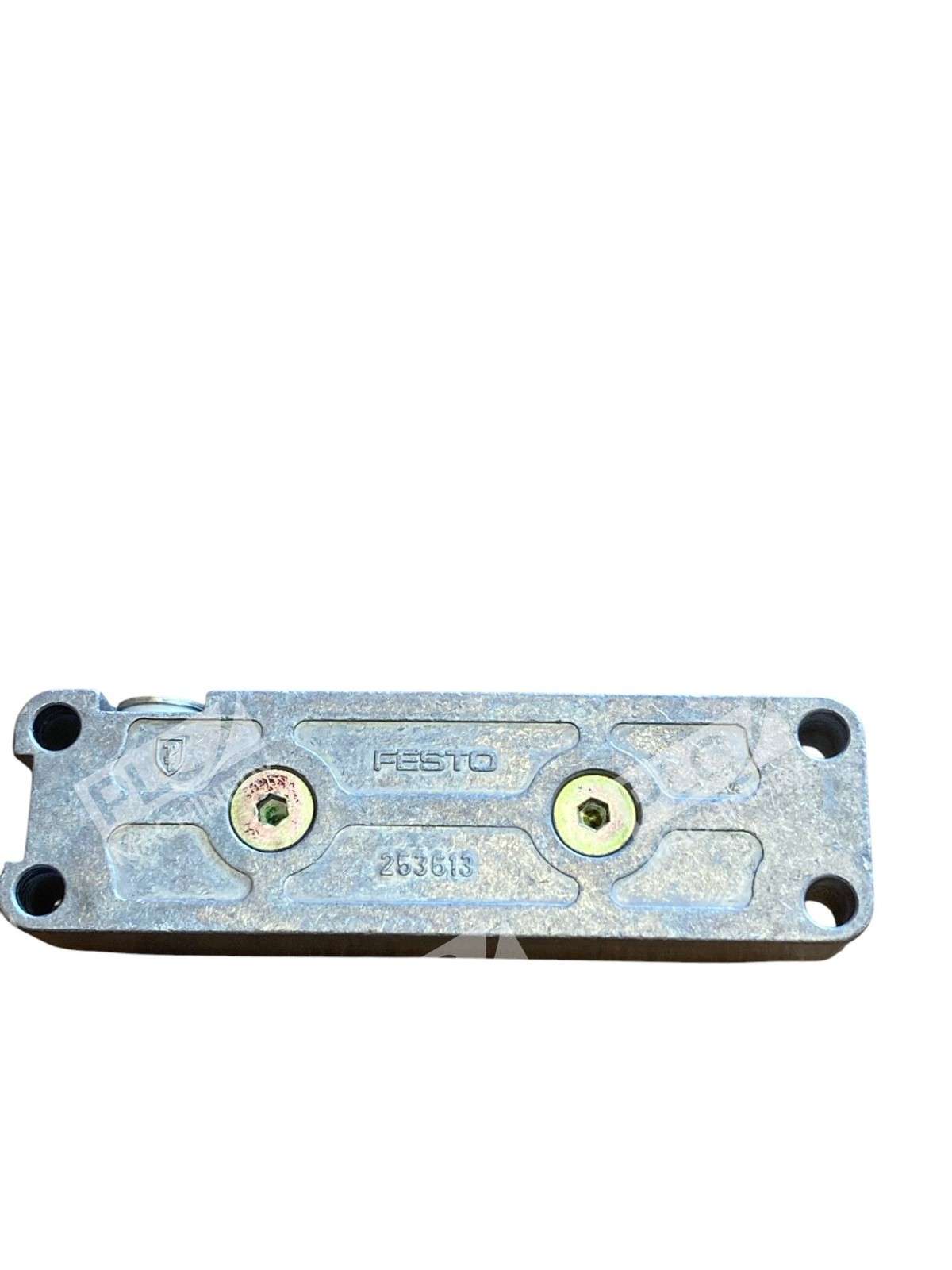

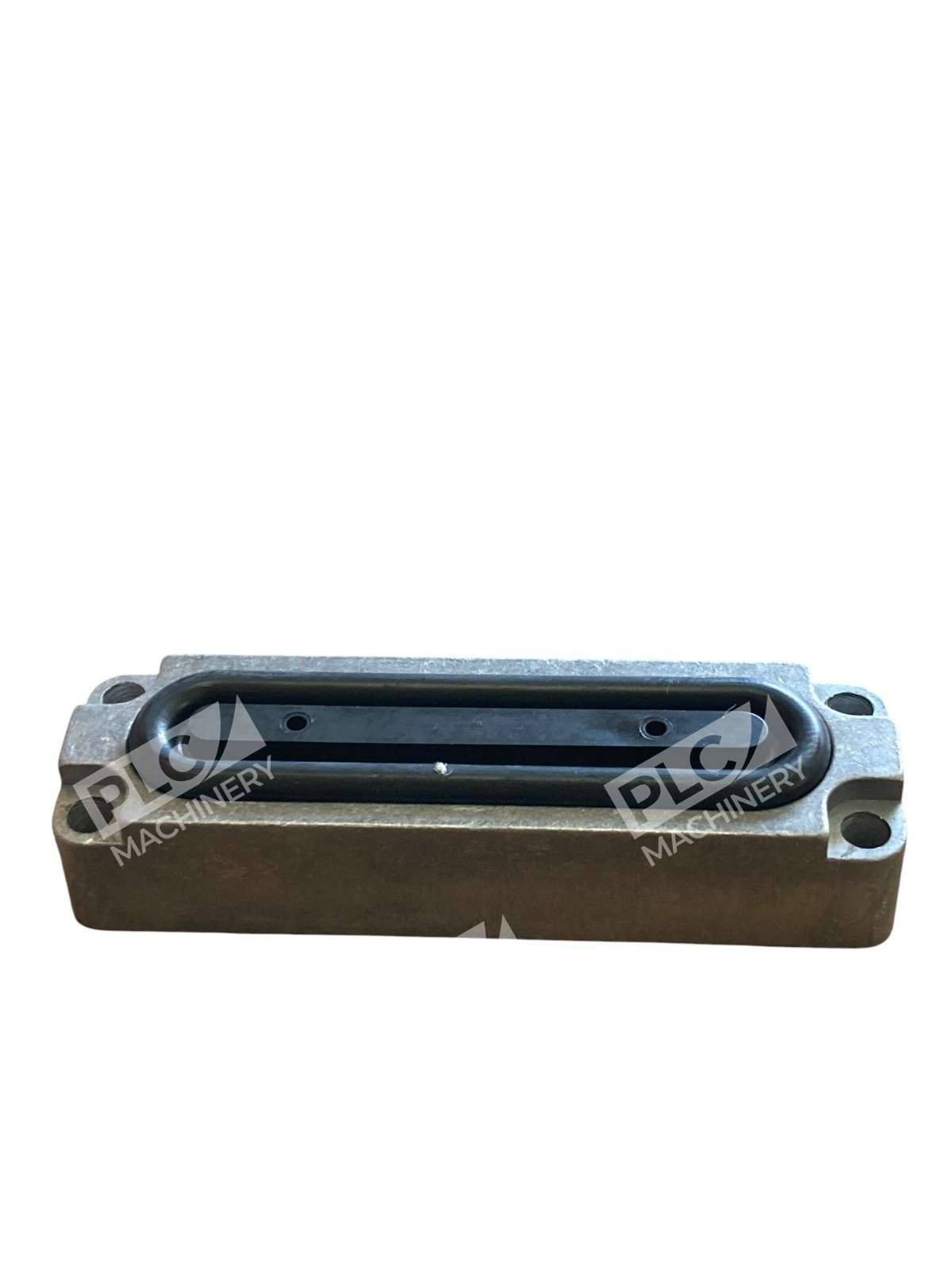

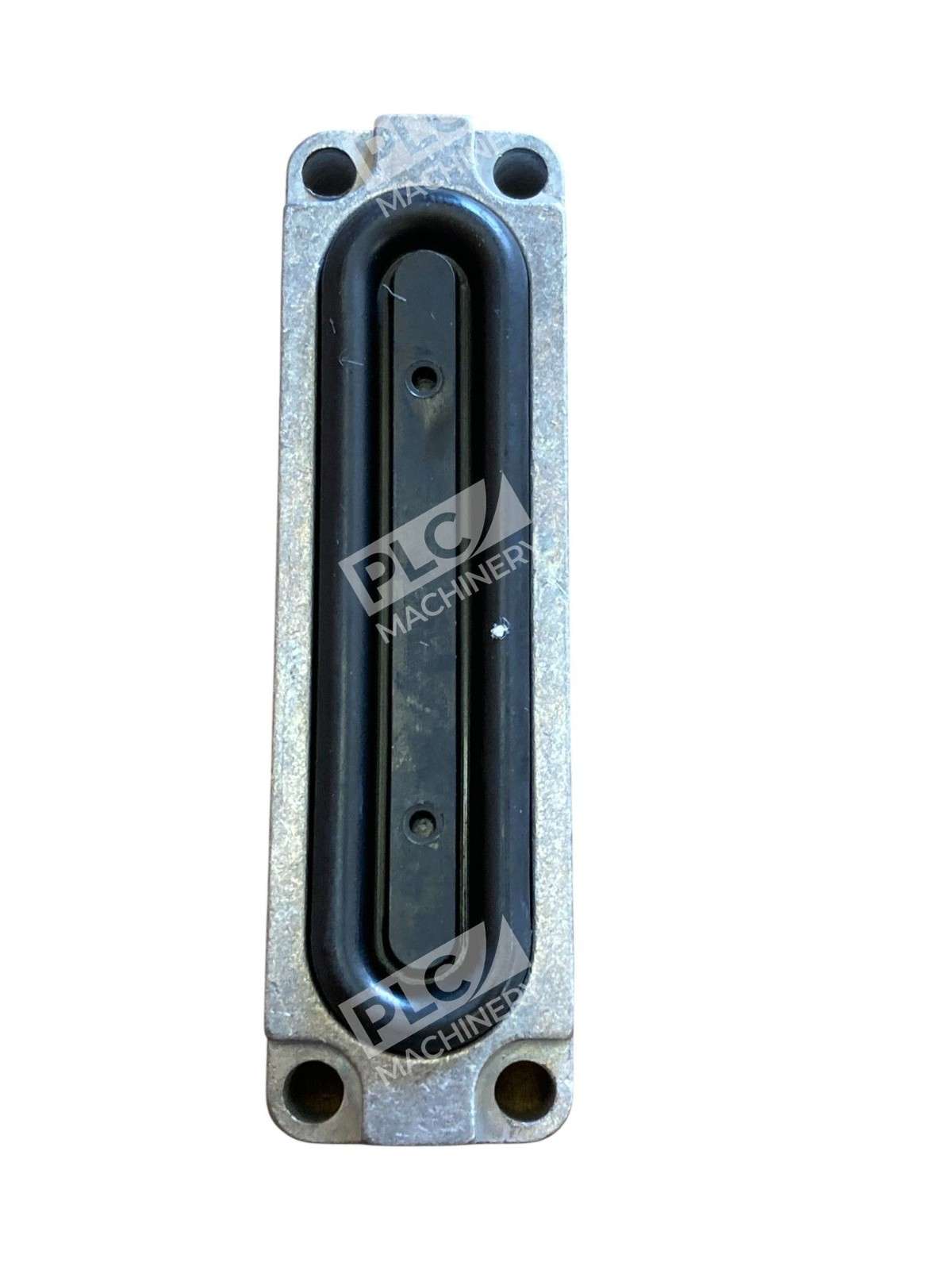

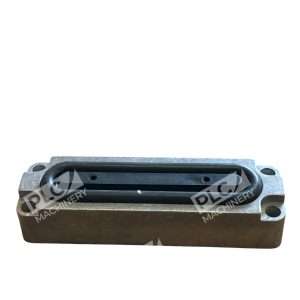

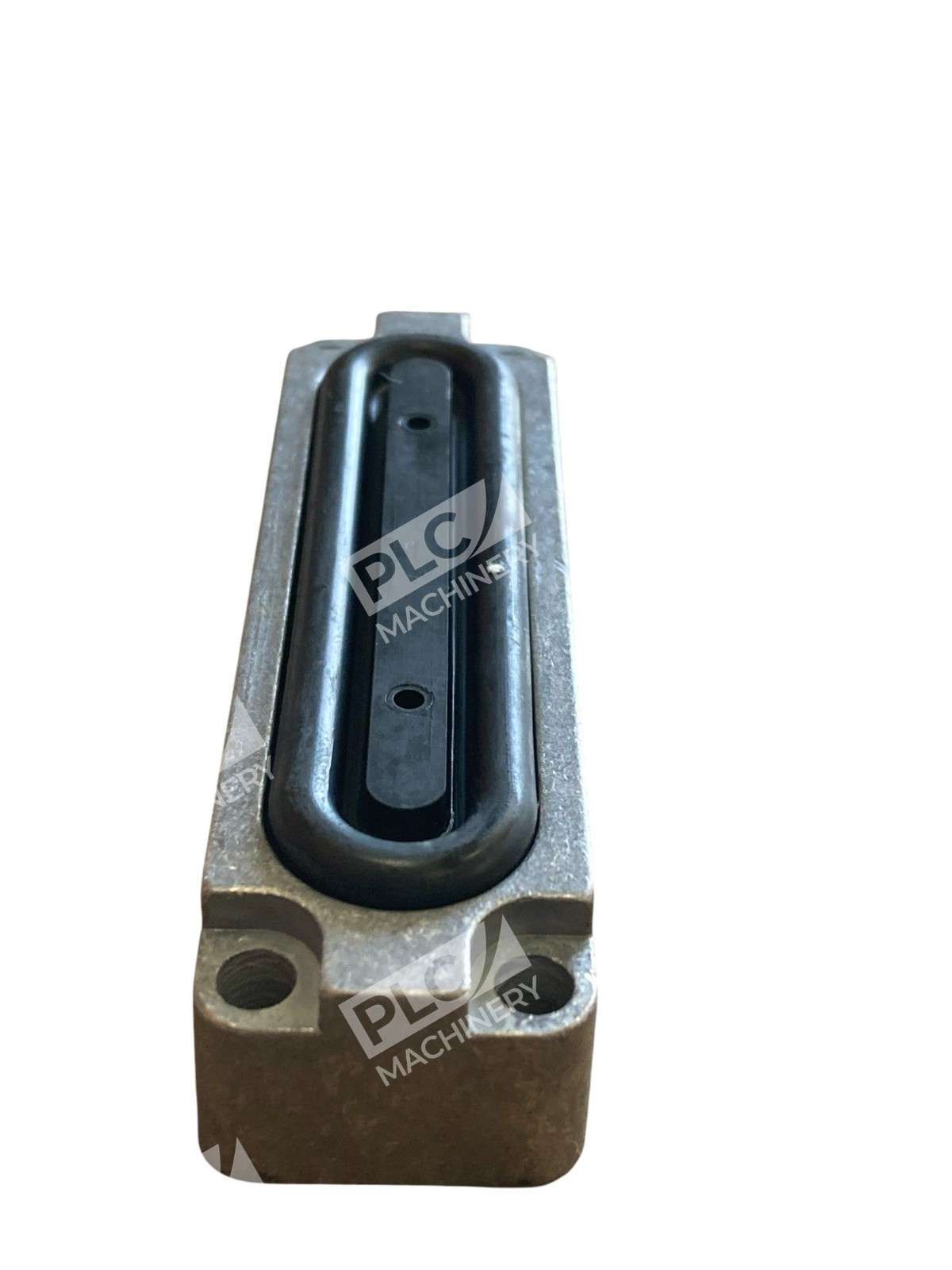

The Festo EV-15/63-4 is a compact rodless clamping cylinder from Festo’s EV Series, engineered for single-acting pneumatic clamping operations. This hermetically sealed module delivers consistent workholding force across a 15 × 63 mm clamping surface with a 4 mm stroke, making it ideal for fixturing and positioning tasks in manufacturing automation. The diaphragm-equipped design ensures durability in harsh industrial environments while maintaining repeatable performance.
Key Features
- Compact rodless cylinder design with diaphragm pressure chamber
- Single-acting operation with integrated reset function
- Hermetically sealed housing — resistant to dust and moisture
- Die-cast aluminum body — copper-free for enhanced corrosion resistance
- Through-hole mounting for flexible assembly in any position
- Operating pressure range: 2–6 bar
- Foot mounting and pressure plates available as accessories

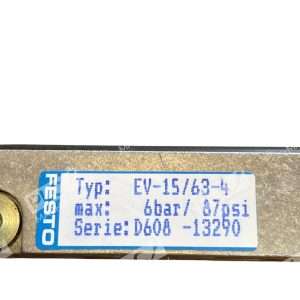

Technical Specifications
- Clamping surface dimensions: 15 × 63 mm
- Stroke: 4 mm
- Actuation: Single-acting with reset
- Operating pressure: 2–6 bar
- Pneumatic connection: M5 threaded port
- Control connection: M4 female threaded connector
- Housing material: Die-cast aluminum
- Weight: 65 g
- Ambient temperature range: −20°C to +40°C
- Design: Flat profile, modular
Typical Applications
The Festo EV-15/63-4 is widely deployed in:
- Precision workholding fixtures and machining centers
- Assembly automation and robotic work-cell clamping
- Modular fixturing systems and flexible manufacturing setups
- Process automation where repeatable clamping force is critical
- Medical device and electronics manufacturing assemblies
- Packaging and material handling applications
Compatibility & Replacements
Compatible With
- Standard pneumatic compressed air supplies (ISO 8573-1:2010 Grade 7)
- Industrial automation frameworks supporting M5 and M4 threaded connections
- Any modular fixturing system accepting 15 × 63 mm clamping surfaces
- Festo EV Series accessory ecosystem (pressure plates, foot mounting, adapters)
Replaces / Drop-In Replacement For
- Previous-generation Festo clamping cylinders with matching 15 × 63 mm clamping surface and M5 pneumatic port
- Verify exact interchangeability with your system integrator before ordering, as mounting interface and connection type variations may apply
Works With
- Standard pneumatic valve manifolds and directional control valves (2/2, 3/2)
- Festo pressure regulators, solenoid valve packs, and EtherNet/IP or PROFINET fieldbus integration modules
- Any pneumatic tubing and quick-coupling systems compatible with M5 threads
- Industrial PLC and motion control systems via pneumatic logic or electronic pilot actuation
