Overview

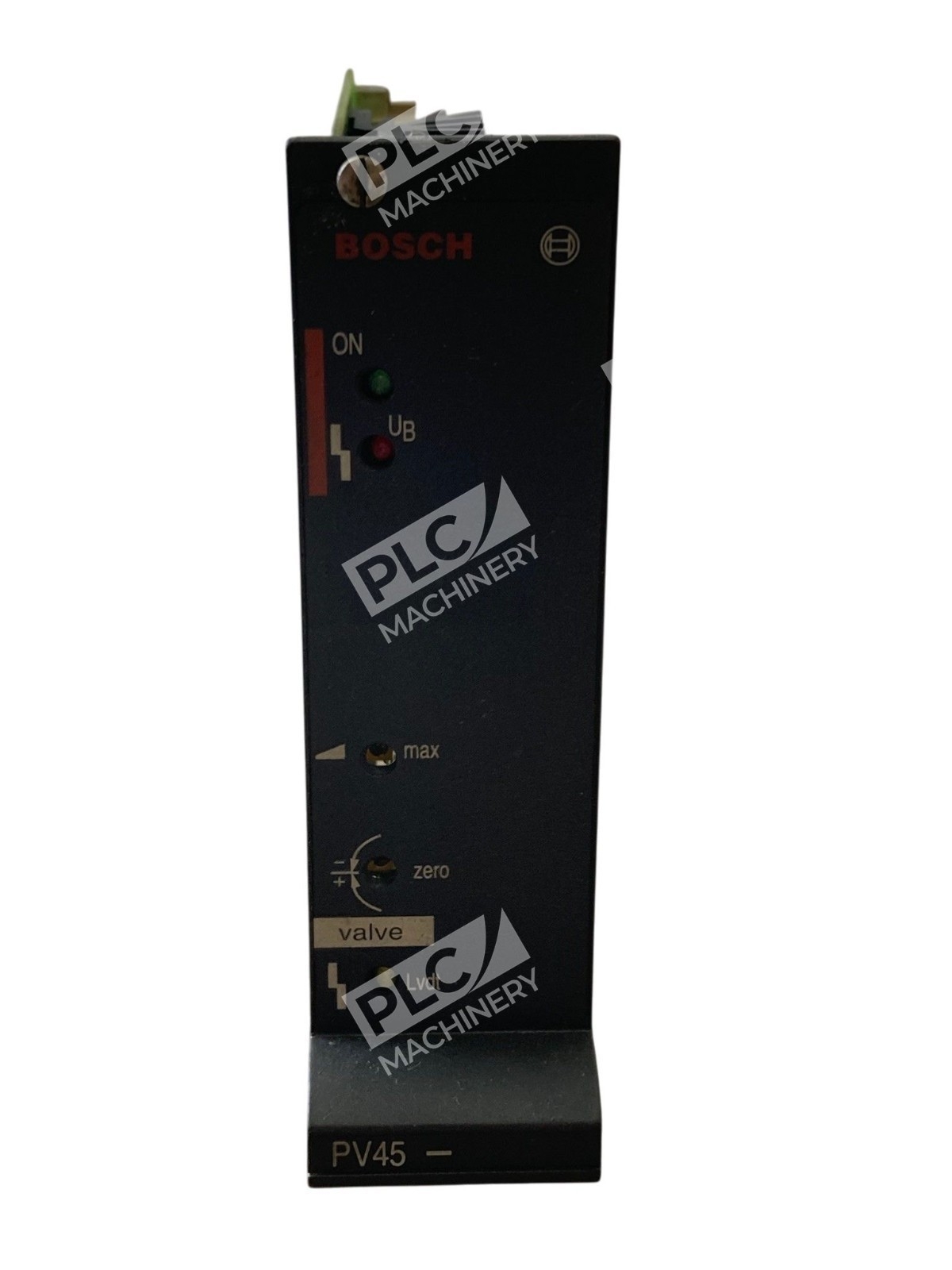

The Bosch 0 811 405 096 PV45-RGC1 is a proportional amplifier card engineered for closed-loop control of proportional solenoid valves in hydraulic systems. This amplifier card provides programmable boost and hold current outputs with adjustable ramp timing, making it ideal for precision fluid control in CNC machine tools, injection molding equipment, and other automated manufacturing systems.
Key Features
- Proportional solenoid valve driver with programmable boost and hold current outputs
- Adjustable ramp timing for smooth valve actuation
- Internal and external control inputs for flexible system integration
- LVDT feedback capability for closed-loop control verification
- Visual status indicators for operational diagnostics
- 24 VDC power supply operation
Technical Specifications
- Manufacturer: Bosch Rexroth
- Model/Part Number: 0 811 405 096, PV45-RGC1
- Product Type: Proportional Amplifier Card / Valve Driver Card
- Power Supply: 24 VDC
- Output Current: Exceeds 1 ampere
- Application: Proportional solenoid valve control
- Feedback: LVDT feedback support
- Control Inputs: Internal and external inputs
- Series: PV45 / 0 811 405 series
Typical Applications
- CNC machine tool hydraulic control systems
- Injection molding machine proportional valve control
- Automated manufacturing equipment with precision flow control requirements
- Industrial hydraulic systems requiring boost and hold current management
- Systems requiring closed-loop proportional valve feedback monitoring
Compatibility & Replacements
Compatible With
- Bosch 0 811 402 series proportional directional control valves
- Hydraulic systems requiring 24 VDC proportional valve driver control
- CNC machine tool hydraulic control circuits
- Industrial automation systems with LVDT feedback capability
Replaces / Drop-In Replacement For
- Bosch 0 811 405 101 (alternative variant)
- Bosch 0 811 405 074 2/2V-RGC1 (related series, verify before ordering)
- Other PV45-RGC1 proportional amplifier cards from the 0 811 405 series
Works With
- Bosch Rexroth proportional directional control valve systems
- 24 VDC hydraulic control networks
- LVDT linear transducer feedback systems
- Industrial hydraulic fluid power circuits
- CNC and injection molding machine control platforms
