Overview

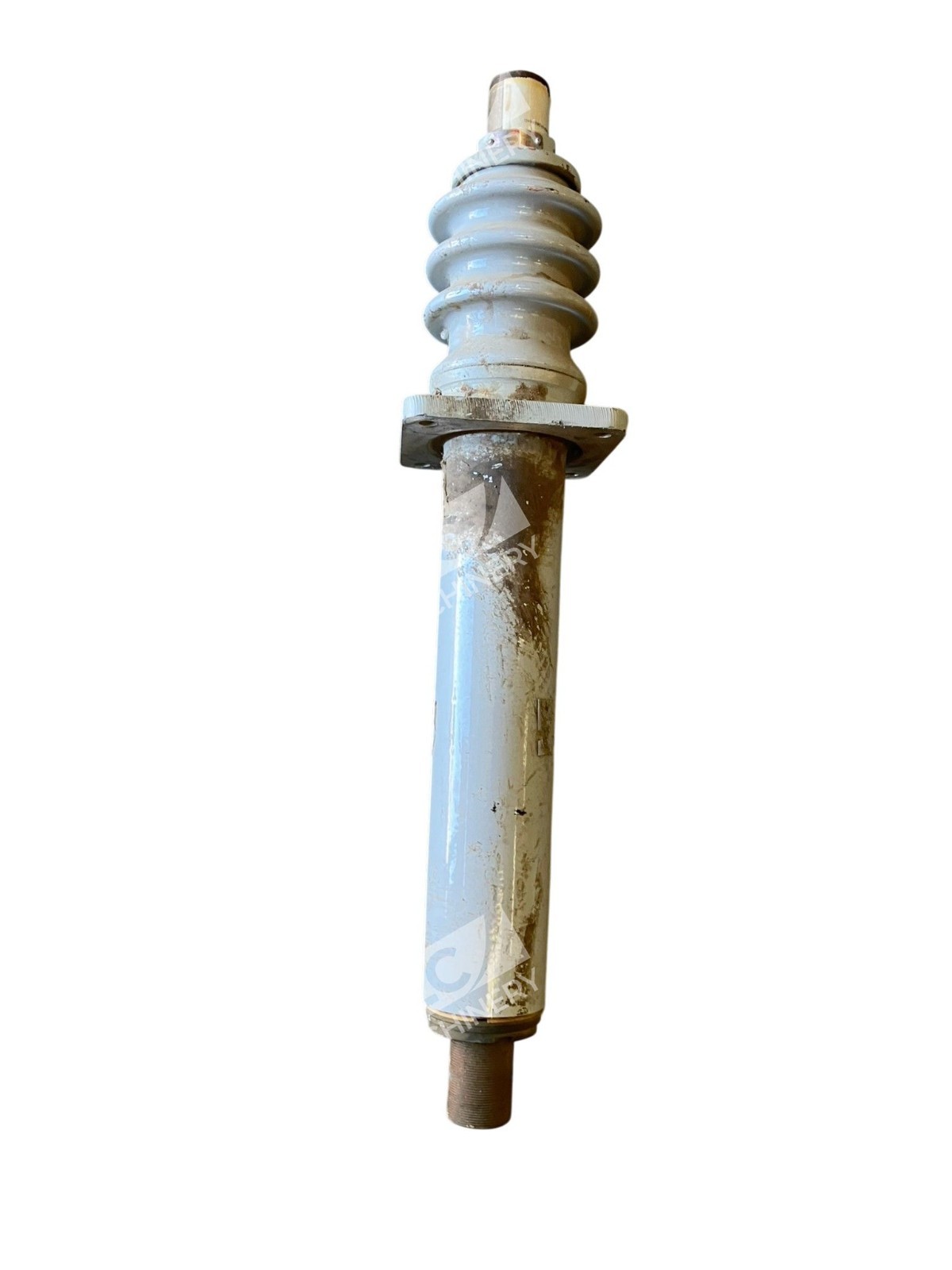

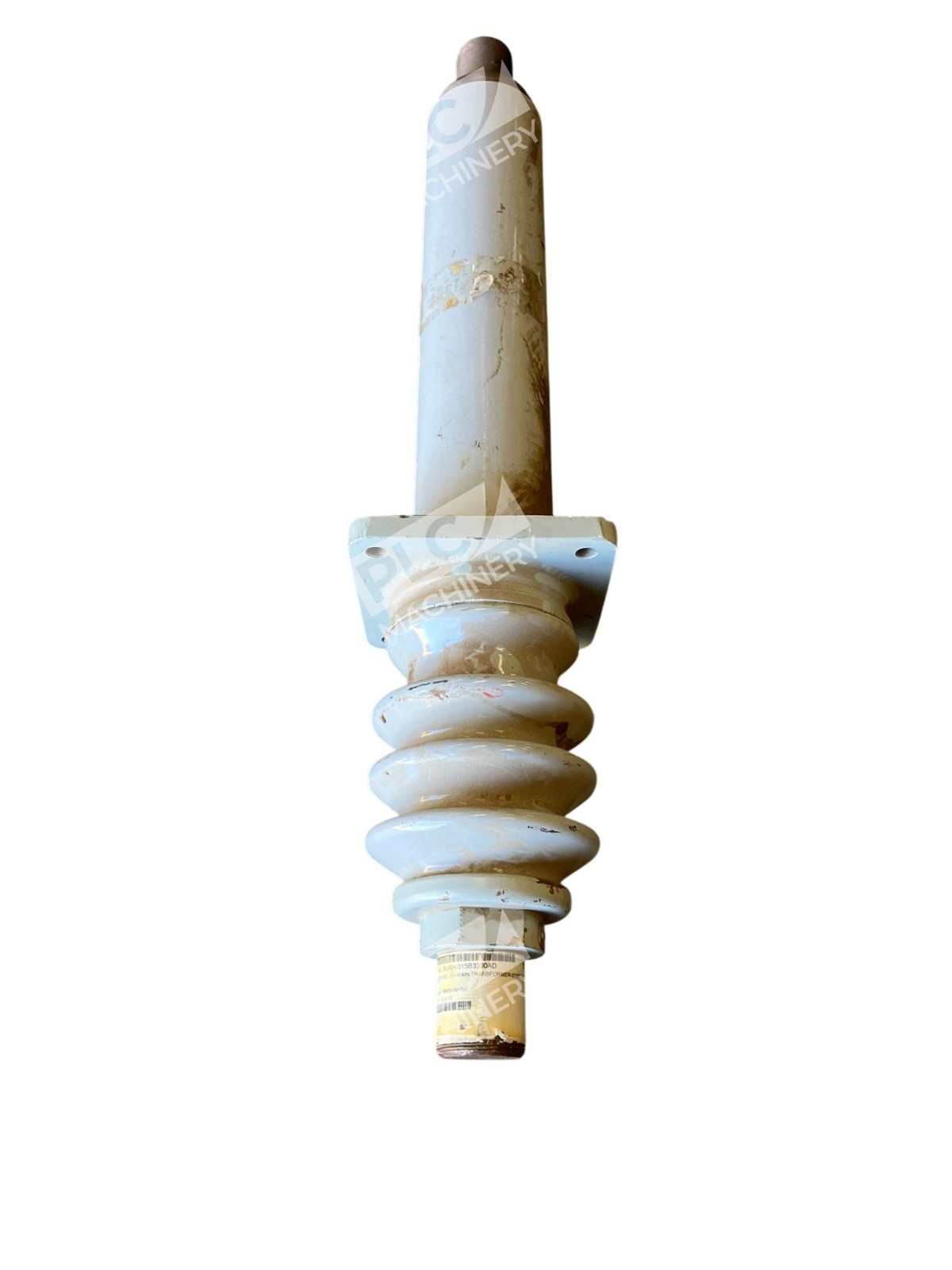

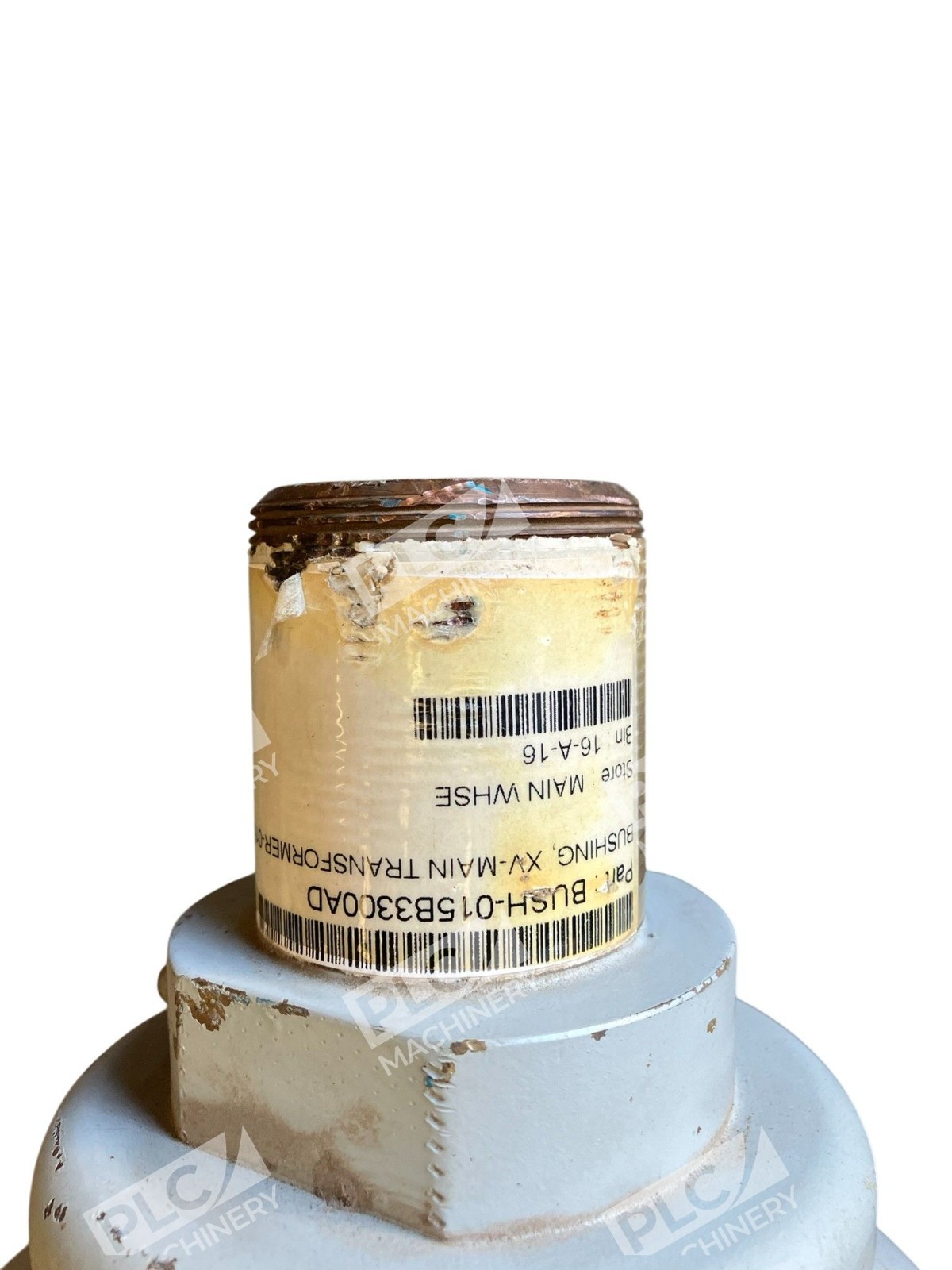

The ABB 015B3300AD “L”DIM23.5 3300A bushing is a transformer bushing engineered for high-voltage power systems. Transformer bushings are insulating components that safely conduct electrical current through grounded transformer casings while maintaining electrical isolation and preventing arcing. With a 3300A current rating, this ABB bushing is rated for heavy-duty industrial power distribution applications.
Key Features
- 3300 Ampere Rating — Handles substantial electrical loads in power distribution and substation environments
- “L”DIM23.5 Configuration — Standardized ABB design compatible with large power transformers
- High-Voltage Insulation — Maintains insulation integrity across dielectric stresses
- Robust Construction — Built for reliability in continuous industrial operation
- Used Condition — Tested and available for immediate deployment as a cost-effective replacement

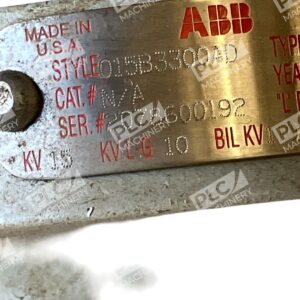

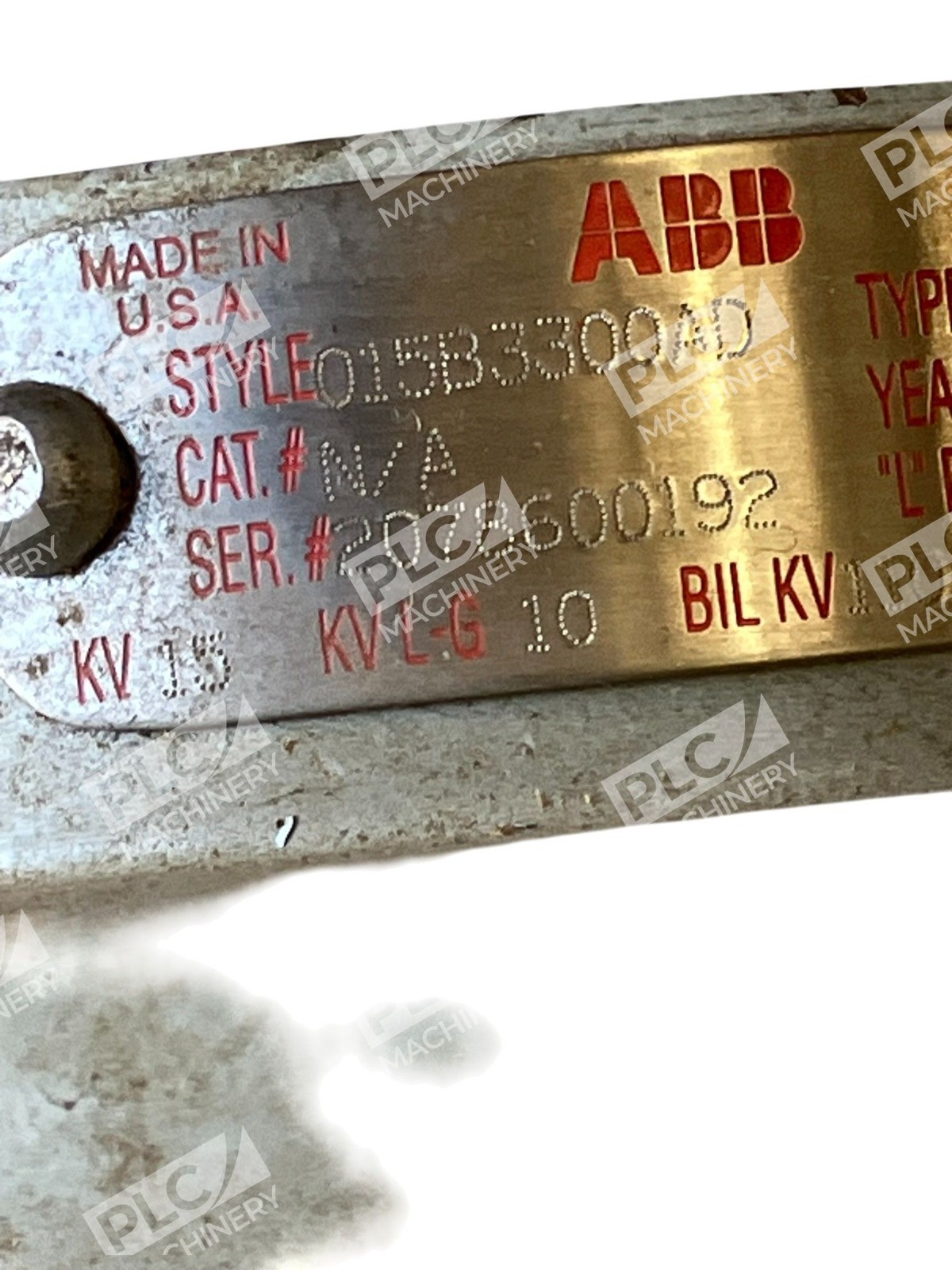

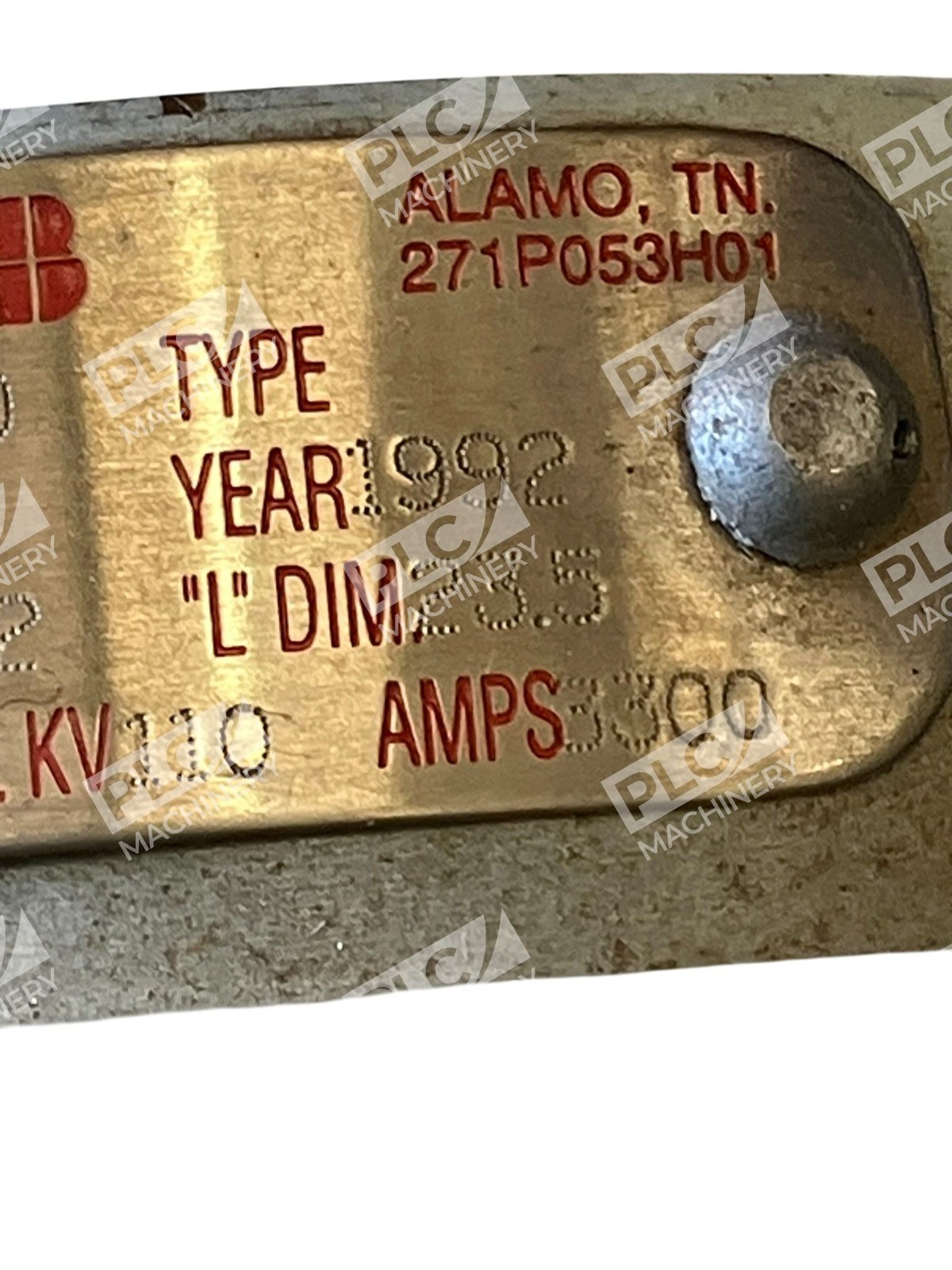

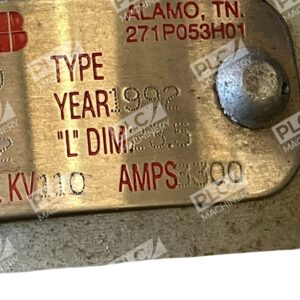

Technical Specifications
- Manufacturer: ABB
- Part Number: 015B3300AD
- Bushing Type: Transformer Bushing (DIM23.5)
- Current Rating: 3300A
- Configuration: “L”DIM23.5
- Application Class: Power Transformer / Distribution
- Condition: Used
Typical Applications
- Power distribution transformers (500 kVA and above)
- Industrial substations and utility switchyards
- Large capacity transmission equipment requiring high-amperage conductors
- Replacement bushings for ABB power transformer systems
Compatibility & Replacements
This ABB 015B3300AD bushing is designed for direct mounting on large ABB power transformers utilizing the DIM23.5 bushing well standard. For compatibility or replacement inquiries, consult the original transformer specification or contact ABB technical support with your transformer model and existing bushing dimensions. Used surplus bushings must be verified for mechanical fit and dielectric condition before installation. Always confirm voltage class and current rating with your equipment requirements.
