Overview

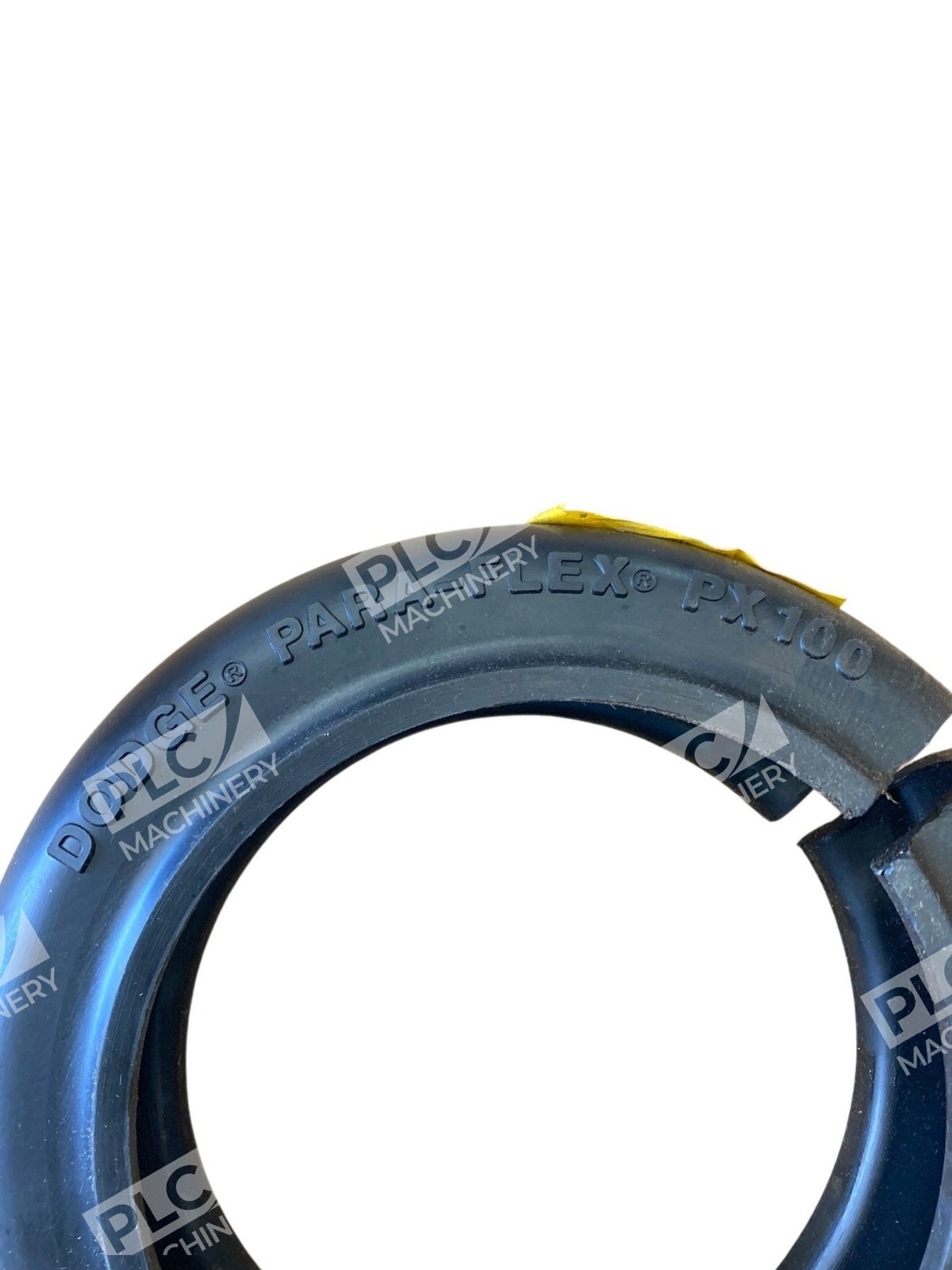

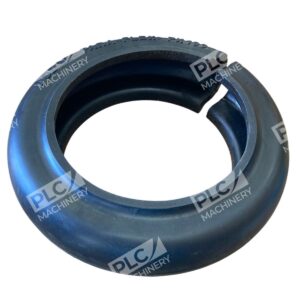

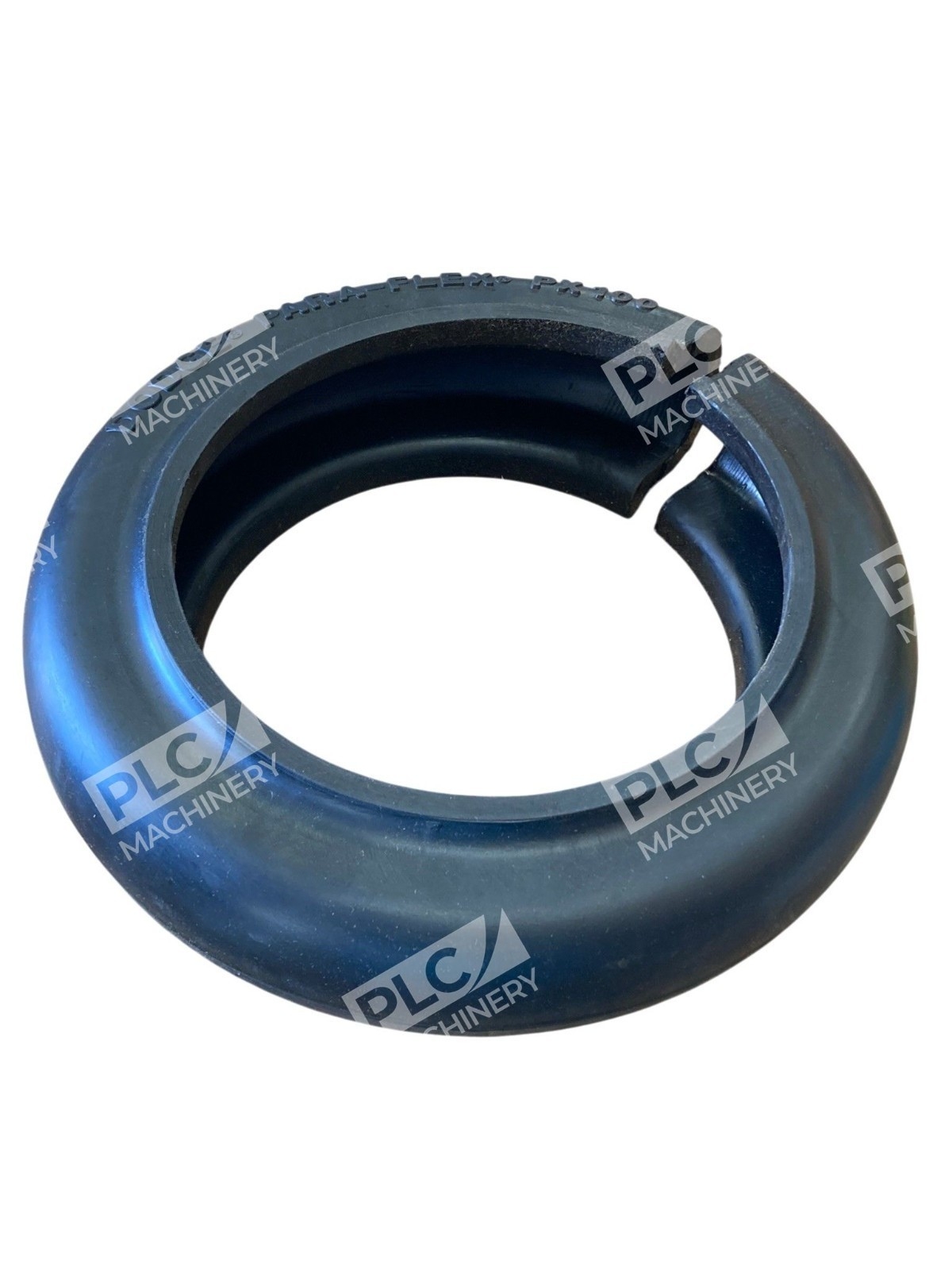

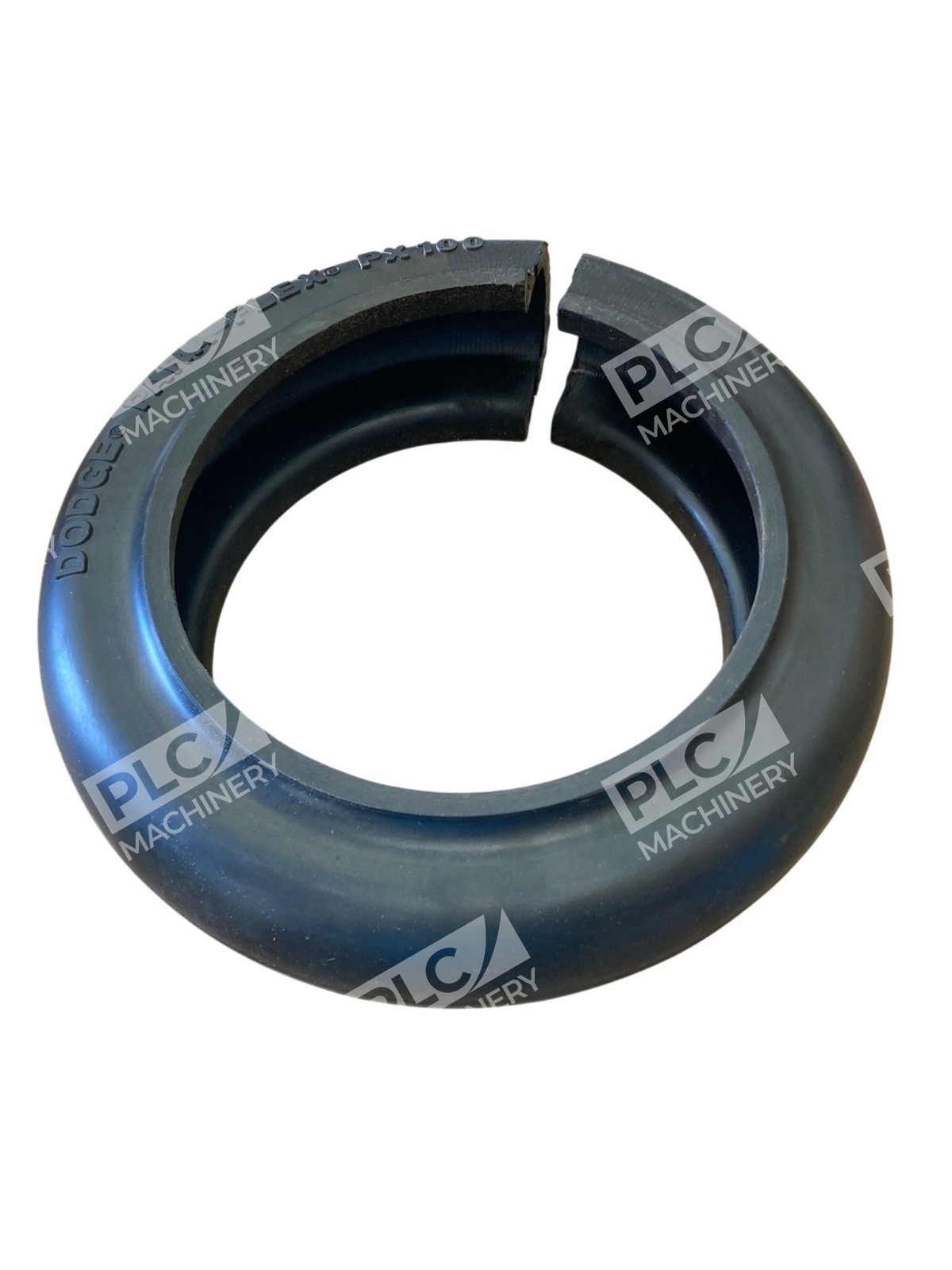

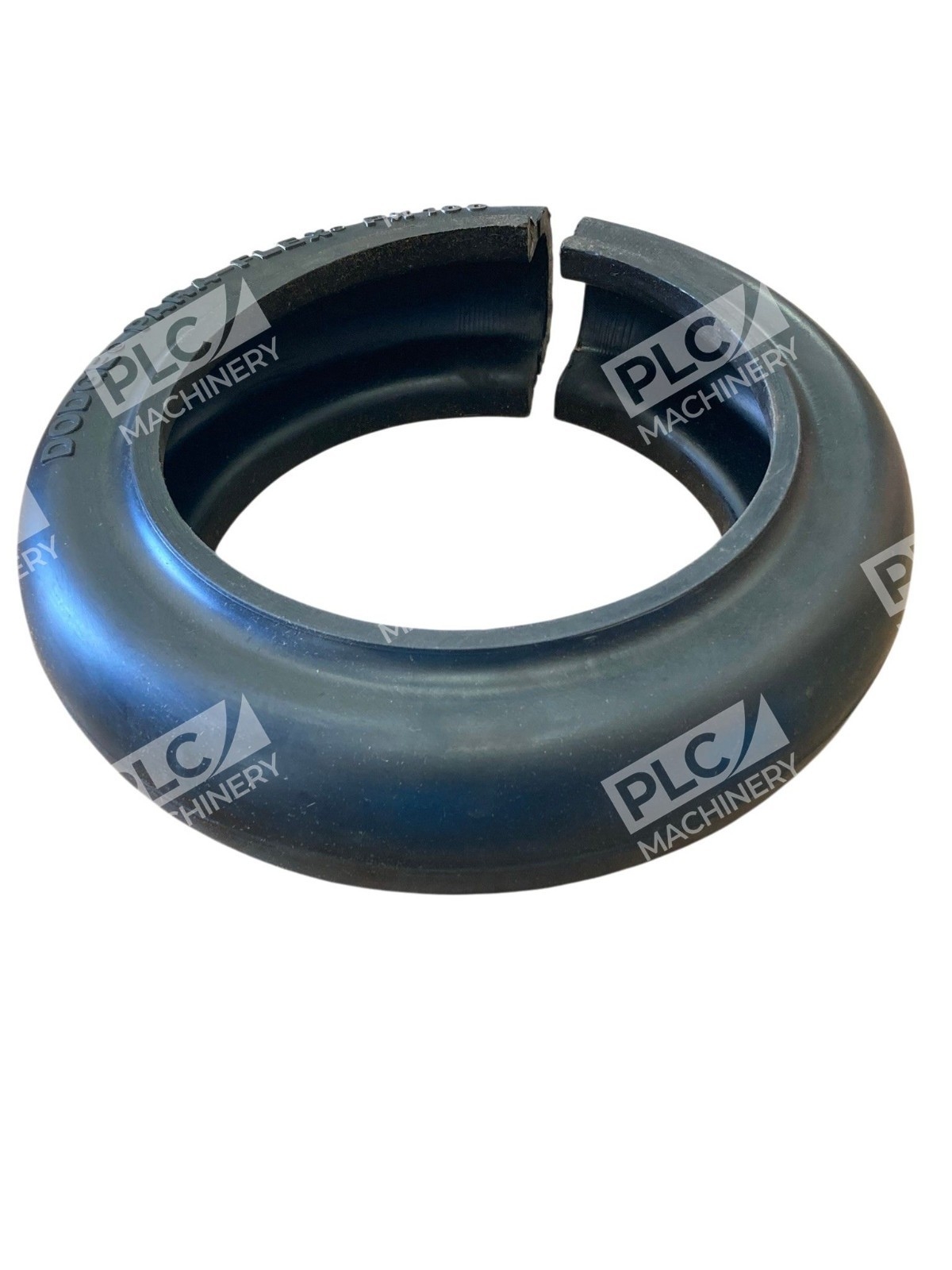

The Dodge 011110 PX100 Para-Flex elastomeric coupling element is a standard tire-style flexible coupling component engineered for harsh industrial power transmission applications. Constructed from natural rubber with reinforced textile cord, this non-lubricated element absorbs shock loads and accommodates shaft misalignment without restricting coupling life or requiring realignment of connected equipment.
Key Features
- Natural rubber compound — proven durability and flexibility in demanding industrial environments
- Patented torque-carrying cords — transmit power reliably while damping vibration and shock loads
- Split-end reinforcement — reduces element fatigue during shock loading and extends coupling life
- Wear indicator — visual inspection identifies when replacement is needed for preventive maintenance
- No lubrication required — maintains trouble-free operation and eliminates maintenance complexity
- Replaceable element design — can be changed without disturbing coupled equipment or requiring realignment
Technical Specifications
- Coupling Size: PX100
- Coupling Style: Tire (elastomeric element)
- Element Material: Natural rubber with textile cord reinforcement
- Outside Diameter: 10 inches
- Rated Torque: 5402 in-lb (24,029 N)
- Horsepower @ 100 RPM: 8.58 hp (6.4 kW)
- Maximum Speed: 2600 RPM
- Angular Misalignment Capacity: 4 degrees
- Parallel Misalignment Capacity: 0.125 inches (3.175 mm)
- Axial Misalignment (End-Float) Capacity: 0.3125 inches (7.938 mm)
- Torsional Stiffness: 1530 in-lb/deg
- Temperature Range: -45°F to +180°F (-42.8°C to +82.2°C)
- Weight: 2.4 lbs (1.1 kg)
- Lubrication Required: None
- ATEX Certified: Yes
Typical Applications
The Dodge PX100 Para-Flex element is suitable for a wide range of industrial machinery and equipment including:
- Motor-to-pump connections requiring shock load protection
- Fan and blower drives in HVAC systems
- Compressor drives and rotary equipment
- Conveyor system drives
- Machine tool spindle drives
- General industrial power transmission where vibration isolation and misalignment accommodation are critical
Compatibility & Replacements
Compatible With
- Dodge Para-Flex coupling flanges (all sizes compatible with PX100 elements)
- Taper-Lock® bushings and QD (Quick Disconnect) bushing systems
- Bored-to-size shaft attachment options
- Close-coupled shaft spacing configurations
Replaces / Drop-In Replacement For
The Dodge 011110 PX100 element directly replaces other standard PX100 Para-Flex elements, including comparable models from previous manufacturing batches. Verify specific cross-references with your system integrator or Dodge technical support to ensure compatibility with your existing coupling flanges.
Works With
- All Dodge PX100 Para-Flex coupling assemblies
- Industrial drive systems requiring elastomeric power transmission
- Equipment requiring no-lube, maintenance-light flexible coupling solutions
- Applications with combined misalignment up to 4° angular, 1/8″ parallel, and 5/16″ end-float
