Overview

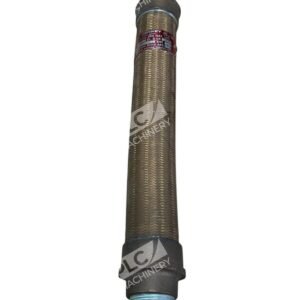

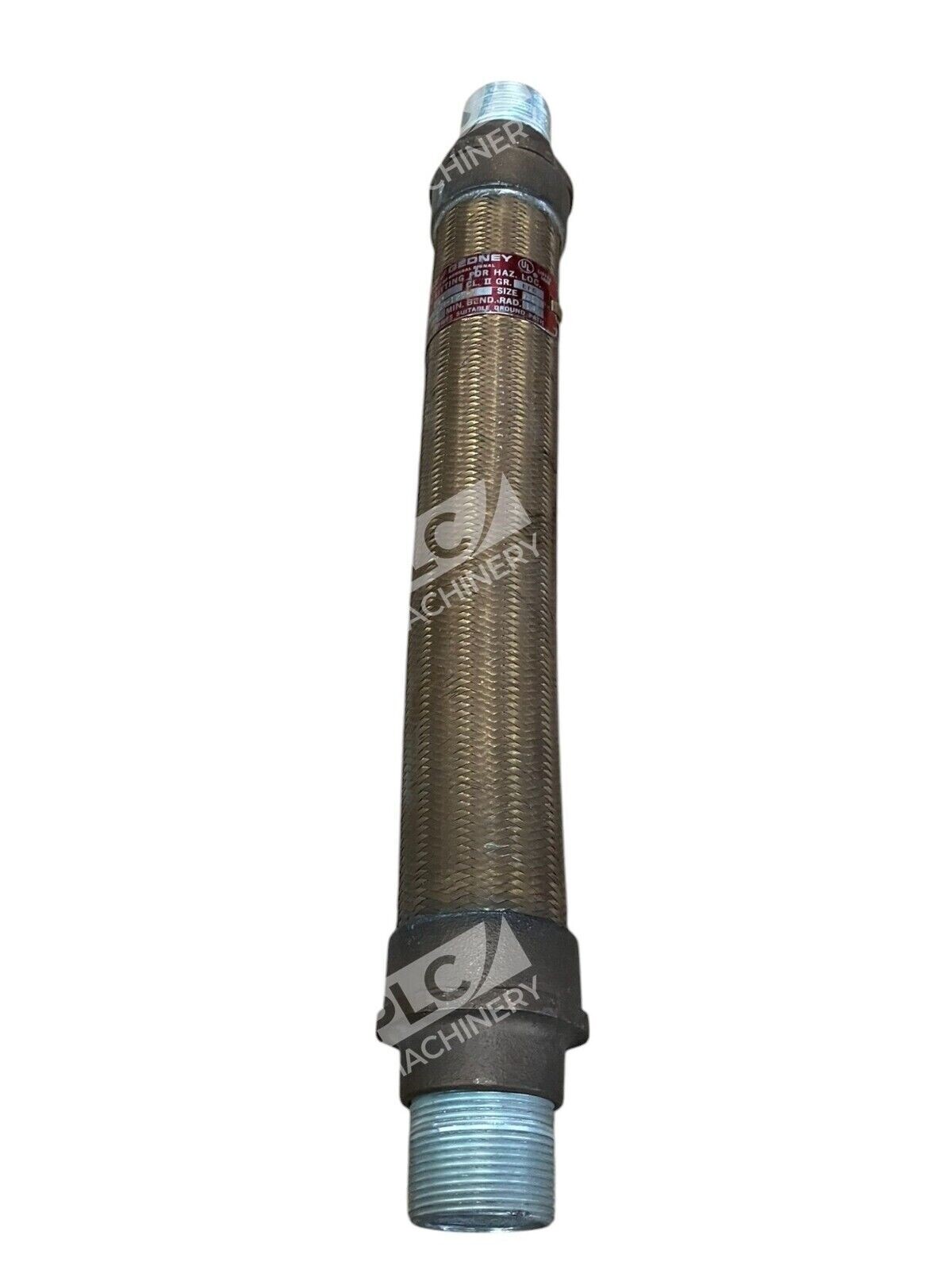

The Eaton ECGJH-125-12 flexible coupling is part of the Crouse-Hinds EC series explosionproof couplings engineered for Class I and Class II hazardous locations. With a 1-1/4″ trade size and 12″ flexible length, this coupling accommodates difficult bends and allows for vibration isolation in demanding industrial conduit systems.
Key Features
- Forged brass end fittings for corrosion resistance and durability
- Bronze braid covering with flexible brass inner core for maximum flex capability
- Threaded male connections on both ends for secure installation
- UL 1203 certified for explosionproof applications
- Rated for ambient temperatures between −20°C to +40°C
- No bonding jumpers required; metallic braid provides continuous electrical path
Technical Specifications
- Model: ECGJH-125-12
- Manufacturer: Eaton Crouse-Hinds
- Trade Size: 1-1/4″
- Flexible Length: 12″
- End Configuration: Threaded male × threaded male
- Material – End Fittings: Forged brass
- Material – Inner Core: Flexible brass
- Material – Braid: Bronze
- Packing: Woven cotton braid impregnated with asphalt
- Operating Temperature Range: −20°C to +40°C (−4°F to +104°F)
- Certifications: UL 1203, ATEX, IECEx, DEMKO
- Hazardous Area Classification: Class I Div 1 Group A B C D; Class II Div 1 Group E F G; Class III
- Maximum Certified Length: 36″
Typical Applications
- Explosionproof electrical conduit systems in petrochemical and refining facilities
- Mining operations and underground installations in Class I and Class II areas
- Grain handling and dust-ignition-proof environments
- Equipment vibration isolation and movement compensation
- Difficult-bend conduit routing in confined industrial spaces
- Hazardous area wiring in manufacturing and chemical processing plants
Compatibility & Replacements
Compatible With
- NEC Class I Division 1 hazardous location requirements
- NEC Class II Division 1 hazardous location requirements
- ATEX and IECEx explosionproof certification standards
- 1-1/4″ trade size conduit systems
- Threaded male conduit fittings and hubs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or electrical contractor before ordering. This model is specific to 1-1/4″ trade size × 12″ flexible length applications; ensure existing conduit and fitting sizes match before installation.
Works With
- Rigid and flexible conduit tubing systems
- Explosionproof electrical equipment in hazardous locations
- Standard electrical distribution and control systems
- Equipment requiring vibration isolation and flex routing
