<h2>Overview</h2>

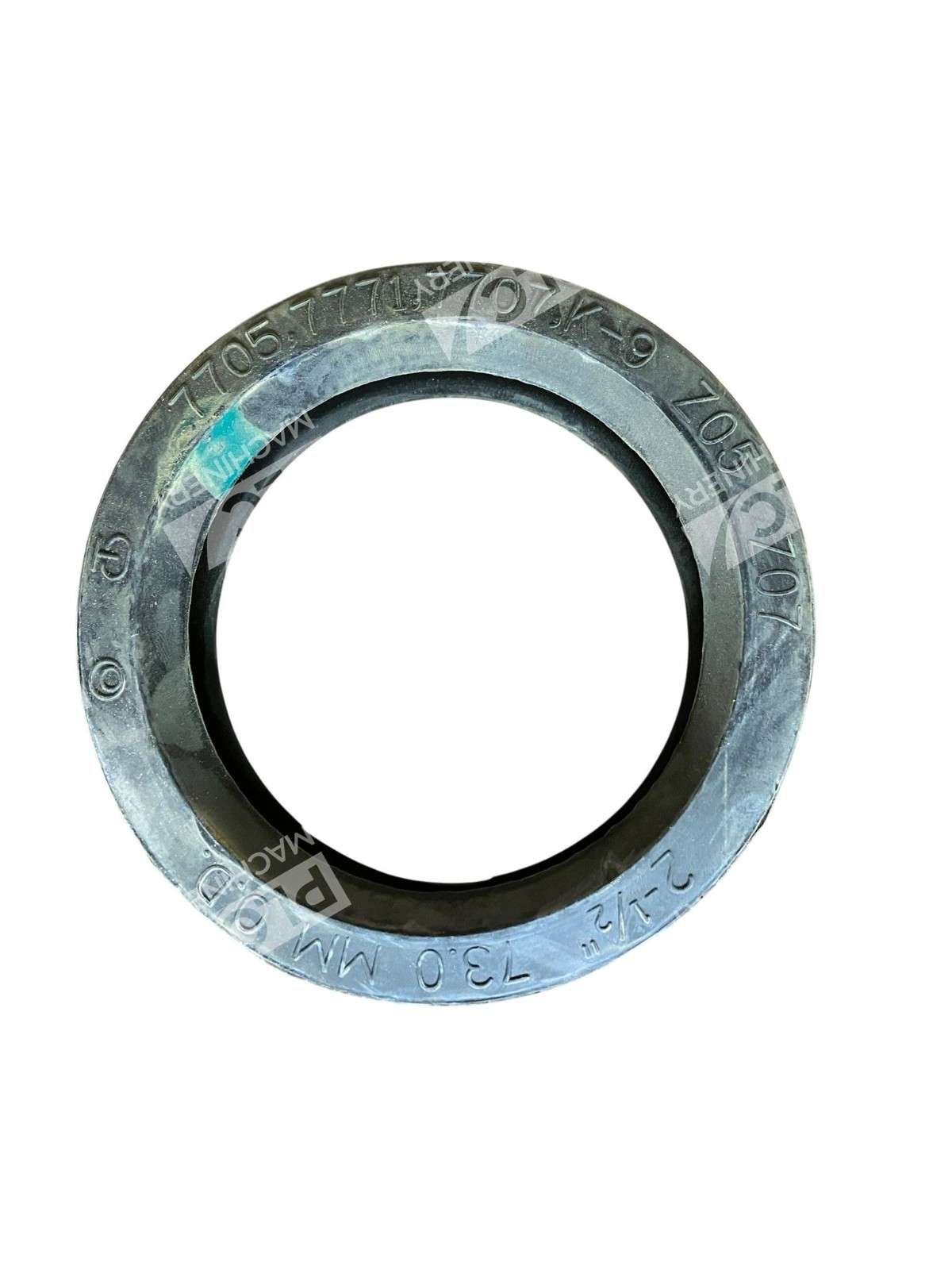

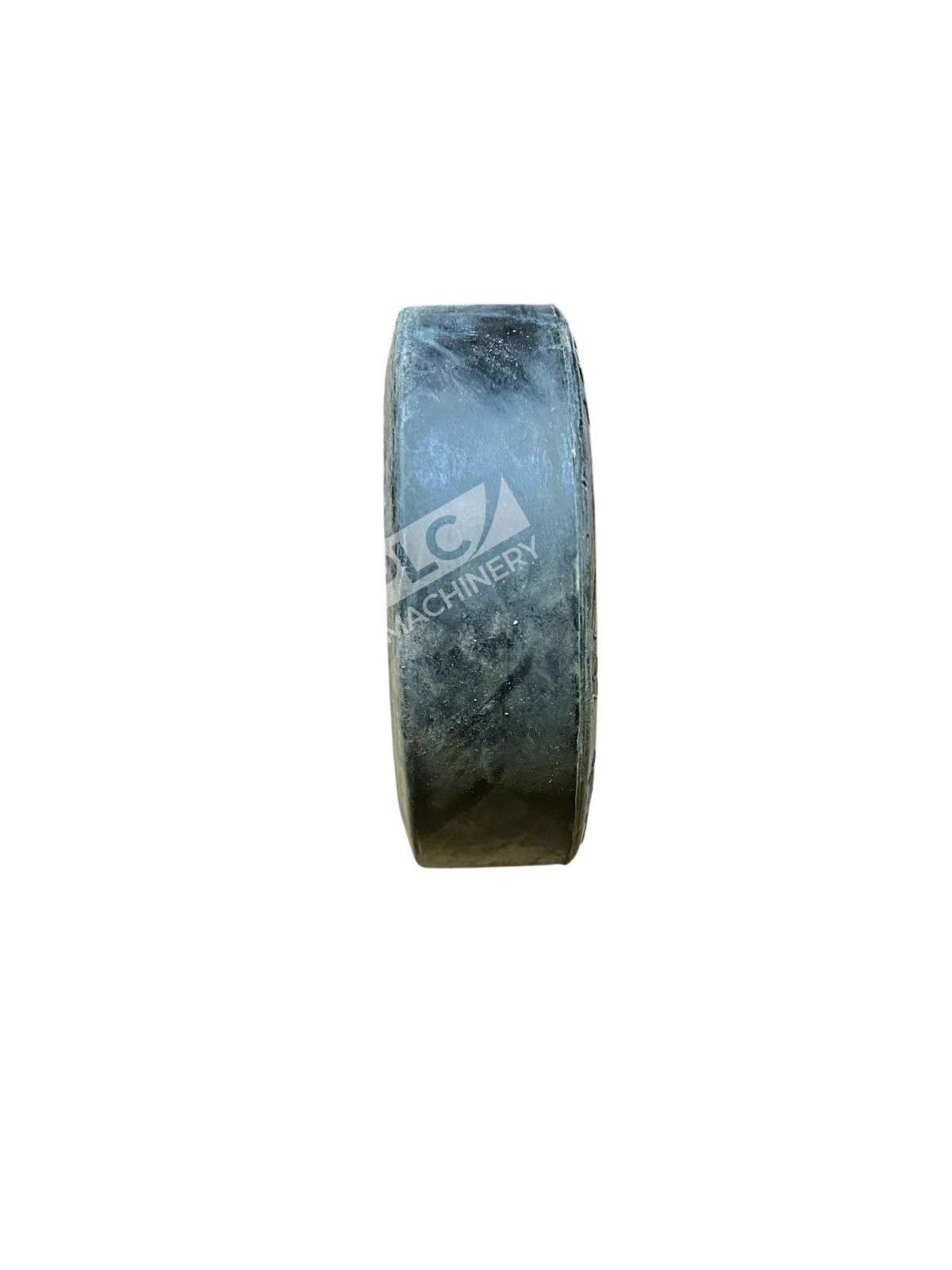

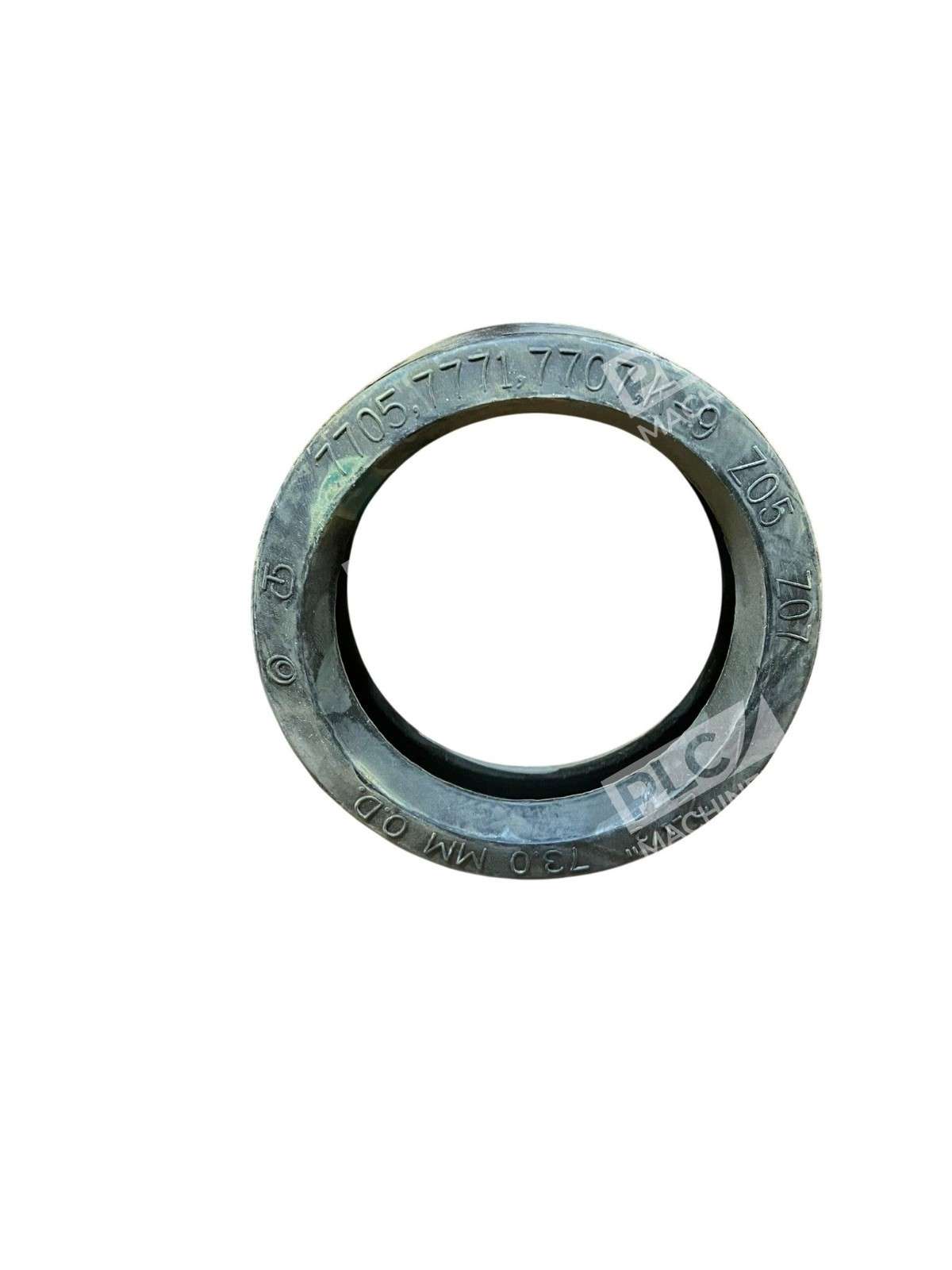

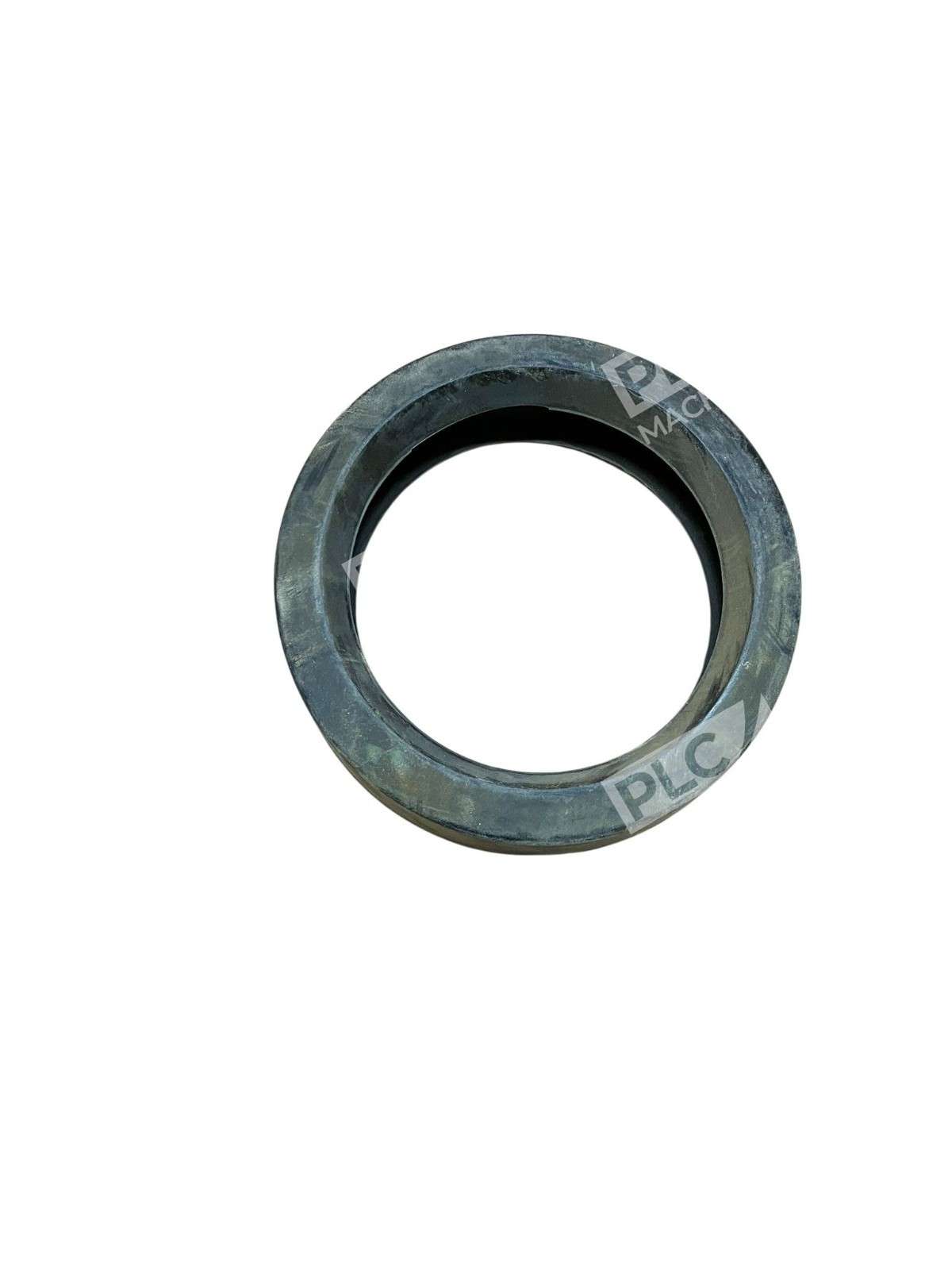

<p>The Victaulic 2-1/2″ pipe coupling gasket is a high-quality elastomer seal engineered for mechanical grooved pipe connections. With a 73mm outer diameter, this gasket is molded to fit precisely within Victaulic coupling housings, ensuring a secure, leak-tight joint across hydraulic, pneumatic, water, and plumbing systems. <strong>Victaulic coupling gaskets</strong> form the critical sealing element in mechanical pipe joints, combining resilience with pressure-responsive performance to maintain integrity under normal pressure, vacuum, and dynamic conditions.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Pressure-Responsive Sealing:</strong> <cite index=”3-1″>The gasket is pressure responsive, providing increased sealing action as the internal pressure is increased</cite></li>
<li><strong>Triple-Seal Design:</strong> <cite index=”3-6″>Creates a permanent, leak-tight triple seal on a variety of piping materials including steel, stainless steel, aluminum, pvc, ductile iron and copper</cite></li>
<li><strong>Precision Molding:</strong> <cite index=”1-1″>Each elastomer gasket is molded to fit the cavity of the pipe coupling housing, and when energized during tightening, is responsible for creating a positive seal on the pipe</cite></li>
<li><strong>Elastomer Formulation:</strong> <cite index=”1-3″>Victaulic has developed elastomer material properties through 100 years of field experience and in-house material formulation, engineering design and quality control</cite></li>
<li><strong>Compact Design:</strong> 73mm OD for 2-1/2″ grooved pipe connections with minimal footprint and low assembly time</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Pipe Size (Nominal):</strong> 2-1/2 inches</li>
<li><strong>Outer Diameter:</strong> 73mm</li>
<li><strong>Sealing Type:</strong> Elastomer gasket</li>
<li><strong>Joint Type:</strong> Mechanical grooved pipe coupling</li>
<li><strong>Compatible Piping Materials:</strong> Steel, stainless steel, aluminum, PVC, ductile iron, copper</li>
<li><strong>Quantity per Package:</strong> 6 gaskets</li>
<li><strong>Manufacturer:</strong> Victaulic Company</li>
<li><strong>Origin:</strong> United States</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Water distribution and plumbing systems</li>
<li>Hydraulic fluid lines and circuits</li>
<li>Pneumatic compressed air systems</li>
<li>Industrial pump discharge and suction lines</li>
<li>Fire protection sprinkler systems</li>
<li>HVAC chilled water loops and condenser lines</li>
<li>Chemical processing and light industrial fluid transfer</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Victaulic flexible coupling housings (Series 77 and similar 2-1/2″ grooved models)</li>
<li>Standard roll grooved and cut grooved pipe ends with Victaulic OGS (Optimized Groove System) profile</li>
<li>Victaulic restrained couplings (Style 232 and equivalents)</li>
<li>Mechanical piping systems rated for grooved coupling operation</li>
<li><cite index=”6-2″>Available in multiple elastomer compounds: EPDM for water and mild chemicals, Grade E for general water service, Grade T for petroleum products, and Grade O for chemical service</cite></li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>This gasket is a direct replacement for Victaulic 2-1/2″ coupling gaskets in standard flexible coupling assemblies. Verify the elastomer grade (EPDM, Grade E, Grade O, etc.) matches your application medium before installation. Consult Victaulic’s Gasket Selection Guide (publication 05.01) for compound compatibility with your specific conveyed medium.</p>
<h3>Works With</h3>
<ul>
<li>Victaulic grooved piping systems and components</li>
<li>Standard mechanical coupling installation tools and closure equipment</li>
<li>Industry-standard hydraulic, water, and pneumatic systems</li>
<li>NSF/ANSI/CAN 61 certified for potable water applications (elastomer-grade dependent)</li>
</ul>
