Overview

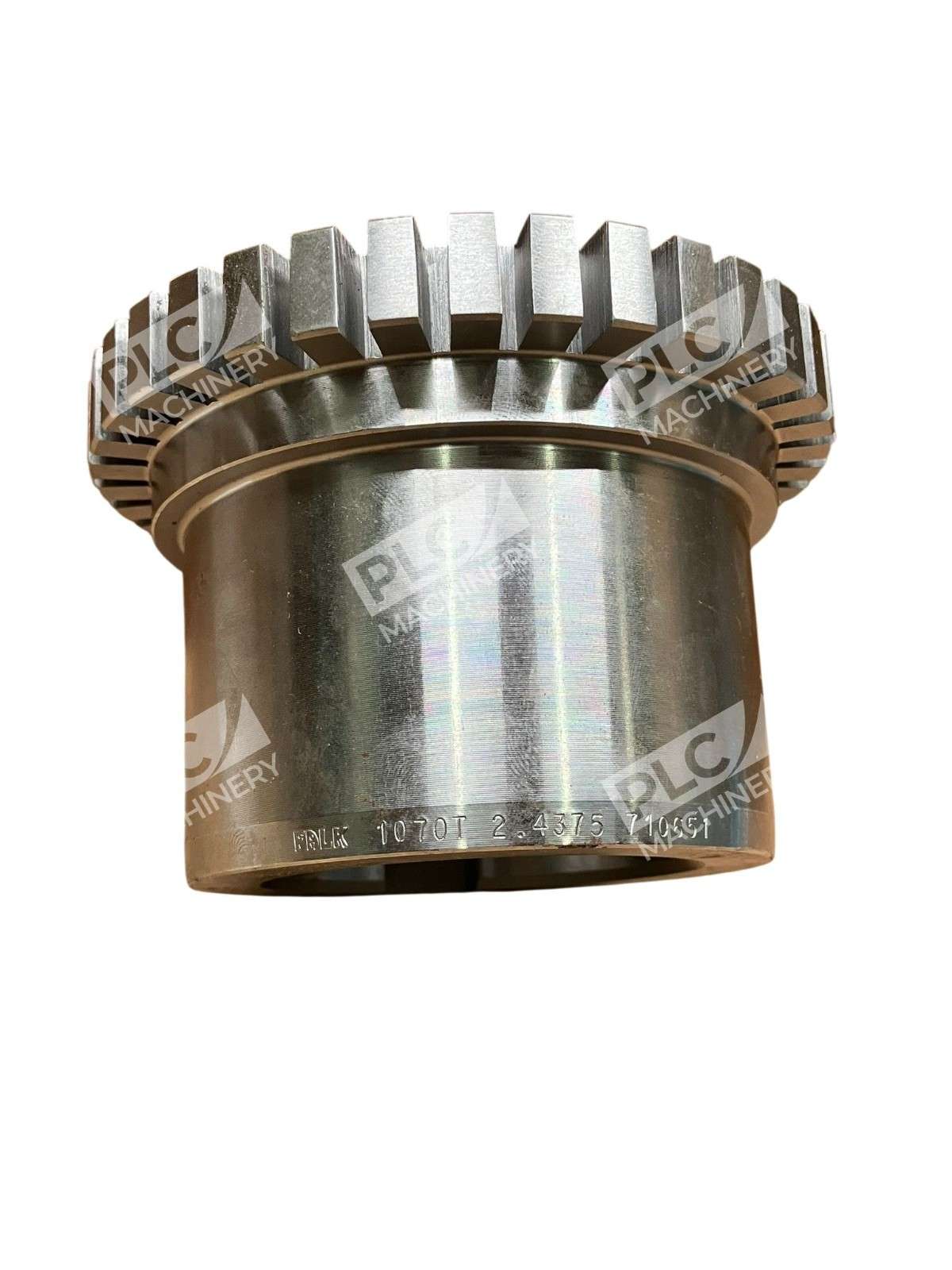

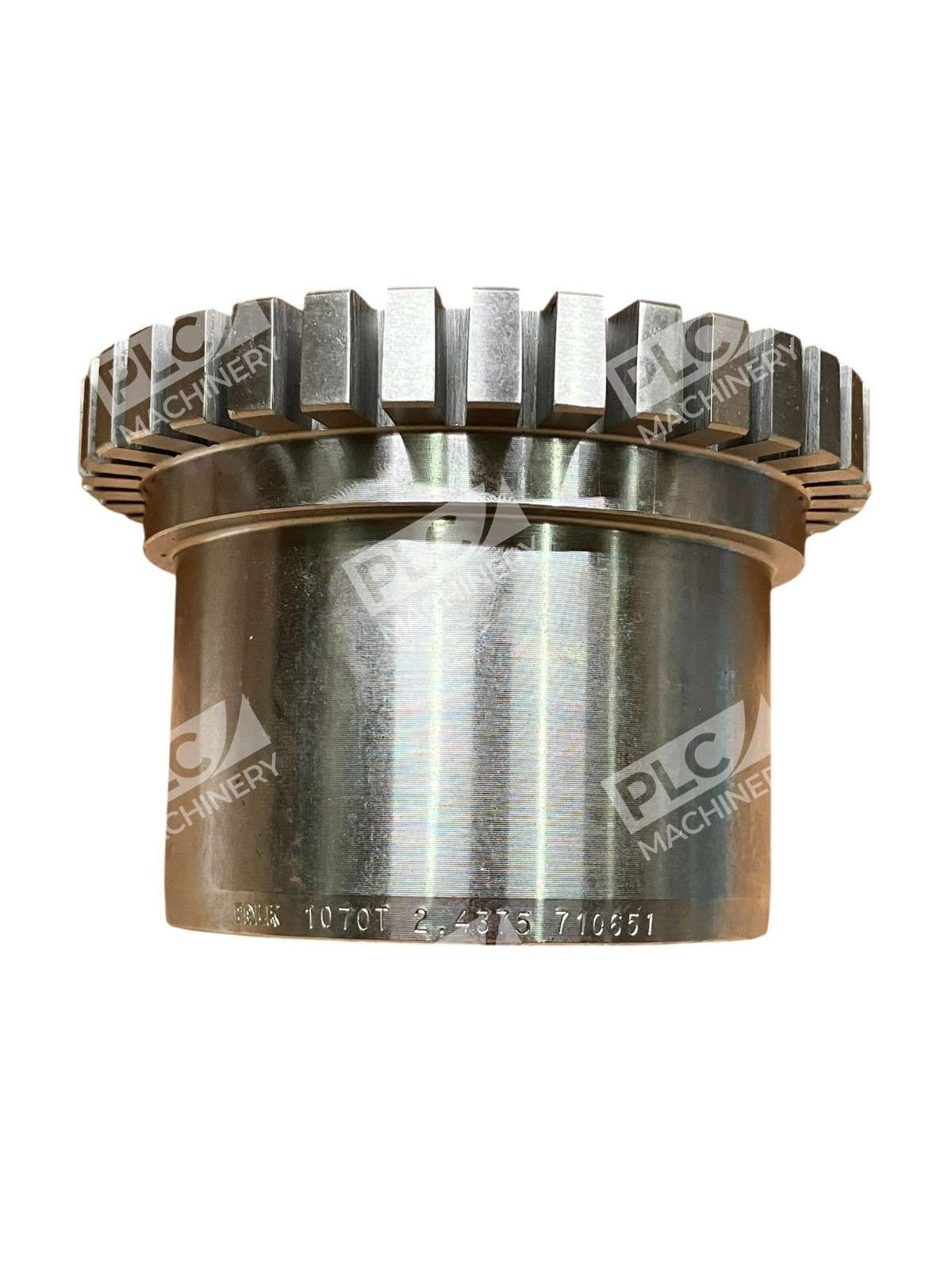

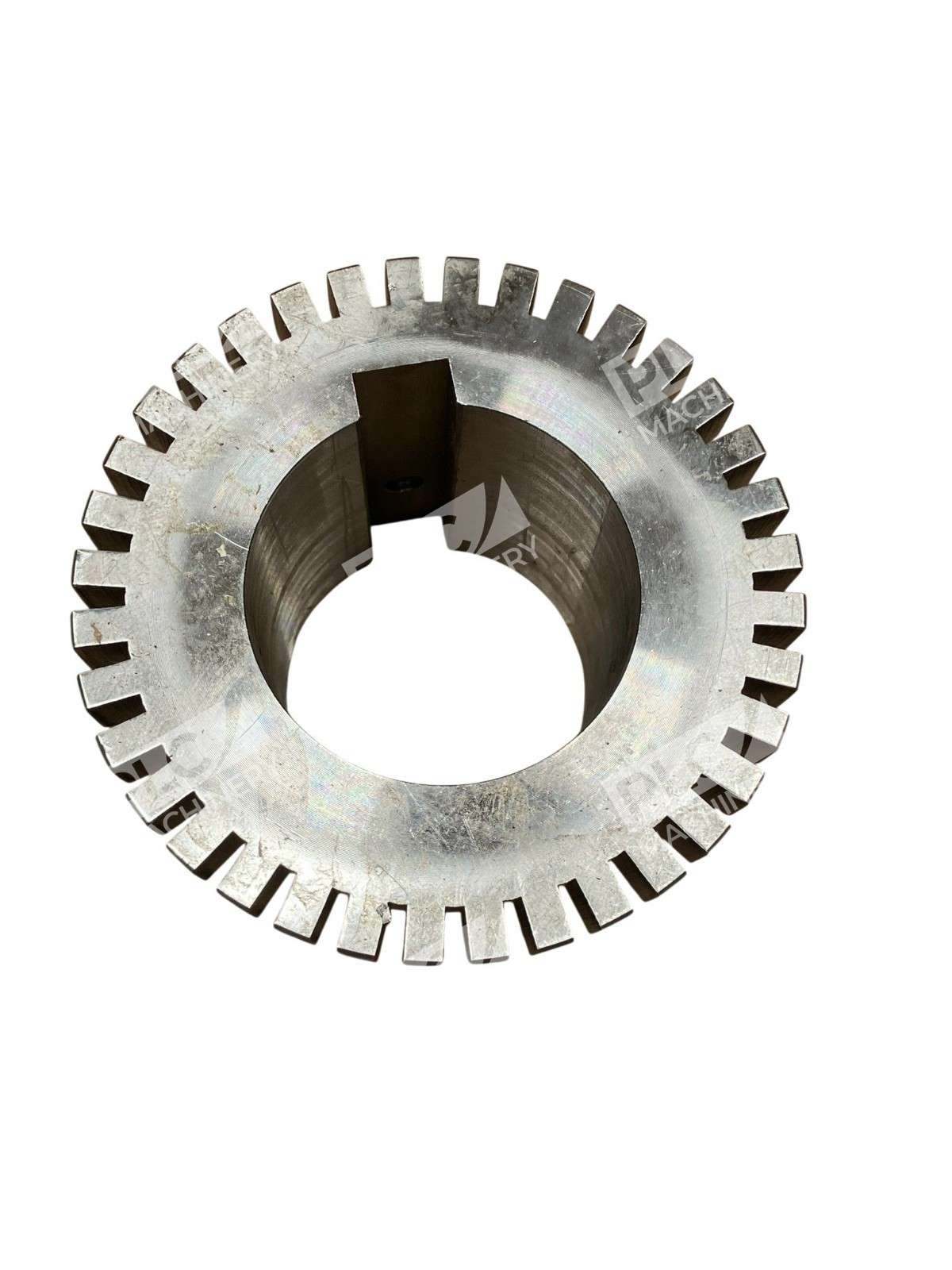

The Falk 1070T grid coupling hub is a Steelflex series component from Rexnord engineered for industrial shaft coupling applications. This hub features a 2.4375-inch finished bore and integrates with the 1070T coupling size to deliver high torque transmission with built-in torsional elasticity. The hub design combines the economy and torque capacity of gear couplings with the flexibility benefits of elastomeric couplings—eliminating the need for complex alignment while protecting downstream equipment from shock loads and vibration.
Key Features
- Steelflex Grid Design: General-purpose, lubricated design combining gear coupling economy and torque capacity with elastomer coupling flexibility. Steelflex couplings are backed by a 5–year lubrication warranty and require no periodic maintenance when lubricated with Falk LTG (Long Term Grease) at installation. Featuring 25 sizes, they can accommodate torque loads up to 7,500,000 lb-in and shaft diameters up to 20 inches.
- Finished Bore: 2.4375-inch finished bore accommodates mid-range motor and gearbox shafts without additional machining.
- Low-Maintenance Operation: Grid element does not require periodic lubrication changes when lubricated with Falk LTG at installation.
- Peak Torque Capacity: Peak torque capacity is two times the published rating.
- Removable Design Option: Reborable (RSB) hubs available for applications requiring future bore modifications or field fitting.
Technical Specifications
| Coupling Size | 1070T |
| Bore Size | 2.4375 inches (finished) |
| Maximum Bore Capacity | 2.5 inches |
| Part Number | 710651 |
| Coupling Type | Steelflex Grid Hub (T-Hub) |
| Manufacturer | Rexnord Industries (Falk brand) |
| Lubrication | Falk LTG (Long Term Grease) |
| Warranty | 5-year lubrication warranty with Falk LTG |
| Connection Method | Keyway and setscrew or interference fit |
Typical Applications
- Centrifugal pump drive coupling (shaft-to-motor transmission)
- Gearbox input and output shaft connections
- Medium-torque transmission in manufacturing and process equipment
- Applications requiring misalignment compensation and vibration damping
- Industrial fan and blower motor couplings
- Line-shaft and belt-drive equipment
Compatibility & Replacements
Compatible With
- Falk 1070T grid coupling complete assemblies
- Steelflex series elastomeric grid elements (25-size family)
- Standard industrial motors with 2.4375-inch shaft bores
- Rexnord gearbox input/output shafts in equivalent bore range
- Shaft diameters up to 2.5 inches maximum
Replaces / Drop-In Replacement For
- Falk 1070T hubs in various bore sizes (bore-specific; verify exact bore dimension before ordering)
- Older Steelflex 1070T coupling hub configurations
- Other 710651 part number variants from Rexnord distributors
Works With
- Steelflex grid elements sized for 1070T coupling
- Standard keyway and set-screw fastening systems
- Falk LTG long-term grease lubrication system
- Industrial shaft alignment fixtures and coupling guards
- Taper-Lock bushings (where applicable to hub variant)
