Overview

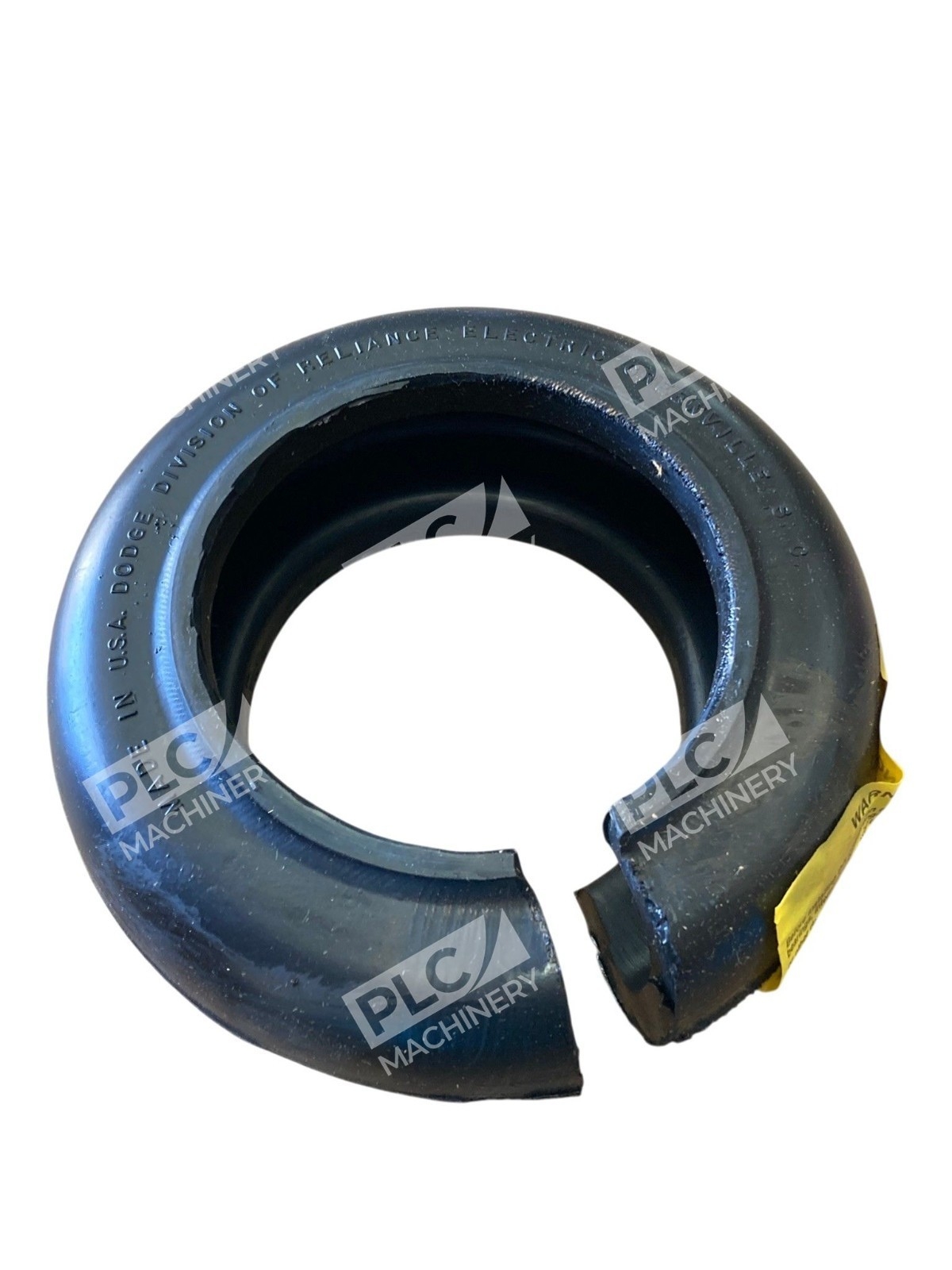

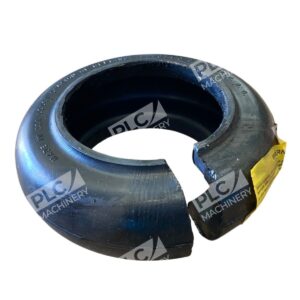

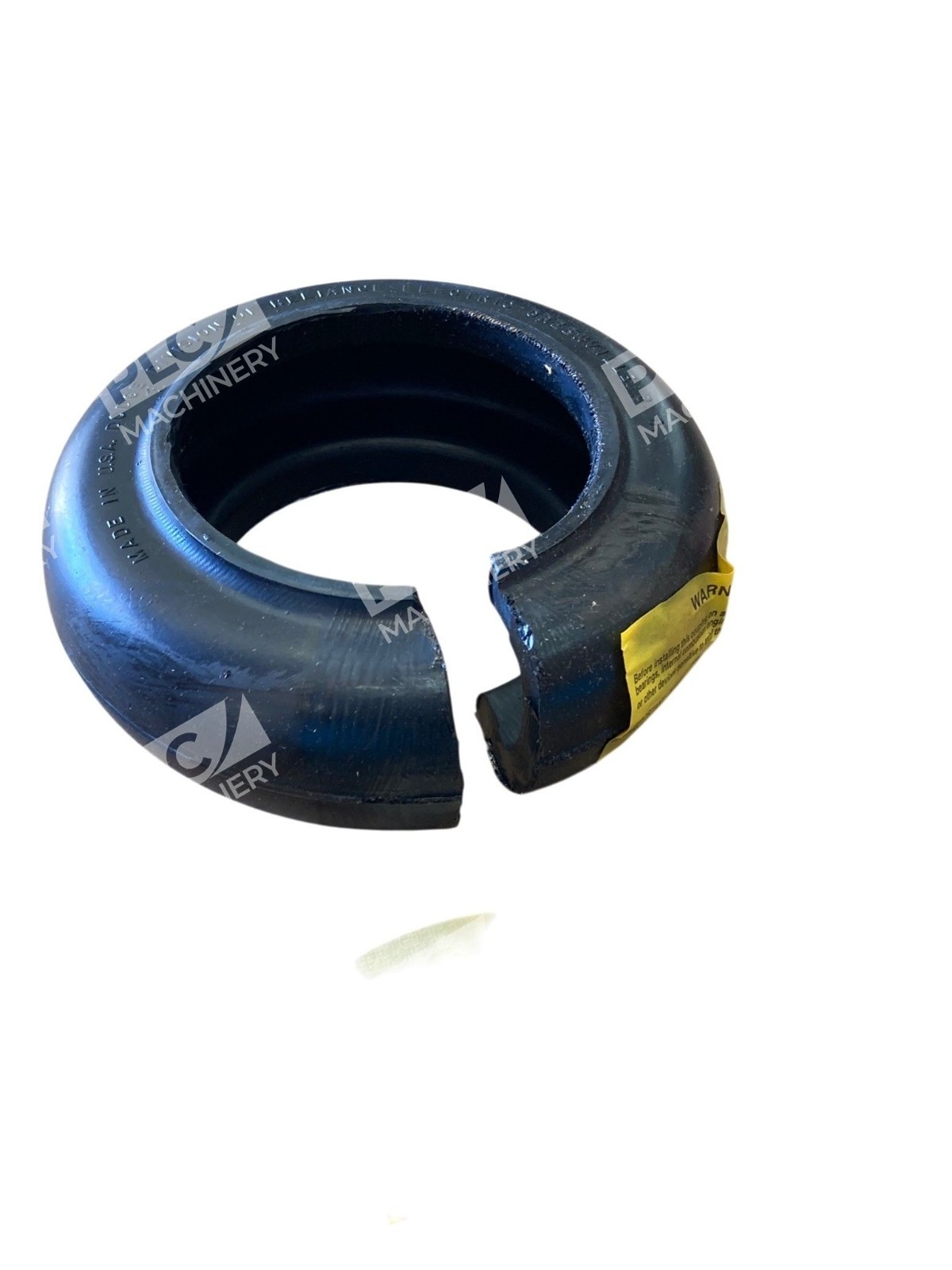

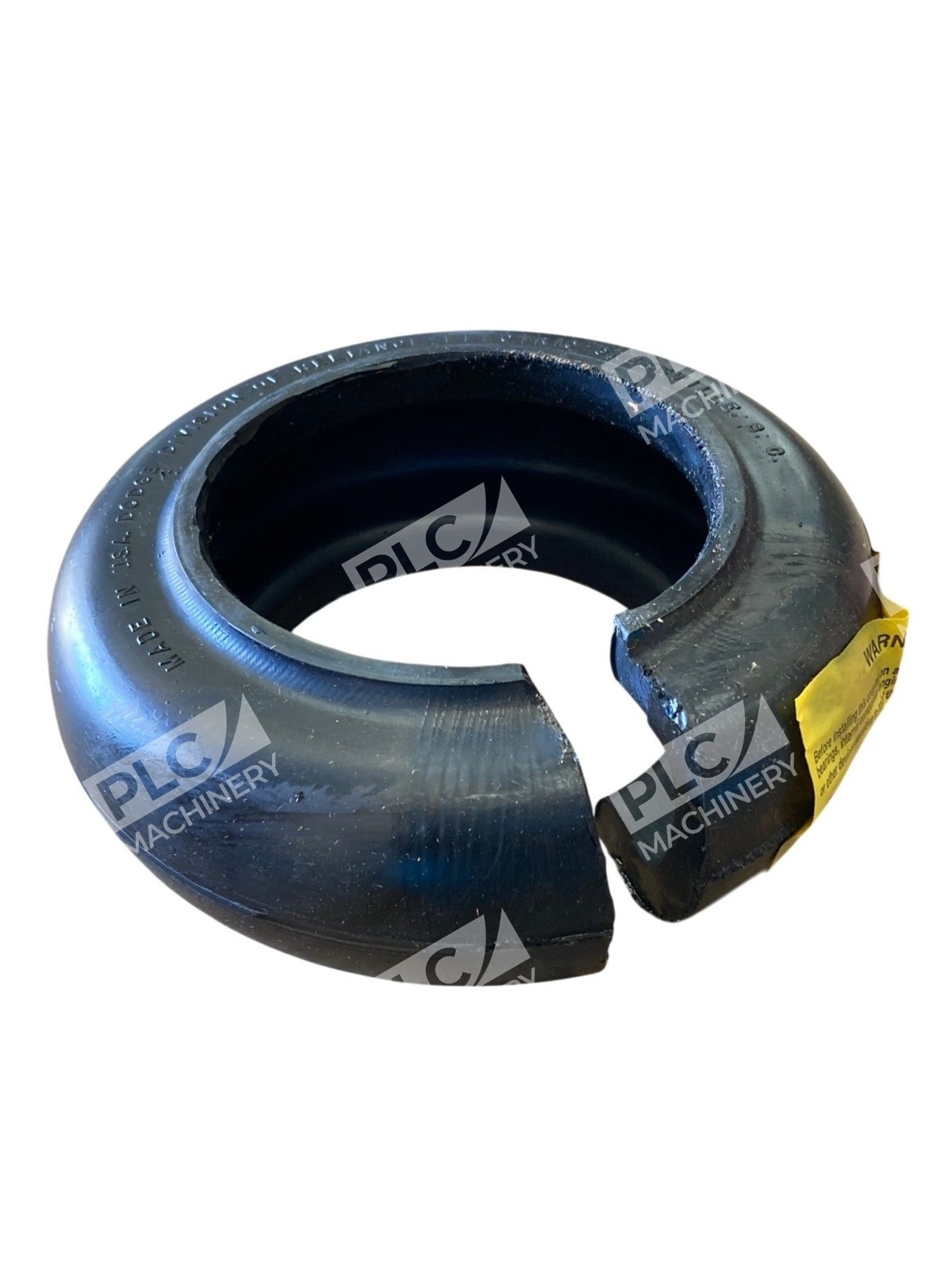

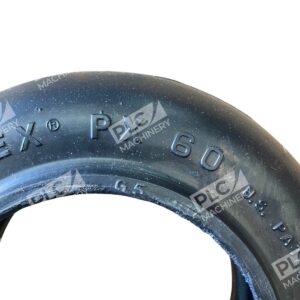

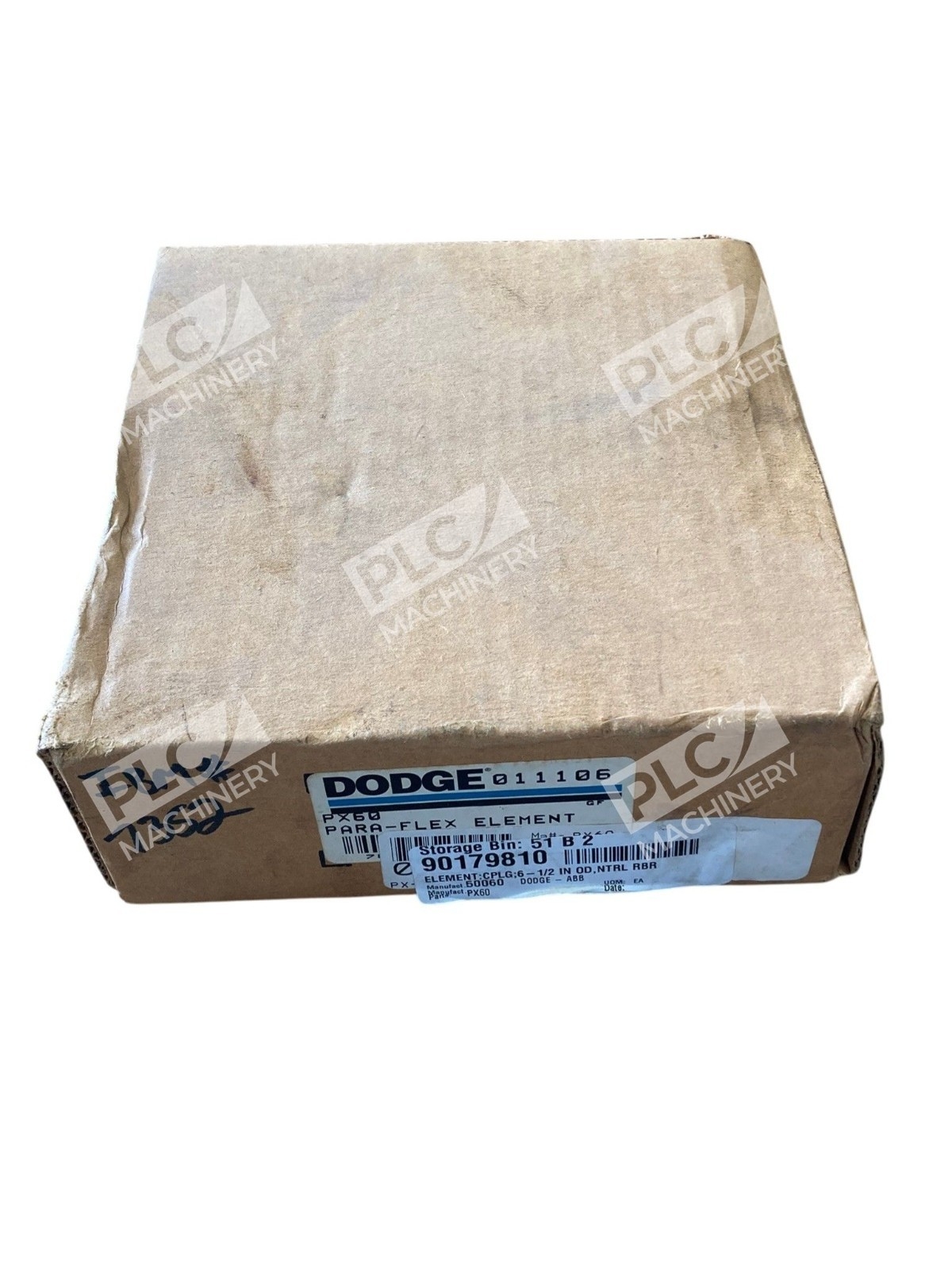

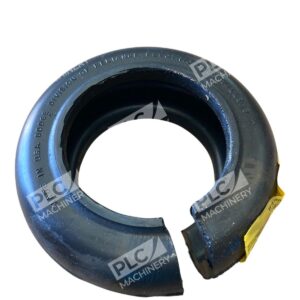

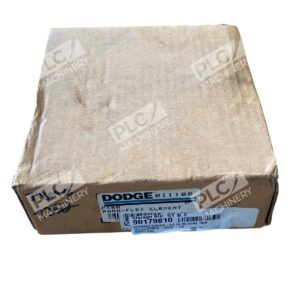

The Dodge 011106 PX60 Para-Flex coupling element is a standard flexible tire-style coupling component engineered for medium-duty power transmission in industrial automation and control systems. Manufactured by Dodge, a leading authority in motion control, this elastomeric element delivers superior misalignment accommodation and vibration damping while maintaining consistent torque transmission across a broad operating range.
Key Features
- Industry-leading misalignment capabilities—accommodates angular, parallel, and axial shaft misalignment simultaneously
- Natural rubber elastomeric element absorbs shock and dampens vibration to protect connected equipment
- Reinforced torque-carrying tension cords prevent unexpected downtime and extend element life
- ATEX certified for use in hazardous, potentially explosive environments
- Uniform, centered beads prevent element pullout during operation
- No lubrication required—sealed design reduces maintenance burden
Technical Specifications
- Coupling Size: PX60
- Coupling Style: Tire (flexible element)
- Element Material: Natural rubber
- Outside Diameter: 6.5 inches (165 mm)
- Rated Torque: 1800 in-lb (203 N·m)
- Horsepower @ 100 RPM: 2.86 hp (2.13 kW)
- Maximum Speed: 4000 rpm
- Angular Misalignment: 4.0 degrees
- Parallel Misalignment: 0.125 inches (3.2 mm)
- Axial Misalignment: 0.3125 inches (7.9 mm)
- Torsional Stiffness: 414 in-lb/degree
- Operating Temperature Range: –45°F to +180°F (–43°C to +82°C)
- Weight: 1.31 pounds (0.59 kg)
- Certifications: ATEX
- Component Type: Coupling Element (Tire)
Typical Applications
The Dodge 011106 PX60 element is well suited for:
- Pumps and compressors requiring reliable, vibration-free operation
- Fan and motor coupling systems in HVAC and industrial ventilation
- Conveyor drives and material handling equipment
- Hazardous-area installations (ATEX-certified environments)
- Equipment with moderate misalignment between drive and driven shafts
- Applications where shock absorption and reduced vibration transmission are critical
Compatibility & Replacements
Compatible With
- Dodge Para-Flex PX60 coupling hubs and housings
- Industrial electric motors and prime movers up to 4000 rpm
- Gearbox and belt-drive systems requiring flexible coupling
- Equipment with close-coupled or flexible mount configurations
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) Dodge 011106 elements
- Previous inventory or worn Para-Flex PX60 coupling elements
- Verify part number and coupling hub specifications before ordering to confirm compatibility with your existing assembly
Works With
- Dodge Para-Flex coupling system hubs (PX60 series)
- Standard industrial motor shafts and driven equipment shafts
- ATEX-compliant hazardous-area motor installations
- Industrial automation control systems requiring shock and vibration isolation
