Overview

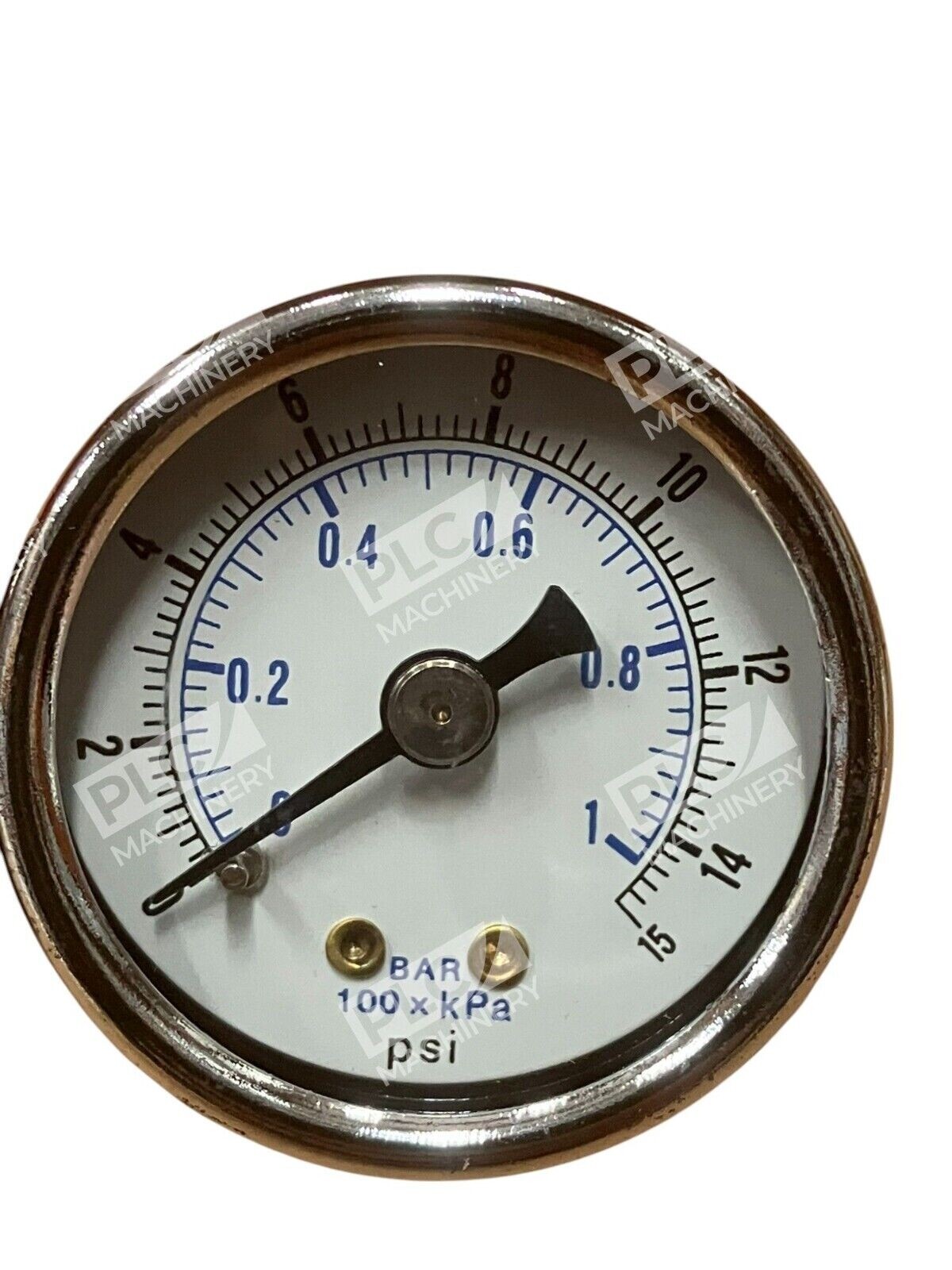

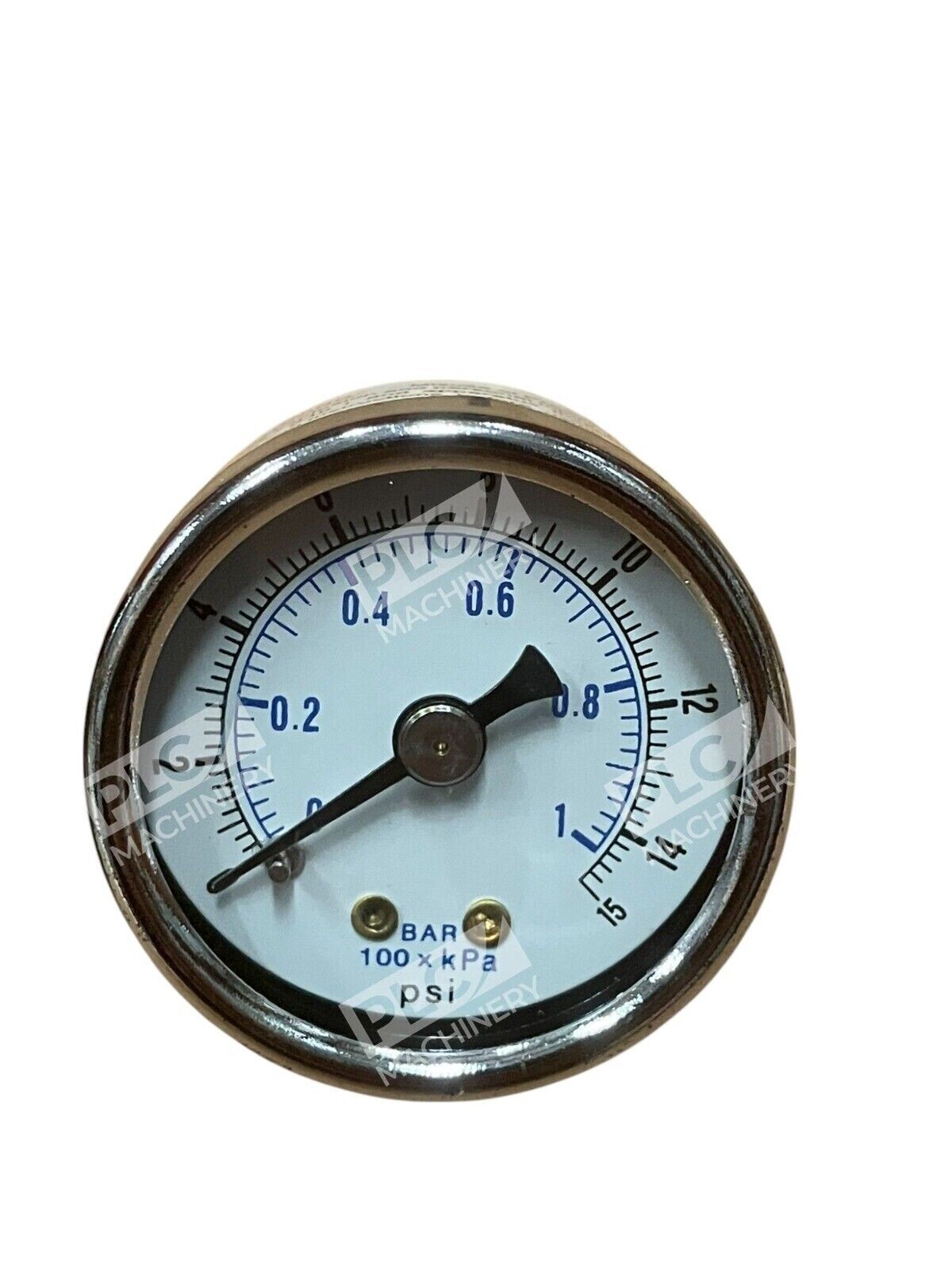

The 0-15 PSI 0-1 BAR pressure gauge is a standard industrial pressure gauge designed for versatile monitoring across pneumatic, hydraulic, and water systems. This dual-scale gauge provides accurate readings from 0 to 15 PSI (or 0 to 1 BAR), making it suitable for general-purpose applications in non-corrosive environments. The compact 40mm dial design fits standard mounting locations while maintaining clear visibility of pressure levels.
Key Features
- Dual scale display—bar scale (black) and PSI scale (red) for easy reading
- 40mm dial diameter for standard industrial mounting
- Brass wetted parts resist corrosion in common fluid media
- Bourdon tube pressure element ensures mechanical accuracy
- Compact, unbranded design for universal system compatibility
- Standard 1/8″ BSPT or 1/4″ connection thread available
Technical Specifications
- Pressure Range: 0–15 PSI / 0–1 BAR
- Dial Diameter: 40 mm (1.5 inches)
- Scale Division: 0.05 BAR increments
- Accuracy Class: KL 2.5 (±2.5% of full scale)
- Case Material: Black steel or stainless steel
- Wetted Parts: Brass (socket, connection, movement)
- Window: Polycarbonate snap-in
- Pressure Element: Brass Bourdon tube
- Pointer & Dial: Aluminum
- Connection: 1/8″ BSPT rear or center back entry
- Operating Temperature: −25°C to +60°C (−13°F to +140°F)
- Applications: Non-corrosive liquids and gases
Typical Applications
The 0-15 PSI 0-1 BAR gauge is commonly used in:
- Pneumatic systems and compressed air networks
- Hydraulic circuit monitoring
- Water supply and pressure checking
- Industrial HVAC and heating systems
- Pump outlet pressure verification
- General-purpose pressure monitoring in maintenance shops
Compatibility & Replacements
Compatible With
- Standard pneumatic air compressor systems
- Hydraulic pump and circuit applications
- Water pressure systems and supply lines
- Low-pressure gas delivery systems
- Industrial compressed air networks
- Maintenance and diagnostic equipment
Replaces / Drop-In Replacement For
As an unbranded generic gauge, this unit directly replaces any standard 0–15 PSI / 0–1 BAR pressure gauge with 40mm dial and 1/8″ BSPT connection. Verify thread type (BSPT, NPT, or metric) and mounting orientation (rear, center, or bottom entry) before ordering to ensure compatibility with your specific system.
Works With
- Manual pressure monitoring and visual inspection
- Bourdon tube pressure sensing systems
- Non-digital pneumatic and hydraulic applications
- General-purpose industrial pressure detection
- Standalone gauge installations and test equipment
