Overview

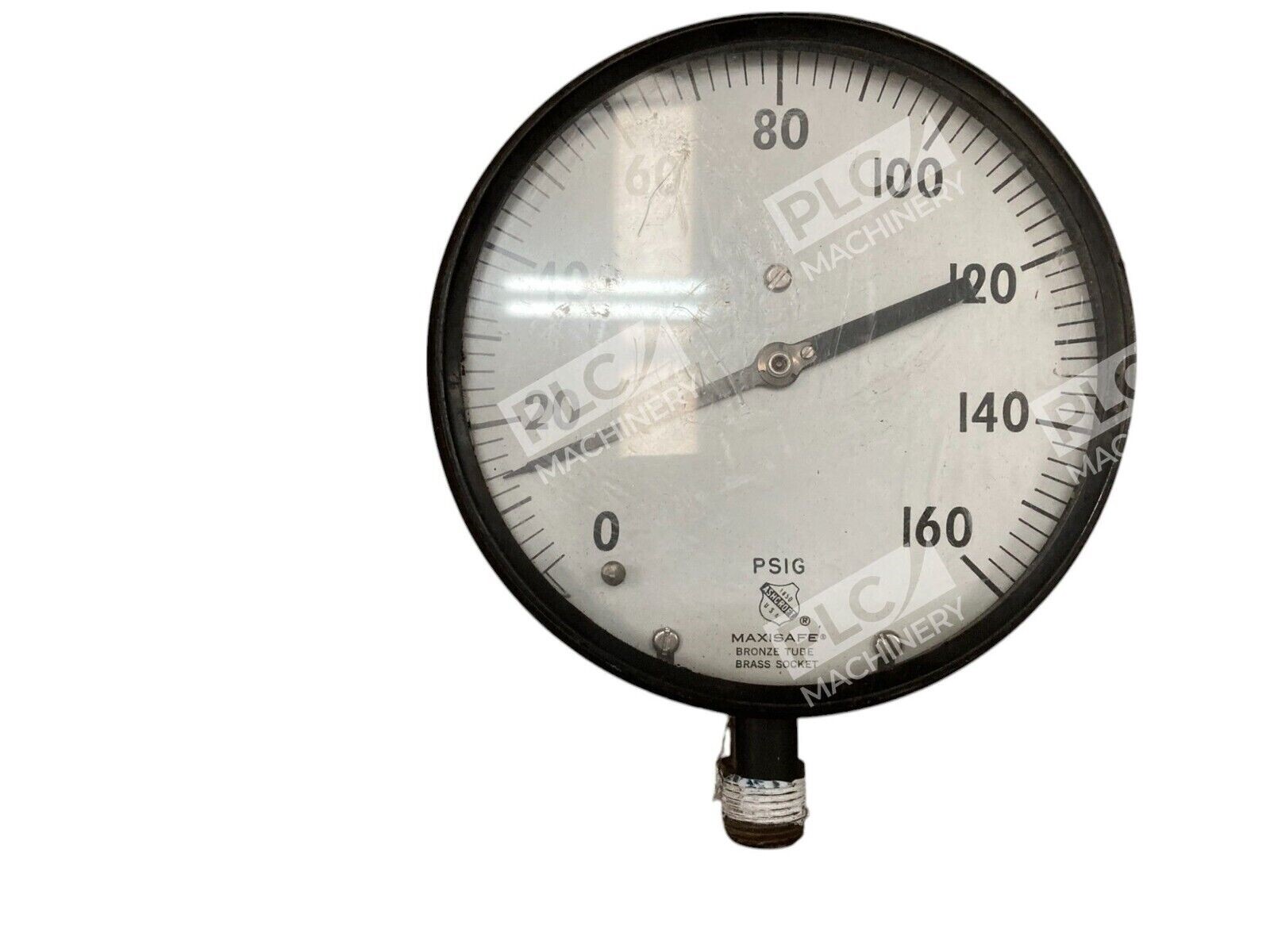

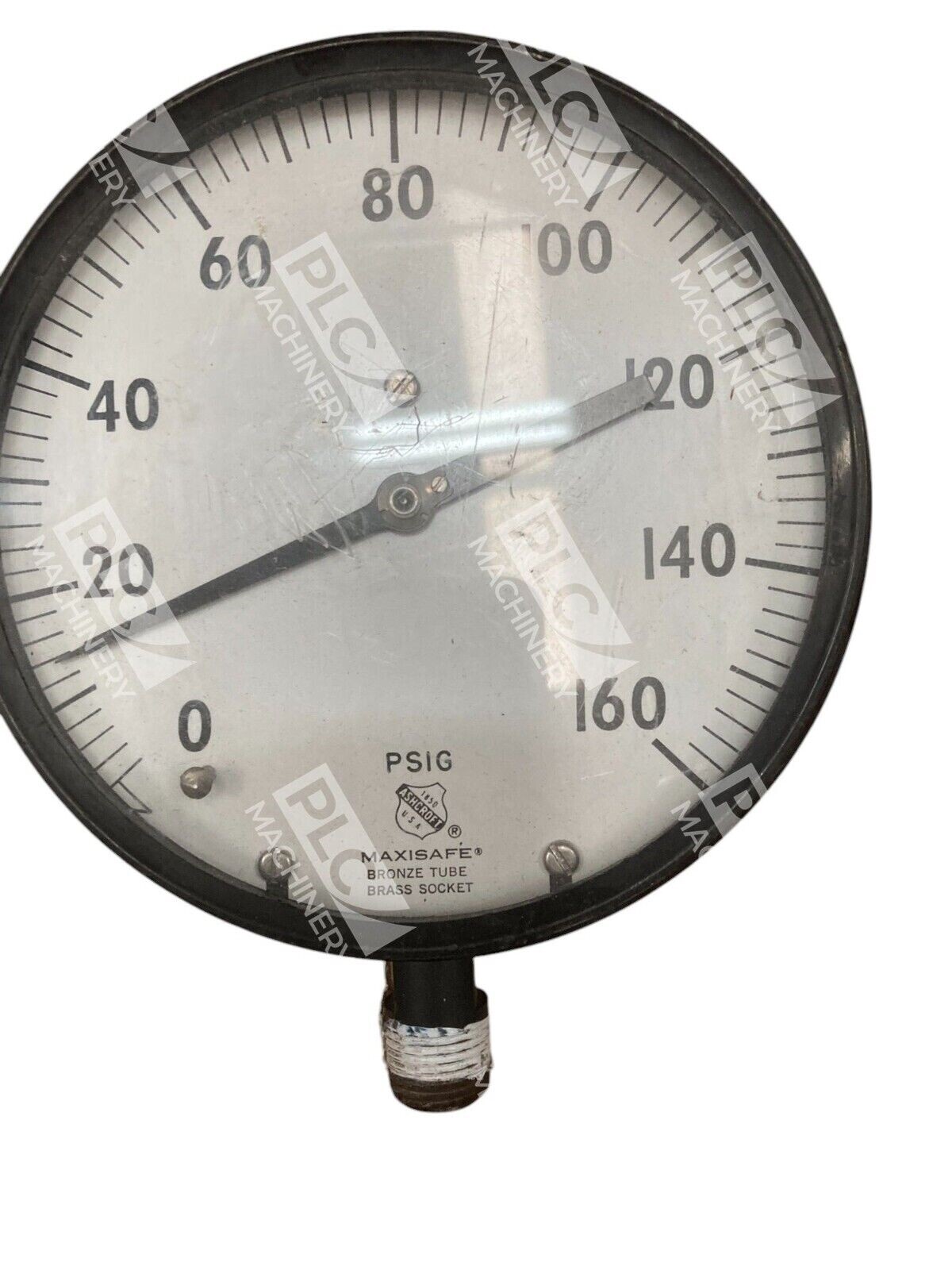

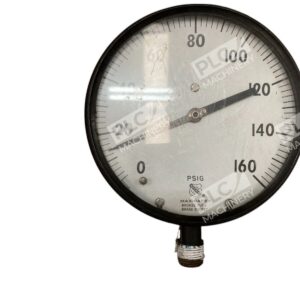

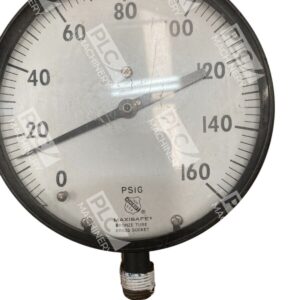

The Ashcroft 1196012 is a Maxisafe series pressure gauge designed for reliable pressure measurement across industrial applications. With a 0-160 PSIG range and 4.5-inch dial face, this gauge provides clear, easy-to-read indication suitable for hydraulic systems, pneumatics, compressors, and process equipment. Manufactured in the United States, the Ashcroft 1196012 combines durability with accuracy for mission-critical pressure monitoring.
Key Features
- 0-160 PSIG measurement range for mid-range pressure applications
- 4.5-inch dial diameter for optimal visibility in industrial environments
- 1/2-inch NPT process connection for standard piping integration
- Solid construction designed to withstand vibration and shock
- U.S. manufactured for quality assurance and rapid support
- Suitable for hydraulics, pneumatics, and general industrial use
Technical Specifications

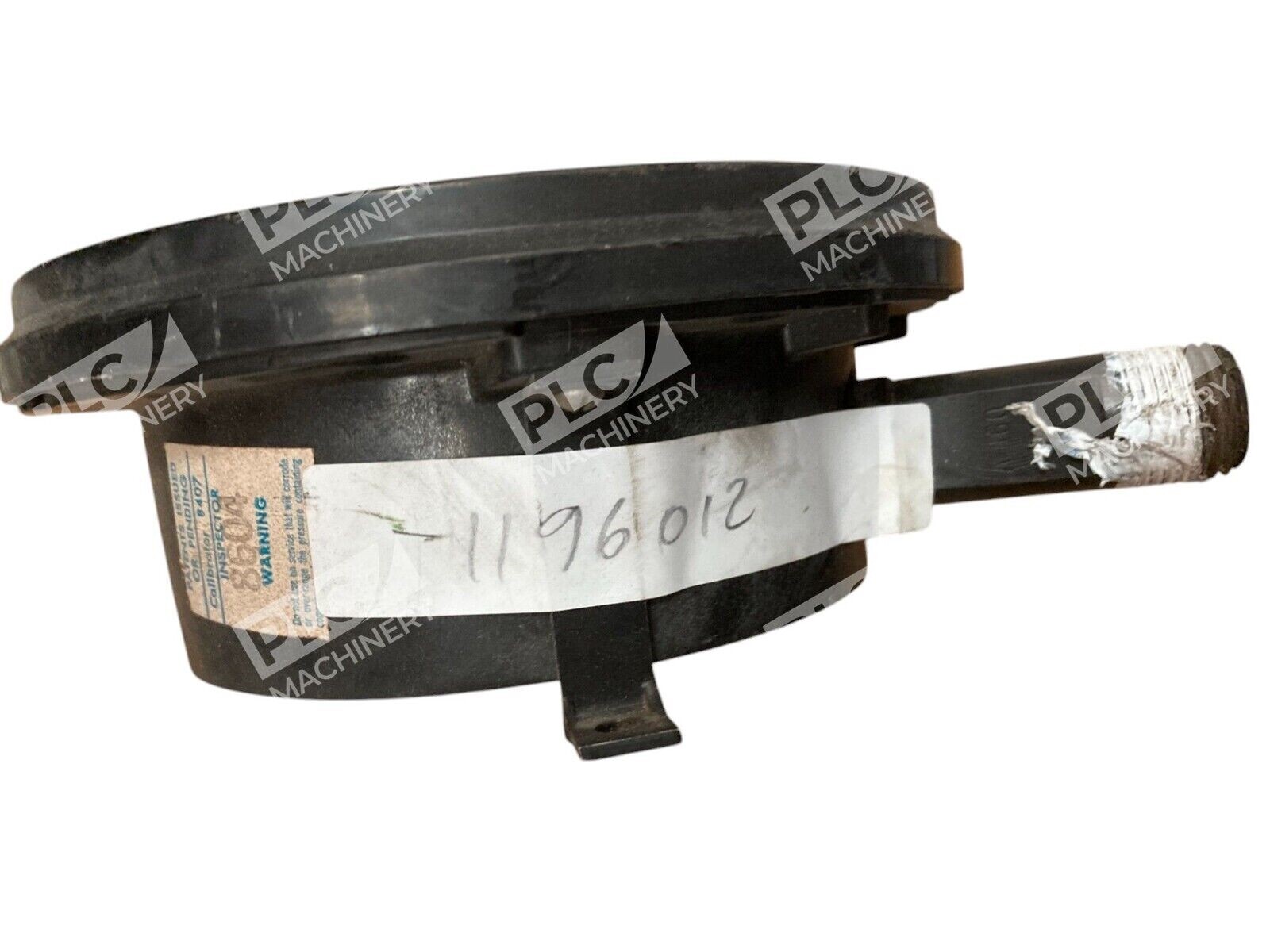

| Model Number | 1196012 |
| Series | Maxisafe |
| Measurement Range | 0-160 PSIG |
| Dial Size | 4.5 inches |

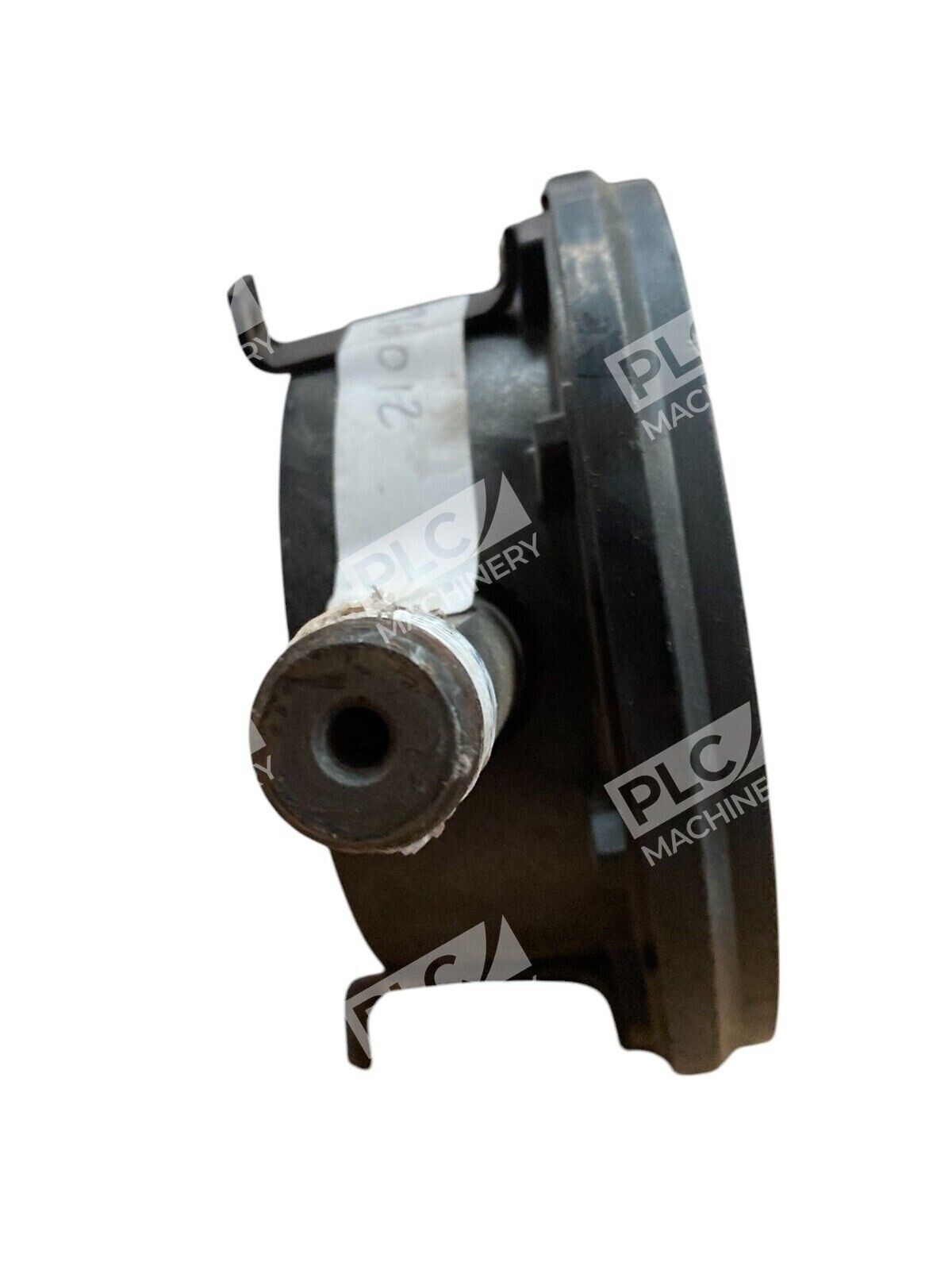

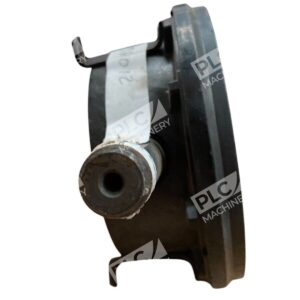

| Process Connection | 1/2-inch NPT |
| Connection Location | Bottom or Back (standard) |
| Case Material | Durable industrial construction |
| Window Material | Glass |
| Pointer Type | Micrometer adjustable |
| Dial Markings | Black on white background |
| Country of Origin | United States |
| Product Code | 24749 |
Typical Applications
- Hydraulic Systems: Monitor system pressure in machinery, presses, and fluid power equipment.
- Pneumatics: Track compressed air pressure in automation and control circuits.
- Compressors: Verify discharge or tank pressure in air compressor installations.
- General Industry: Process monitoring in manufacturing, OEM equipment, and utility applications.
- Equipment Protection: Early detection of pressure anomalies to prevent system damage.
Compatibility & Replacements
Compatible With
- Standard hydraulic and pneumatic systems with 1/2-inch NPT ports
- Compressors and pressure vessels up to 160 PSIG
- Industrial machinery and general process equipment
- Both dry and liquid-filled gauge configurations (consult installation guidance)
Replaces / Drop-In Replacement For
The Ashcroft 1196012 may serve as a replacement for other 0-160 PSIG, 4.5-inch gauges with matching 1/2-inch NPT connections. Verify exact mounting orientation and connection type with your system integrator before ordering to ensure proper fit and function.
Works With
- Ashcroft accessory products including snubbers, isolation rings, and diaphragm seals
- Industry-standard 1/2-inch NPT piping and fittings
- Liquid-fill conversion kits for enhanced shock and vibration resistance (optional)
- Pressure relief and isolation valve systems
