Overview

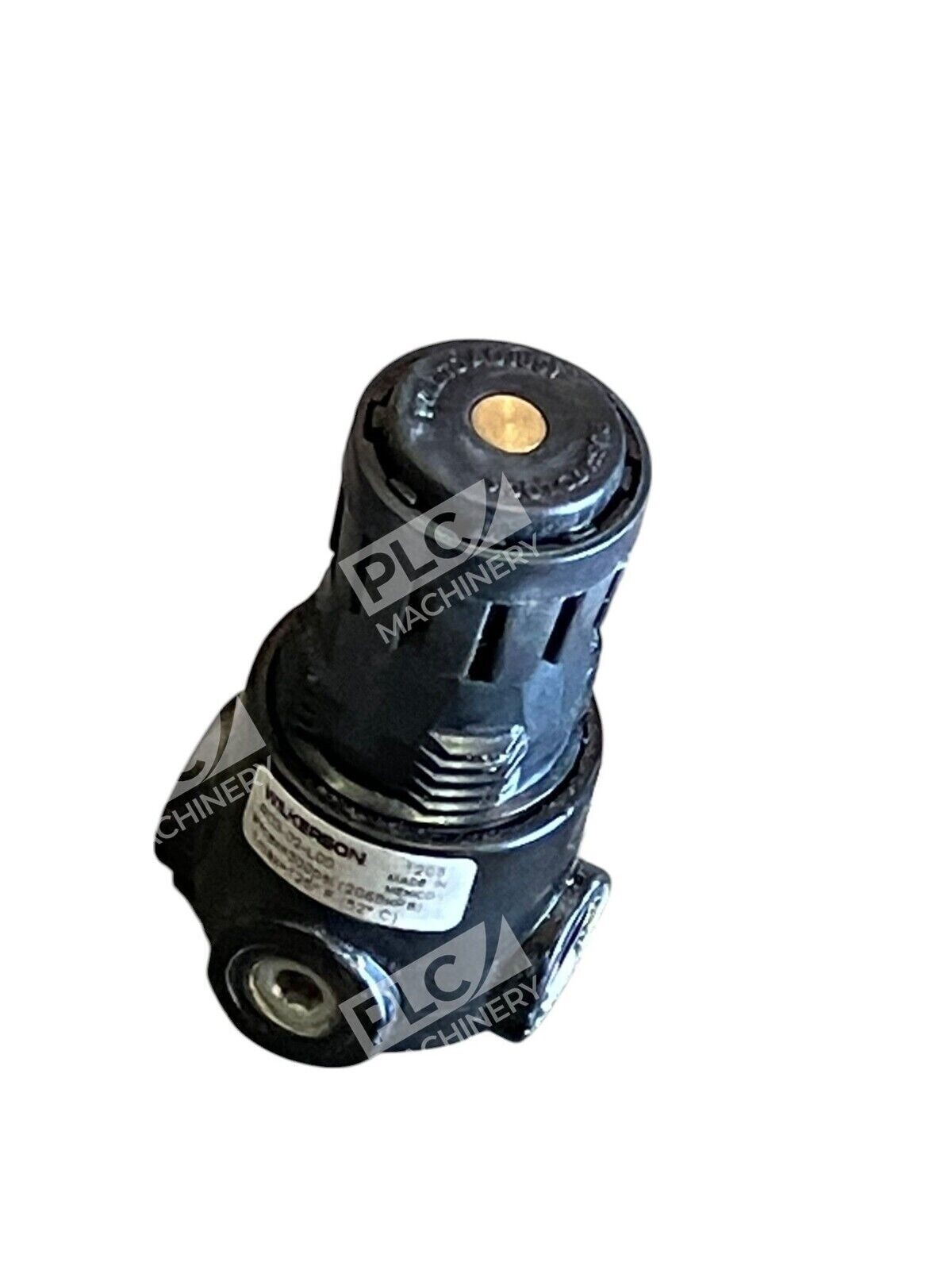

The Wilkerson R03-02-L00 is a no-gauge, compact air regulator designed for pneumatic systems requiring space-efficient pressure regulation. With a 1/4″ NPT connection, this mini regulator is ideal for point-of-use applications where larger regulators cannot fit. The R03-02-L00 maintains consistent outlet pressure across varying inlet conditions, making it a reliable choice for controls engineers and maintenance technicians working with compressed air systems.
Key Features
- Compact Design: Mini regulator footprint fits tight installation spaces
- 1/4″ NPT Ports: Standard female NPT connections on inlet and outlet
- No Gauge Configuration: Streamlined unit without dial indicator for weight and cost savings
- Adjustable Pressure: Knob adjustment mechanism for quick outlet pressure tuning
- Zinc Body Construction: Durable housing for industrial pneumatic environments
- Wide Inlet Rating: Rated for 300 PSI maximum inlet pressure capacity
Technical Specifications
The Wilkerson R03-02-L00 is engineered for reliable, long-term operation in production and maintenance applications:
- Port Size: 1/4″ NPT (female inlet and outlet)
- Pressure Range: 1–60 PSIG outlet (adjustable)

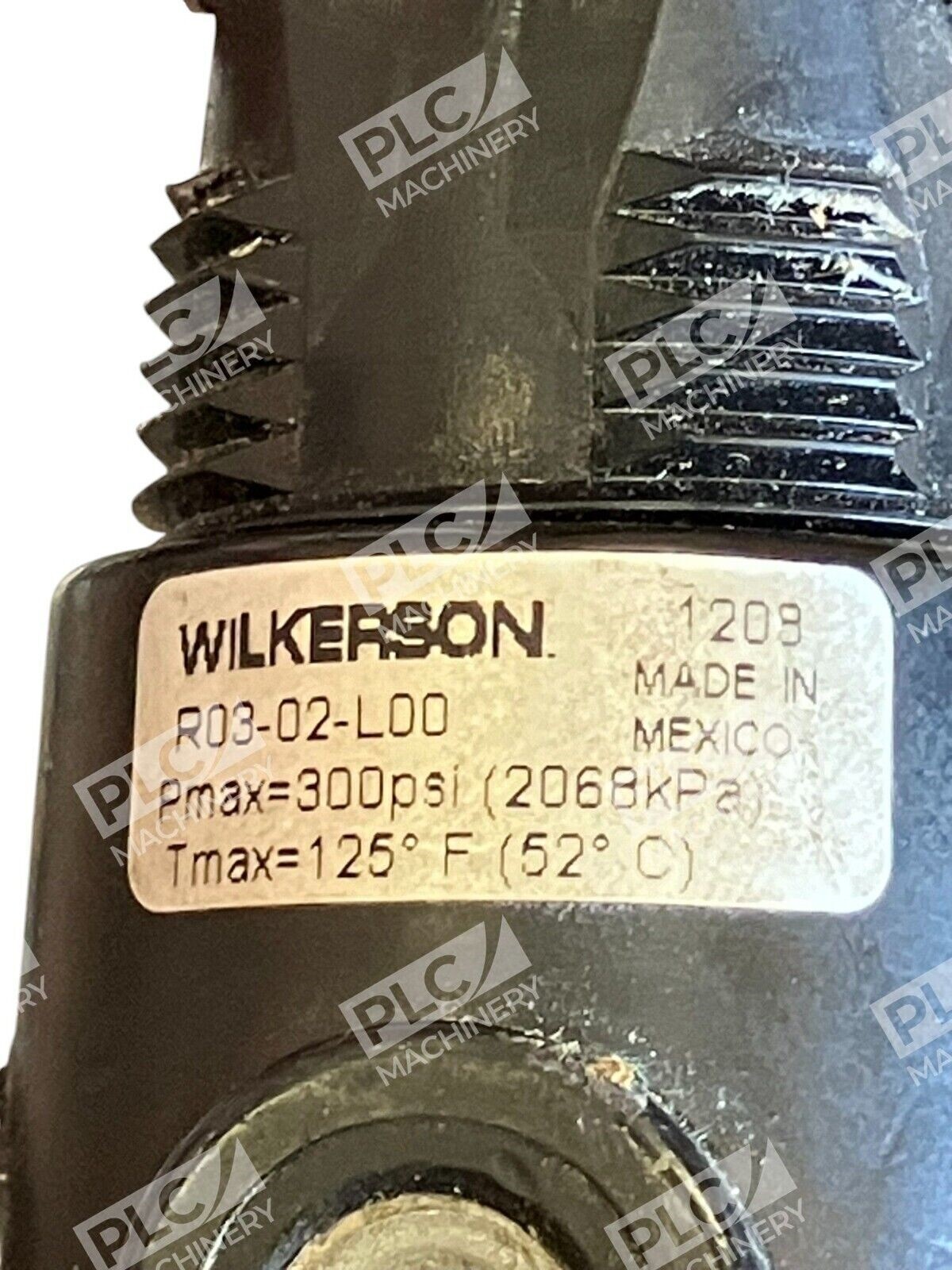

- Maximum Inlet Pressure: 300 PSI
- Flow Rating: 22 CFM maximum
- Operating Temperature: Up to 125°F (52°C)
- Body Material: Zinc alloy
- Adjustment: Knob-type manual adjustment
- Series: R03 Mini-Regulators
Typical Applications
The R03-02-L00 serves in a wide range of compressed air control scenarios:
- Point-of-use pressure regulation for pneumatic tools and actuators
- Machine stations requiring localized pressure setting without a central control panel
- Low-flow production lines (food, beverage, electronics assembly)
- Laboratory and test stand compressed air circuits
- Retrofit installations in space-constrained equipment enclosures
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT pneumatic tubing and fittings
- Compressed air systems operating at 300 PSI or below
- Pneumatic tools and actuators requiring pressure regulation (cylinders, motors, valves)
- FRL (Filter-Regulator-Lubricator) assembly point-of-use installations
- Wilkerson filter and lubricator components with matching 1/4″ NPT ports
Replaces / Drop-In Replacement For
- Wilkerson R03-02-000 (similar specifications; verify pressure range for your application)
- Other 1/4″ NPT mini regulators in the 1–60 PSIG range
Works With
- ISO 4401-compliant pneumatic systems
- Standard compressed air preparation equipment (filters, dryers, separators)
- Pneumatic logic circuits and control networks
- Any tubing or component rated for 1/4″ NPT connections
