Overview

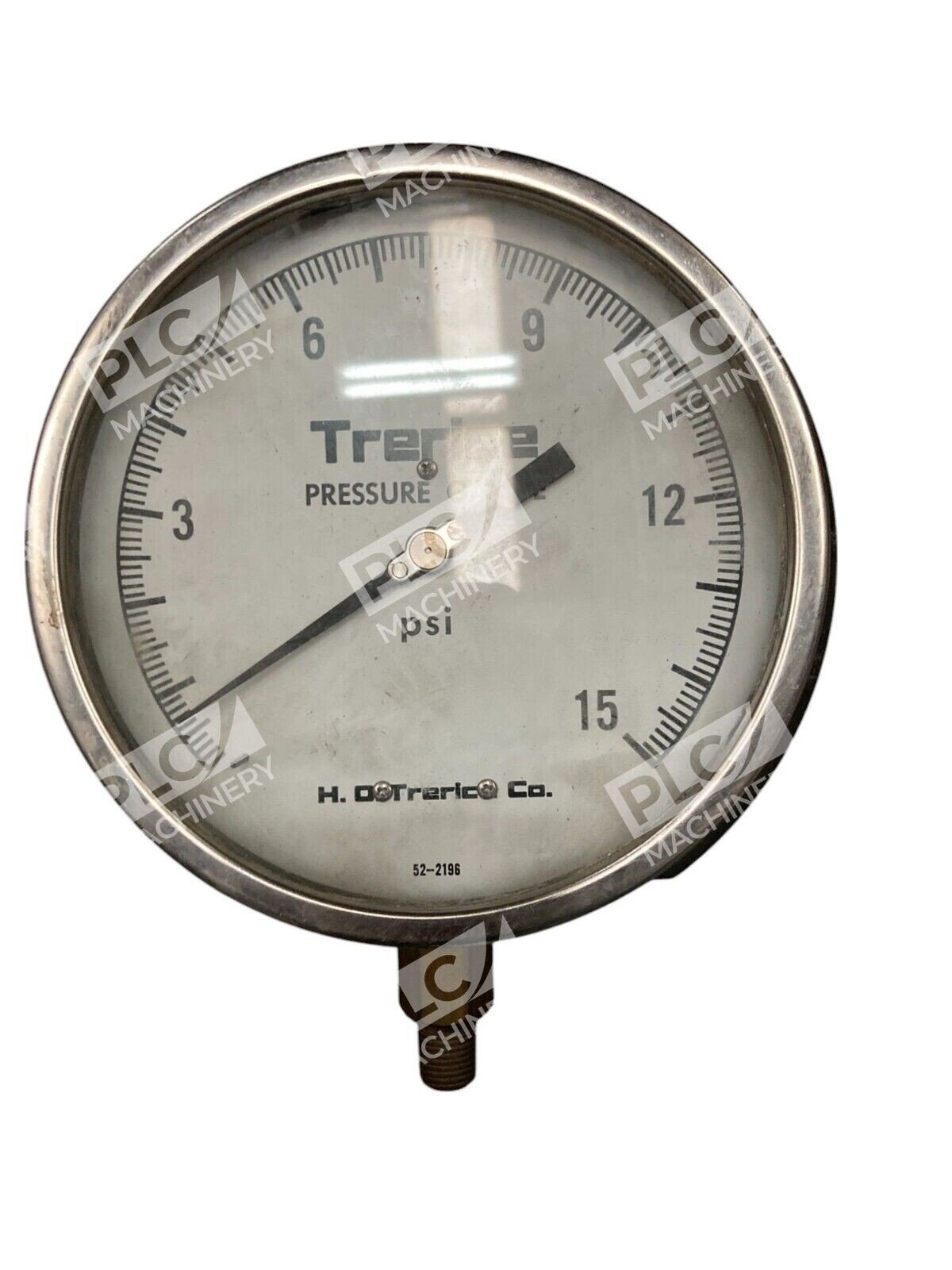

The Trerice 52-2196 is a 0-15 PSI dial pressure gauge designed for industrial measurement applications. This unit uses bourdon tube sensing element technology to convert system pressure into mechanical motion, which is transmitted through a precision movement to the dial pointer. Trerice pressure gauges are engineered for reliability in demanding environments where consistent, accurate pressure monitoring is critical.
Key Features
- 0-15 PSI measurement range suitable for low-pressure monitoring
- Bourdon tube mechanical construction—no electrical power required
- Precision-calibrated dial display for clear pressure indication
- Industrial-grade design for use in manufacturing, HVAC, pneumatics, and fluid systems
- Durable case construction available with multiple mounting configurations
- ASME B40.100 compliance for gauge accuracy and safety standards
Technical Specifications
- Pressure Range: 0–15 PSI
- Sensing Element: Bourdon tube
- Display Type: Mechanical dial with pointer

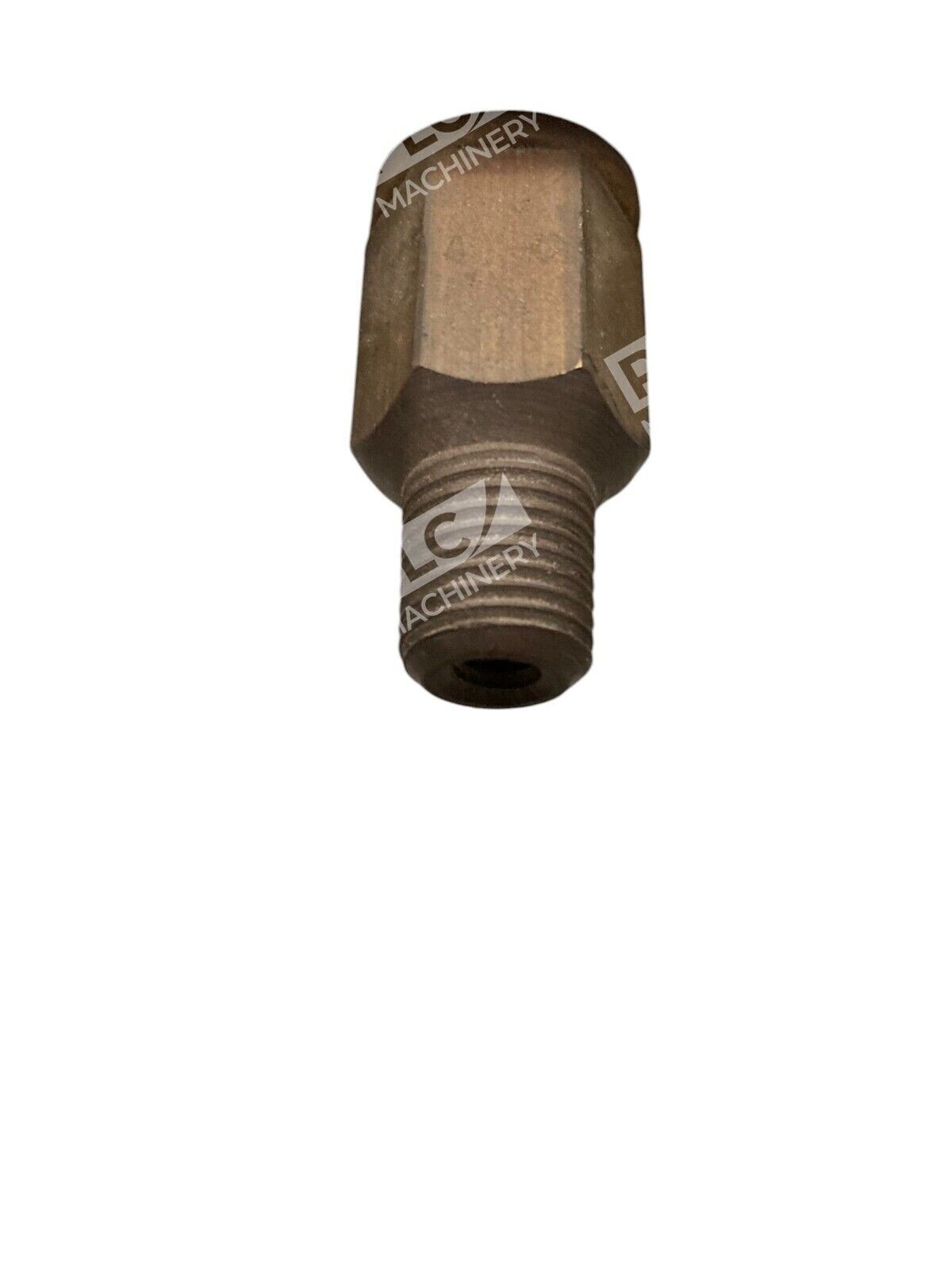

- Standard Connections: NPT or BSPT thread styles (1/8″ to 1/2″)

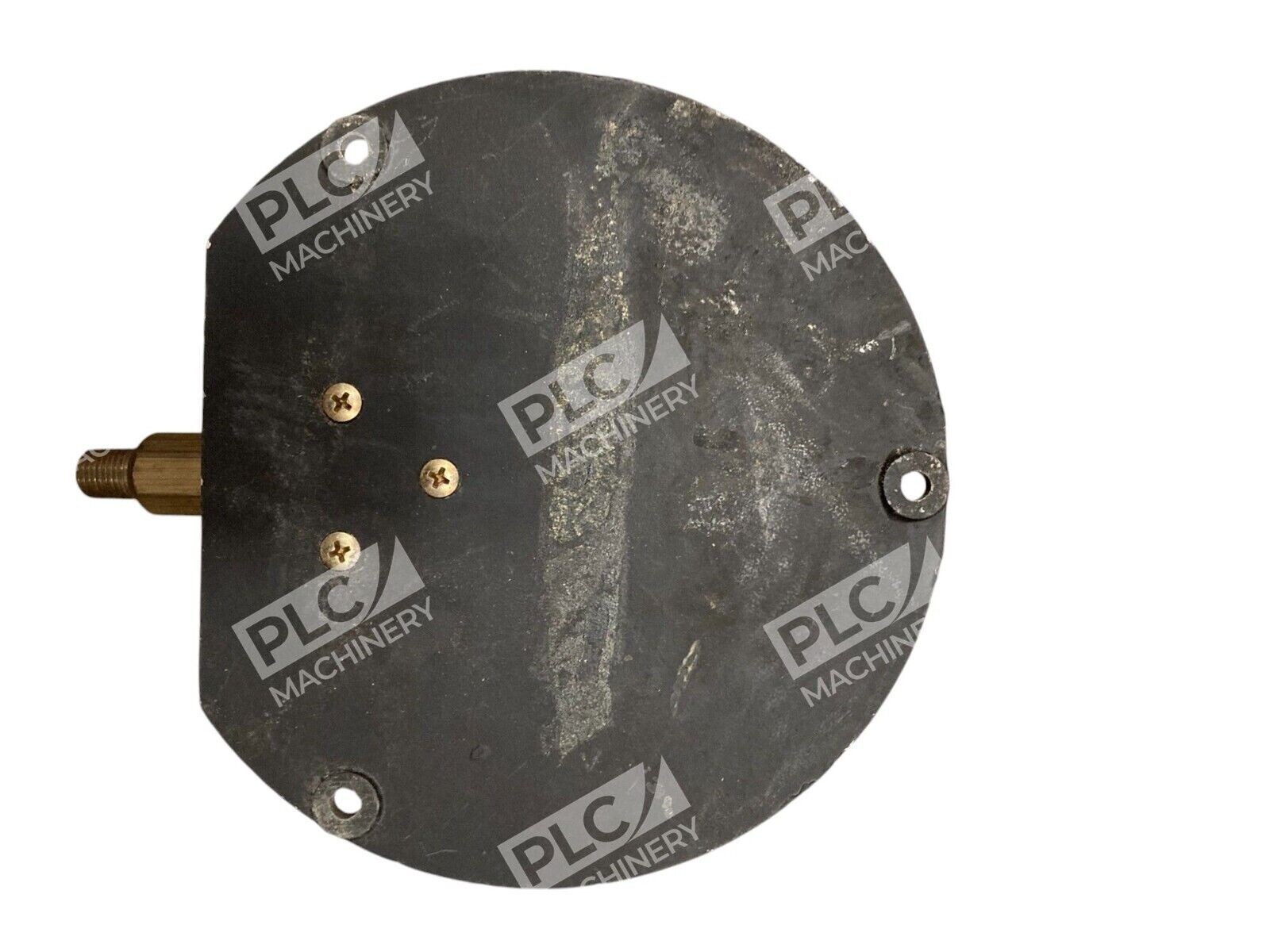

- Mounting Options: Lower male (LM), lower back male (LBM), center back male (CBM)
- Case Materials: Steel or stainless steel, configurable per application
- Wetted Parts: Bronze/brass or stainless steel per medium compatibility
- Standards Compliance: ASME B40.100
- Operating Principle: Mechanical flexing of bourdon tube with gear-driven pointer movement
Typical Applications
- Pneumatic systems and compressed air monitoring
- Low-pressure steam and water systems
- HVAC and refrigeration pressure measurement
- Industrial process and equipment monitoring
- Hydraulic circuits and fluid power systems
- General facility pressure surveillance
Compatibility & Replacements
Compatible With
- Standard NPT and BSPT threaded piping and manifolds
- Pneumatic, hydraulic, and fluid systems operating at 0–15 PSI
- Industrial pressure-sensing and monitoring panels
- Equipment requiring low-pressure gauge feedback
Replaces / Drop-In Replacement For
Verify direct model interchangeability with your system integrator or original equipment manufacturer documentation. The Trerice 52-2196 is designed to replace other 0-15 PSI mechanical gauges where thread size and mounting configuration match.
Works With
- No software or communication protocols—purely mechanical display instrument
- Compatible with all standard pressure-sensing manifolds and panel mounts
- Works with snubbers, isolation valves, and pulsation dampening accessories for protection against pressure spikes and vibration
