Overview

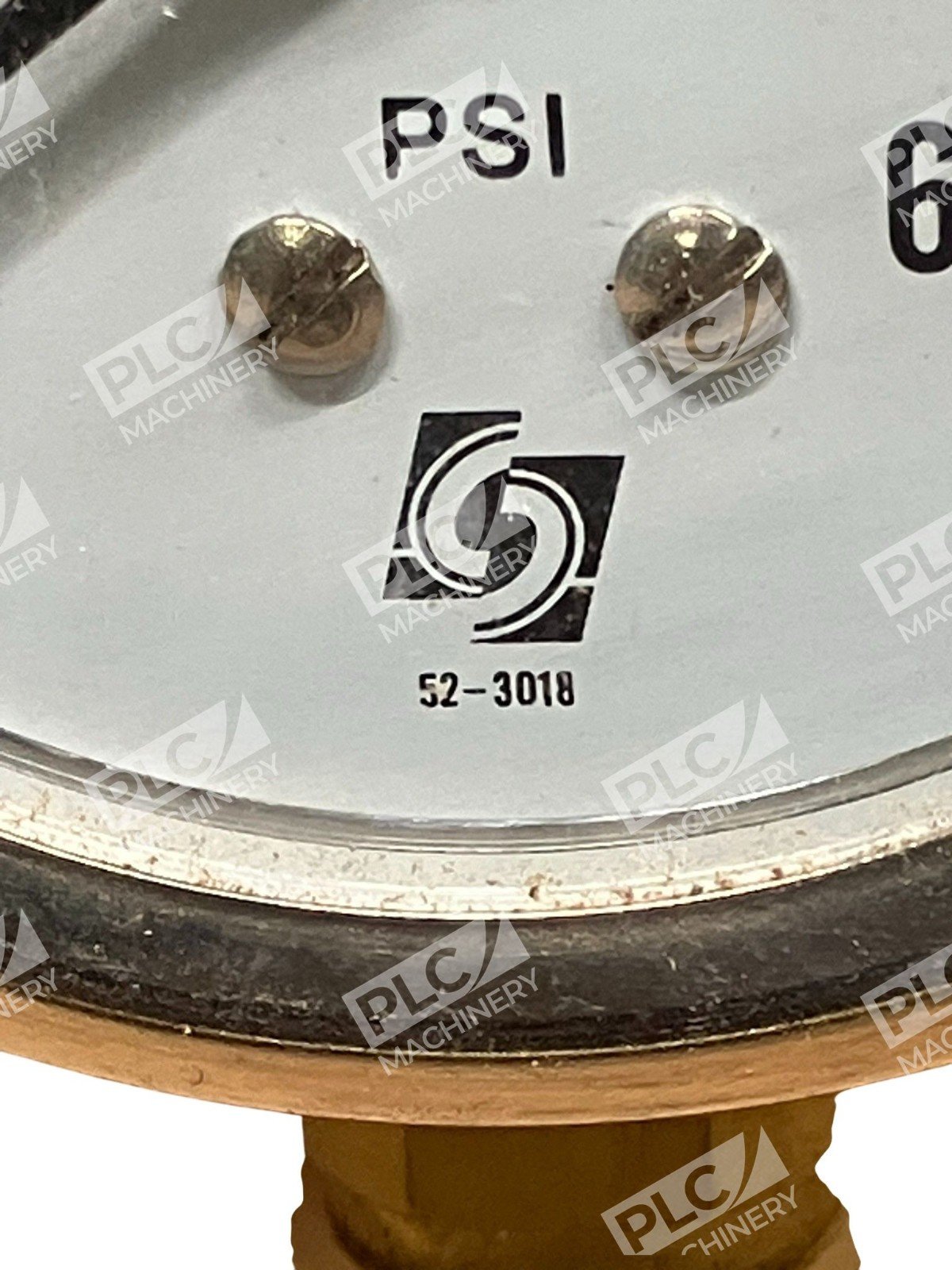

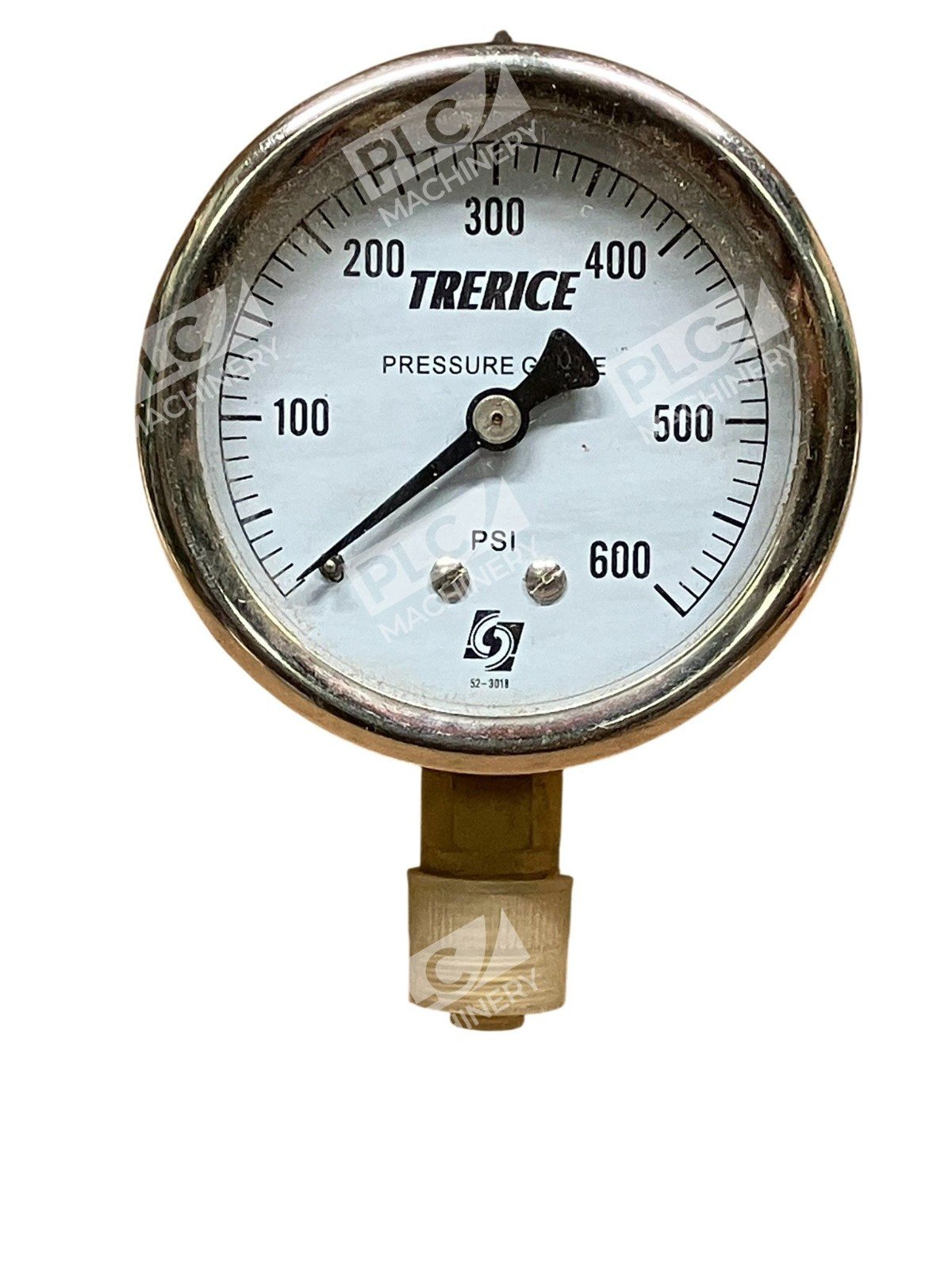

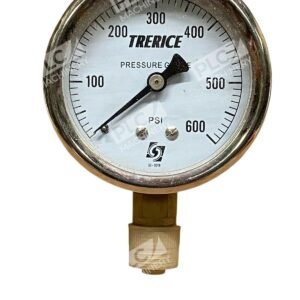

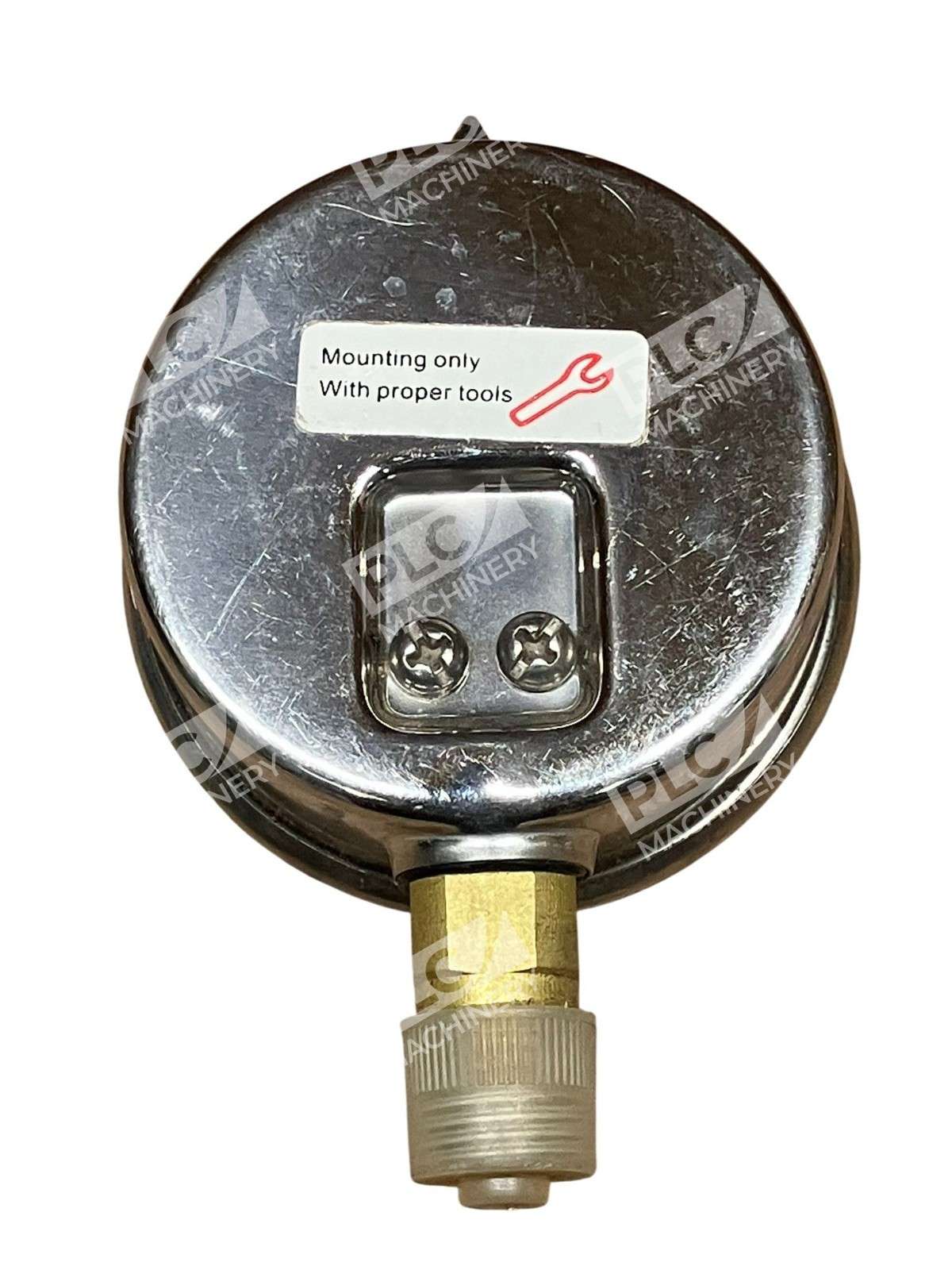

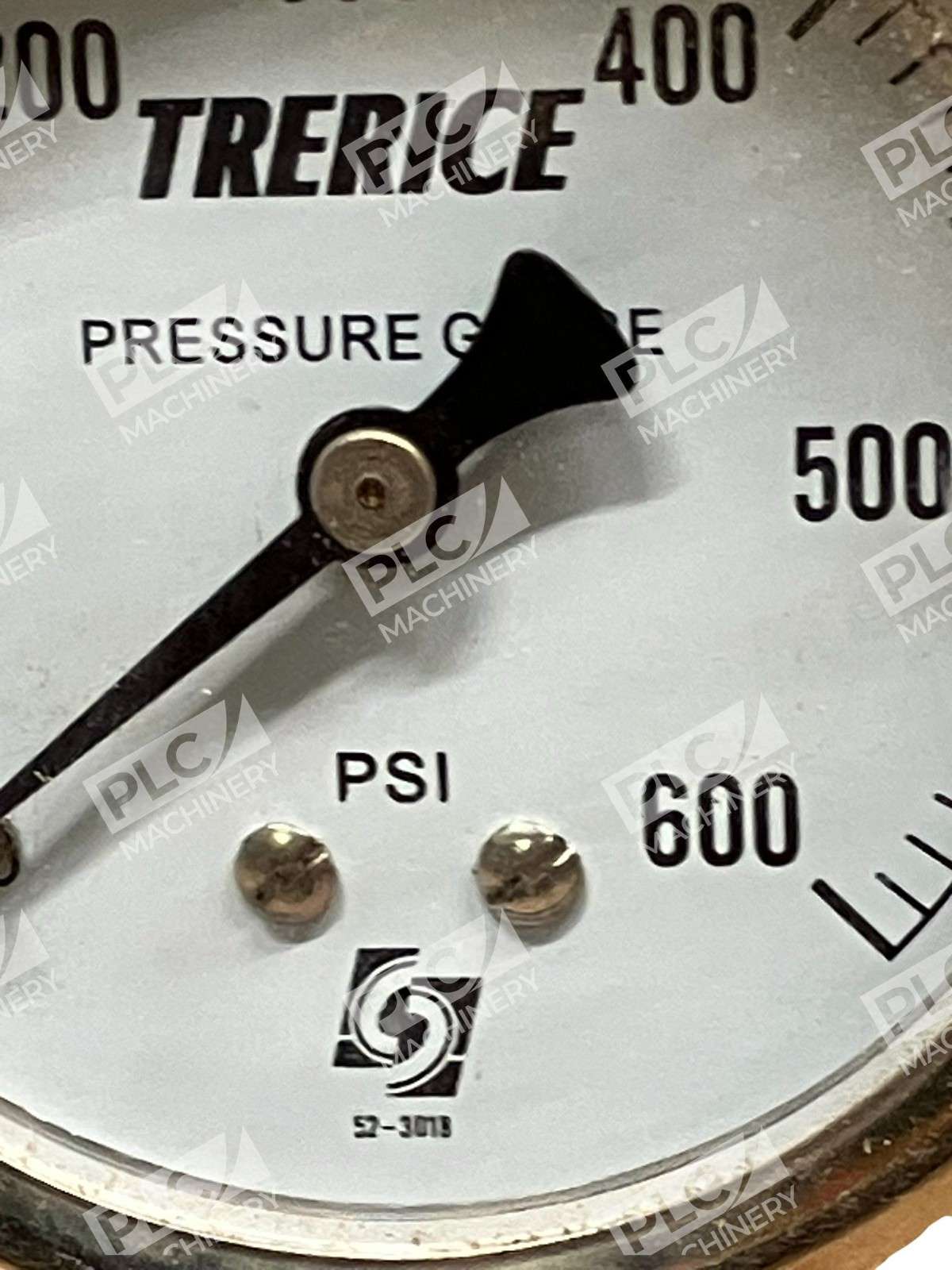

The Trerice 52-3018 pressure gauge is a 0-600 PSI instrument designed for accurate pressure measurement in industrial automation and process control environments. With a 4-3/4″ diameter dial and lower mount (bottom entry) connection, this gauge delivers reliable performance in manufacturing, hydraulic systems, pneumatic applications, and plant maintenance operations. Built to ASME B40.100 standards, the Trerice 52-3018 offers straightforward functionality and proven durability across diverse industrial sectors.
Key Features
- 0-600 PSI range with clear dial graduation for easy reading
- 4-3/4″ dial size for visibility in confined spaces or standard panel mounts
- Lower mount (bottom entry) connection for efficient plumbing and installation
- Meets ASME B40.100 Grade 1A accuracy standards
- Durable construction suitable for continuous operation in industrial environments
- Friction-type or adjustable pointer options available for reliability and serviceability
Technical Specifications
The Trerice 52-3018 incorporates a robust Bourdon tube mechanism with brass or bronze wetted parts (standard for non-corrosive media). Calibration intervals are ±1.0% full scale accuracy, ensuring dependable pressure readings across the entire 0-600 PSI range.
- Pressure Range: 0 to 600 PSI
- Dial Size: 4-3/4″ (120 mm diameter)
- Mount Type: Lower mount (bottom entry connection)
- Accuracy: ±1.0% full scale (ASME B40.100 Grade 1A)
- Minor Divisions: 50 PSI intervals with 5 PSI minor divisions
- Pointer Type: Friction-type or micro-adjustable (standard options)
- Wetted Parts: Brass or bronze bourdon tube and socket assembly (standard)
- Case Material: Cast aluminum or steel, depending on series variant
- Window: Clear glass for unobstructed dial view
- Markings: Black graduations on white dial background (standard)
Typical Applications
The Trerice 52-3018 is ideally suited for:
- Hydraulic system pressure monitoring in presses, injection molding machines, and metalworking equipment
- Pneumatic system instrumentation in automated assembly lines and robotic applications
- Compressor discharge and line pressure measurement
- Process control and quality assurance in manufacturing and production environments
- General plant maintenance and troubleshooting of pressure systems
- HVAC and refrigeration applications requiring accurate pressure indication
Compatibility & Replacements
Compatible With
- Standard industrial hydraulic and pneumatic systems rated for 0-600 PSI
- 1/4″ NPT, 1/2″ NPT, or other standard lower mount connection threads (verify exact connection size before ordering)
- Panel-mount installations with bottom entry requirement
- OEM equipment and aftermarket control systems in manufacturing and processing industries
- Systems requiring ASME B40.100 Grade 1A accuracy compliance
Replaces / Drop-In Replacement For
The Trerice 52-3018 is a direct replacement for compatible Trerice pressure gauge models within the 0-600 PSI range with lower mount configuration. Verify compatibility with your system integrator or equipment documentation before ordering to confirm connection thread size and mounting requirements.
Works With
- All standard industrial hydraulic fluids and non-corrosive pneumatic media
- Diaphragm seals (optional) for corrosive or specialized media applications
- Glycerine-filled variants for vibration-prone or pulsating pressure environments
- Pressure relief, reducing, and control valves in modern process automation systems
- Manifold-mounted installations with standard cavity sizing
