Overview

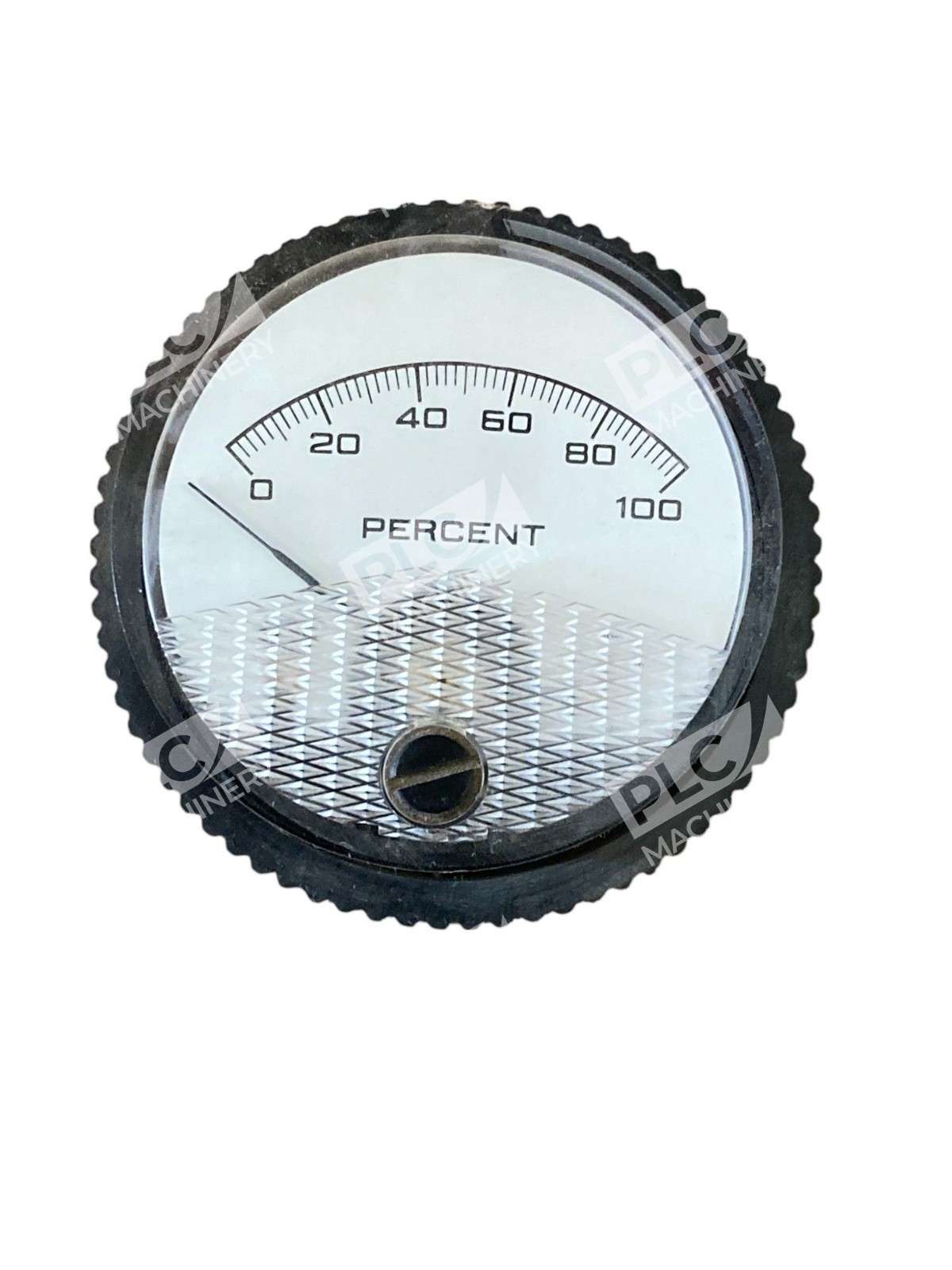

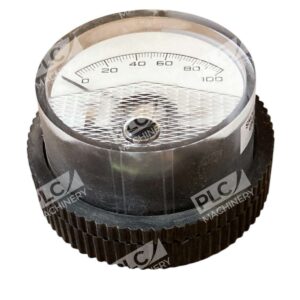

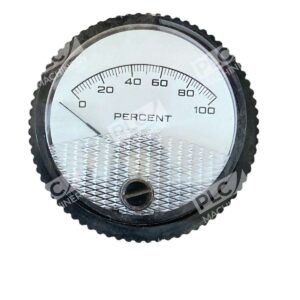

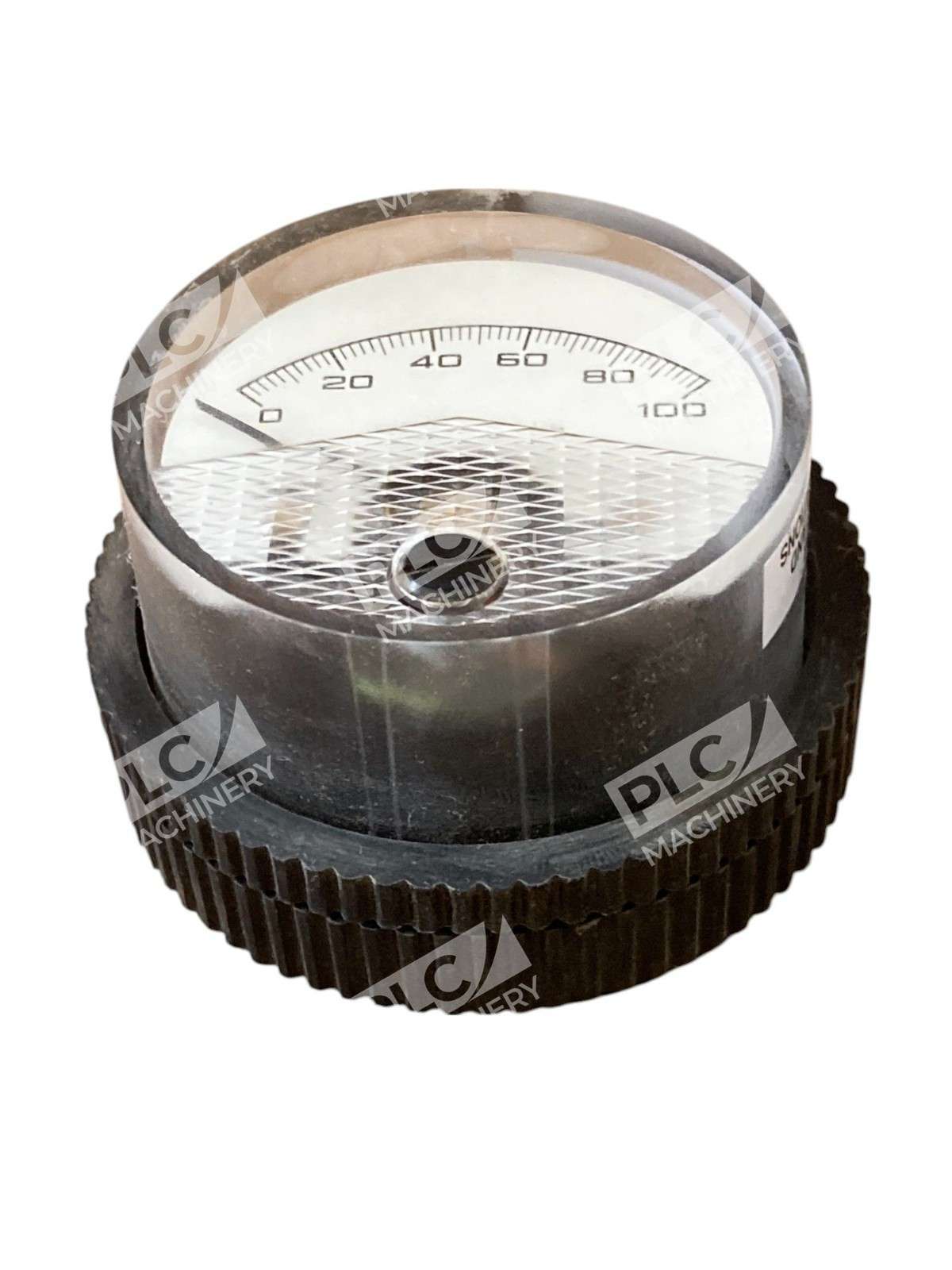

The Rosemount 01151-0687-0004 is a precision transmitter panel gauge engineered for industrial pressure measurement and control. This 2.5-inch dial gauge is compatible with Rosemount 1151 series transmitters and delivers accurate 0-100% indication with 4-20 mA linear signal compatibility. Suitable for test equipment, process monitoring, and system integration, this gauge provides dependable performance in demanding industrial environments.
Key Features
- 4-20 mA linear scale output for accurate signal transmission
- Panel-mount design with 2 1/2 inch dial for easy cabinet integration
- 0-100% measurement range with clear analog indication
- Durable construction for industrial applications
- Compatible with Rosemount 1151 series transmitter systems
Technical Specifications
The following specifications define the performance and compatibility of this transmitter panel gauge:
- Manufacturer: Rosemount (Emerson)

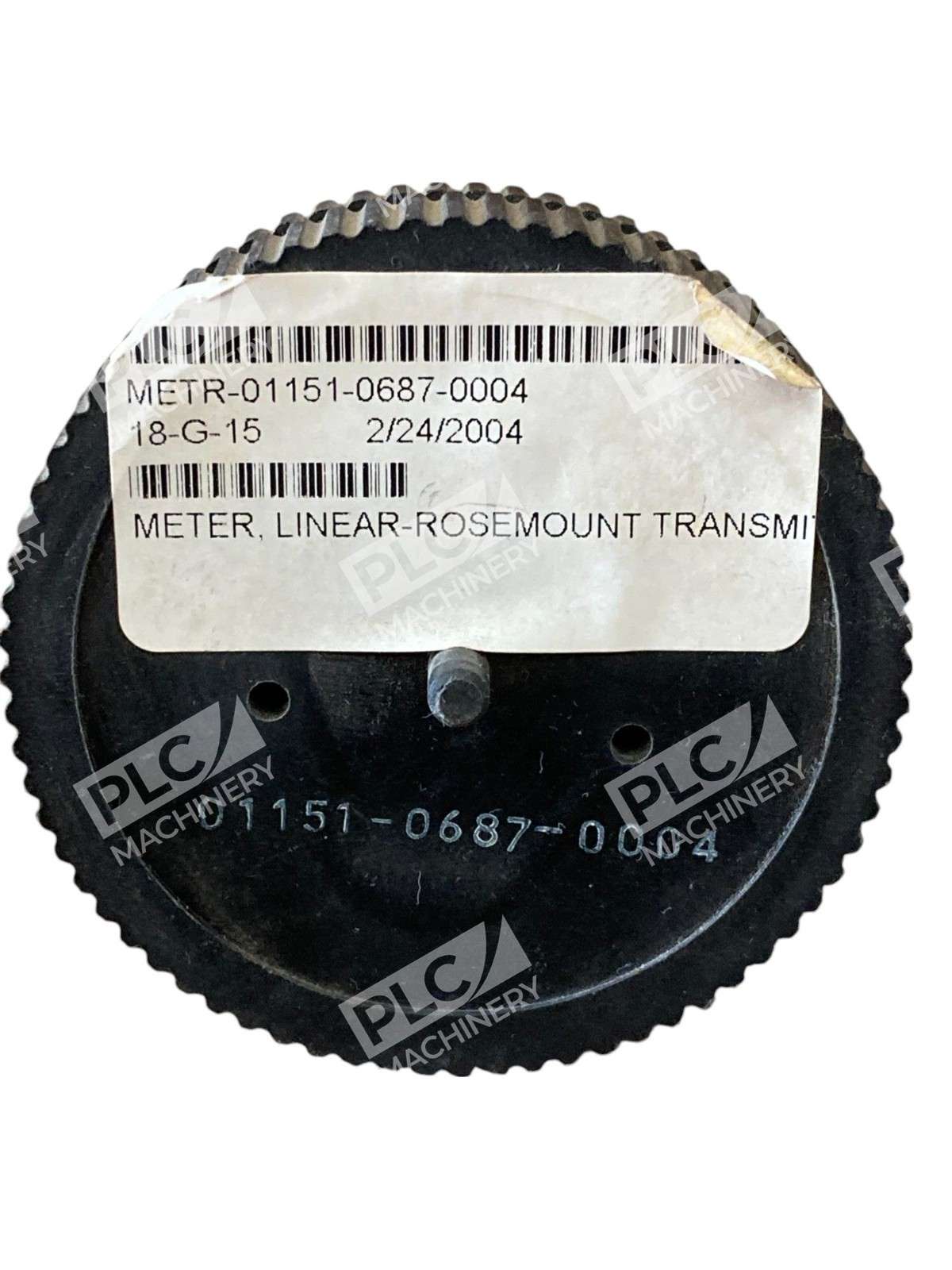

- Part Number: 01151-0687-0004
- Measurement Range: 0-100%
- Dial Size: 2 1/2 inch
- Signal Input: 4-20 mA linear scale
- Mounting: Panel-mount configuration
- Flow Range: 0-2.5 x 1000 GPM (as configured)
- Product Type: Analog Panel Gauge
Typical Applications
The Rosemount 01151-0687-0004 gauge is commonly used in:
- Pressure and flow measurement display cabinets
- Industrial process control systems
- Pump and compressor monitoring systems
- Test benches and calibration equipment
- OEM equipment integration and retrofit installations
Compatibility & Replacements
Compatible With
- Rosemount 1151 series pressure transmitters
- Rosemount 1046 series transmitter kits
- 4-20 mA industrial control systems
- Standard panel-mount instrument applications
- Emerson process measurement equipment
Replaces / Drop-In Replacement For
This gauge may be used as a replacement or upgrade component in Rosemount measurement system kits that include the 01151-1046-0007 transmitter kit assembly. Verify compatibility with your specific system configuration before ordering.
Works With
- 4-20 mA signal loops (standard industrial transmitter output)
- Rosemount smart pressure transmitters with analog output
- HART-compatible measurement systems
- Emerson Rosemount process automation platforms
