Overview

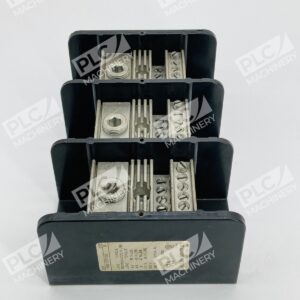

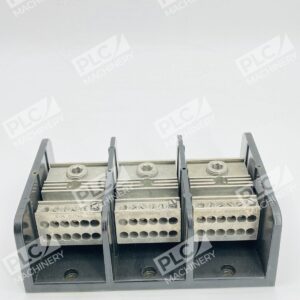

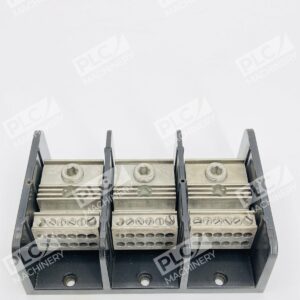

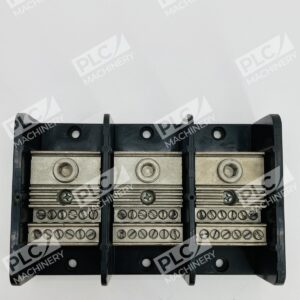

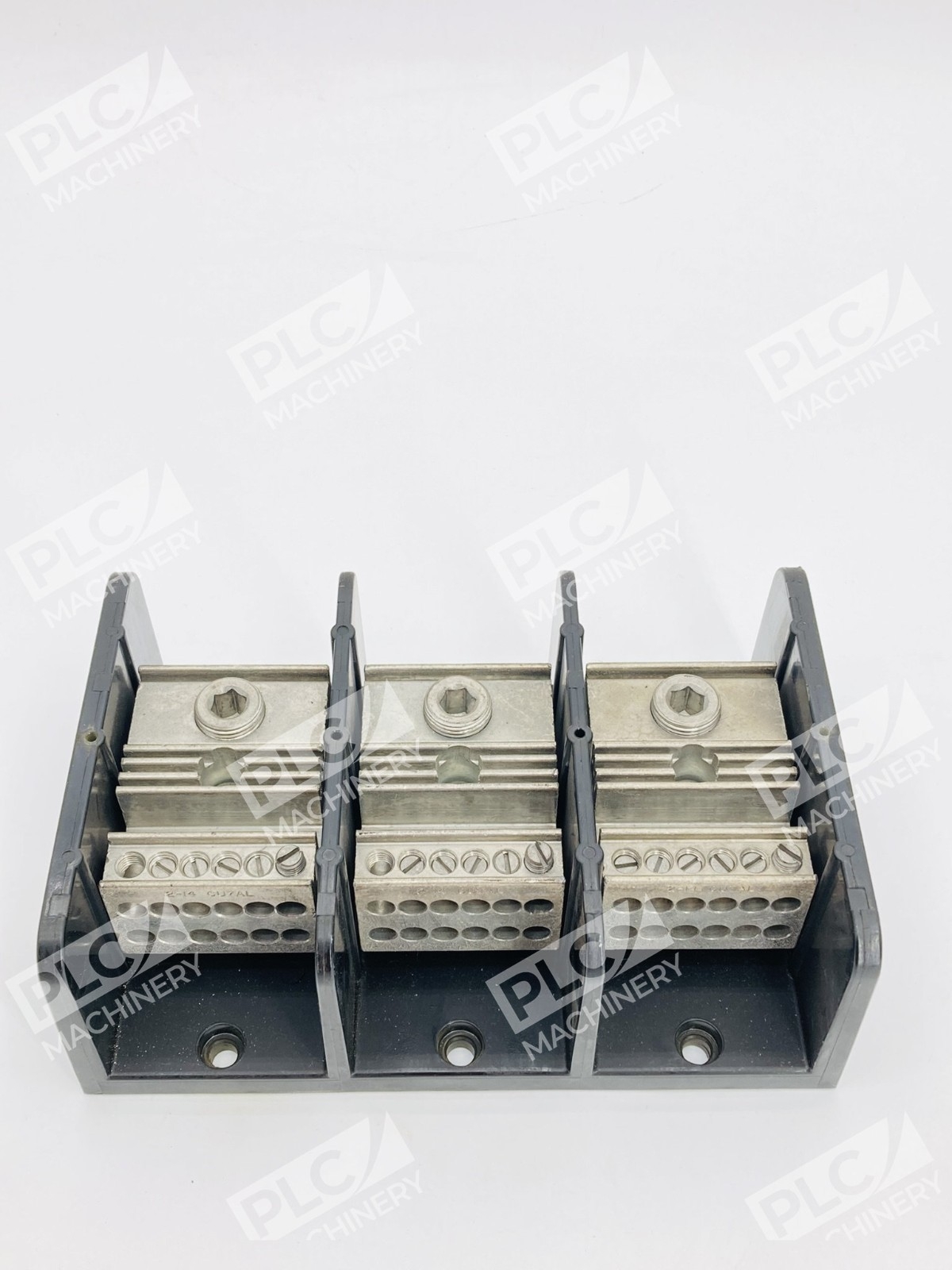

The Allen-Bradley 1492-PD31123 is an aluminum power distribution block designed to distribute power efficiently across multiple industrial circuits. This 3-pole unit features one line-side opening (accepts up to 500 kcmil/4 AWG conductors) and 12 load-side openings (accept 2–14 AWG conductors), making it ideal for control panels, motor starters, and power distribution applications where a single feed powers multiple loads.
Key Features
- 380 amp capacity with 600V AC/DC rated voltage
- 3-pole configuration with 1 line-side, 12 load-side openings
- Aluminum construction for durability and corrosion resistance
- Screw-type terminal connections for secure, reliable wiring

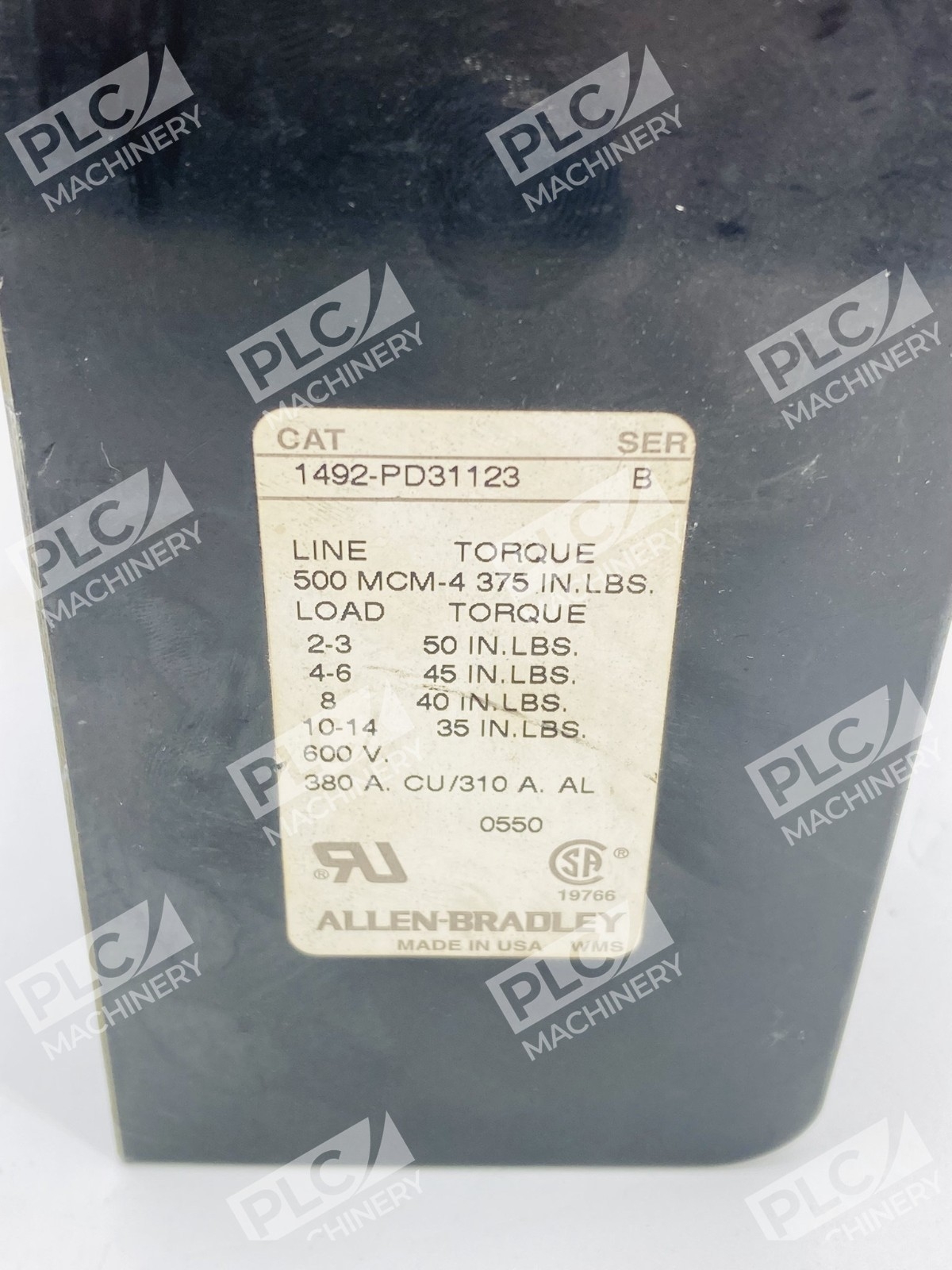

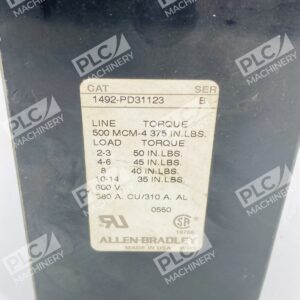

- Feeder spacing marked with wire range and tightening torque specifications
- Integrated SCCR (Short Circuit Current Rating) information marked on housing
Technical Specifications
This distribution block meets UL, CE, CSA, CCC, and KC certification standards, and operates reliably in temperatures up to 150°C. The aluminum housing measures 8.54″ wide × 5.50″ high × 3.23″ deep and weighs approximately 4.22 lbs.
Typical Applications
- Industrial motor control centers and distribution panels
- Power feed to multiple branch circuits and loads
- Control circuit power distribution in machinery and equipment
- DIN-rail mounted control cabinets and enclosures
- Factory automation and process control systems
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 1492 terminal block family components
- Standard industrial power distribution systems (600V AC/DC)
- DIN-rail mounted control enclosures and panel designs
- Copper and aluminum conductor installations (2.5–240 mm² / 14 AWG–500 kcmil)
- UL 1059-certified equipment and control circuit applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 1492-PD31123 is designed as a direct replacement within the Bulletin 1492-PD power block family for equivalent amperage and pole configurations.
Works With
- Allen-Bradley feed-through and splicer blocks in the 1492 family
- Standard industrial UL 1059 terminal block systems
- Fused and unfused power distribution installations
- IEC-compliant control cabinet designs
