Overview

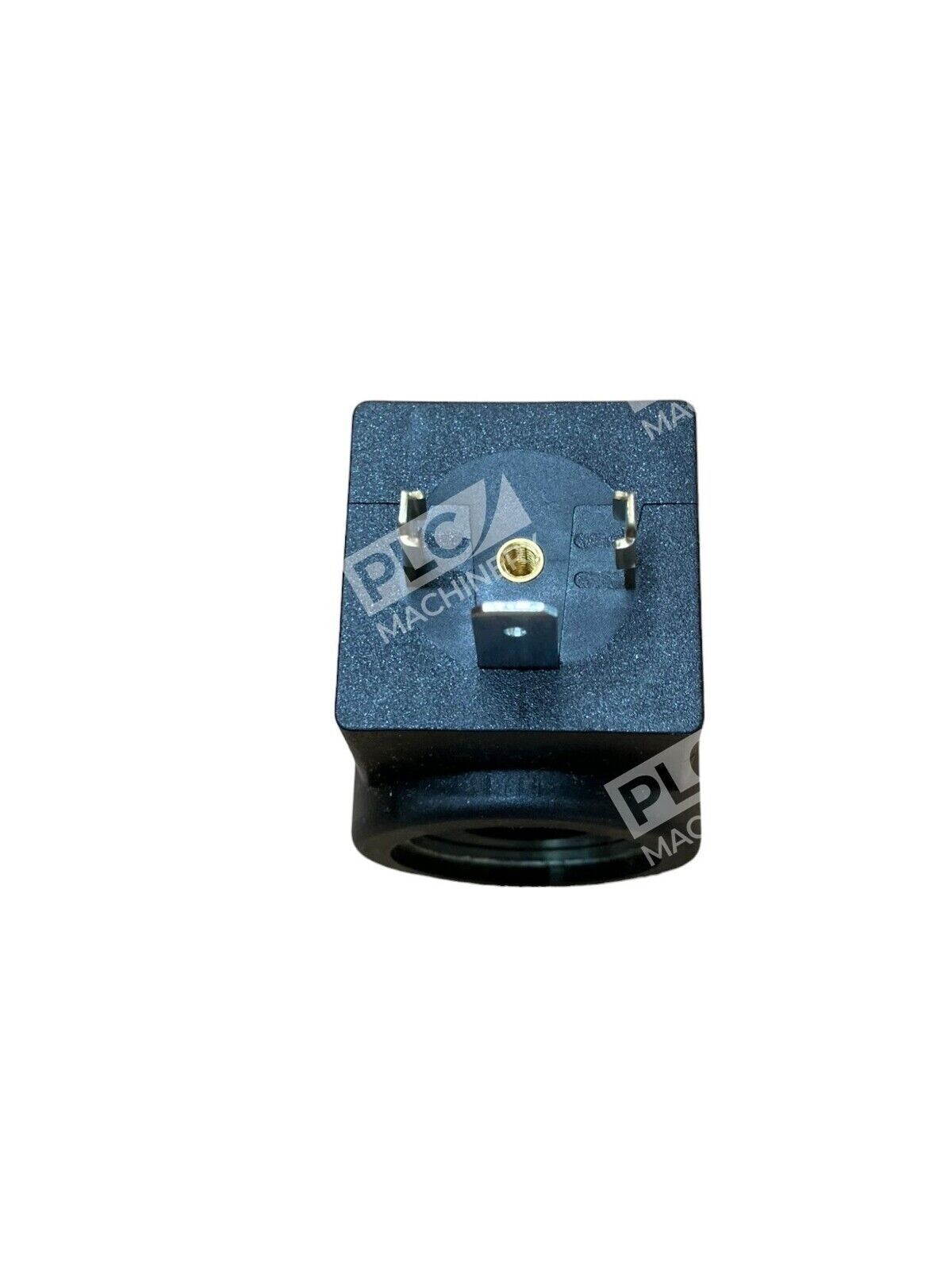

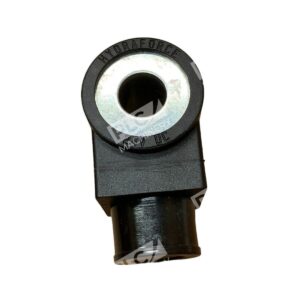

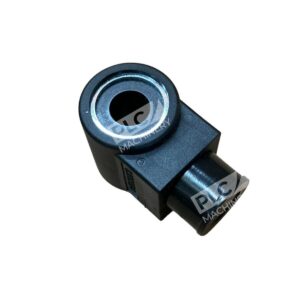

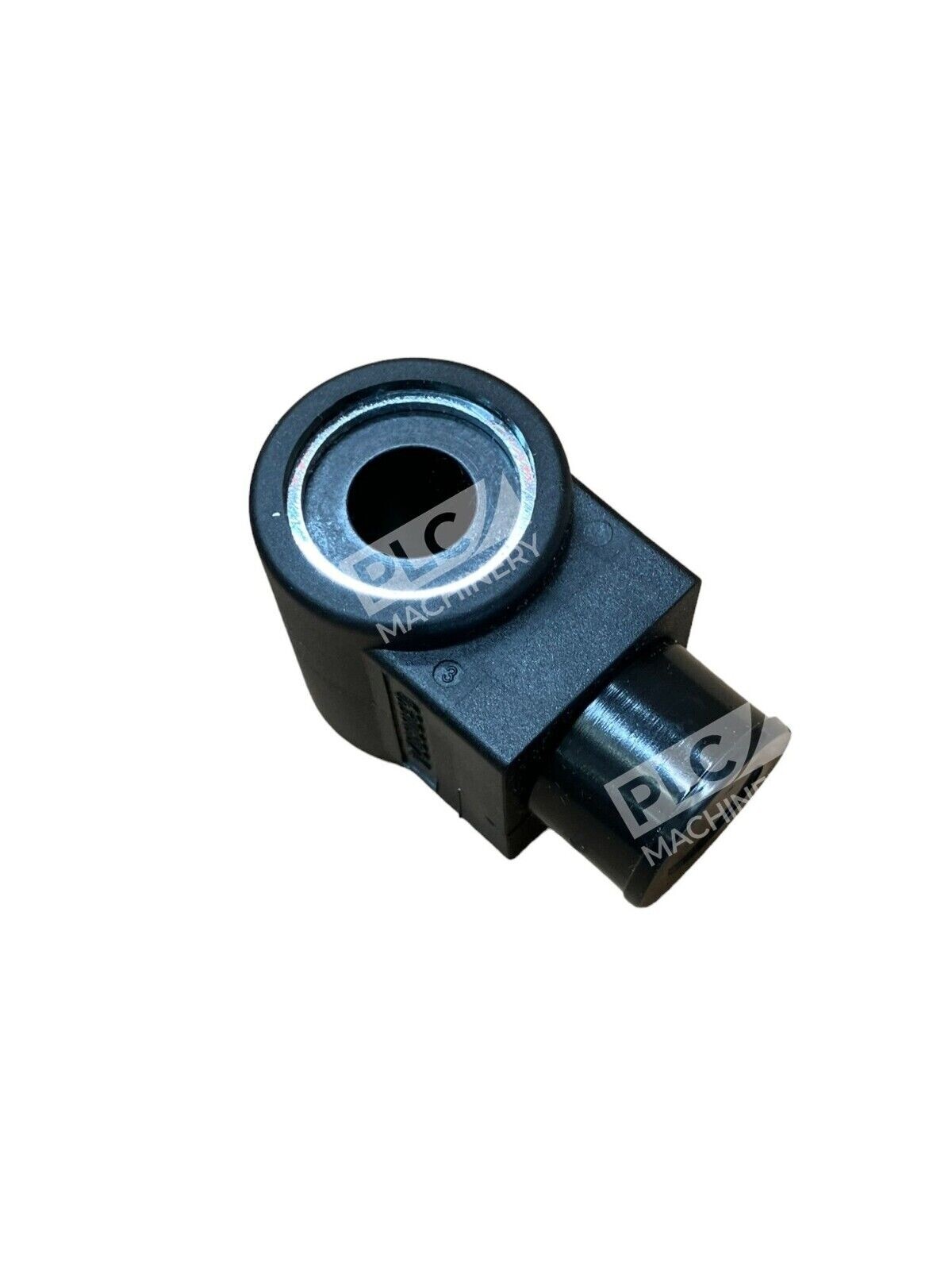

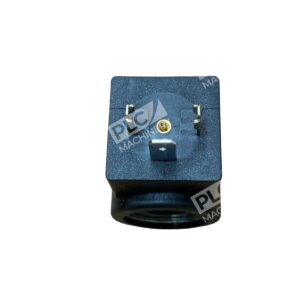

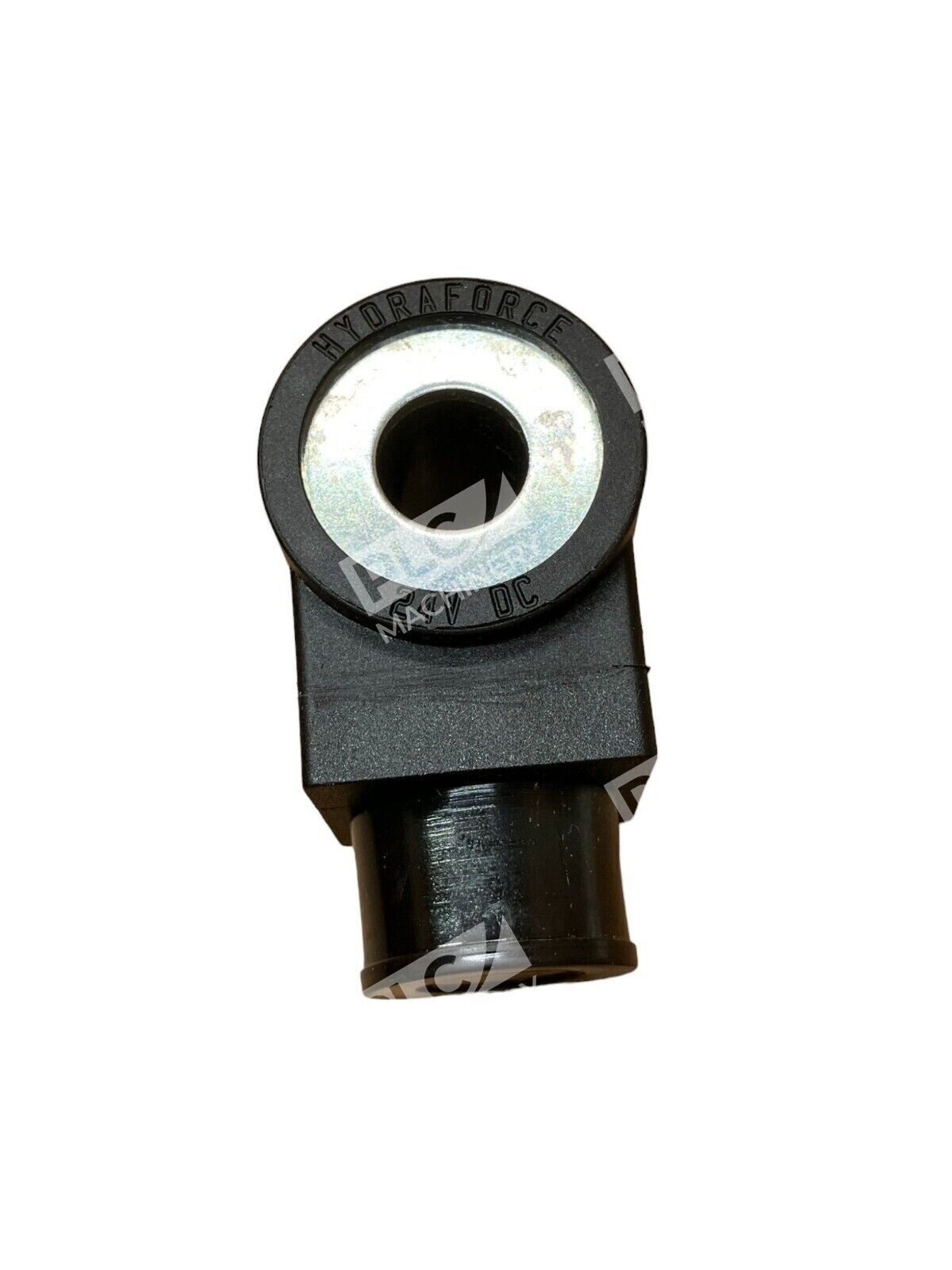

The Hydraforce 6306024 solenoid coil is a direct replacement component for Hydraforce Series 08, 80, 88, and 98 hydraulic valve systems. Rated for 24V DC operation with a 3-prong DIN 43650 connector, this coil delivers consistent electromagnetic performance in high-pressure industrial applications. The coil features a robust steel frame construction with anaerobic sealant impregnation for durability in demanding hydraulic environments.
Key Features
- 24V DC rated operation with low current draw (0.61 amps)
- 3-prong DIN 43650 connector for secure, standardized connection
- 1/2″ (13mm) inner diameter design compatible with Hydraforce cavities
- Anaerobic sealant-impregnated coil prevents fluid ingress and extends service life
- 30% glass-filled polyester resin encapsulation resists vibration and thermal stress
- Direct drop-in replacement for OEM Hydraforce coils
Technical Specifications
- Supply Voltage: 24V DC
- Power Rating: 14.7 watts
- Current Draw (Initial): 0.61 amps
- Resistance: 39.3 ohms
- Connector Type: 3-prong DIN 43650
- Inner Diameter (I.D.): 1/2″ (13mm)
- Core Material: Molded 30% glass-filled bobbin with steel frame
- Encapsulation: 30% glass-filled polyester resin
- Sealant: Anaerobic impregnation
Typical Applications
The Hydraforce 6306024 solenoid coil is engineered for electro-hydraulic control systems across multiple industrial sectors:
- Industrial machinery and automated production lines requiring precise fluid control
- Construction and heavy equipment with proportional valve actuation
- Material handling systems and hydraulic press assemblies
- Agricultural machinery and earthmoving equipment
- Pump and motor speed regulation in mobile and stationary hydraulic systems
Compatibility & Replacements
Compatible With
- Hydraforce Series 08 valve cavities (1/2″ bore)
- Hydraforce Series 80 proportional valve systems
- Hydraforce Series 88 pilot-operated valve assemblies
- Hydraforce Series 98 high-flow valve manifolds
- Standard 24V DC hydraulic control circuits with DIN 43650 connectors
- Integrated electro-hydraulic manifold systems
Replaces / Drop-In Replacement For
- OEM Hydraforce 6306024 solenoid coil (exact equivalent)
- Original equipment manufacturer coils in Hydraforce Series 08, 80, 88, and 98 valve housings
Works With
- DIN 43650 C-type solenoid connectors and wiring harnesses
- 24V DC control modules and programmable logic controllers (PLCs)
- Proportional and directional control valve systems
- Hydraulic fluid compatible with 24V solenoid operation (mineral oil and fire-resistant fluids)
