Overview

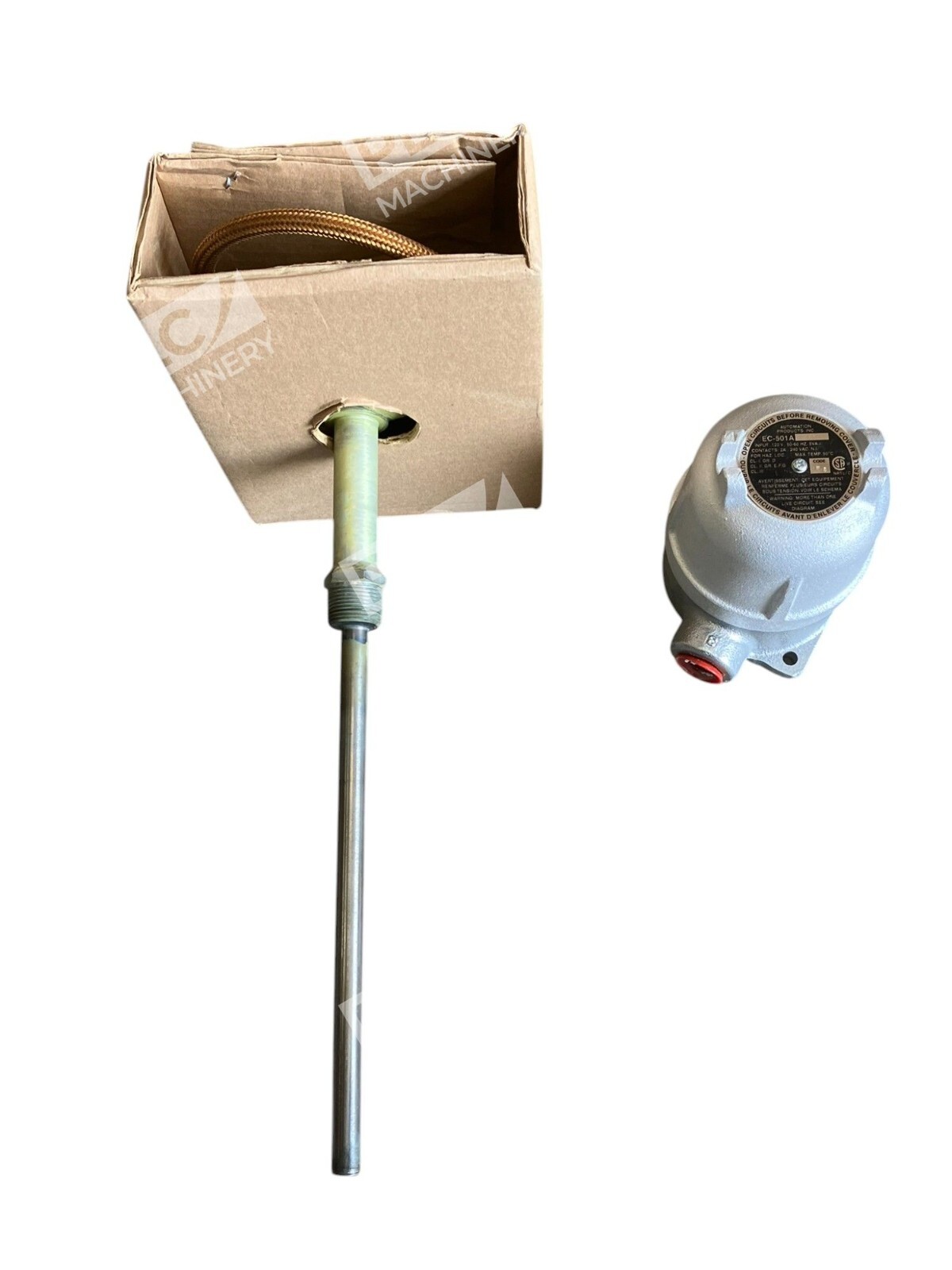

The Automation Products CL-10 DJT is a vibrating level detector (Dynatrol brand) engineered for reliable, maintenance-free level detection in bulk solids handling systems. The CL-10DJT is the high-temperature variant, designed for applications requiring operation up to 500°F. Paired with the EC-501A control enclosure, this detector provides a complete sensing and control solution for point-level indication with no field adjustments required. The 1000 PSIG pressure rating and CSA explosion-proof certification make it suitable for demanding industrial environments.
Key Features
- Vibrating/tuning fork detection method—no moving parts or seals to deteriorate
- High-temperature variant (DJT) rated up to 500°F; standard models to 300°F
- 1000 PSIG maximum operating pressure
- CSA NRTL/C approved for Class I (Groups C & D), Class II (Groups E, F & G), and Class III explosive atmospheres
- Simple 3/4-inch NPT connection; installs through tank wall at desired level point
- Works with bulk solids densities of 15–60 lbs/ft³
- Included EC-501A control enclosure with SPDT relay output
Technical Specifications

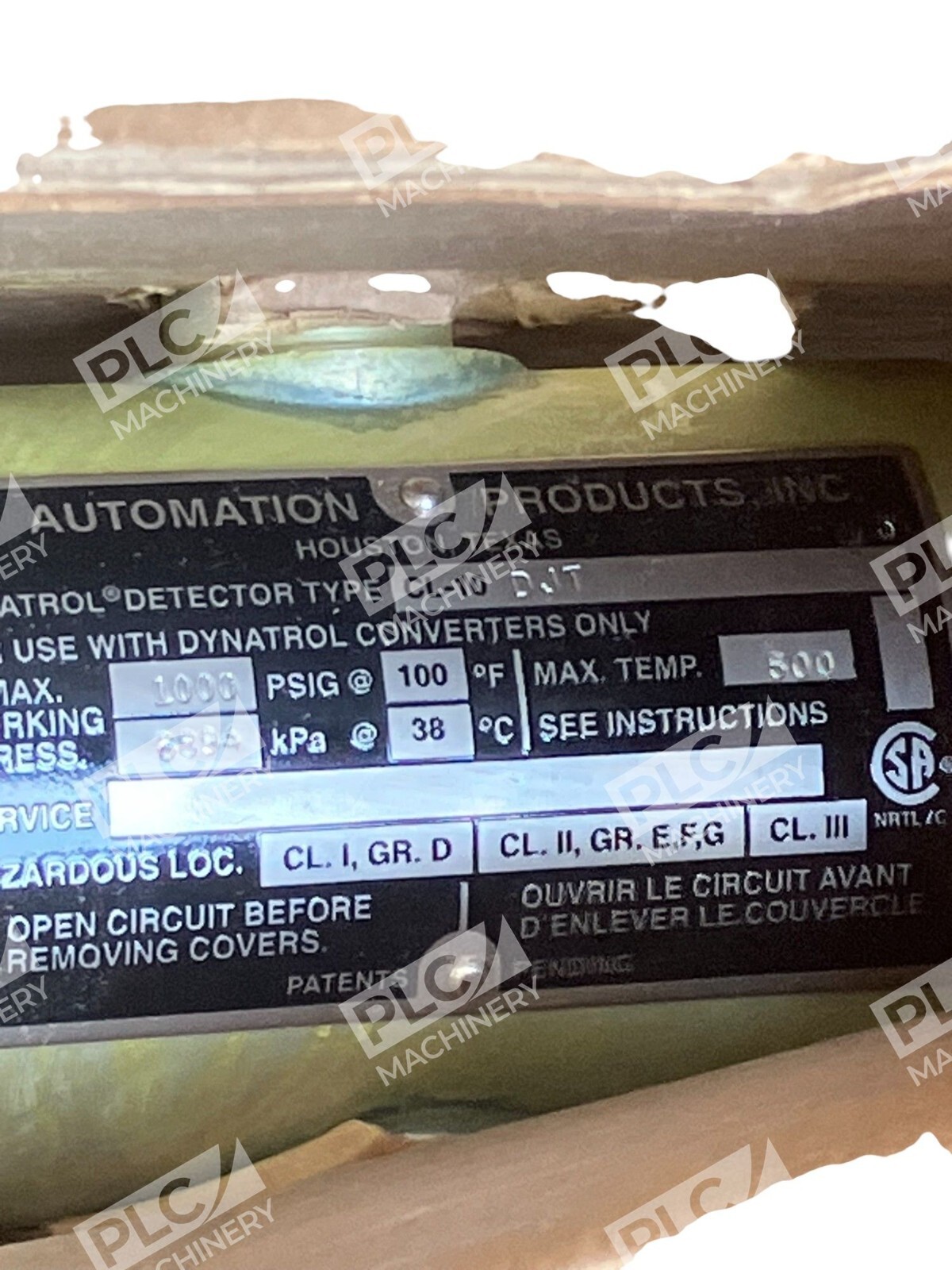

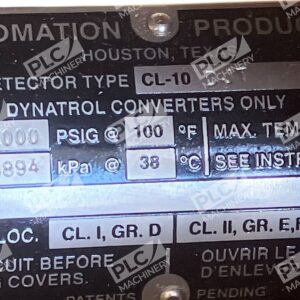

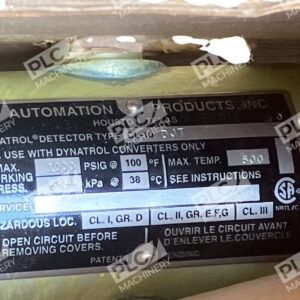

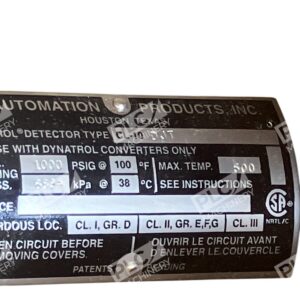

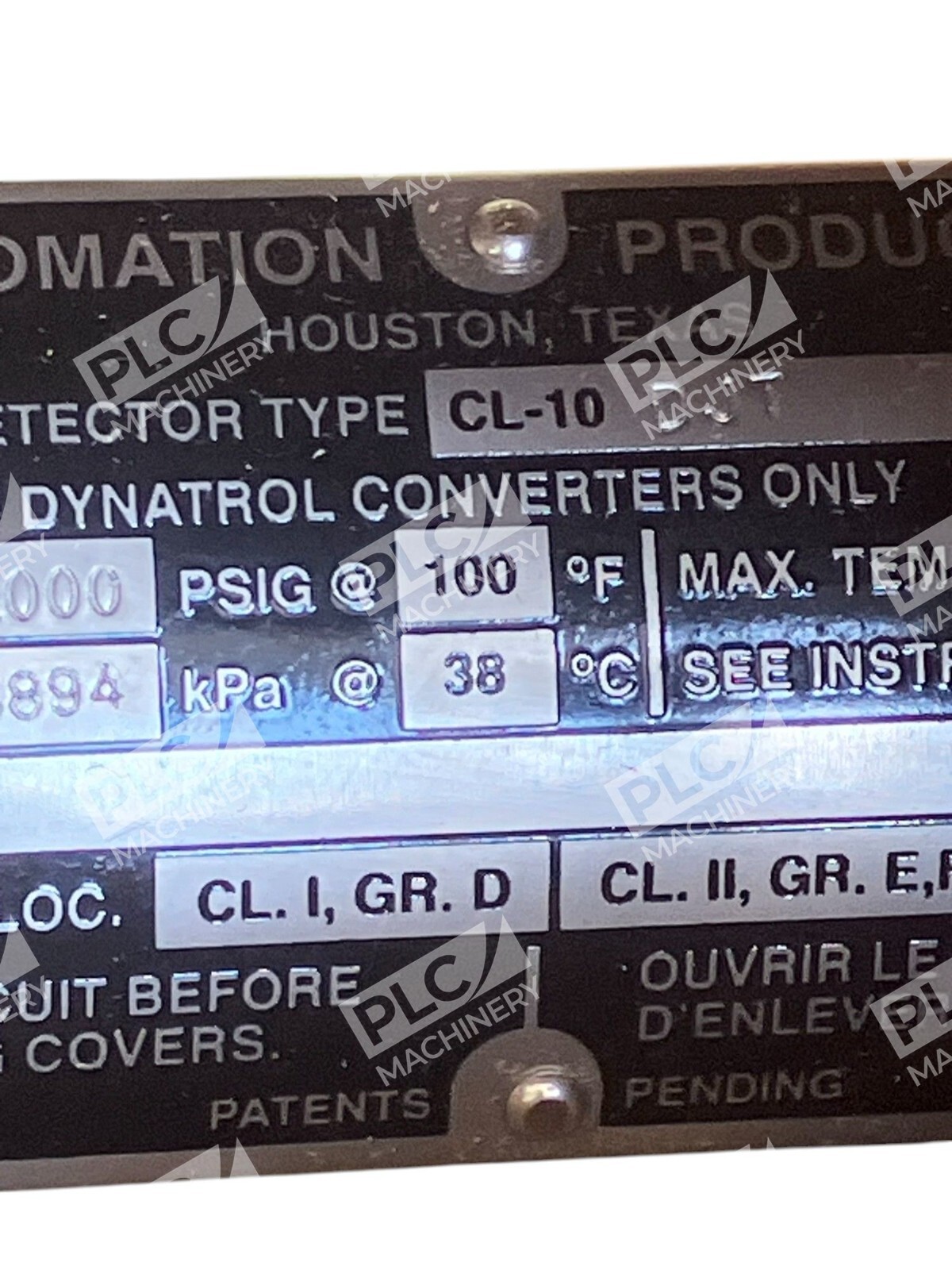

- Model: CL-10 DJT (High Temperature)
- Detector Type: Vibrating Level Sensor (Dynatrol)
- Maximum Pressure Rating: 1000 PSIG (70.4 bar)
- Temperature Range: 25–300°F (–3.89–149°C) standard; up to 500°F with CL-10DJT high-temperature construction
- Material Density Range: 15–60 lbs/ft³
- Mounting: Side mount, top mount, or bottom mount via 3/4-inch male NPT coupling
- Certifications: CSA NRTL/C Class I, II, III (explosion-proof)

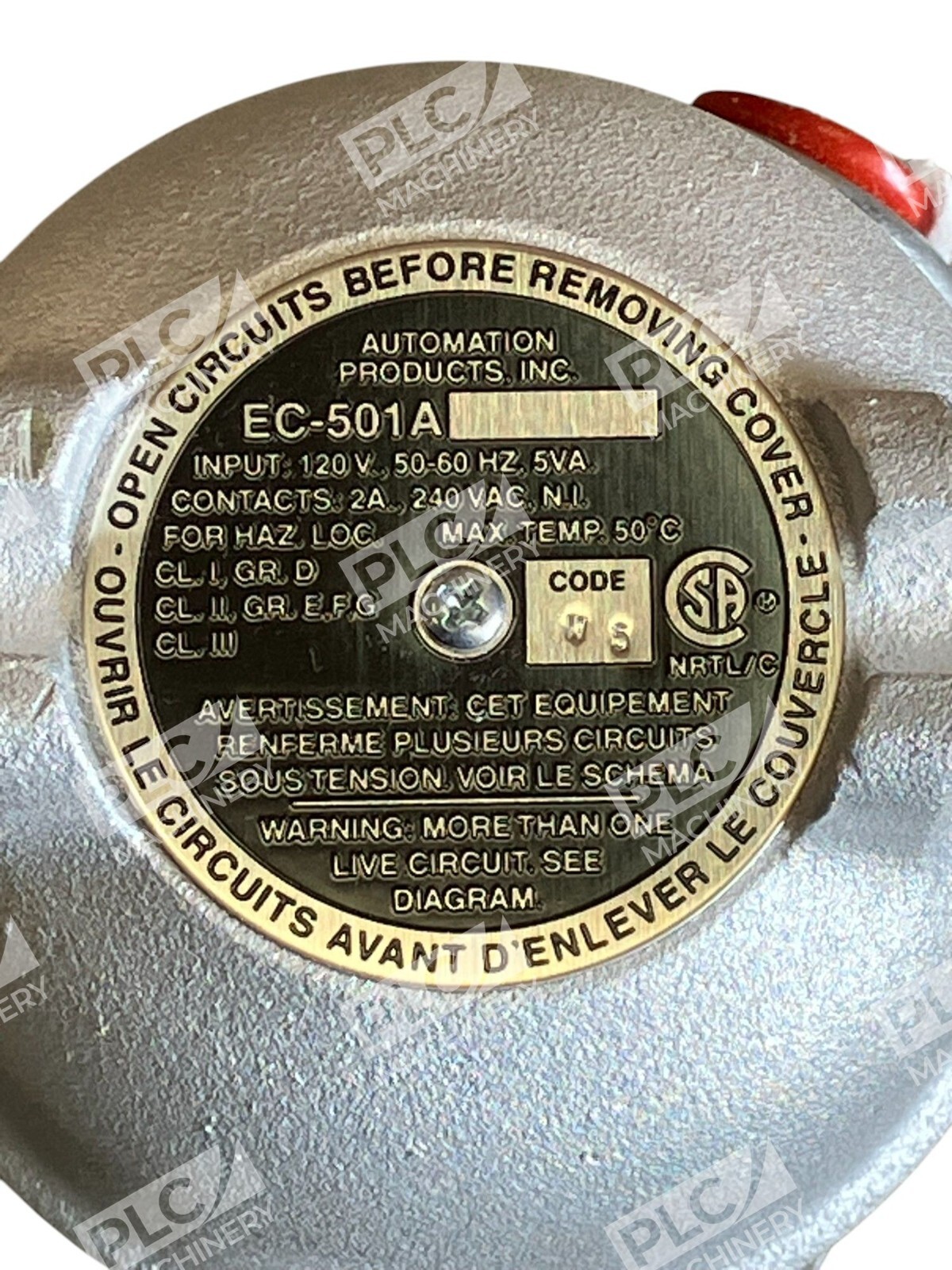

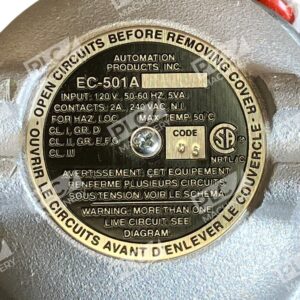

- Control Unit: EC-501A Enclosure (included) with SPDT relay output
- Measurement Type: Single or multi-point level detection
- Output: Analog voltage; relay contact switching
Typical Applications
The CL-10 DJT is widely deployed in:
- Cement, flour, and grain handling systems
- Pharmaceutical and chemical bulk powder storage
- Coal, sand, and aggregate processing
- High-temperature furnace and kiln monitoring
- Bin and hopper level control in food, mining, and manufacturing
- Hazardous or explosive atmosphere locations requiring intrinsically safe sensing
Compatibility & Replacements
Compatible With
- EC-501A Control Enclosure (included with this unit)
- Any tank or bin with 3/4-inch NPT side, bottom, or top wall opening
- Industrial control systems accepting 24 VDC or AC-powered SPDT relay signals
- Hazardous area applications (Class I, II, III per CSA certification)
Replaces / Drop-In Replacement For
- Earlier Dynatrol CL-10DJ models in applications requiring high-temperature service (CL-10DJT variant)
- Legacy mechanical level switches or floats in bulk solids applications
Works With
- Standard industrial PLC analog inputs and relay logic controllers
- Hazardous area classified control systems meeting CSA standards
- 24 VDC or AC control circuits (via EC-501A relay contacts)
