Overview

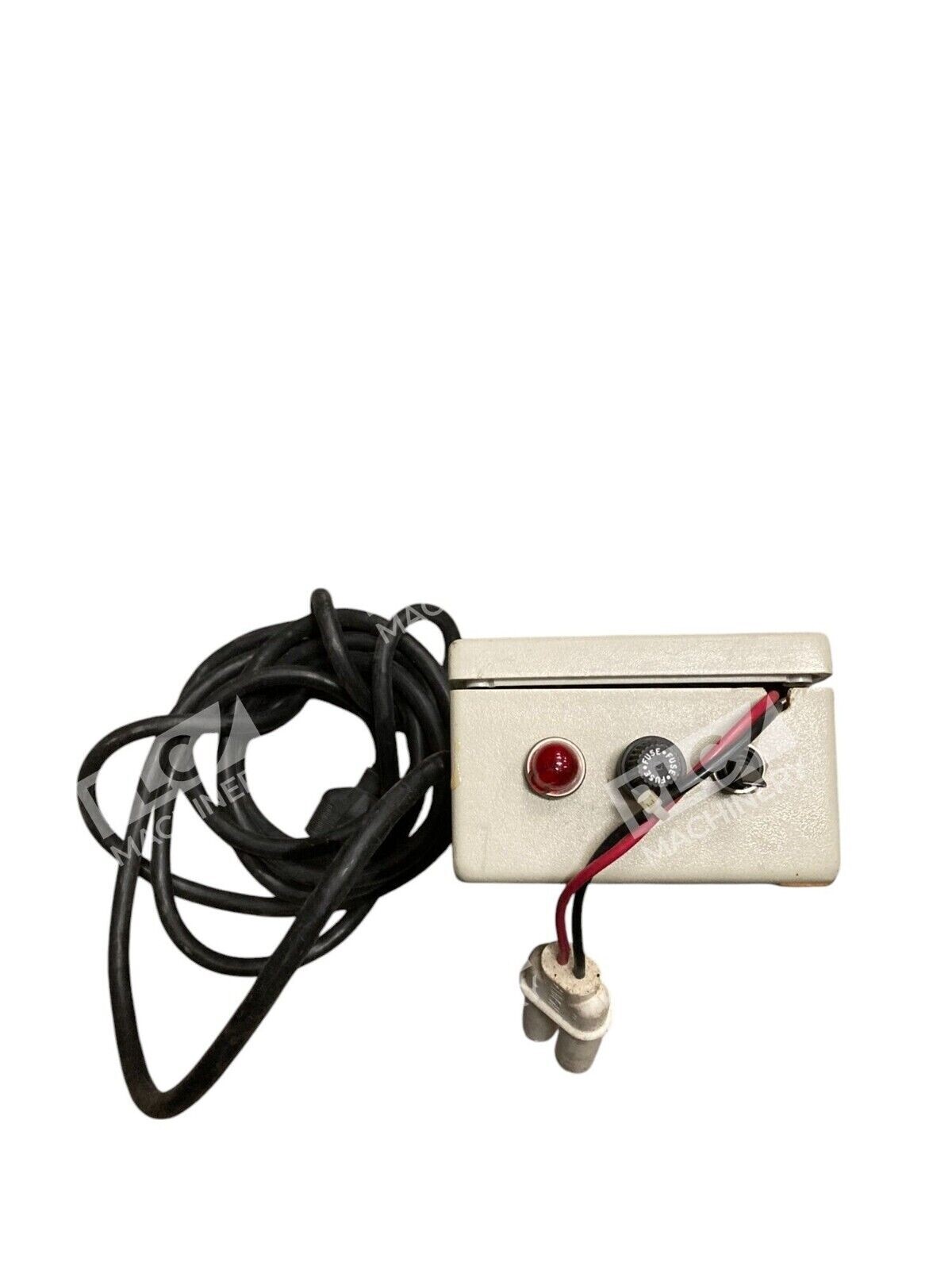

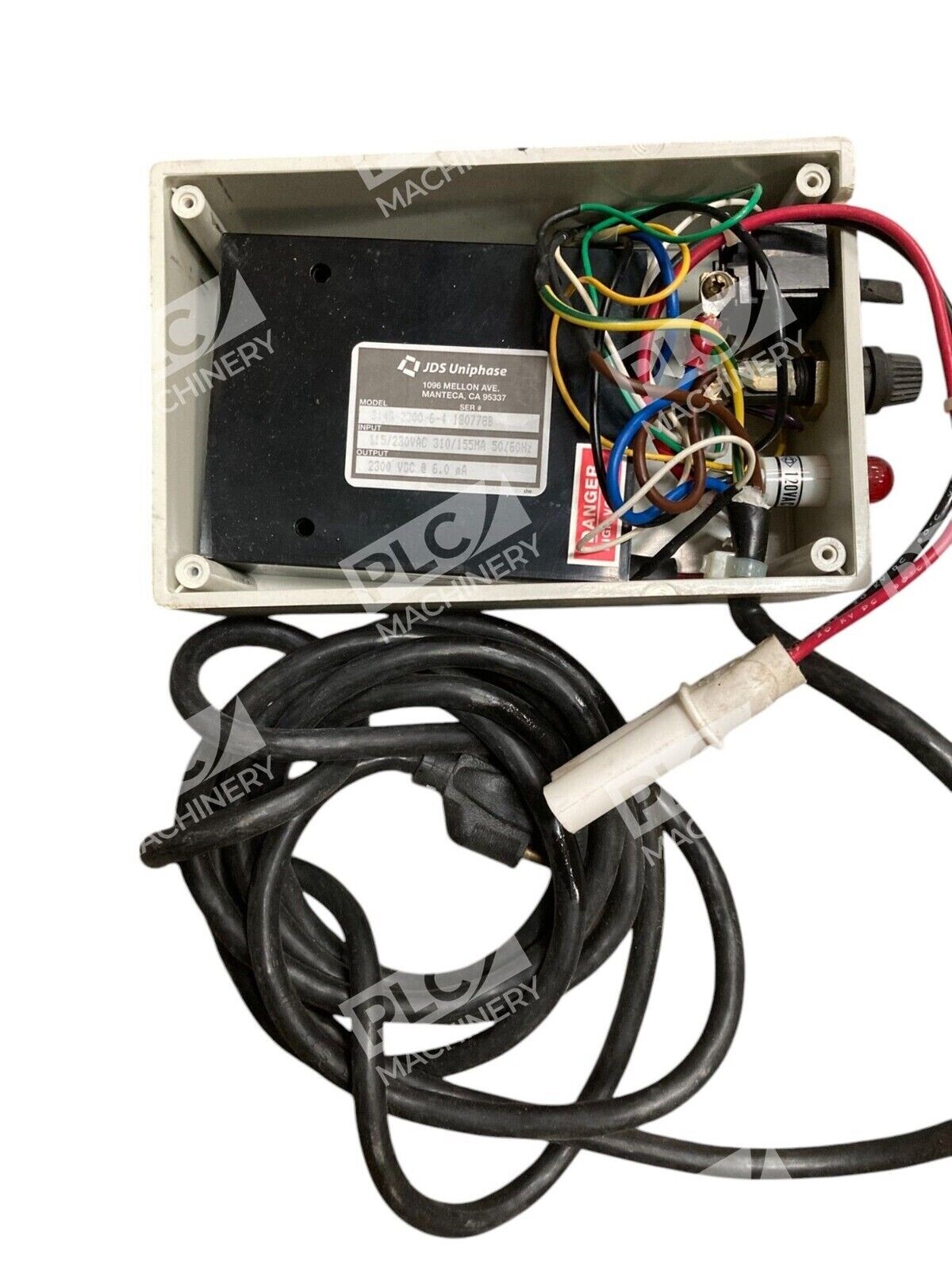

The JDS Uniphase 314S-2300-6-4 is a high-voltage laser power supply designed to drive Helium-Neon (HeNe) and similar gas laser tubes. This unit provides stabilized DC output of 2300 volts at 6 milliamps and comes housed in a protective industrial enclosure. The 314S-2300-6-4 is commonly found in laboratory, manufacturing, and research environments where precision laser systems require matched power delivery.
Key Features
- Output voltage: 2300 VDC at 6 mA regulated
- Protective industrial enclosure for safe high-voltage operation
- Designed for matched HeNe and COâ‚‚ laser tube compatibility
- Thermal and electrical protection circuitry
- Compact form factor suitable for lab bench and OEM mounting

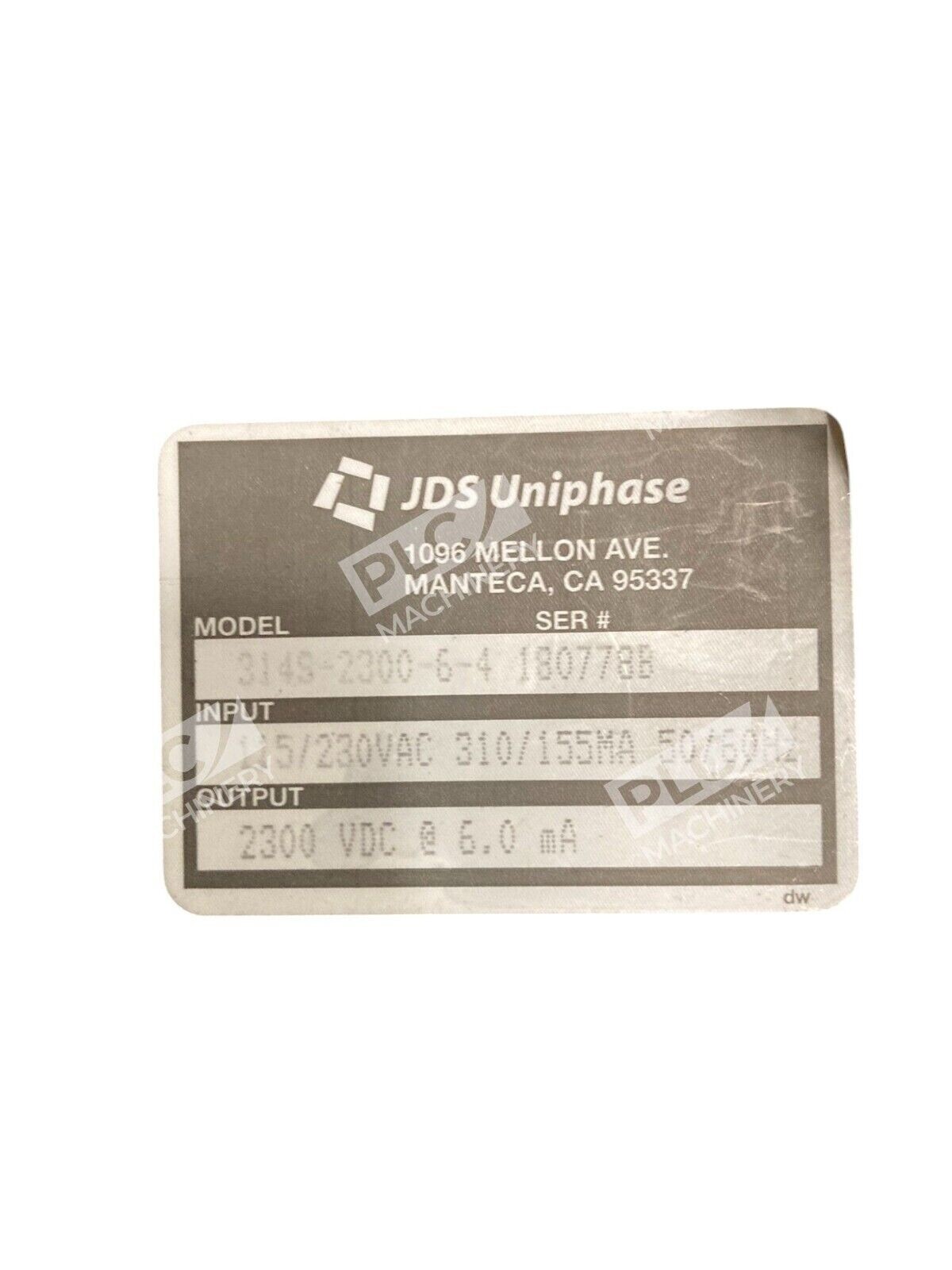

Technical Specifications
- Output Voltage: 2300 VDC (regulated)
- Output Current: 6 mA nominal
- Output Power: Approximately 13.8 watts
- Part Number: 314S-2300-6-4
- Manufacturer: JDS Uniphase (now Viavi Solutions)
- Form Factor: Enclosure-mounted
- Condition: Used, fully functional
Typical Applications
- Helium-Neon laser tube power supply (gas laser excitation)
- Laboratory and bench-top laser systems
- Manufacturing and industrial laser cutting/engraving (low-power)
- Medical device laser modules
- Research instrumentation and photonics applications
- Precision alignment and measurement systems
Compatibility & Replacements
Compatible With
- Uniphase HeNe laser heads and tubes rated 2300V output
- Gas laser tube modules requiring 6 mA DC excitation
- Enclosure-mount laser system architectures
- Laboratory power supply racks and control panels
Replaces / Drop-In Replacement For
The 314S-2300-6-4 is a specific model number in the Uniphase 314S series. Verify compatibility with your system integrator or equipment documentation before ordering. Similar Uniphase models in the 314S range (such as 314S-1700-4.9-4) use the same form factor but differ in voltage and current ratings. Do not interchange without confirming laser tube specifications.
Works With
- Uniphase laser tube models requiring 2300V excitation voltage
- Standard industrial power distribution (input voltage via enclosure connections)
- Manual on/off control and safety interlock systems
- Laser alignment and beam delivery optical systems
