Overview

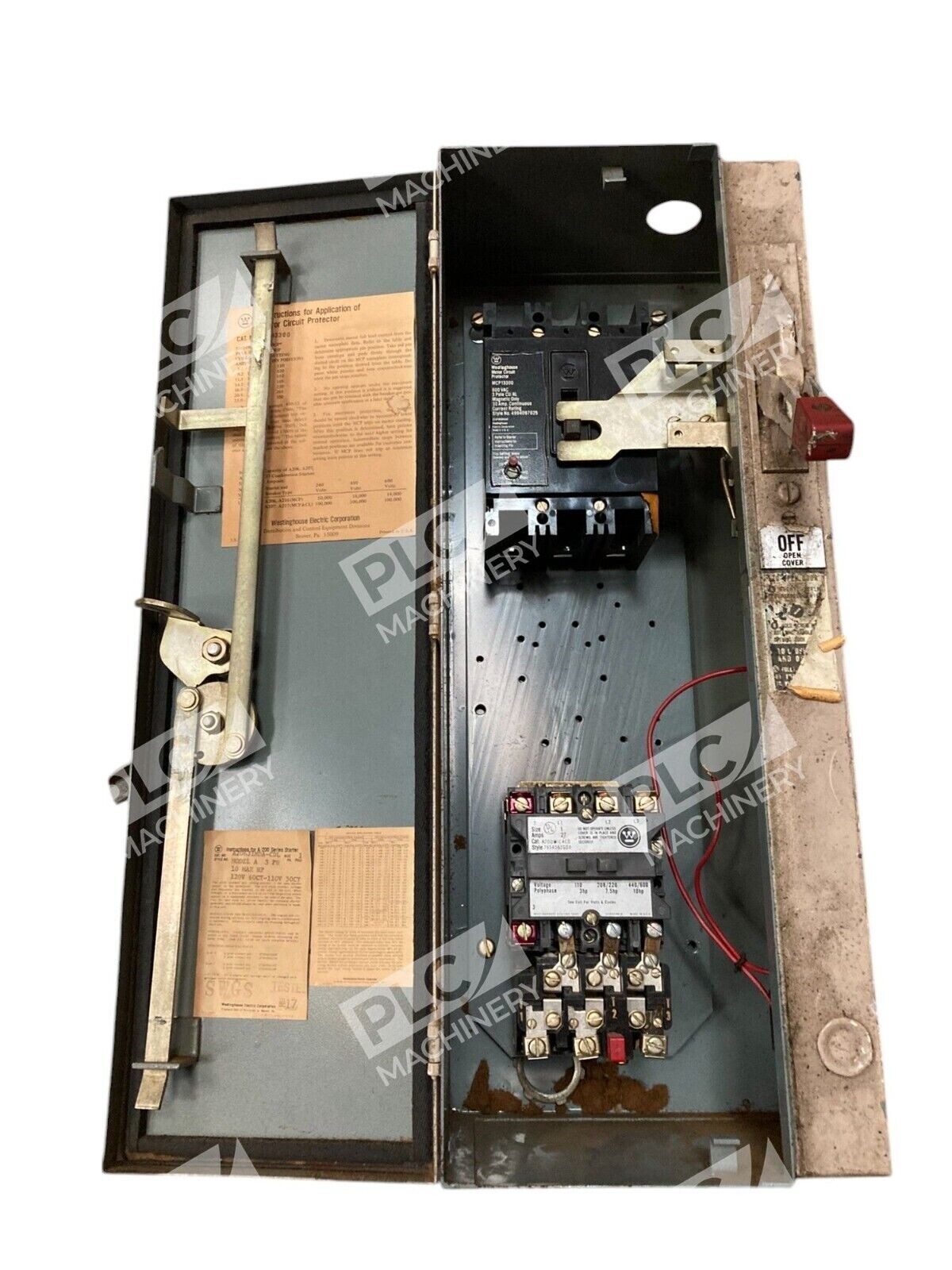

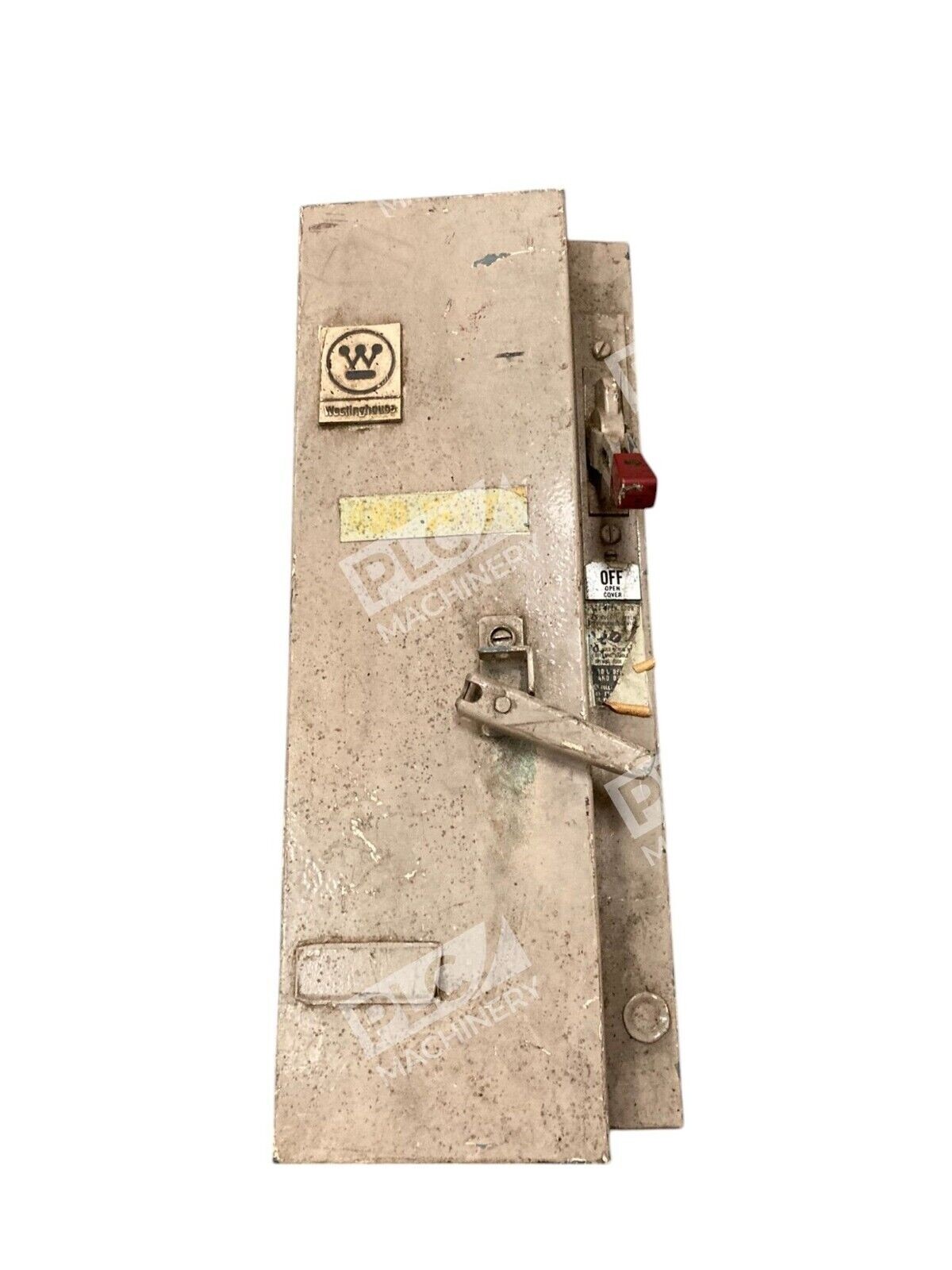

The Westinghouse A206J1MDA-CDL is a compact combination motor control starter enclosure rated for three-phase 10 HP motors at 200V. Part of Westinghouse’s proven Model A/200 Series, this unit integrates disconnect, overload protection, and contactor control in a single NEMA-compliant enclosure, delivering reliable motor starting and protection for general-purpose industrial applications.
Key Features
- Three-phase motor control rated 10 HP at 200V
- Combination enclosure: disconnect, overload relay, and contactor in one unit
- Model A/200 Series — proven industrial-grade construction
- Used condition, fully functional and tested
- NEMA-compliant design for industrial automation environments
- Quick-disconnect capability for simplified maintenance and replacement
Technical Specifications
- Motor Rating: 10 horsepower (3-phase)
- Voltage: 200V
- Series: Westinghouse Model A/200
- Part Number: A206J1MDA-CDL
- Enclosure Type: Combination starter with contactor
- Protection: Overload relay
- Configuration: Contactor-driven load (CDL)
- Mounting: NEMA wall-mount or panel-mount enclosure
- Condition: Used, tested and fully functional
Typical Applications
- Industrial pump motor control
- Compressor starting and protection
- Fan and blower motor control systems
- Production machinery motor circuits
- HVAC system motor starters
- General-purpose three-phase motor starting
Compatibility & Replacements
Compatible With
- Three-phase motors rated 10 HP or less
- 200V three-phase power distribution systems
- Industrial control panels and switchboards
- Standard NEMA enclosure mounting systems
- Motors requiring magnetic starter control
Replaces / Drop-In Replacement For
- Verify exact compatibility with your controls engineer or system integrator before ordering, as Model A/200 enclosures have been produced in multiple configurations and may require terminal block or wiring verification.
Works With
- Standard 200V three-phase AC power systems
- Manual or automatic control circuits
- NEMA-compliant industrial switchgear
- Conventional electromagnetic relay and contactor logic
- Overload protection devices (thermal or electronic)
