Overview

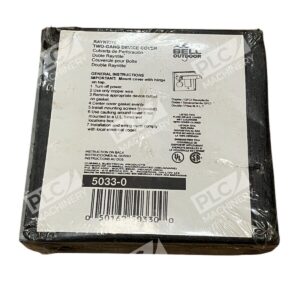

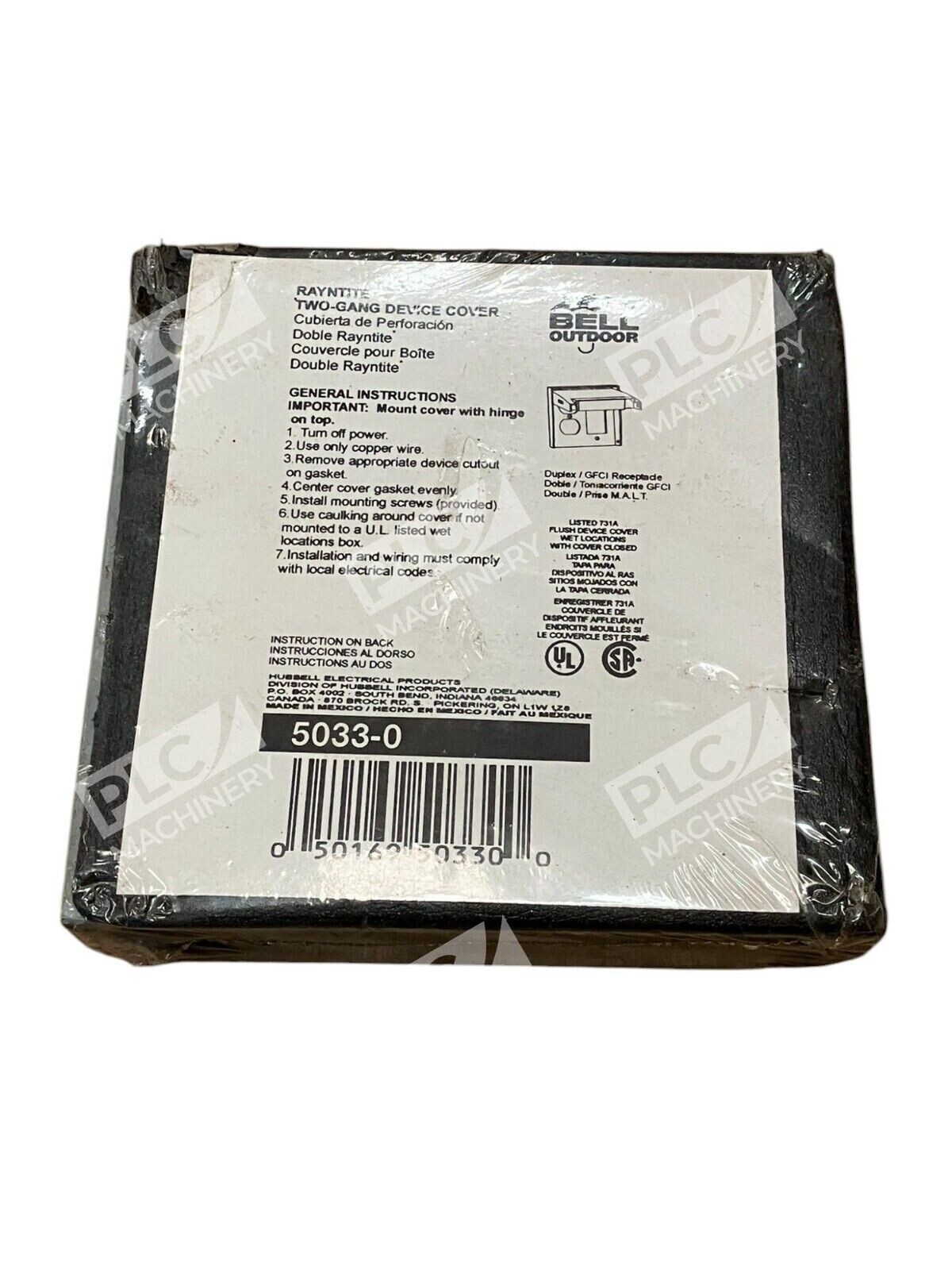

The Bell 5033-0 RAYNTITE 2-Gang weatherproof device cover provides dependable protection for outdoor duplex and GFCI receptacles. This vertical-mount cover is engineered to shield electrical outlets from rain, snow, and UV exposure, making it essential for residential and commercial outdoor installations. The self-closing design ensures weatherproof protection when receptacles are not in use, while the padlockable feature adds tamper resistance.
Key Features
- Die-cast aluminum construction with state-of-the-art powder coat finish for superior weatherability and scratch resistance
- Self-closing, spring-loaded lid mechanism ensures automatic weatherproof protection
- Padlockable with 1/4-inch diameter hole for security and theft prevention
- Vertical mounting orientation compatible with duplex and GFCI receptacles

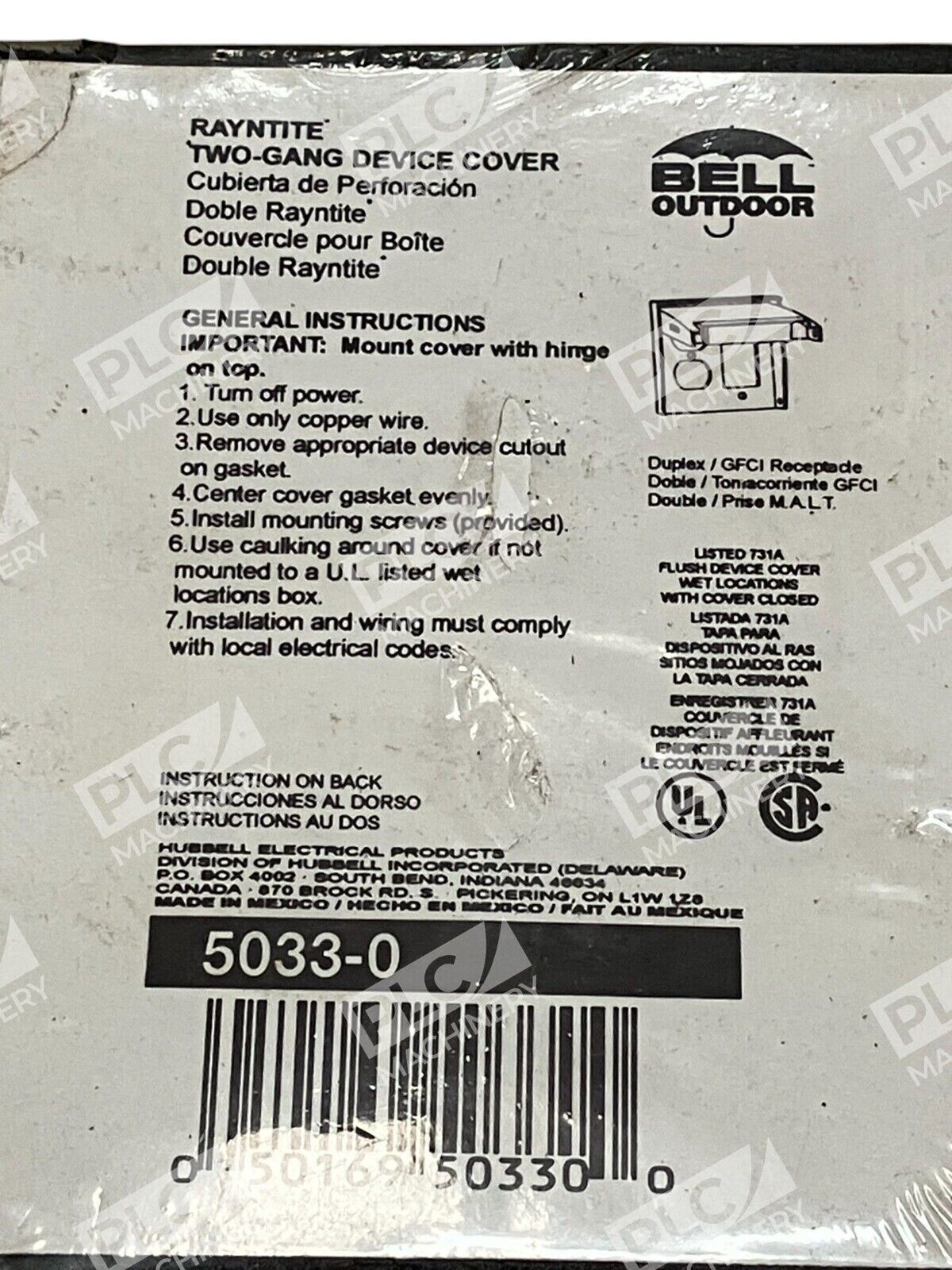

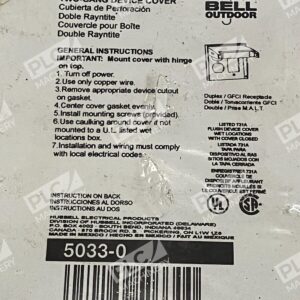

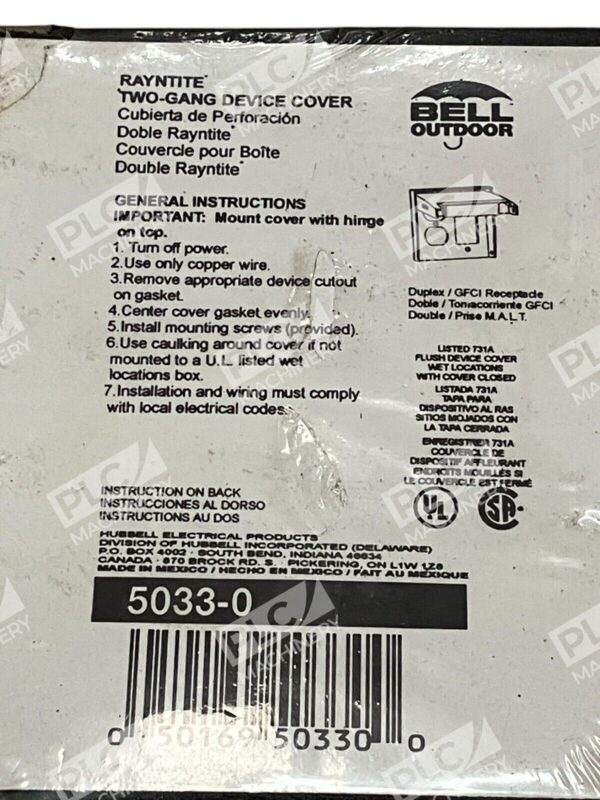

- Includes neoprene gasket, mounting screws, and multilingual installation instructions
- NEMA 3R rated for outdoor use in wet and corrosive environments
Technical Specifications
- Part Number: 5033-0
- Manufacturer: Bell (Hubbell)
- Configuration: 2-Gang, Vertical Mount
- Material: Die-Cast Aluminum
- Finish: Powder Coated Gray
- Receptacle Type: Duplex / GFCI
- NEMA Rating: 3R
- Width: 4.563 inches
- Height: 4.5 inches
- Depth: 1.188 inches
- Weight: 0.658 lbs
- Padlock Hole Diameter: 1/4 inch
- Gasket Material: Neoprene
- Series: RAYNTITE
Typical Applications
- Outdoor residential receptacle protection (porches, patios, decks, pool areas)
- Commercial building exterior outlets and GFCI-protected locations
- RV parks, campgrounds, and recreational facilities
- Industrial facilities with outdoor electrical requirements
- Marine and coastal environments requiring corrosion-resistant protection
- Weatherproof protection for temporary and permanent outdoor installations
Compatibility & Replacements
Compatible With
- Standard 2-Gang duplex receptacles
- GFCI (Ground Fault Circuit Interrupter) receptacles
- FS (Flush Surface) and FD (Flush Depth) weatherproof boxes
- Bell/Hubbell weatherproof box systems
- Standard electrical box mounting configurations (box or device mounting)
Replaces / Drop-In Replacement For
- Previous generation Bell weatherproof 2-Gang covers (verify specific model compatibility with manufacturer)
- Equivalent weatherproof covers from competitive brands (confirm NEMA and receptacle type match)
Works With
- Any standard 2-Gang duplex or GFCI receptacle
- FS and FD rated weatherproof electrical boxes
- Standard electrical installation practices and code requirements (NEMA 3R outdoor environments)
- Padlocks and security hardware for outdoor tamper prevention
