Overview

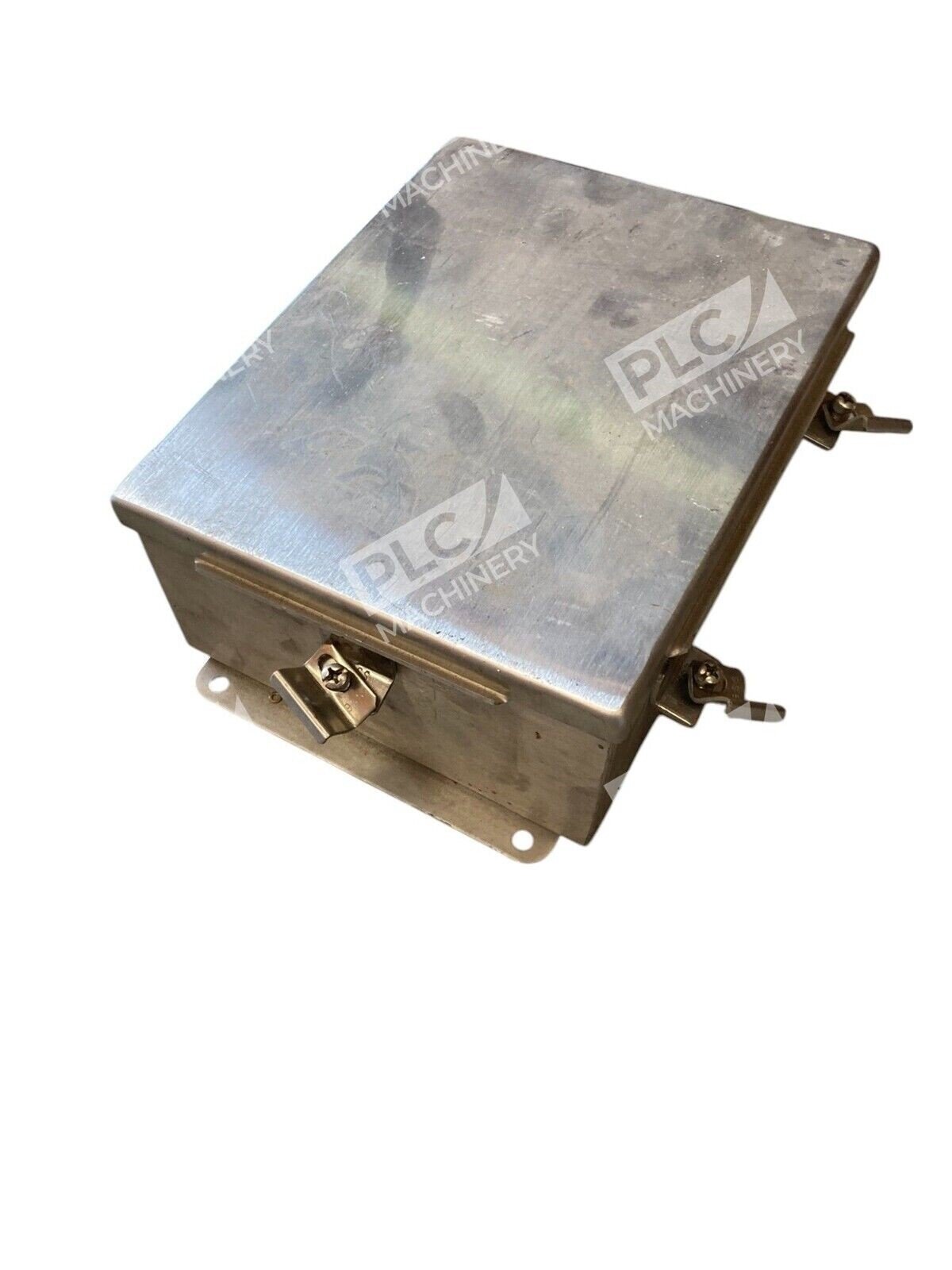

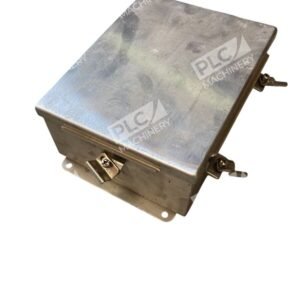

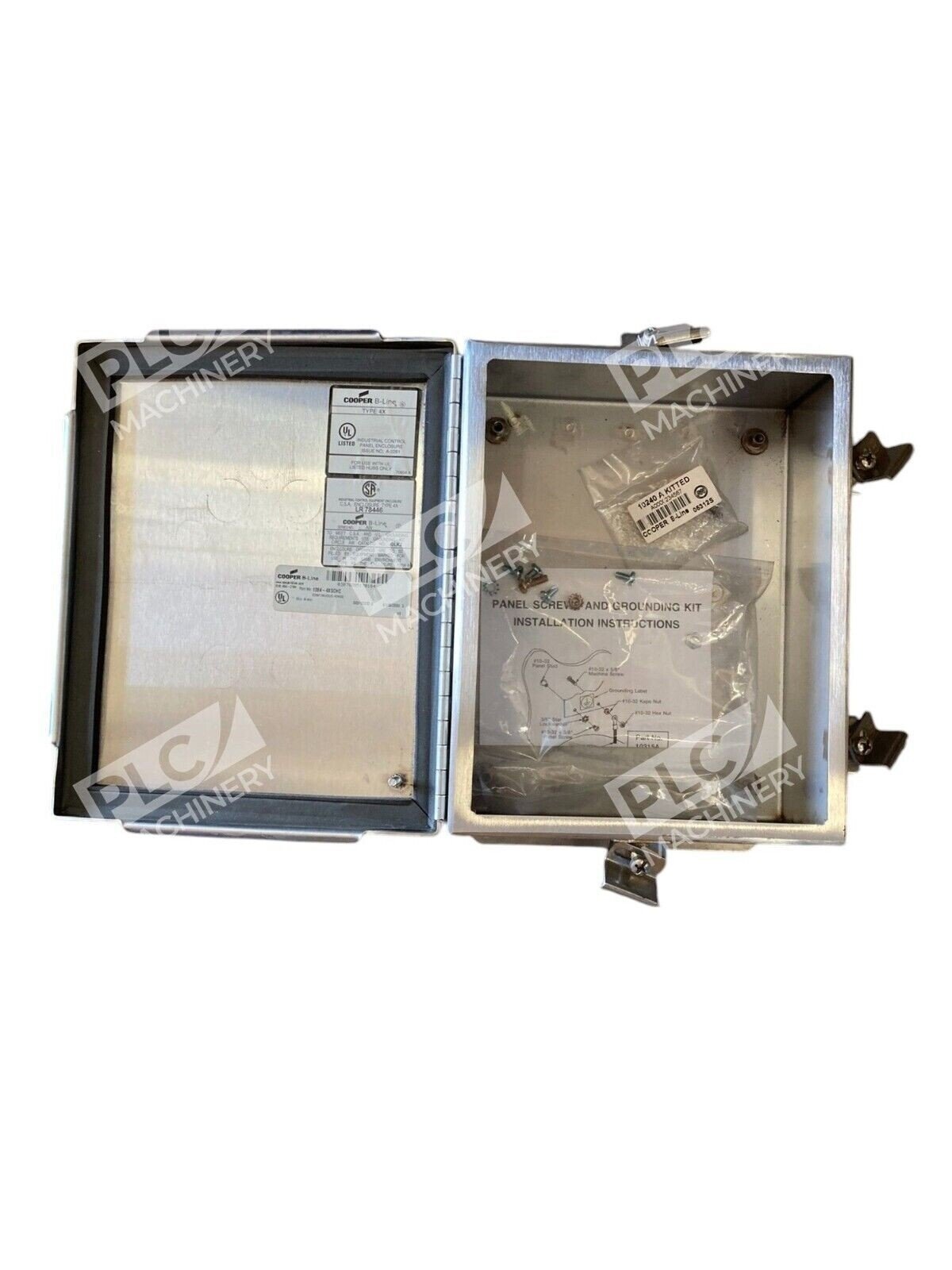

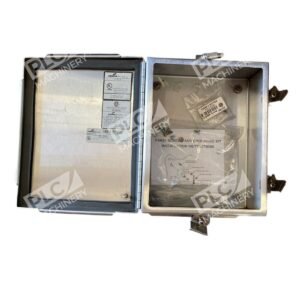

The Eaton B-Line 1084-4XSCHC Type 4X enclosure is a robust stainless steel JIC panel enclosure engineered for demanding industrial applications requiring superior corrosion resistance. Built from 304 stainless steel with seamless poured in-place gaskets, this hinged continuous cover design delivers reliable environmental sealing for NEMA 4X rated protection. The compact 10″ × 8″ × 4″ footprint accommodates critical control components while maintaining wall-mount accessibility.
Key Features
- 304 Stainless Steel Construction: Corrosion-resistant material suitable for coastal, chemical, and washdown environments.
- NEMA 4X / NEMA 12 / NEMA 13 Rated: Provides IP66/IP67 protection against dust, moisture, and impact.
- Continuous Hinged Cover: Smooth operation and reliable latching with external clamp mechanism.
- JIC Standard Compliance: Factory-drilled for standard JIC panel mounting and component layout.

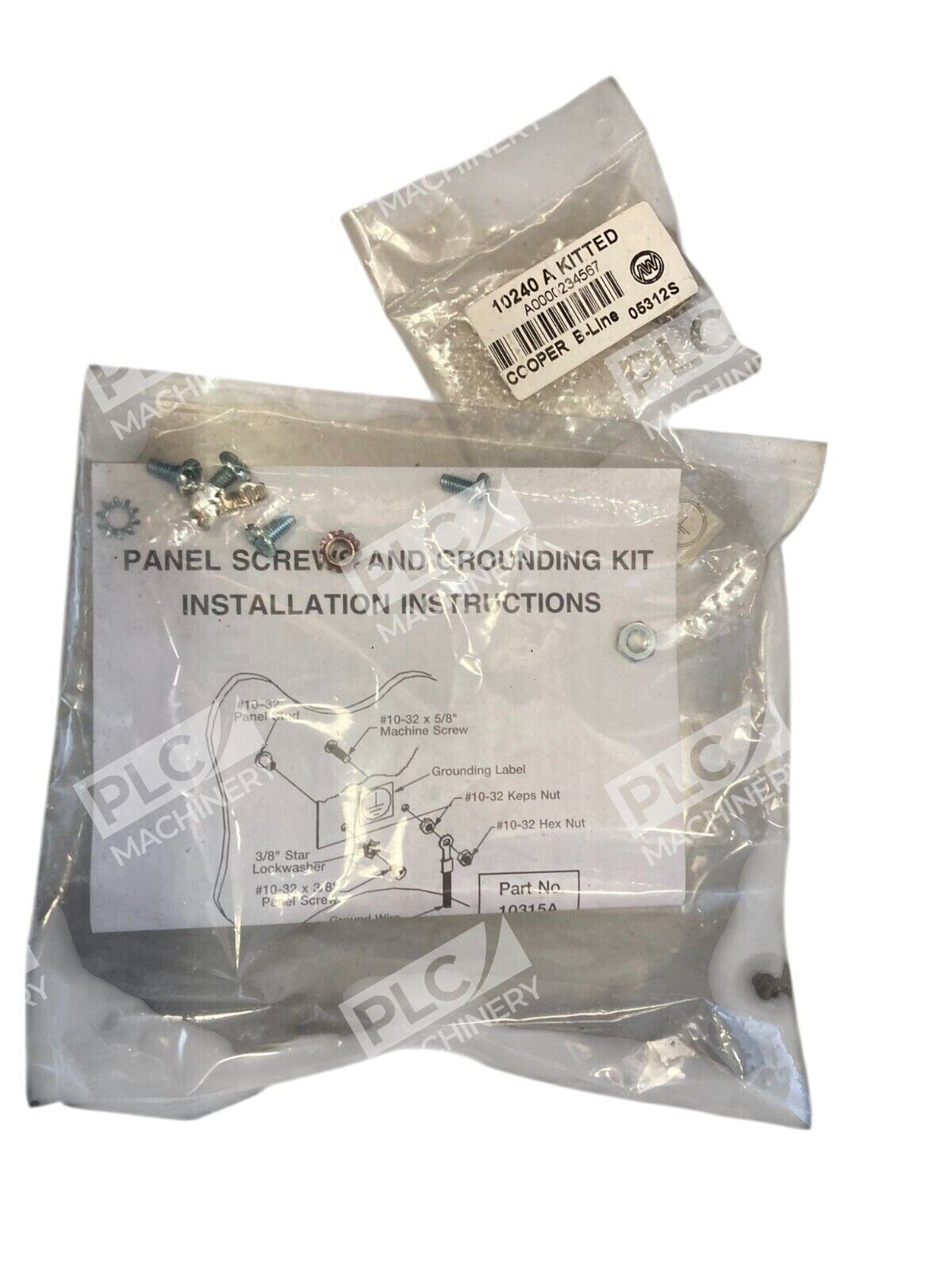

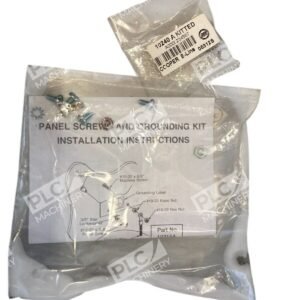

- External Mounting Feet: Wall-mount configuration with ground stud included.

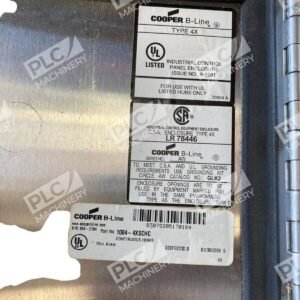

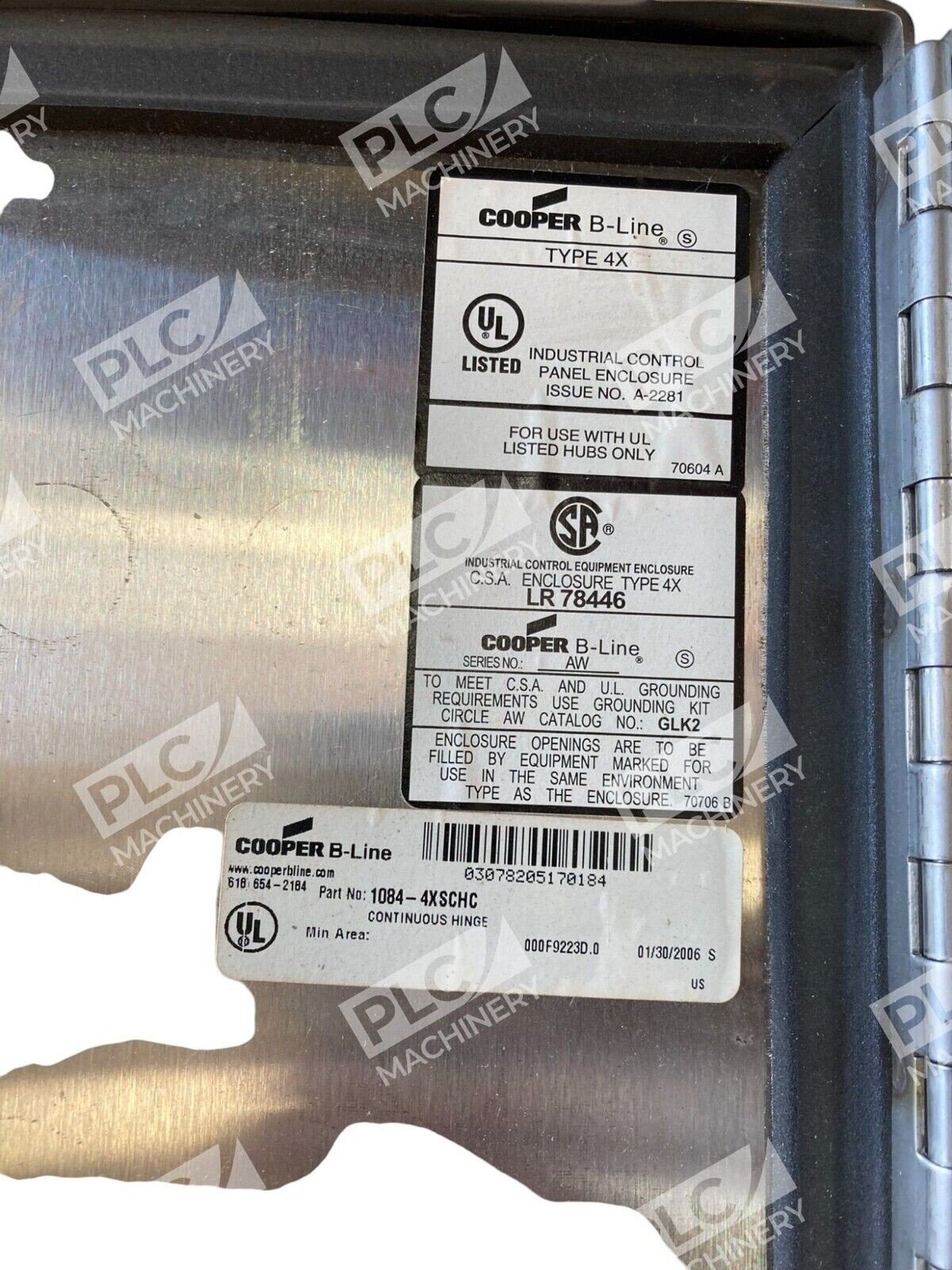

- UL/CSA Approvals: Listed for North American installations and electrical standards compliance.
Technical Specifications
Enclosure dimensions measured exterior to exterior are 12.4″H × 9″W × 4.5″D. Internal cavity dimensions are 10″H × 8″W × 4″D, providing 320 cubic inches of mounting space. Single door hinge cover features internal latching clamps and optional inner panel support (sold separately). Weight is 6 lbs 12 oz. Material composition includes 304 stainless steel body and cover with welded seams. Gaskets are seamless poured-in-place rubber for continuous environmental protection.
Typical Applications
- Marine and offshore electrical control cabinets
- Food processing and beverage packaging lines
- Pharmaceutical manufacturing environments
- Wastewater treatment facilities
- Chemical processing and storage plants
- Outdoor and washdown industrial equipment
- Custom control panel integration
Compatibility & Replacements
Compatible With
- Cooper B-Line JIC enclosure mounting standards
- Industrial electrical control systems
- DIN rail and terminal block installations
- Standard 19″ panel-mounted components
- Custom control panel fabrication
Replaces / Drop-In Replacement For
- Earlier Cooper B-Line Type 4X enclosures (verify model compatibility)
- Legacy stainless steel JIC enclosures with equivalent 10×8×4 dimensions
- Similar NEMA 4X hinged cover models from competing manufacturers (verify mounting hole patterns)
Works With
- Optional copper-plated inner panel: AW108P (aluminum) or AW108GP (copper-plated)
- Compatible with terminal blocks, motor starters, and control relays rated for 300V/600V service
- Suitable for SolidWorks and CAD-based design integration using Eaton B-Line drawings
