Overview

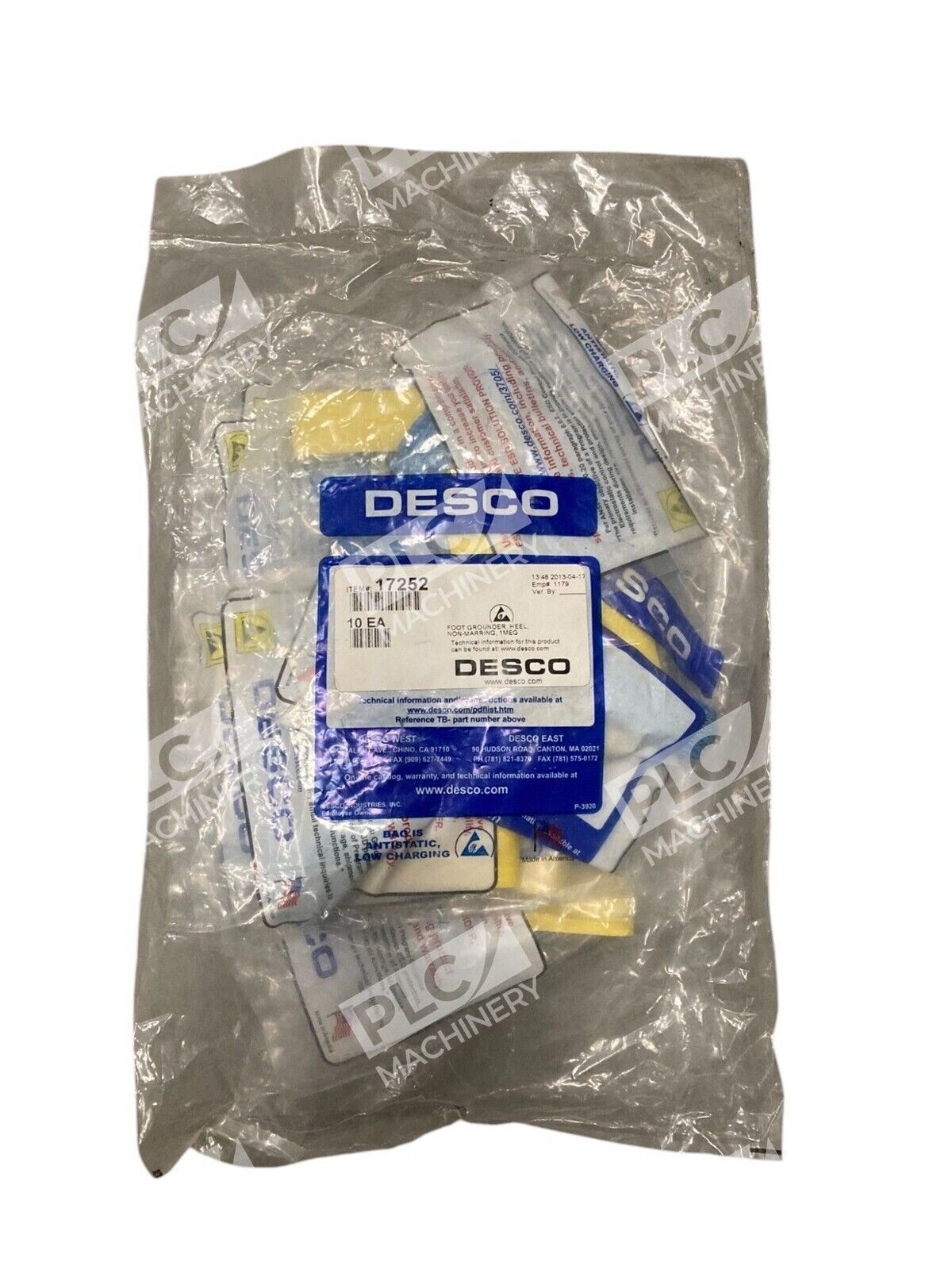

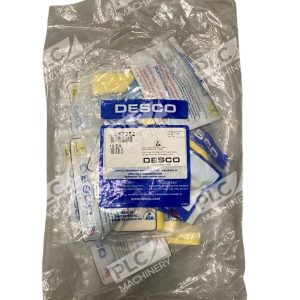

The Desco 17252 non-marring heel foot grounder is a personnel grounding device designed for electrostatic discharge (ESD) protection in controlled manufacturing, assembly, and cleanroom environments. Each unit includes a 1-megohm current-limiting series resistor for operator safety against accidental contact with equipment line voltage. The adjustable 3-layer neoprene rubber construction dissipates static charge without marring shoes or floors, making it suitable for extended daily use in quality-critical applications.
Key Features
- 3-Layer Non-Marring Neoprene Rubber: Interior and exterior dissipative material prevents damage to footwear and floor surfaces
- 1-Megohm Series Resistor: Current-limiting protection for operator safety during accidental equipment contact
- Hook-and-Loop Fastening System: Durable Velcro strap with elastic stretch material adjusts to fit most shoe sizes comfortably
- 30-Inch Conductive Grounding Tab: 8-strand nylon polyester tab ensures reliable electrical connection with operator’s sweat layer
- UL-Listed and Date-Coded: Independently reviewed design with lot traceability for quality assurance and regulatory compliance
- Made in USA: Manufactured in Rochester, New Hampshire with US-based support
Technical Specifications
- Resistance: 1 megohm series resistor (Per ESD SP9.2 / ESD TR53)
- Material: 3-layer static-dissipative neoprene rubber, no exposed carbon
- Fastening: Hook-and-loop Velcro stretch system, size adjustable
- Grounding Tab: 30 inches long, 8-strand conductive nylon polyester
- Ground Resistance (Rg): 1 × 10⁶ to < 1 × 10⁹ ohms (ESD SP9.2)
- Standards Compliance: UL-Listed, ANSI/ESD S20.20, ESD STM 97.1 and ESD STM 97.2
- Color: Neoprene yellow with blue dissipative lining
- Configuration: Heel grounder for single-foot contact
- Country of Origin: United States
Typical Applications
- Wave soldering and PCB assembly stations
- Component kitting and handling in manufacturing
- Cleanroom and controlled-environment production
- Quality control and testing areas with ESD-sensitive devices
- Medical device and semiconductor manufacturing
- Electronics repair and rework stations
Compatibility & Replacements
Compatible With
- ESD-protected flooring systems (conductive or dissipative surfaces)
- Static-control workstations and grounding mats
- ESD grounding tabs and cord systems
- ANSI/ESD S20.20–compliant personnel grounding methods
- Standard footwear in ESD environments (approved shoes with conductive soles)
Replaces / Drop-In Replacement For
- Desco 17200 (similar heel grounder with adjustable strap)
- Desco 17202 (alternative heel configuration)
- Other single-megohm non-marring heel grounding straps with hook-and-loop fasteners
Works With
- Desco grounding cords and jacks for connection to ESD-protected work surfaces
- Personnel grounding verification systems and testers (per ESD SP1.0)
- Flooring-footwear personnel grounding systems as defined in ESD S20.20
- Static-dissipative floor mats and conductive surfaces
