Overview

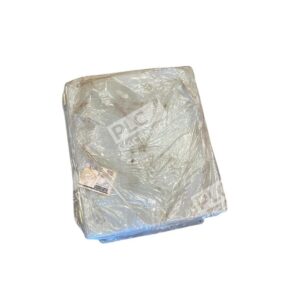

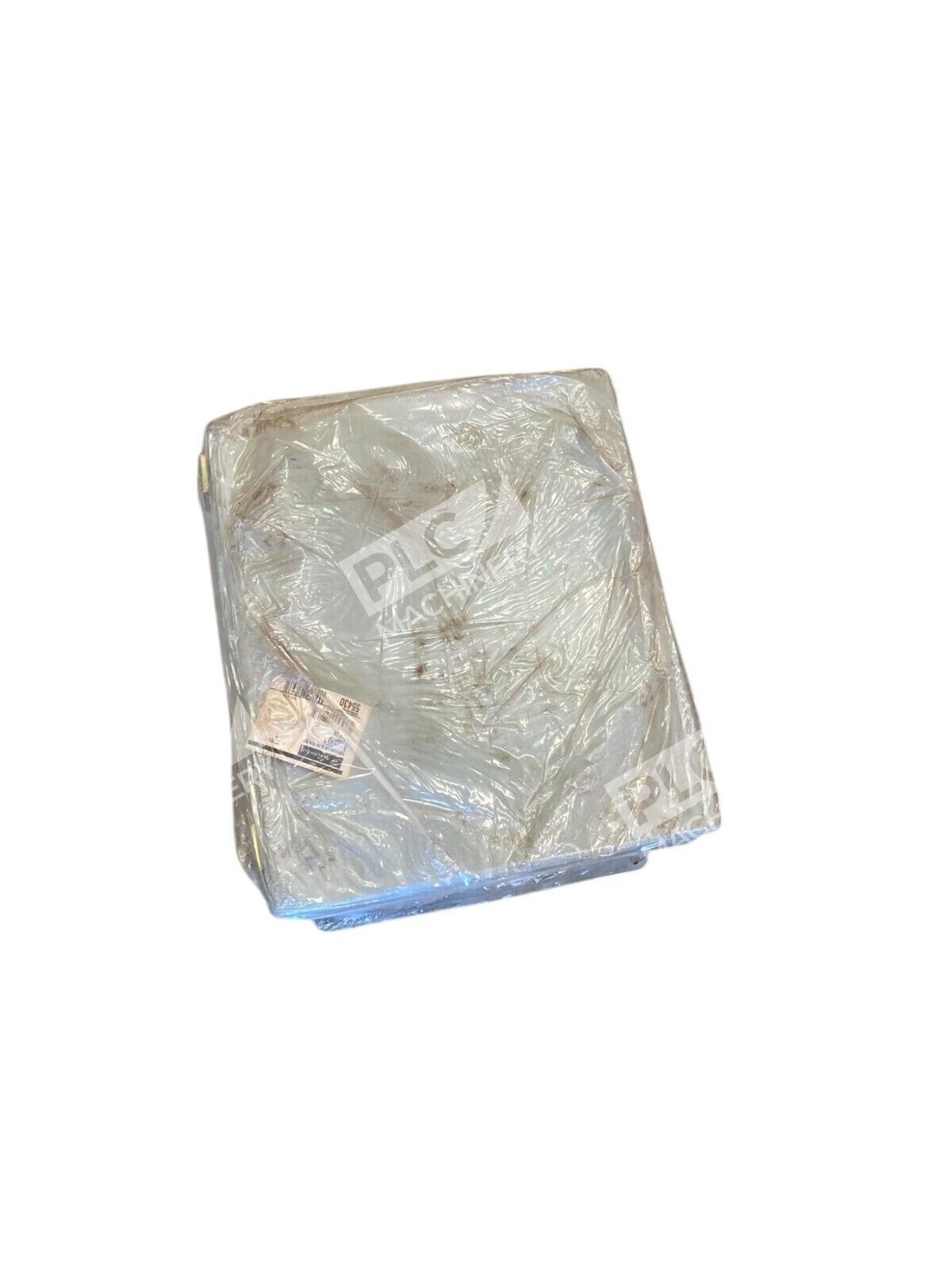

The Hoffman A-1412CH junction box is a NEMA 12/13/IP65-rated steel enclosure designed for larger wall-mount electrical applications. The A1412CH features a continuous hinge with ANSI 61 gray 14-gauge steel body, providing robust protection for electrical components in industrial and commercial environments. Measuring 14″ H × 12″ W × 6″ D, this enclosure accommodates mounting of optional panels and terminal block kits, making it a versatile solution for junction box and control panel applications.
Key Features
- Ideal for larger wall-mount applications requiring ease of installation and access to full-width internal panel
- Seams continuously welded, ground smooth with external screw clamps that are quick and easy to operate
- Overlapping door design allows easy access in areas with minimal aisle space
- Weldnuts provided for mounting optional panels and terminal block kits in size 6 x 4-inch and larger
- ANSI 61 gray polyester powder-painted finish resists corrosion and UV exposure
Technical Specifications
- NEMA/IP Rating: NEMA 12/13/IP65
- Material: 14-gauge steel ANSI 61 gray
- Cover Type: Continuous Hinged/Screw Clamp Cover
- Height: 14 inches
- Width: 12 inches
- Depth: 6 inches
- Internal Panel Size: 12.75 x 10.88 inches
- Mounting: Wall Mount
Typical Applications
The Hoffman A-1412CH is suitable for a wide variety of industrial and commercial applications including:
- Electrical distribution and control enclosures
- Motor control centers and starter enclosures
- PLC and automation controller mounting
- Process control and instrumentation panels
- Equipment rated for NEMA 12/13 (dust-tight, washdown-resistant) indoor environments
Compatibility & Replacements
Compatible With
- Standard DIN rail mounting systems (with optional accessories)
- Hoffman optional panel and terminal block kits (6×4″ and larger)
- Wall mounting systems for indoor electrical installations
- Industrial PLC and motor control applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The A-1412CH is a standalone enclosure; confirm any legacy equipment fit before purchase.
Works With
- Hoffman optional enclosure accessories (cooling fans, thermal management units)
- Standard industrial terminal blocks and wiring components
- NEMA 12/13 compliant electrical equipment and controls
- Wall mounting hardware and bracket systems
