Overview

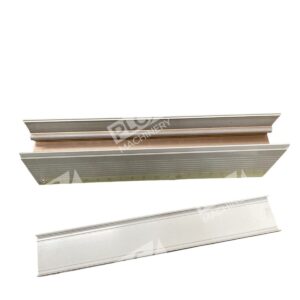

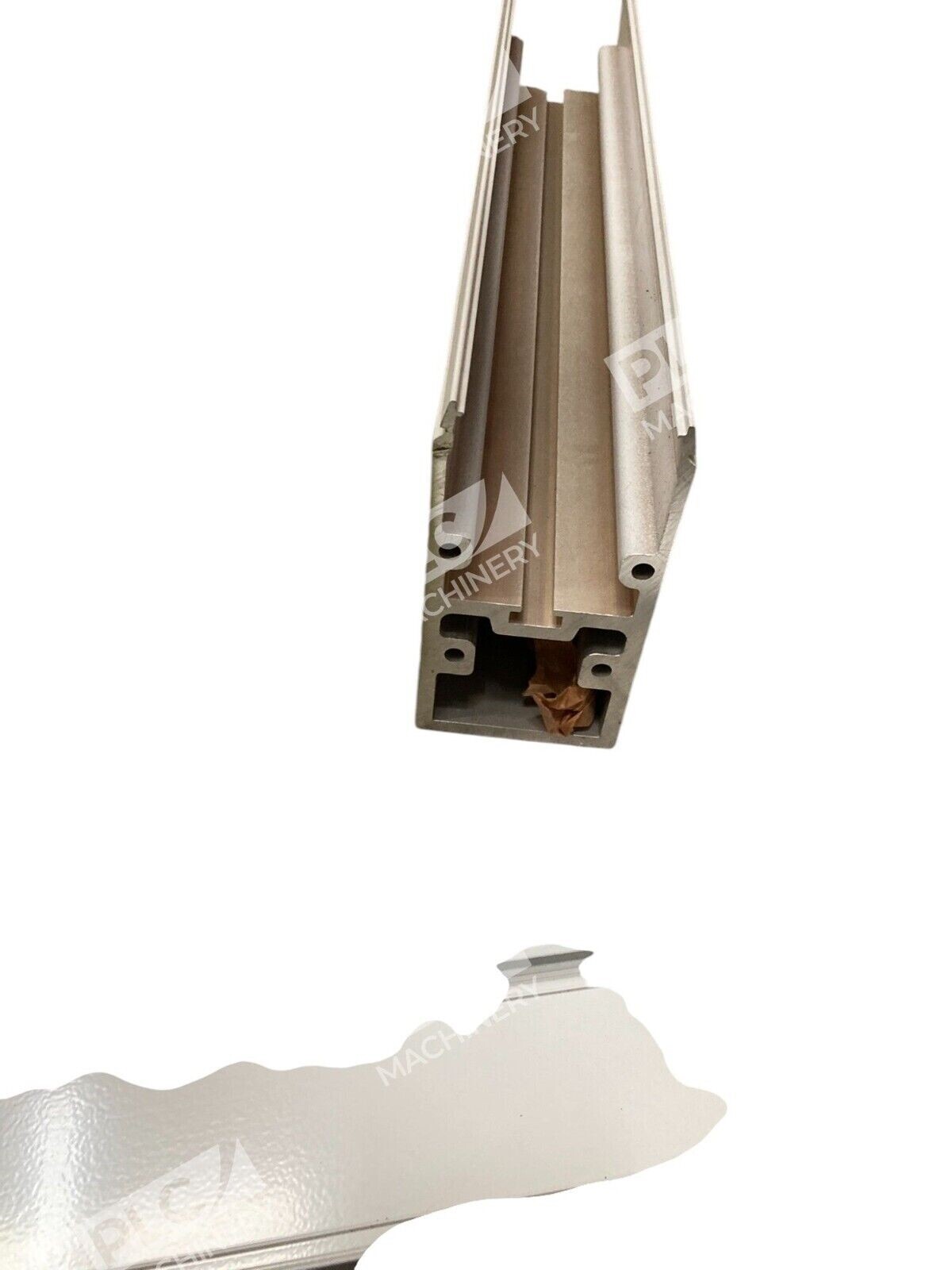

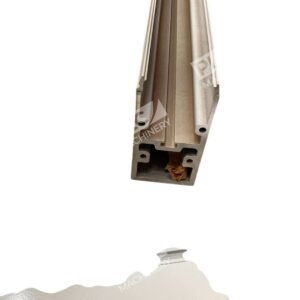

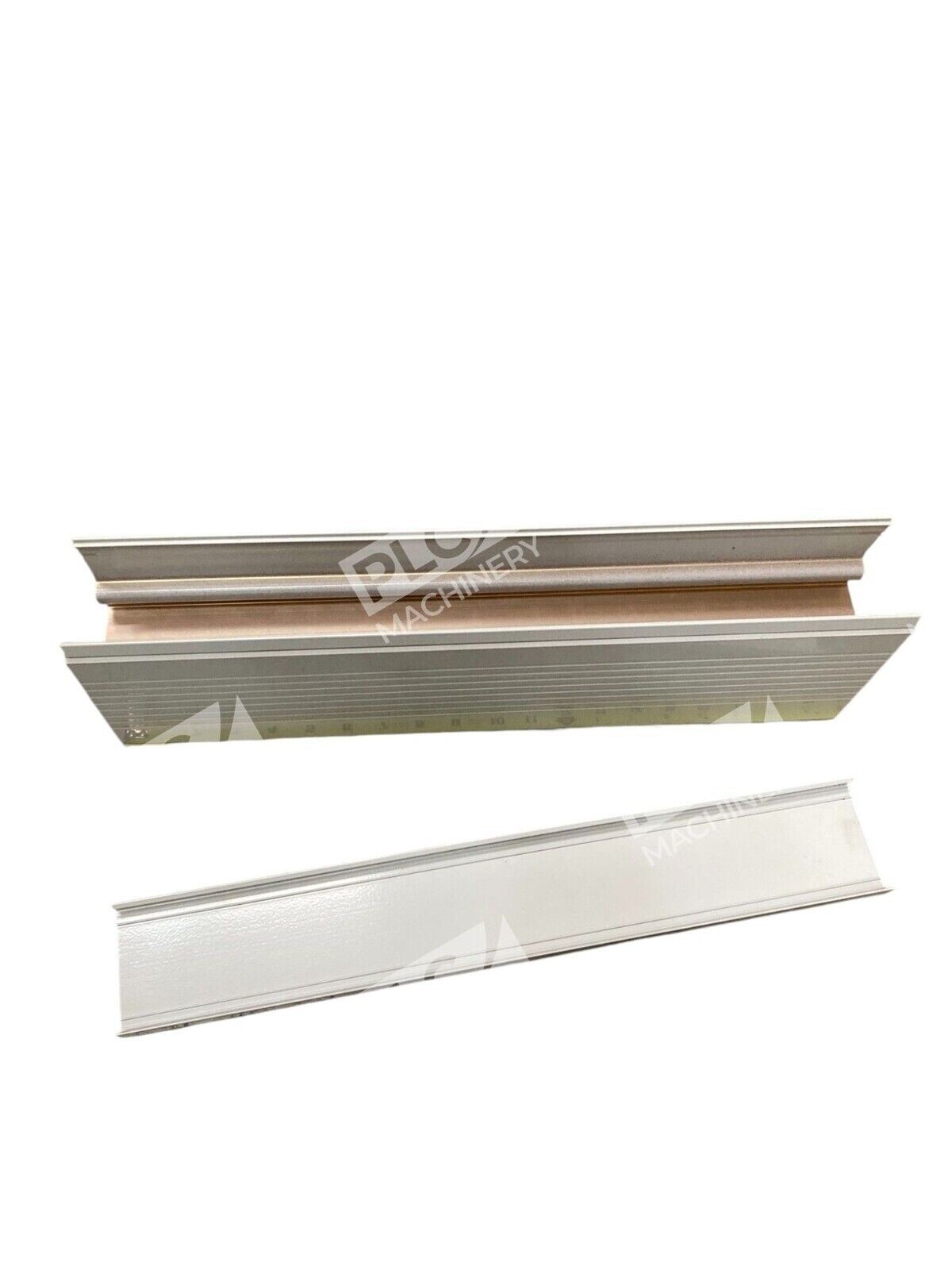

The Rittal CP-6050.000 is an open extruded aluminum support section for the CP-XL support arm system. This component provides a robust cable management solution within electrical enclosures, offering separation of control cables from power supply lines. The open design enables easy retrofitting and modification of cable routing without requiring complete disassembly.
Key Features
- Open support section design for retrospective cable insertion and easy servicing access
- Dual separate cable ducts for control and power cable separation
- Extruded aluminum construction in RAL 7035 light gray finish for corrosion resistance
- Attachment via 4 self-tapping screws in integrated screw channel
- Clip-in cover lid included for cable duct closure
- Cuttable to required length for custom installation requirements
Technical Specifications
- Material: Extruded aluminum section
- Width: 80 mm
- Height: 155 mm
- Length: 500 mm
- Net Weight: 4.878 kg (10.75 lbs)
- Gross Weight: 5.135 kg (11.32 lbs)
- Color: RAL 7035 (light gray)
- Design Type: Open cable duct
- Attachment Method: 4 self-tapping screws in screw channel
- EAN: 4028177118874
Typical Applications
The CP-6050.000 support section is ideal for:
- Electrical enclosure cable management within CP-XL support arm systems
- Separation of control and power cables in industrial control panels
- Retrofit installations requiring flexible cable routing modifications
- Equipment enclosures requiring organized, accessible cable paths
- Panel-mounted electrical systems with modular support requirements
Compatibility & Replacements
Compatible With
- Rittal CP-XL support arm systems
- Rittal enclosure connection components with integrated screw channels
- Rittal CP series comfort panels and operating housings
- Standard Rittal support section mounting brackets and adaptors
Replaces / Drop-In Replacement For
- Previous generation CP-6050.000 units
- Compatible with CP-6050.500 mounting systems (same support section family)
Works With
- Rittal CP support arm connection systems (Ø 130 mm)
- Rittal modular enclosure support architecture
- Standard industrial electrical cable management protocols
- Pre-assembled cables with connectors (supported via open duct design)
