Overview

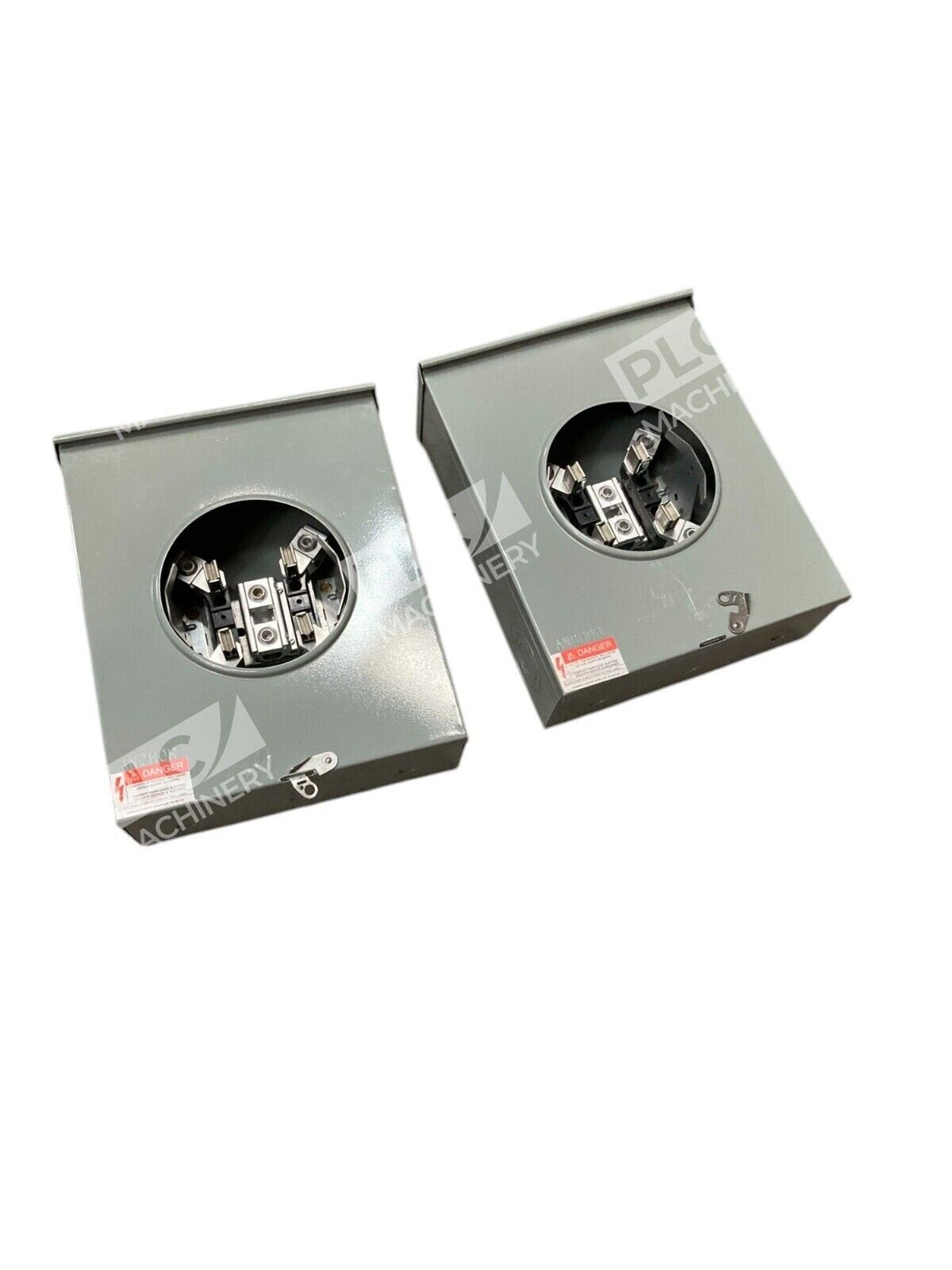

The Thomas Betts URS1394-FP meter socket is a robust 200-amp electrical enclosure designed for single-phase metering at 600VAC. Manufactured with durability and weather resistance in mind, this unit provides a secure mounting point for meter instruments and electrical distribution in industrial, commercial, and utility applications. The package includes two units, enabling efficient deployment across multiple service points or backup inventory.
Key Features
- 200-amp rated capacity with 600VAC maximum voltage
- Weatherproof Type 3R enclosure design
- Accepts 6 AWG to 250 kcmil conductor range
- Aluminum tunnel-type connectors for line and load sides
- Screw-type ring terminal configuration
- Rectangular box-shaped profile for standard mounting

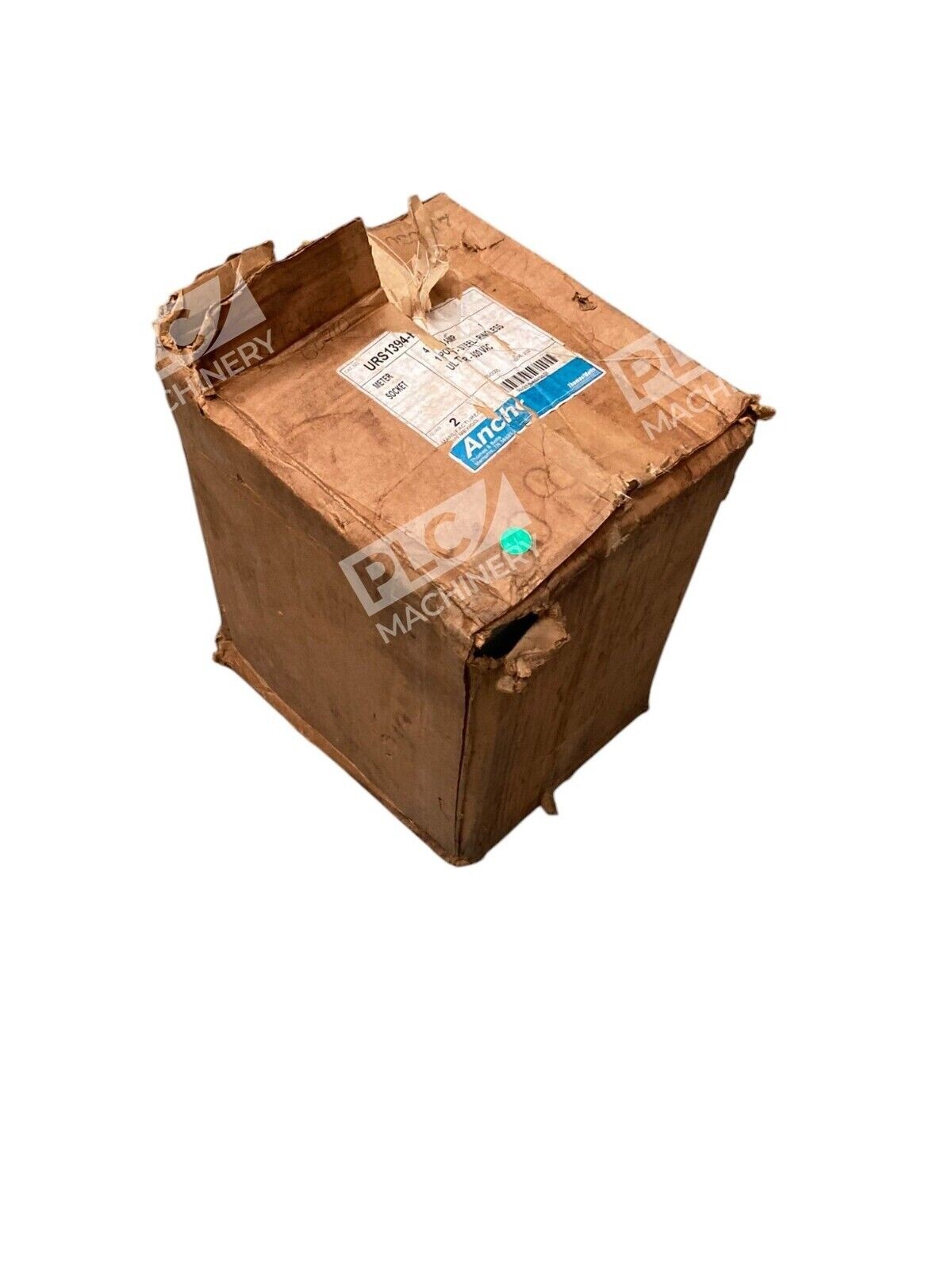

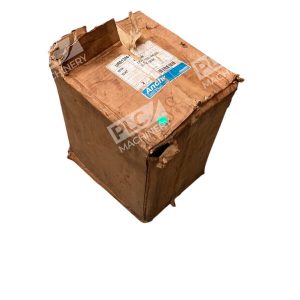

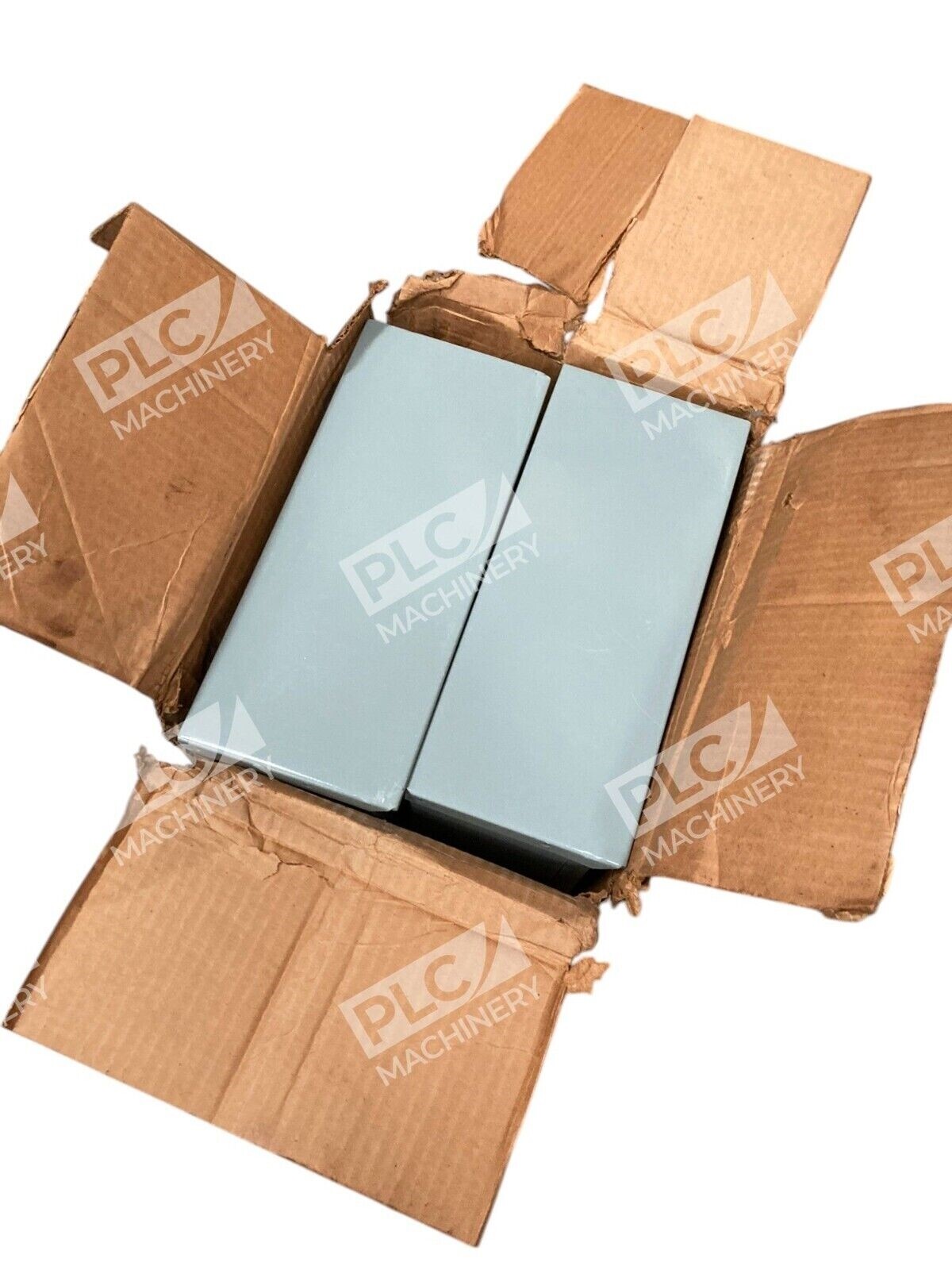

- Supplied as a box of two units
Technical Specifications
- Amperage Rating: 200 A
- Voltage Rating: 600 VAC
- Phase: Single Phase
- Conductor Range: 6 AWG to 250 kcmil
- Enclosure Type: NEMA 3R (weatherproof)
- Height: 16 inches
- Length: 12 inches
- Width: 5 inches
- Terminal Type: Screw-type ring
- Connector Type: Aluminum tunnel-type (line and load)
- Quantity: 2 units per box
- Condition: New in Box
Typical Applications
The URS1394-FP meter socket is well-suited for:
- Residential service upgrade installations requiring dual metering points
- Commercial utility billing and submetering systems
- Industrial single-phase power distribution panels
- Temporary or permanent service feeds up to 200 amps
- Retrofit and modernization of existing electrical infrastructure
Compatibility & Replacements
Compatible With
- 600VAC single-phase utility services
- Standard NEMA 3R outdoor enclosure installations
- 4-jaw meter mounting configurations
- Overhead and underground service feeds
- 6 AWG through 250 kcmil copper or aluminum conductors
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or electrician before ordering, as meter socket applications are installation-specific and may require exact model verification.
Works With
- Class 200-amp single-phase meters
- NEMA 3R outdoor enclosure standards
- Standard utility meter socket mounting brackets
- North American electrical code (NEC) compliant installations
