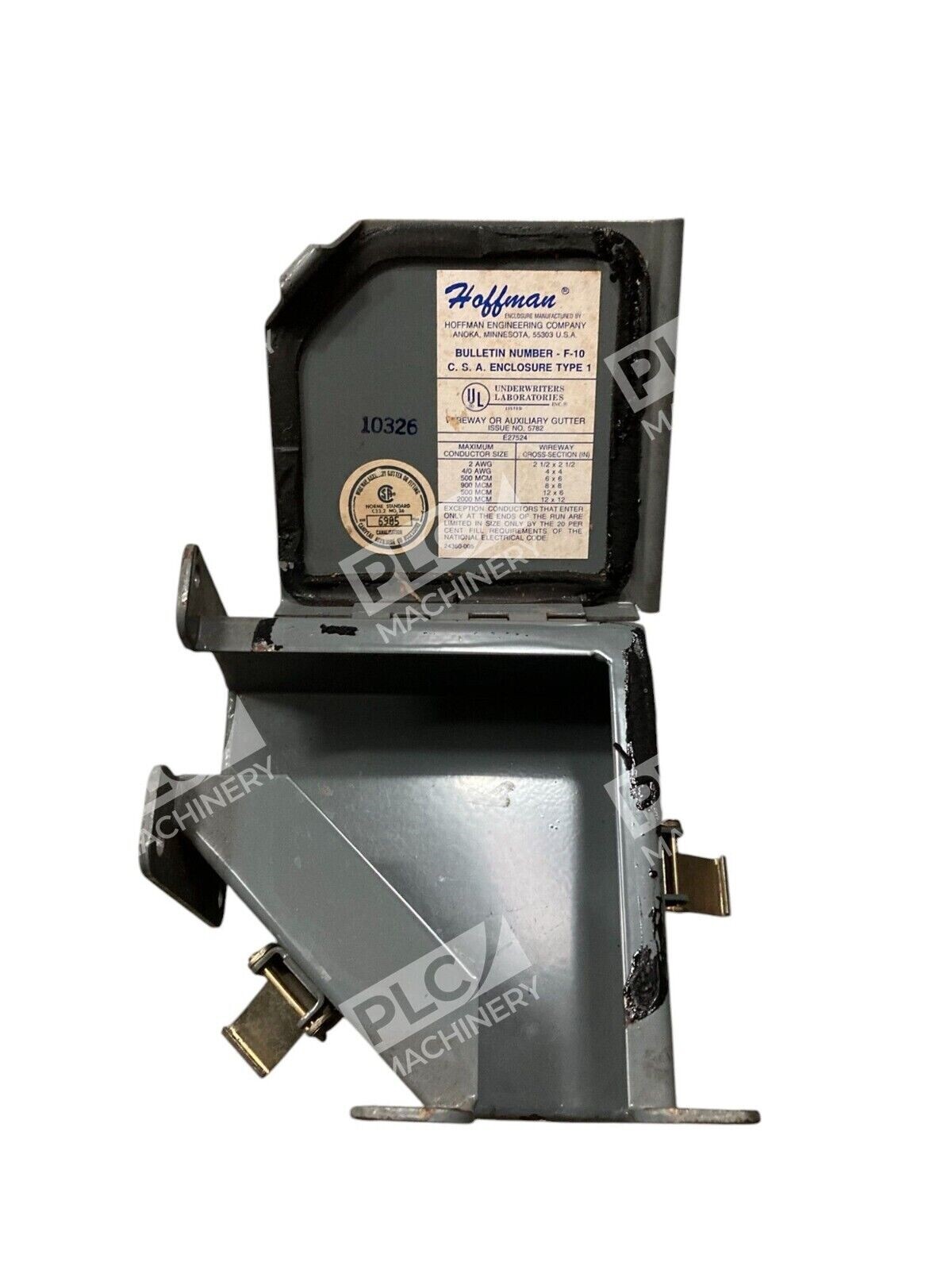

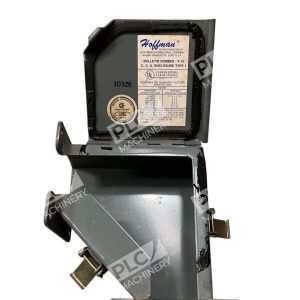

Hoffman E27524 NEMA Type 1 lay-in wireway auxiliary gutter — a dependable cable management solution for industrial electrical enclosures. This gutter is engineered to safely route and protect multiple conductors within control cabinets, motor control centers, and other industrial installations.
Overview
The Hoffman E27524 auxiliary gutter serves as a compartmented channel for organized wire and cable routing. Conforming to NEMA Type 1 standards, this gutter provides basic protection for clean, indoor environments. Hoffman E27524 units feature a removable lay-in cover design that allows easy access to conductors without removing the entire assembly. The gutter integrates seamlessly with standard Hoffman wireway systems and junction boxes.
Key Features
- Lay-in design with removable cover for simple conductor access and re-routing
- NEMA Type 1 enclosure rating — suitable for dry indoor industrial locations
- UL 870 and cUL listed per CSA C22.2 No. 26 for code compliance
- Gray polyester powder paint finish (ANSI 61) inside and out for corrosion resistance
- Compatible with U-connectors, elbows, tees, and other Hoffman wireway accessories
- Reduces wire bundle stress and simplifies maintenance access
Technical Specifications
- Manufacturer: Hoffman (nVent HOFFMAN)
- Part Number: E27524
- Enclosure Type: NEMA Type 1, Lay-In Wireway Auxiliary Gutter
- UL File Number: E27524
- Certifications: UL 870, cUL C22.2 No. 26
- Interior Finish: ANSI 61 gray polyester powder paint
- Standard Lengths: 12 inches and longer (various configurations available)
- Typical Weight: 15–22 lbs (varies by length)
- Mounting: Wall or surface mount with brackets
Typical Applications
- Machine control enclosures and motor control centers
- Industrial automation equipment cabinets
- Manufacturing facility electrical distribution systems
- Cable routing and organization in clean, dry electrical rooms
- OEM control panel and system integrations
- Retrofit and replacement installations for existing Hoffman wireway systems
Compatibility & Replacements
Compatible With
- Hoffman lay-in wireway systems (straight sections, elbows, tees, crosses)
- Standard U-connectors and wireway joining hardware
- Hoffman closure plates and end caps
- Industrial control enclosures and junction boxes with standard mounting feet
- Motor control centers and multi-section cabinets
- Standard electrical fastening hardware (stainless or galvanized steel)
Replaces / Drop-In Replacement For
This is a specialty wireway auxiliary gutter model; verify direct replacement compatibility with your system integrator or Hoffman technical support before ordering, as wireway dimensions and configurations vary by model and length.
Works With
- Hoffman wireway fastening systems and U-connectors
- Standard industrial cable ties and management clips
- NEMA Type 1 enclosure systems and equipment
- Industrial conduit and cable routing standards (NEC, IEC)
- Hoffman touch-up paint and corrosion-protection coatings
