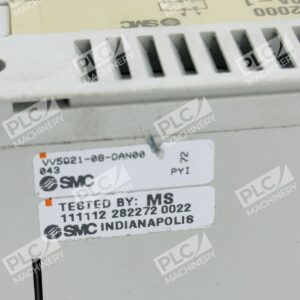

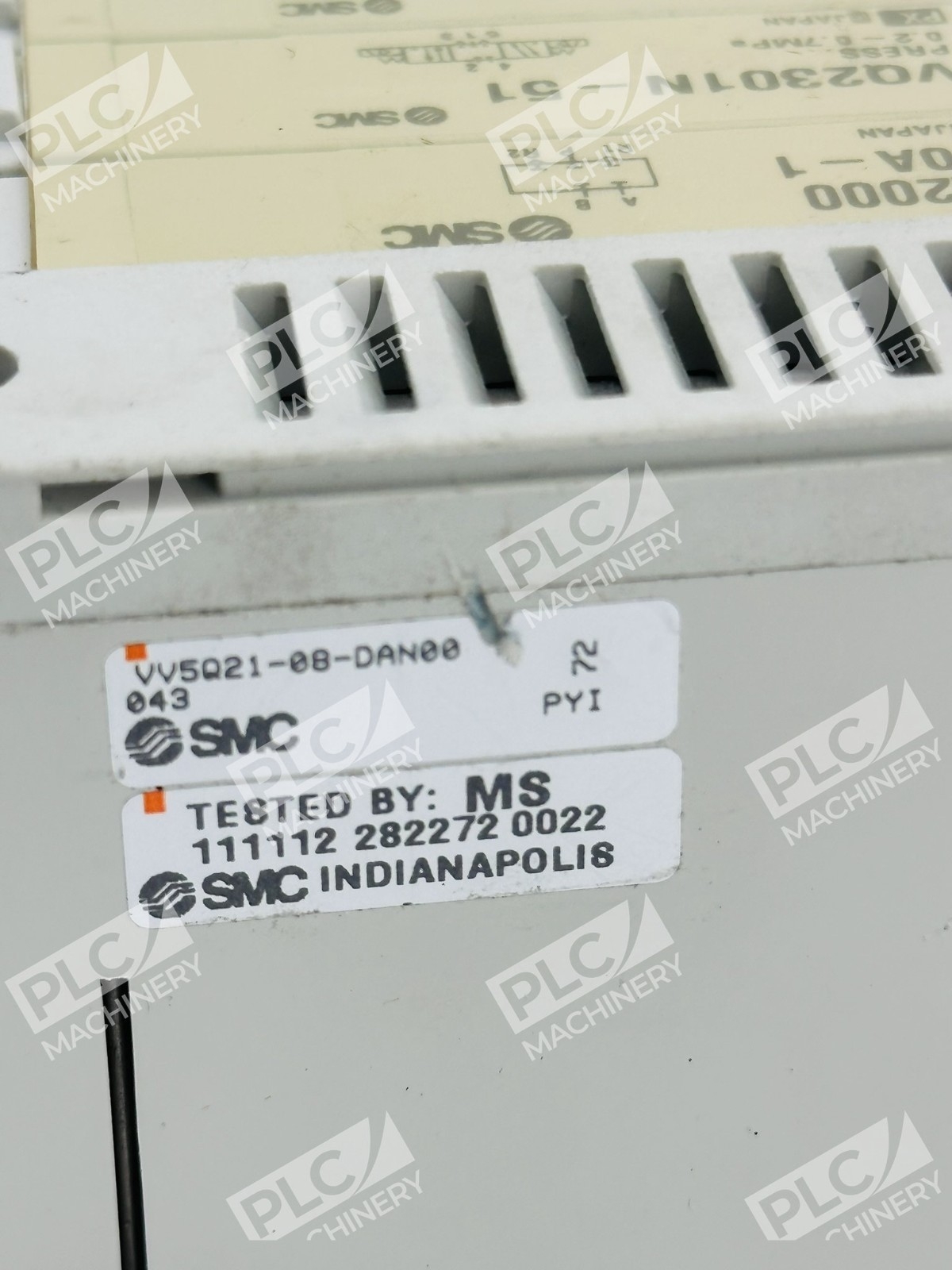

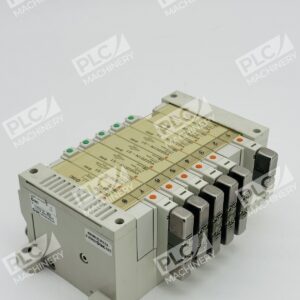

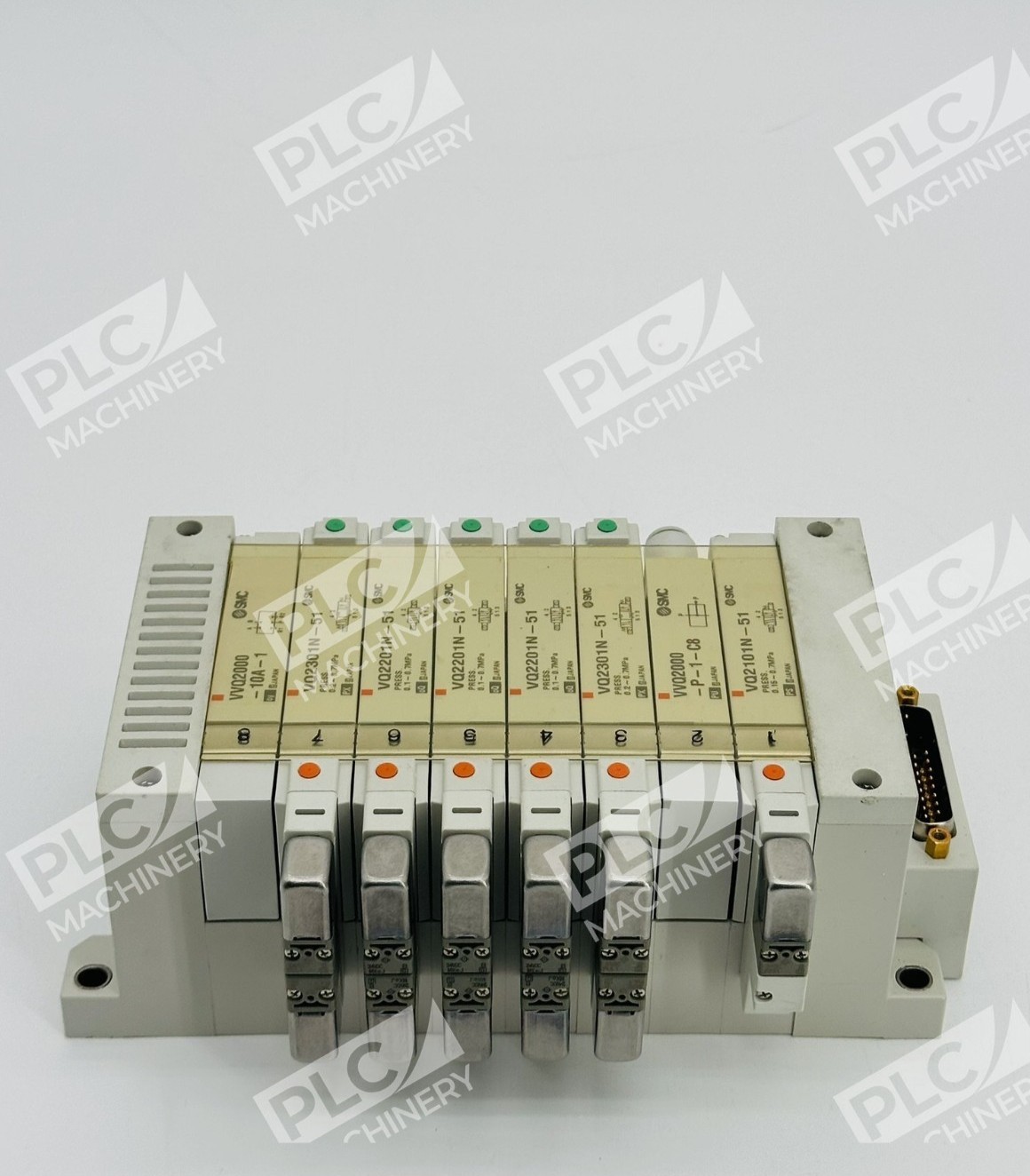

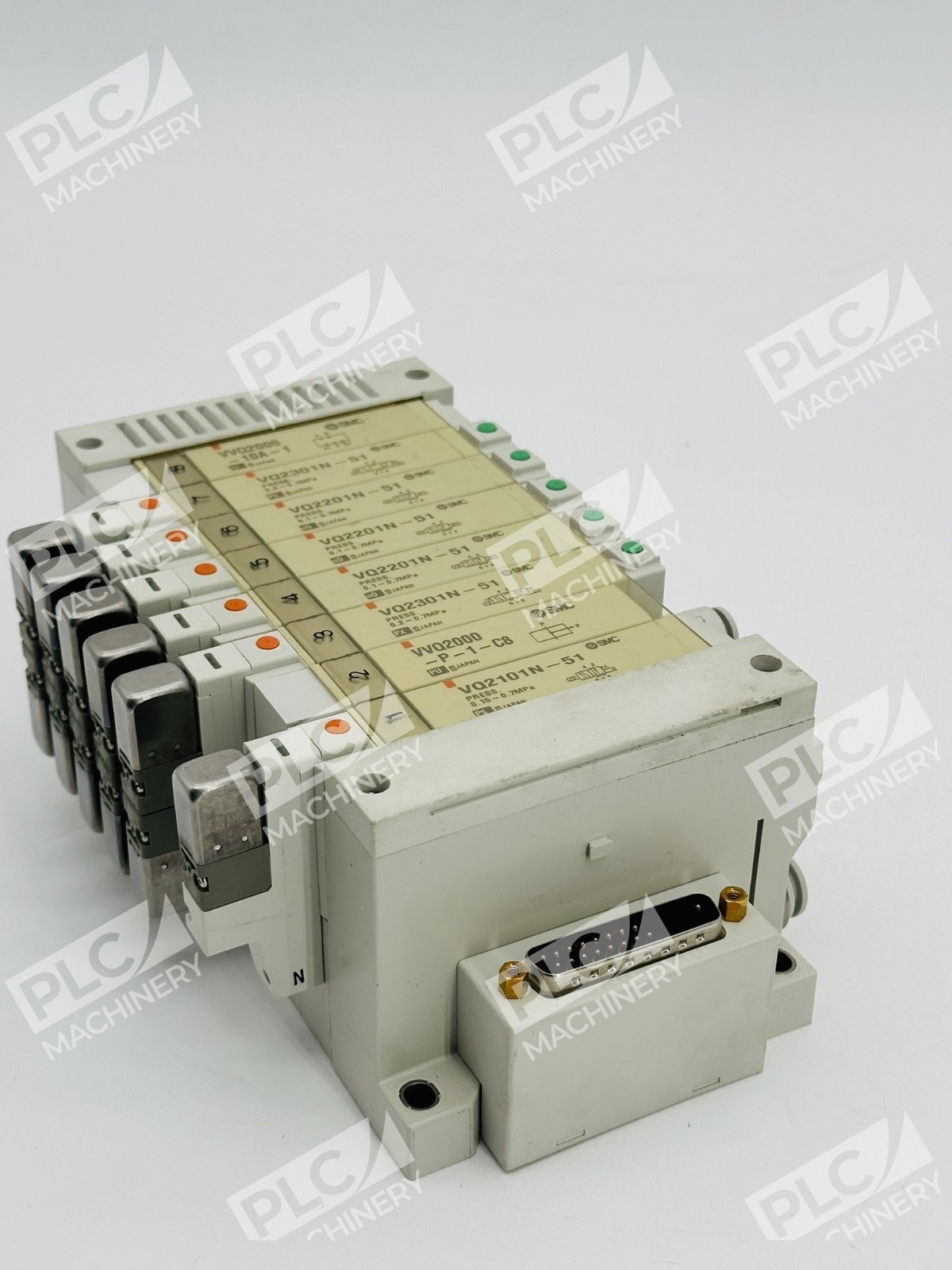

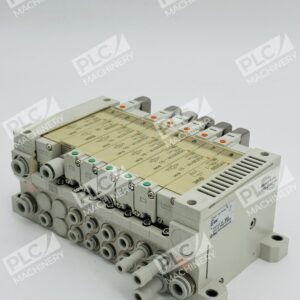

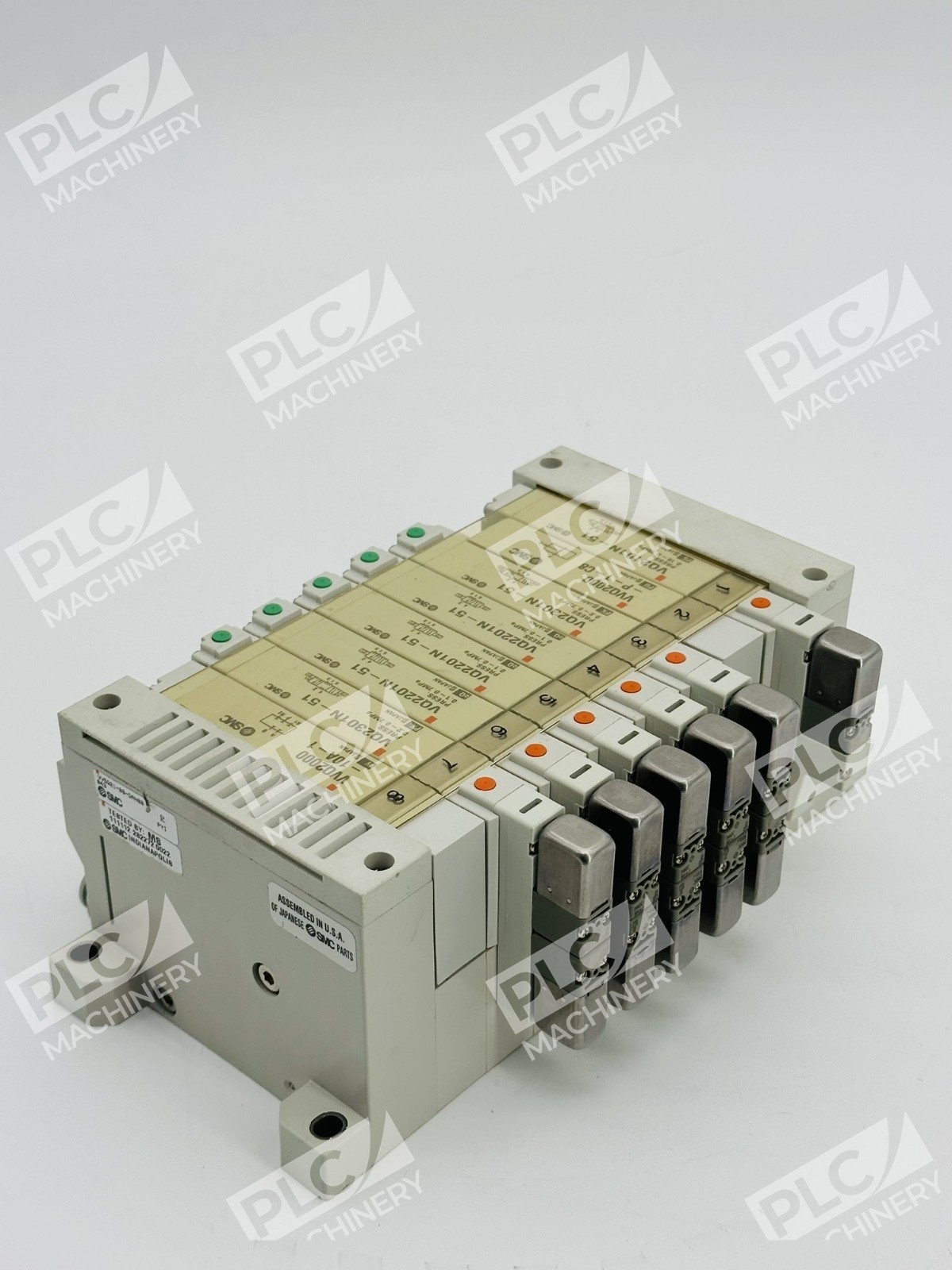

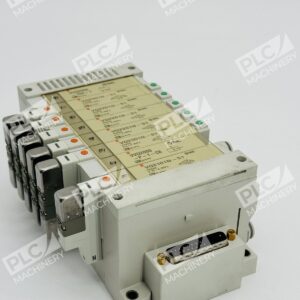

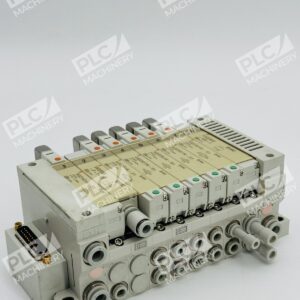

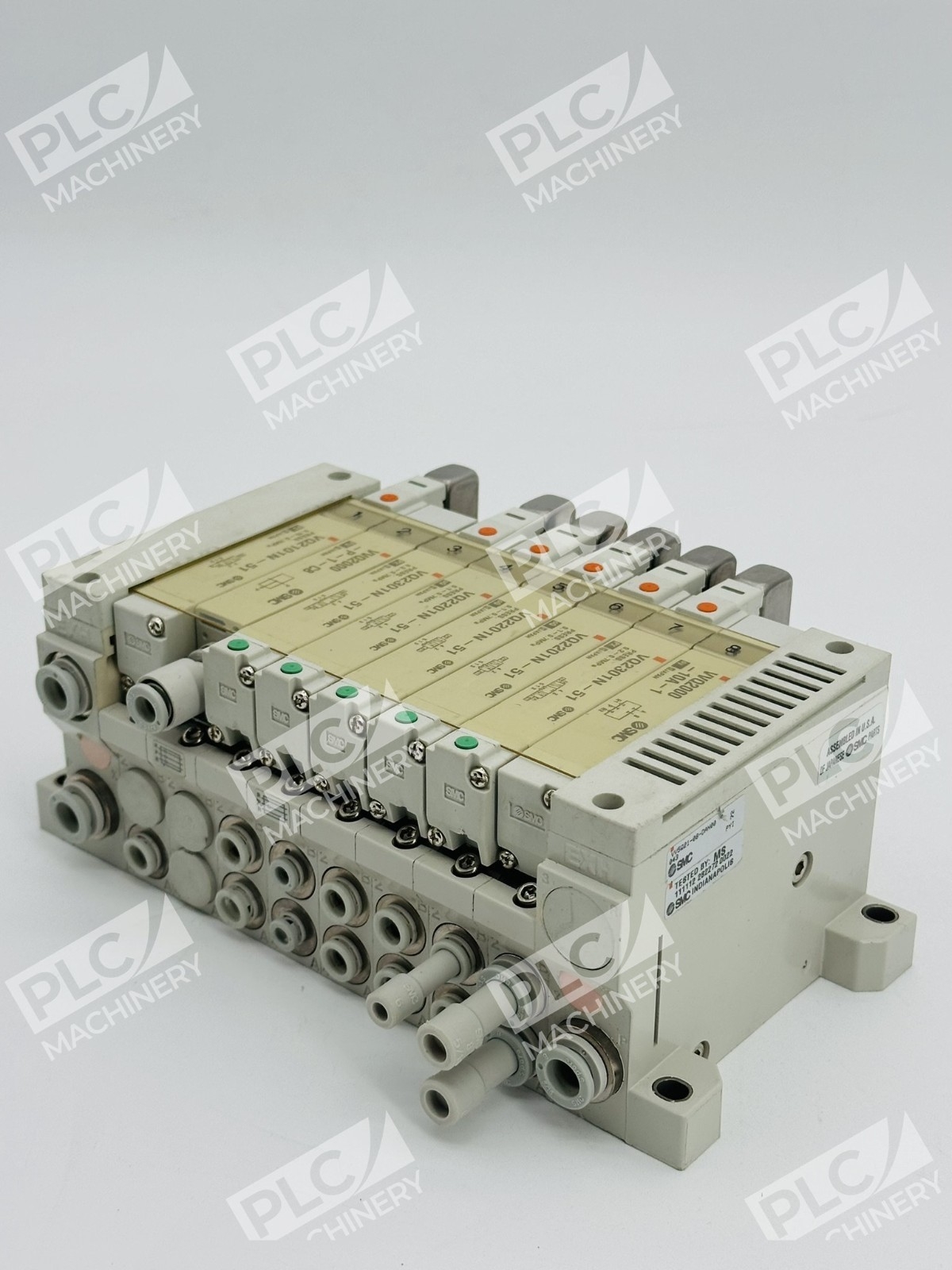

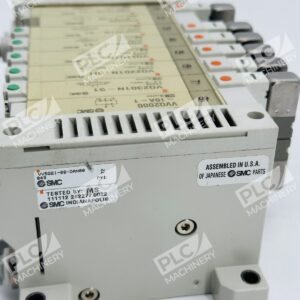

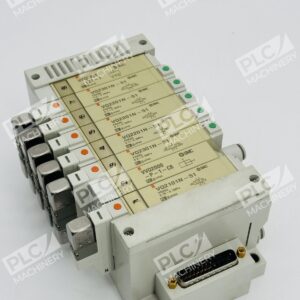

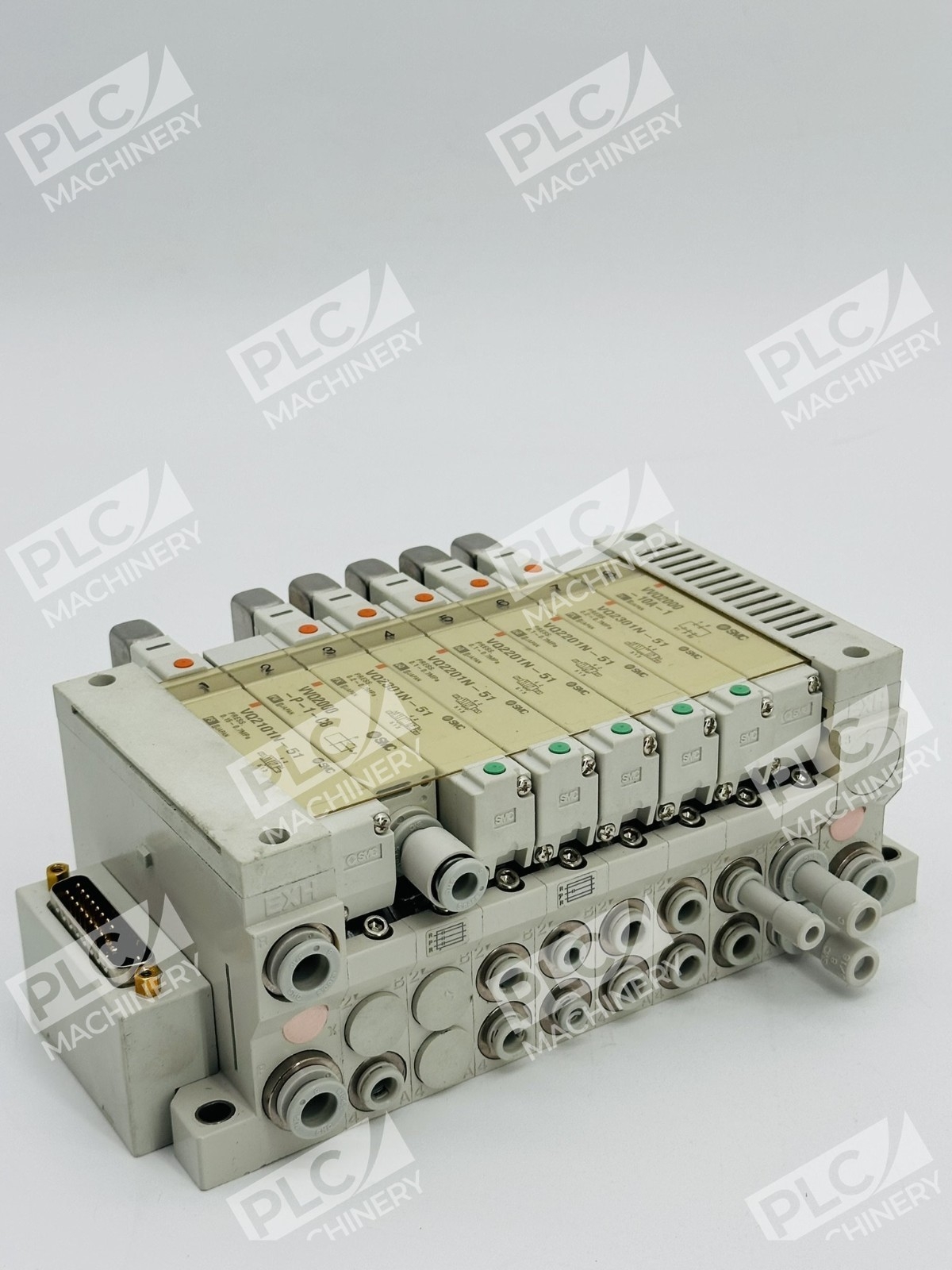

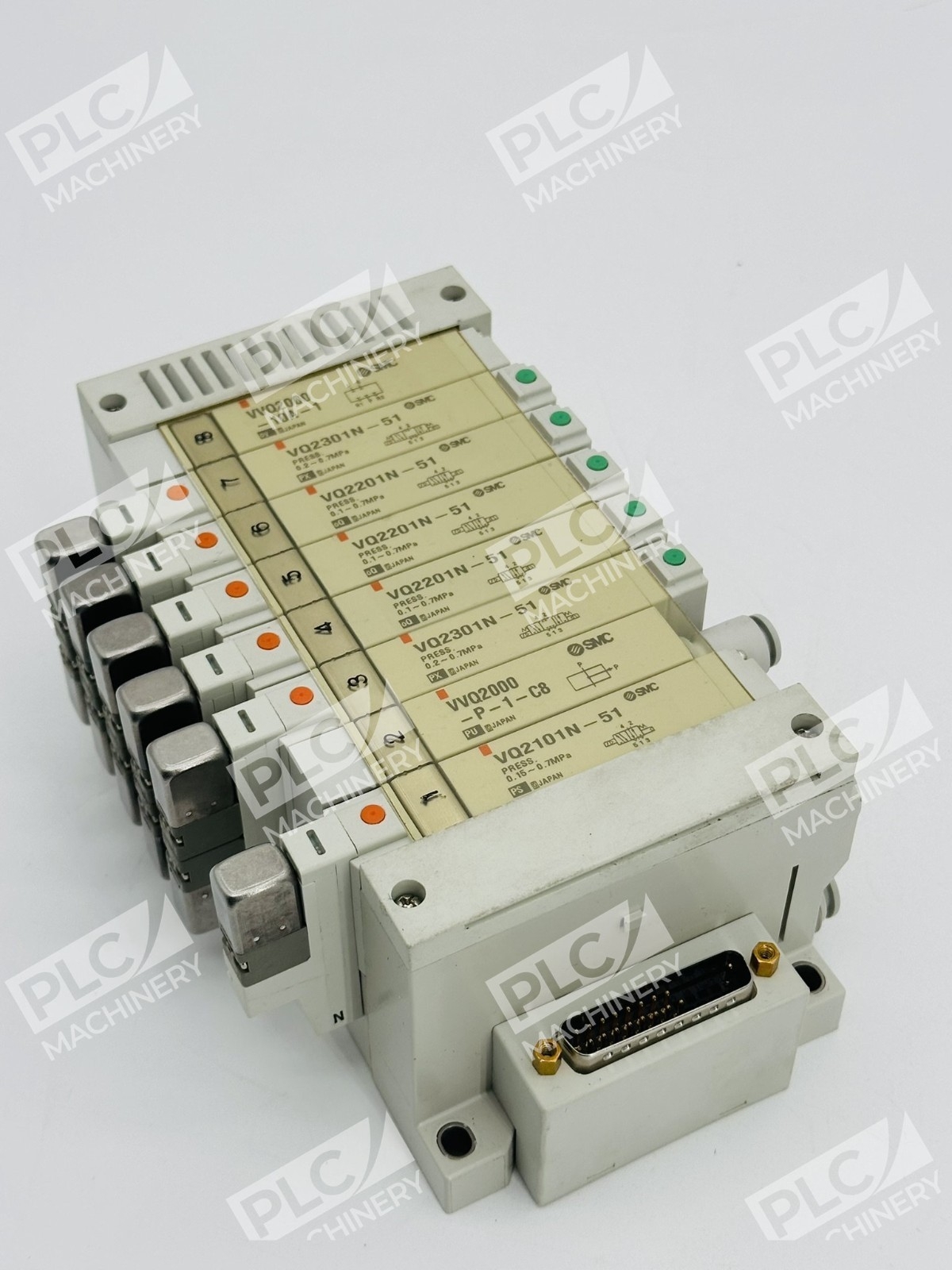

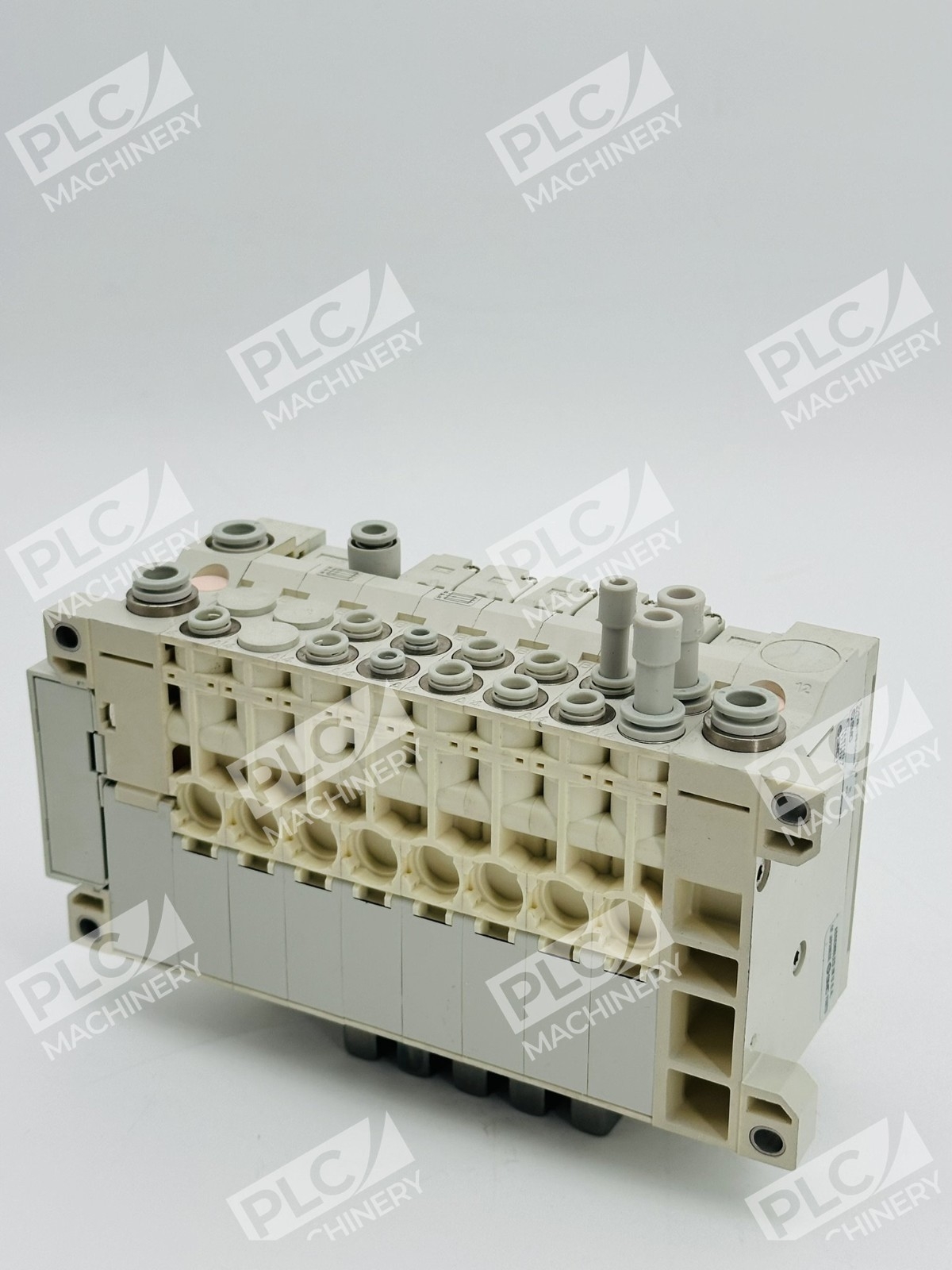

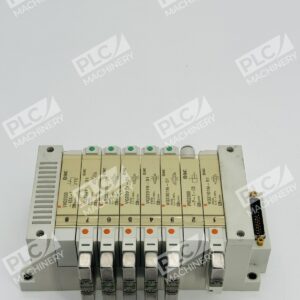

SMC VV5Q21-08-DAN00 Solenoid Valve Manifold Block

Overview

The SMC VV5Q21-08-DAN00 is a base-mounted, plug-in solenoid valve manifold designed for the VQ 2000 series of directional control valves. This 8-station manifold block delivers reliable fluid control for pneumatic and low-pressure hydraulic applications. The DAN00 designator indicates multi-connector wiring, providing flexible integration into automated production systems.

Key Features

• 8-station capacity with space-saving single-side solenoid and fitting design
• Multi-connector (DAN00) configuration for simplified wiring harness integration
• Plug-in valve mounting—no disassembly required for valve replacement
• Built-in one-touch fittings reduce piping labor and installation time
• Compatible with VQ 2000 series 4/5-port solenoid valves
• Designed for high-speed, frequent operation with stable response time

Technical Specifications

Typical Applications

• Automated assembly and packaging machinery
• Material handling systems requiring multi-axis control
• Industrial pneumatic press controls
• Pick-and-place robotic systems
• CNC and factory automation networks requiring centralized solenoid switching
• Process control in manufacturing and food production

Compatibility & Replacements

Compatible With

• VQ 2000 series solenoid valves (4/5-port directional control)
• SMC pneumatic and low-pressure hydraulic valve networks
• Standard pneumatic systems (typically 0–10 bar operating range)
• Multi-connector wiring harnesses and automation control panels

Replaces / Drop-In Replacement For

Verify compatibility with your system integrator before ordering. The VV5Q21-08-DAN00 is a specific SKU; equivalent manifolds may exist with different connector types (e.g., VV5Q21-08C6L2-S with lead-wire configuration).

Works With

• SMC valve control software and PLC programming interfaces
• Standard 24 VDC solenoid control circuits
• Pneumatic pressure regulators and filter/regulator/lubricator (FRL) units
• One-touch air line quick couplers and fittings
