Overview

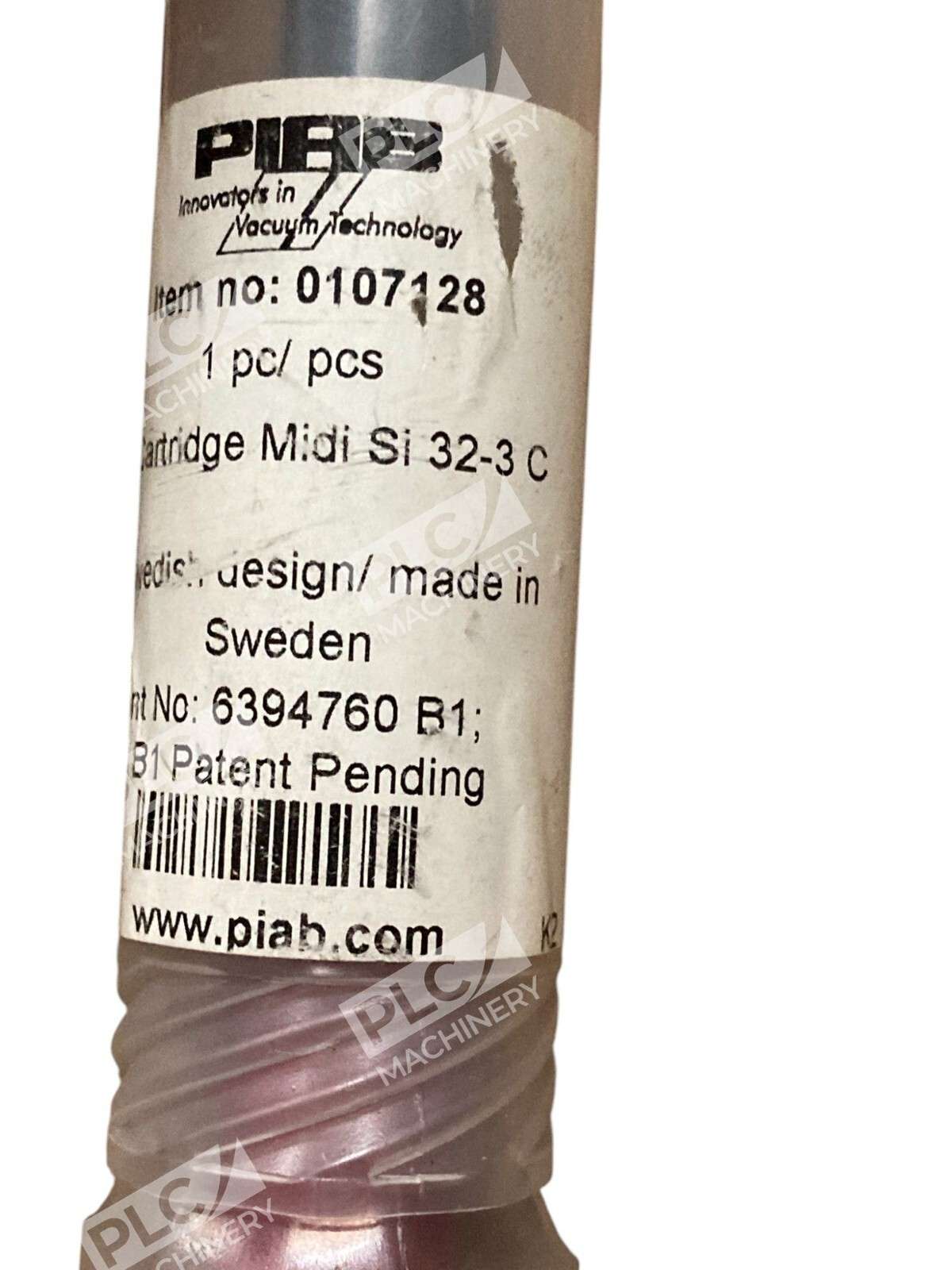

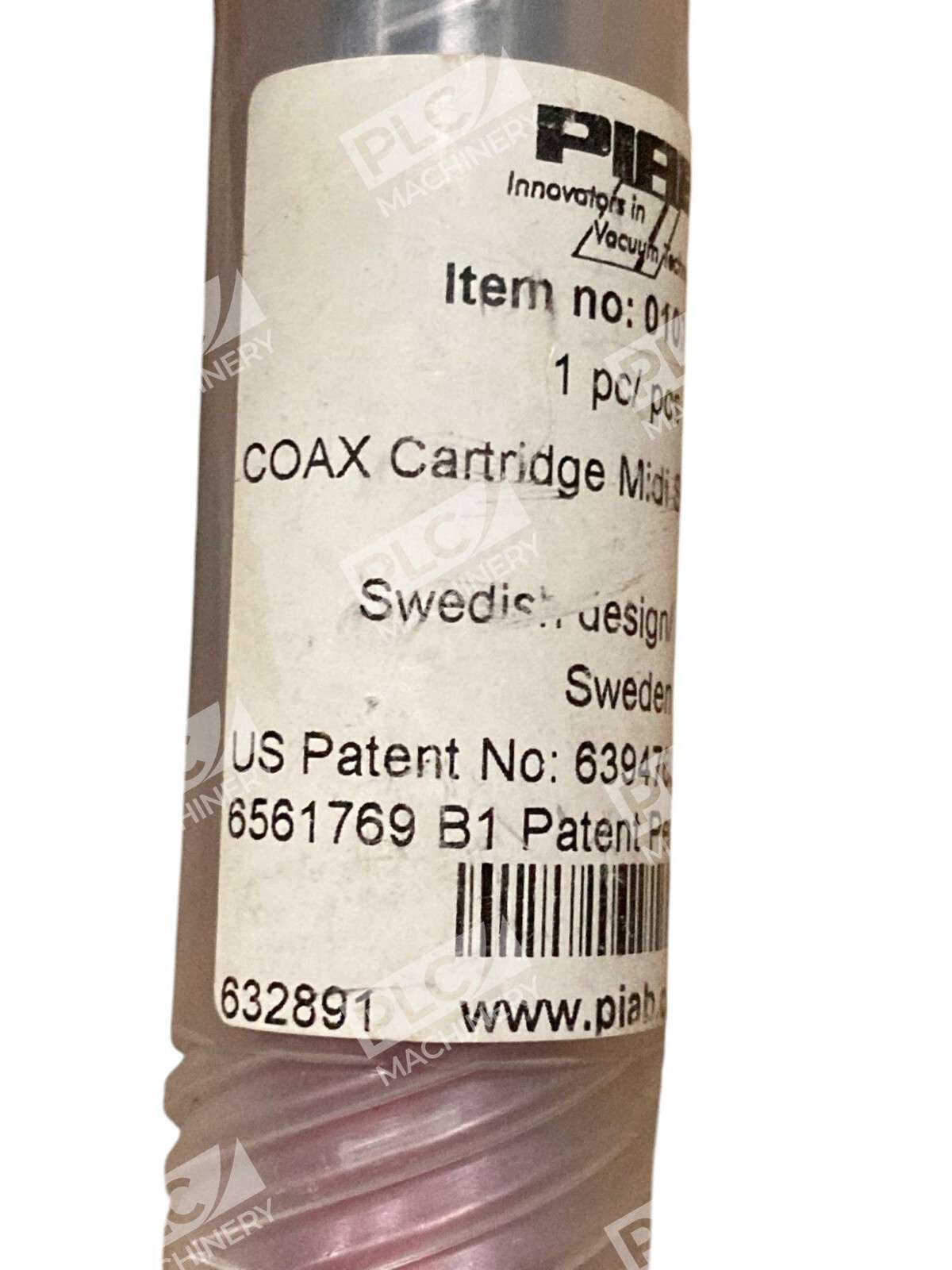

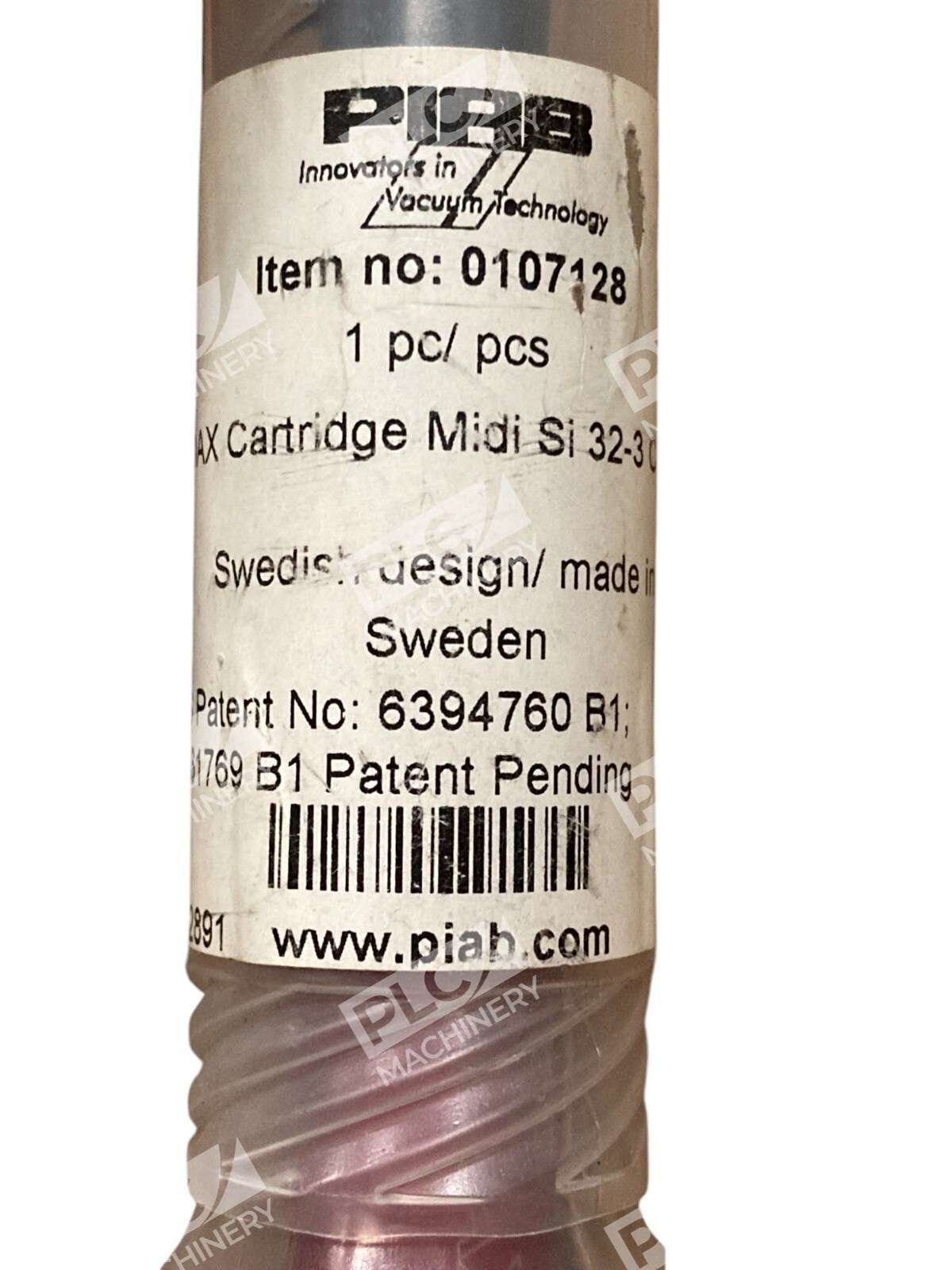

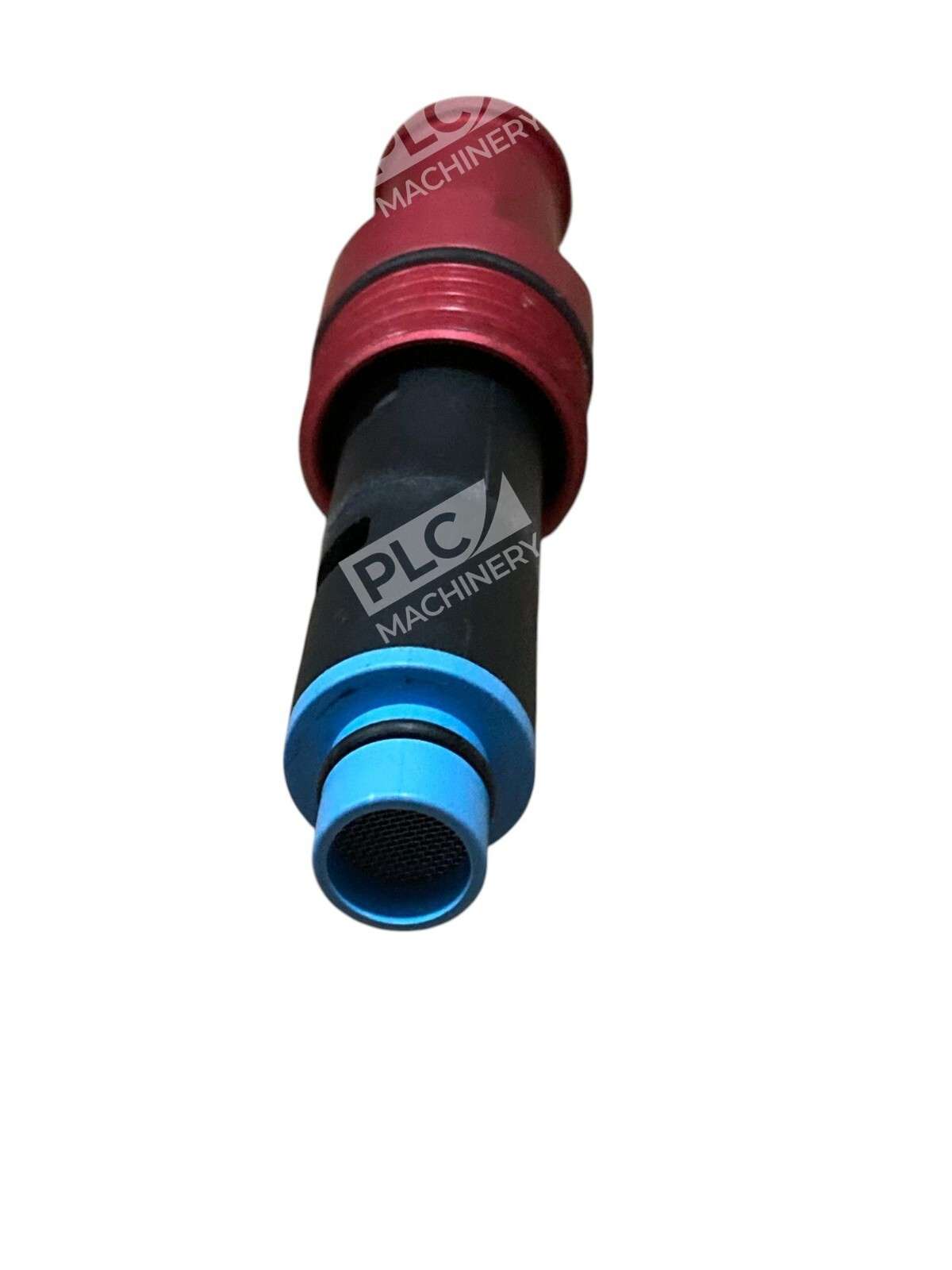

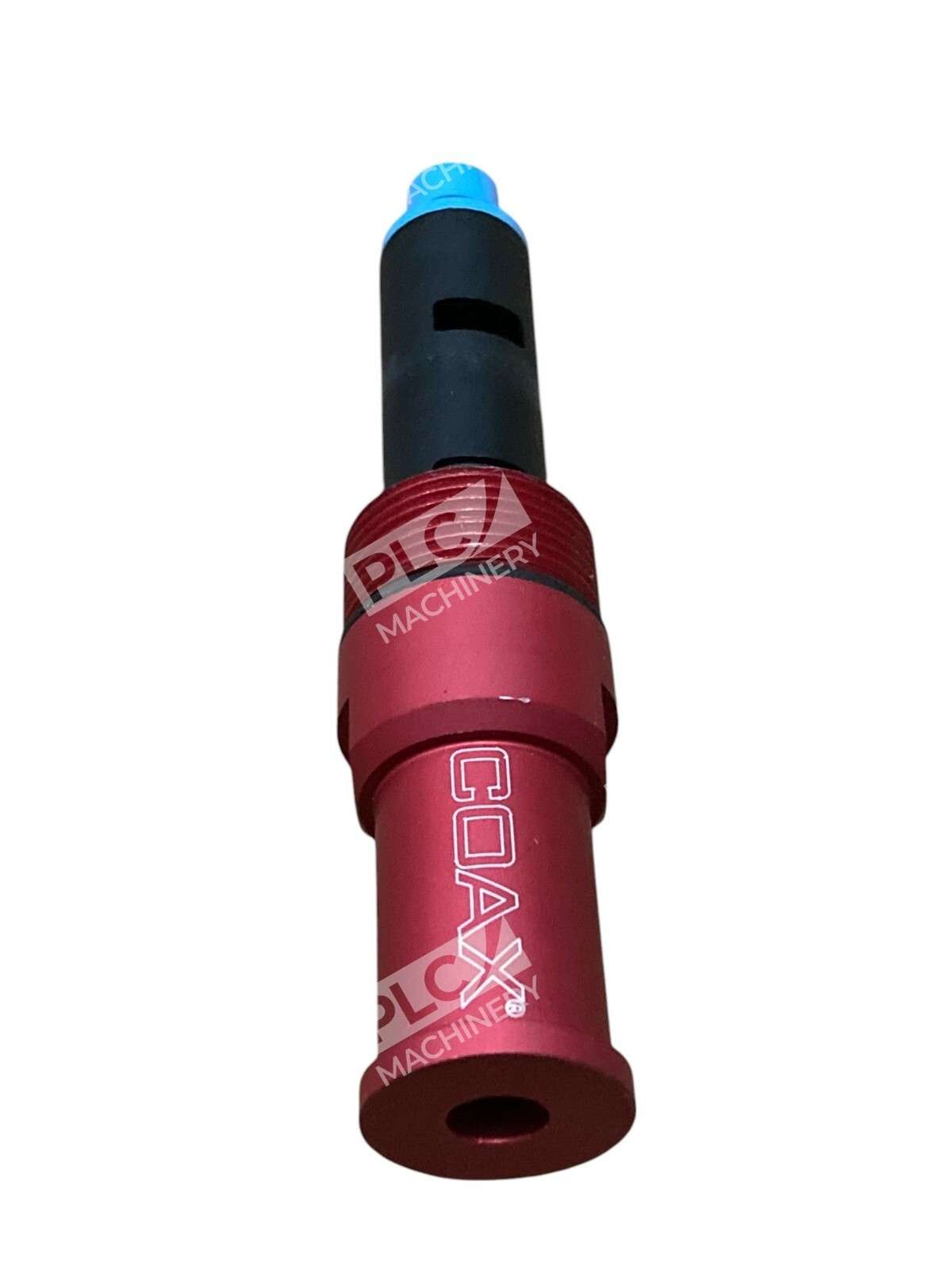

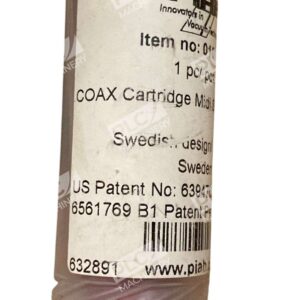

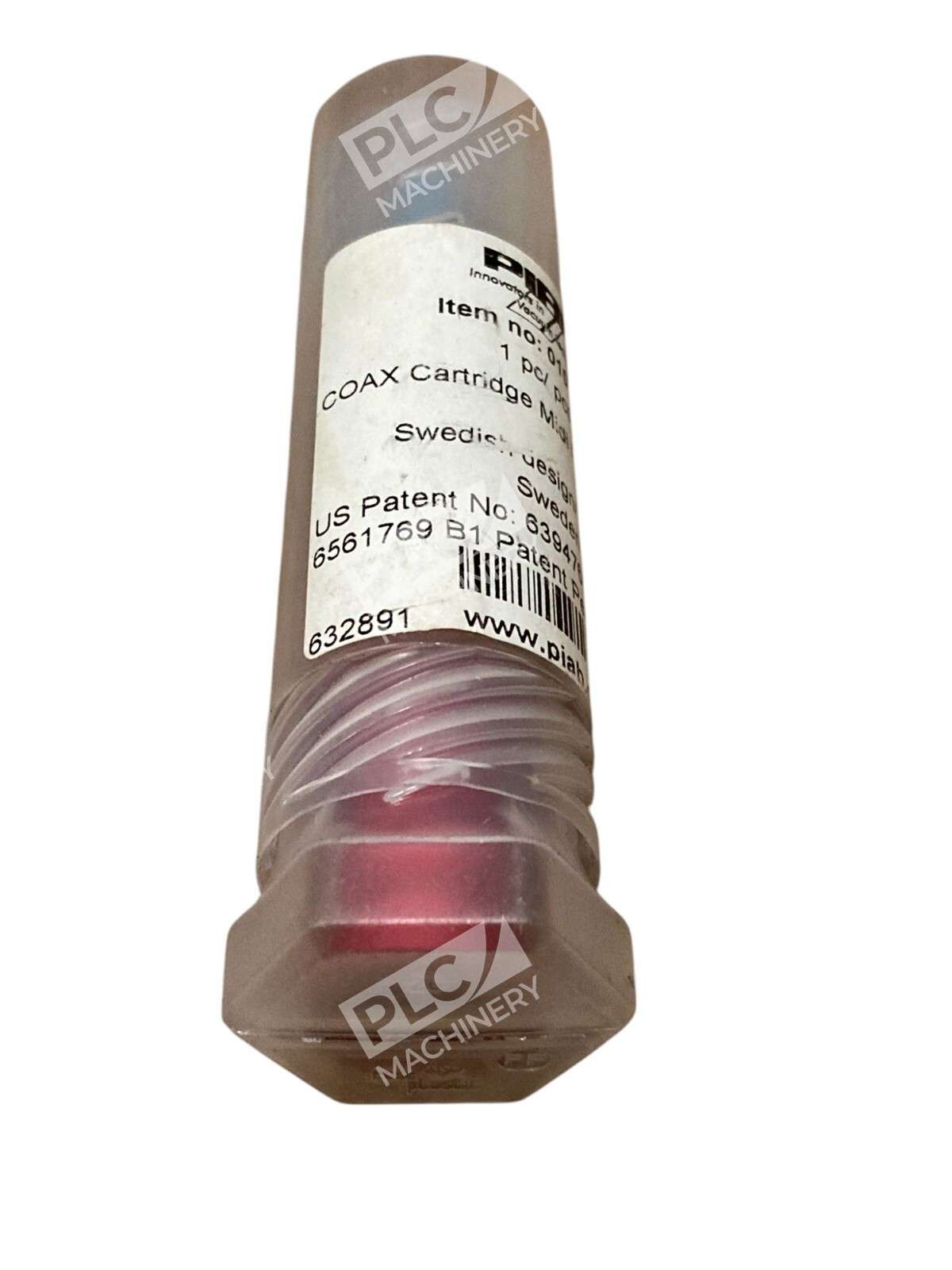

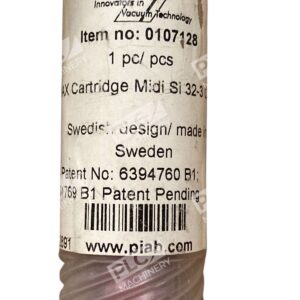

The Piab 0107128 MIDI Si32-3 COAX cartridge is a three-stage vacuum ejector designed for high-performance industrial vacuum applications. This multistage cartridge generates vacuum using compressed air, making it an efficient alternative to conventional mechanical pumps. Built on Piab’s proven COAX technology, the 0107128 delivers reliable vacuum generation with minimal maintenance requirements.
Key Features
- Three-stage multistage design for high initial vacuum flow
- Compact MIDI form factor suitable for modular system integration
- Energy-efficient operation with large vacuum flow relative to air consumption
- No moving parts—virtually maintenance-free operation
- Efficient blow-air generator for both suction and pressure applications
- Suitable for handling porous materials and systems with surface leakage
Technical Specifications
- Part Number: 0107128
- Cartridge Type: COAX MIDI Si32-3 (three-stage)
- Operating Pressure Range: 0.17 to 0.60 MPa (feed pressure)
- Recommended Overpressure: 0 to 0.05 MPa
- Weight: 0.15 lbs (0.068 kg)
- Sealings: Viton (standard configuration)
- Technology: Ejector-based vacuum generation with multistage design
Typical Applications
The Piab 0107128 MIDI Si32-3 cartridge is ideal for:
- Automated pick-and-place systems requiring fast volume evacuation
- Vacuum gripping and material handling with porous substrates
- Applications where surface leakage is present or anticipated
- Modular vacuum system integration in tight mounting spaces
- Industrial automation requiring energy-efficient vacuum generation
- Systems requiring blow-air function at low overpressures
Compatibility & Replacements
Compatible With
- Piab vacuum system manifolds and base plates
- Compressed air systems operating 0.17–0.60 MPa feed pressure
- Standard pneumatic valve mounting patterns
- Modular vacuum cartridge integration platforms
Replaces / Drop-In Replacement For
- This cartridge is part of the COAX MIDI Si32 family and may replace certain legacy Piab vacuum ejector models in equivalent manifold configurations
- Verify with Piab or your system integrator before substituting to confirm mounting pattern and port alignment
Works With
- Piab COAX vacuum cartridge systems (MICRO, MINI, MIDI sizes)
- Standard ISO pneumatic valve mounting bases
- Industrial pneumatic control systems and vacuum networks
- Compressed air supply systems in industrial automation environments
