Overview

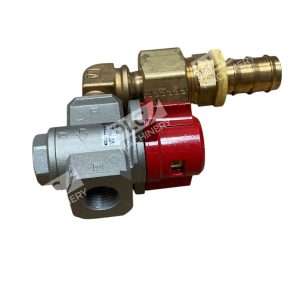

The SMC VHS30-N03-Z is a manual pneumatic lockout valve designed for safe system isolation and pressure relief in compressed air applications. This 3-port valve operates across a 15–150 PSI range and features NPT-threaded ports for straightforward integration into existing pneumatic systems. Built with an aluminum die-cast body and lockable handle, it provides positive shut-off control essential for maintenance and safety procedures.
Key Features
- 3-port manual design with lockable handle for LOTO compliance
- Aluminum die-cast construction for durability in industrial environments
- Red resin handle for high visibility and quick identification
- NPT thread connections for standard pneumatic coupling
- Operating pressure range: 15–150 PSI
- Compact body size (30) for space-constrained installations
Technical Specifications
- Valve Type: Manual lockout/shut-off
- Ports: 3 (main inlet/outlet, exhaust)
- Port Size: 3/8″ NPT main ports; 1/4″ NPT exhaust
- Operating Pressure: 15–150 PSI
- Body Material: Aluminum die-cast
- Handle: Red resin, lockable
- Weight: Approximately 0.4 lb
- Suitable Media: Compressed air
Typical Applications
- Pneumatic system isolation during maintenance and repair
- Lockout/tagout (LOTO) procedures in production facilities
- Air tool and equipment shut-off controls
- Emergency pressure relief and manual system shutdown
- Industrial automation cell and machine tool protection
Compatibility & Replacements
Compatible With
- Standard compressed air systems rated 15–150 PSI
- NPT-threaded pneumatic manifolds and sub-bases
- Industrial pneumatic control networks (point-to-point, modular)
- LOTO-certified isolation procedures per OSHA standards
Replaces / Drop-In Replacement For
- Other SMC VHS-series lockout valves with identical port configurations
- Verify compatibility with your system integrator before ordering.
Works With
- Manual pneumatic control systems (non-solenoid)
- SMC modular valve sub-bases and manifold blocks
- Standard air preparation equipment (regulators, filters, lubricators)
- ISO 5599-1 cavity sub-base systems
