Overview

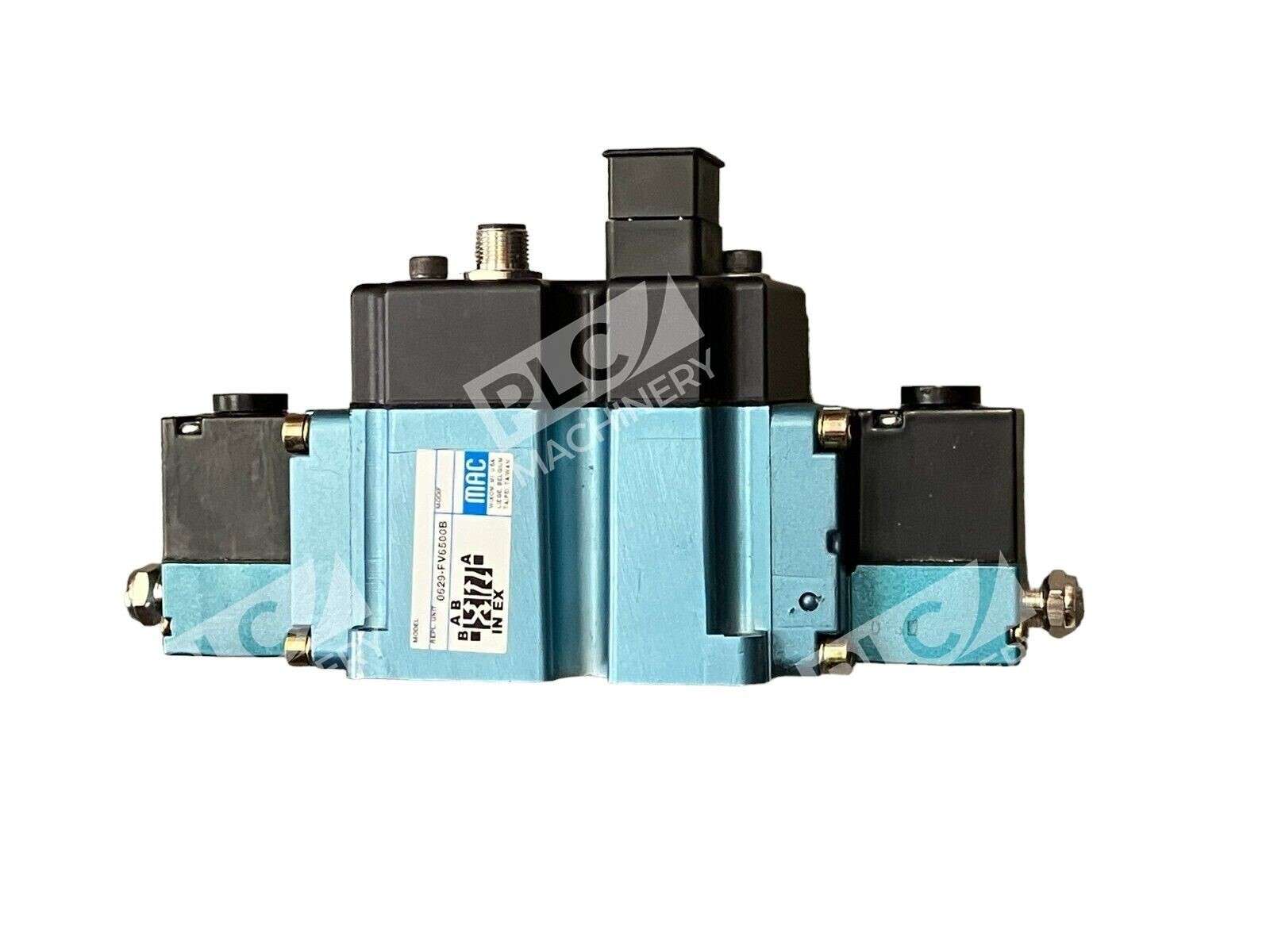

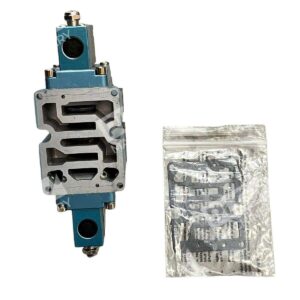

The MAC 0629-FV6500B PPE-871BAAA is a direct solenoid operated pneumatic control valve manufactured by MAC Valves. This double operator solenoid valve is engineered for reliable operation in pneumatic systems requiring precise actuation and repeatable performance. The unit combines MAC’s patented solenoid technology with balanced poppet design for dependable industrial automation applications.
Key Features
- Double operator solenoid design for flexible pneumatic control
- Patented MAC solenoid technology for high shifting forces and fast response times
- Bonded balanced poppet for precision operation unaffected by pressure fluctuations
- Compact form factor suitable for inline or manifold mounting
- Versatile configuration options for multiple pneumatic functions
- Long operational life with minimal maintenance requirements
Technical Specifications
Verify the following specifications with MAC’s technical documentation before integration:
- Manufacturer: MAC Valves Inc.

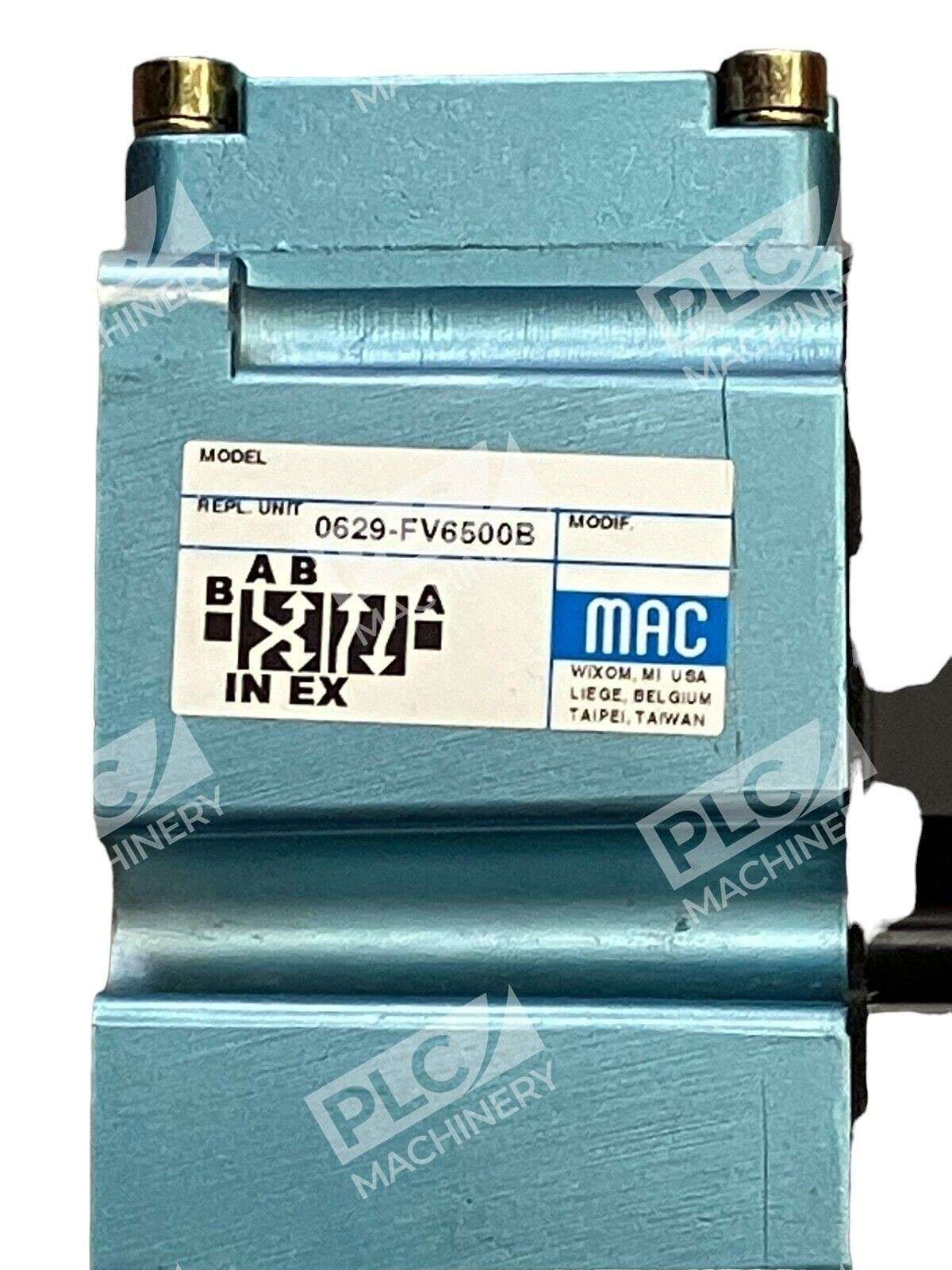

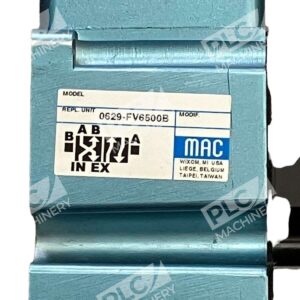

- Model Number: 0629-FV6500B
- Variant Code: PPE-871BAAA
- Valve Type: Direct solenoid operated
- Operator Type: Double solenoid operator
- Function: 2-way, 3-way, or 4-way (consult manual for specific configuration)
- Poppet Design: Bonded balanced
- Mounting Style: Inline (standard for FV series)
- Port Configuration: Pressed-in tube receptacles
- Operating Pressure Range: Contact manufacturer for specifications
- Flow Capacity (Cv): Contact manufacturer for specifications
- Electrical Connector: Refer to PPE designation in part number for specific connector type
- Condition: New, open box
- Warranty: 60-day replacement warranty
Typical Applications
The MAC 0629-FV6500B double operator solenoid valve is used in a wide range of industrial pneumatic control systems, including:
- Automated manufacturing and assembly equipment
- Pneumatic actuator control and sequencing
- Industrial machinery valve manifold integration
- Process automation and control systems
- OEM pneumatic circuit design
- Replacement in existing MAC valve installations
Compatibility & Replacements
Compatible With
- Standard ISO pneumatic systems
- Pressed-in tube receptacle fittings (size: #10-32 to 1/8″)
- MAC pneumatic valve manifold bases and sub-bases
- Direct pneumatic actuation applications
- Industrial control systems requiring solenoid-operated valve functionality
Replaces / Drop-In Replacement For
The MAC 0629-FV6500B PPE-871BAAA is a specific MAC model number. Similar MAC double operator solenoid valve configurations include the 0629 series variants, but verify compatibility with your system integrator before ordering to ensure electrical connector compatibility and port configuration match your application requirements.
Works With
- MAC pneumatic manifold systems and sub-bases
- Standard ISO 15407-1 compatible bases
- 24 VDC, AC, or other voltage solenoid coil options (per PPE designation)
- Pneumatic control circuits requiring direct solenoid operation
- OEM equipment using MAC valve platforms
