Overview

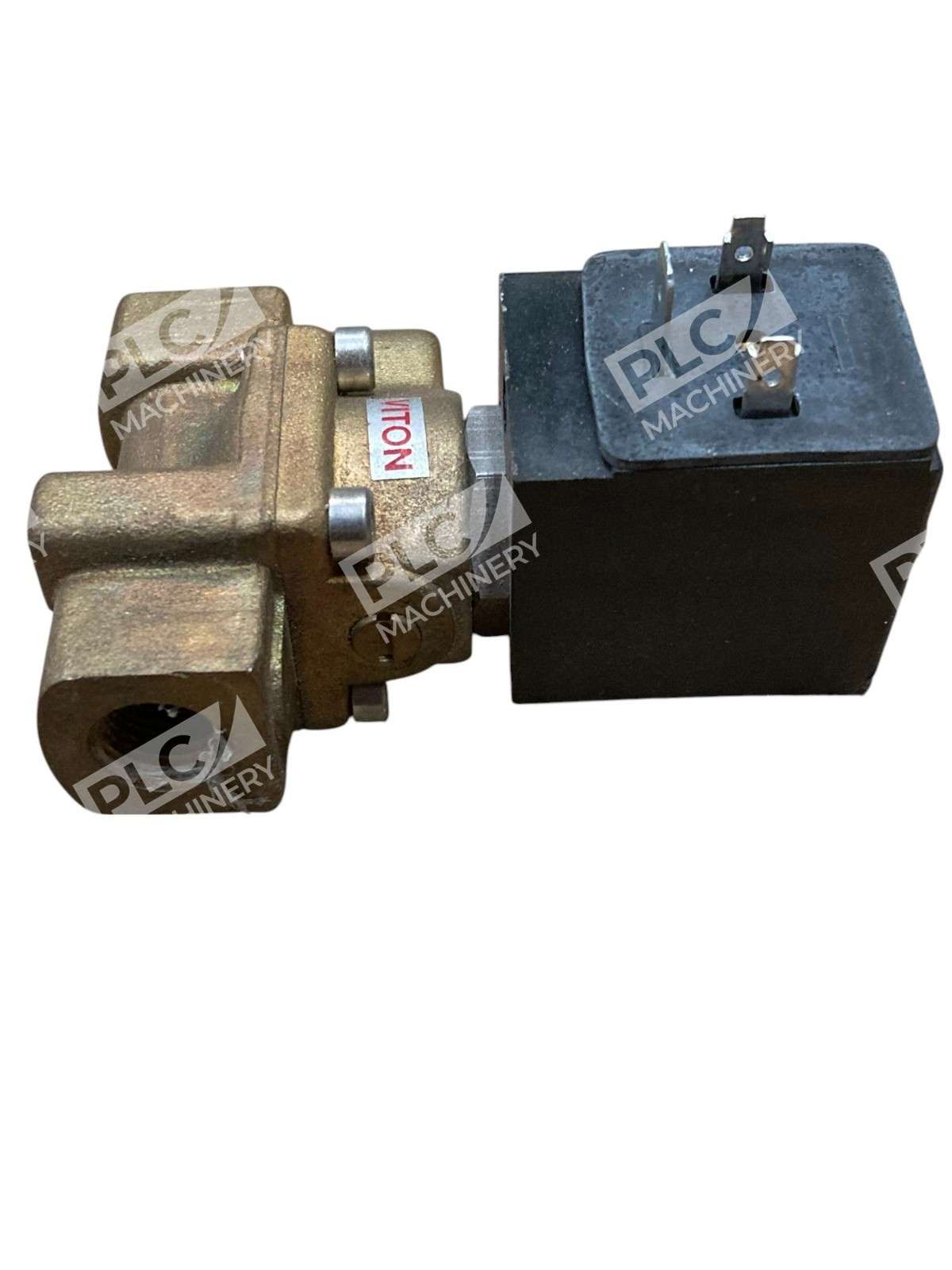

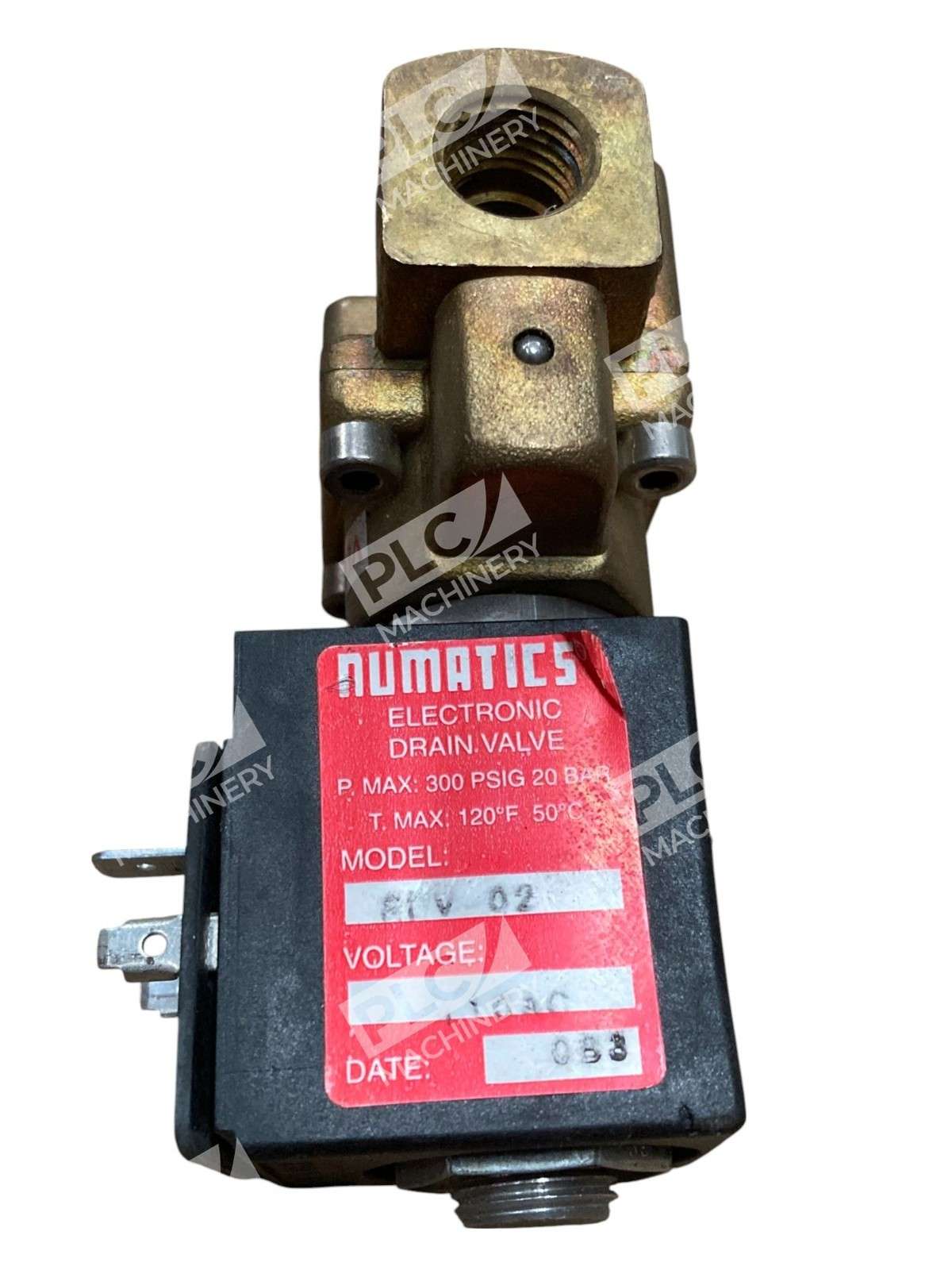

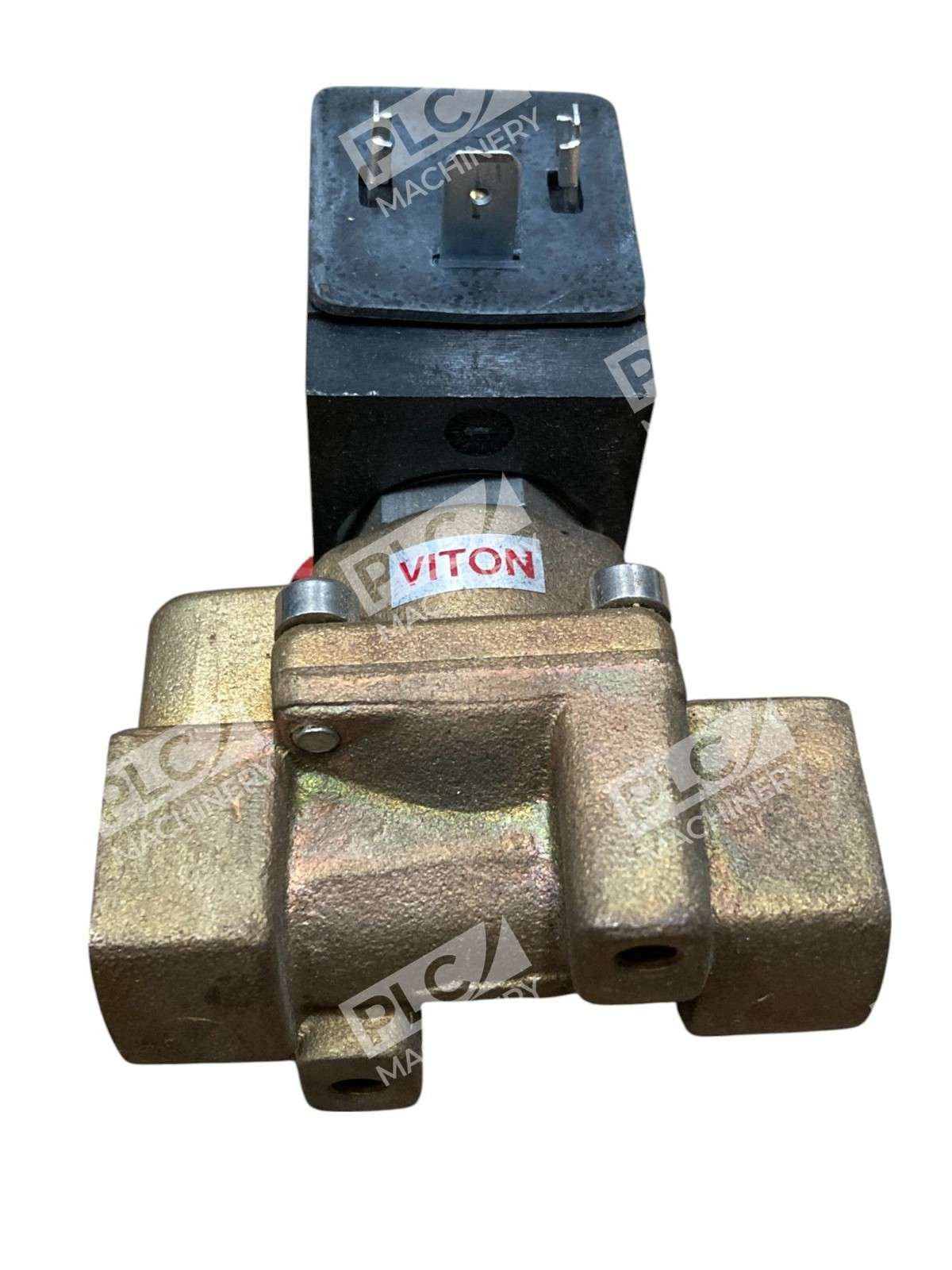

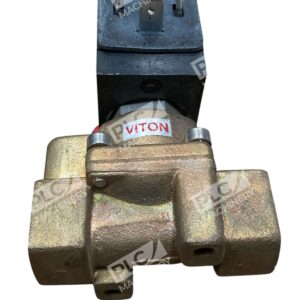

The Numatics EDV-02 electronic drain valve is designed to automatically remove condensation from pneumatic air systems at electronically controlled intervals. The drain valves are designed to remove condensation from filters, receiver tanks, separators, drip legs, drain traps, and dryers at electronically controlled intervals. This eliminates the need for manual draining and helps prevent moisture-related damage to compressed air equipment and downstream components.
Key Features
- The Numatics Series EDV condensate drain valves eliminate the manual draining of pneumatic air lines.
- Their large orifice allows even the largest rust and pipe scale particles to be easily expelled.
- Electronic control system with adjustable timing for precise condensate removal
- Reduces downtime and equipment corrosion caused by condensation buildup
- Suitable for industrial pneumatic applications requiring automated drain control
Technical Specifications
Specific technical data for the EDV-02 model should be verified directly with the manufacturer or distributor. The EDV Series is available in multiple port sizes (1/4″, 3/8″, and 1/2″) with standard configurations including 110 VAC solenoid actuation.
Typical Applications
- Compressed air filter drain systems
- Receiver tank and separator condensate removal
- Drip leg and drain trap applications
- Pneumatic air dryer maintenance
- Industrial manufacturing facilities with pneumatic equipment
Compatibility & Replacements
Compatible With
- ASCO Numatics pneumatic systems
- Standard pneumatic filter and air preparation equipment
- Receiver tanks and separators with threaded or flanged ports
- 110 VAC power supply (standard models)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The EDV-02 may interchange with other EDV Series models depending on port size and voltage specification.
Works With
- ASCO Numatics EDV Series pneumatic components
- Standard industrial pneumatic networks (ISO 1219 compliant)
- 110 VAC single-phase electrical systems
- Pneumatic filtration and air preparation systems
