Overview

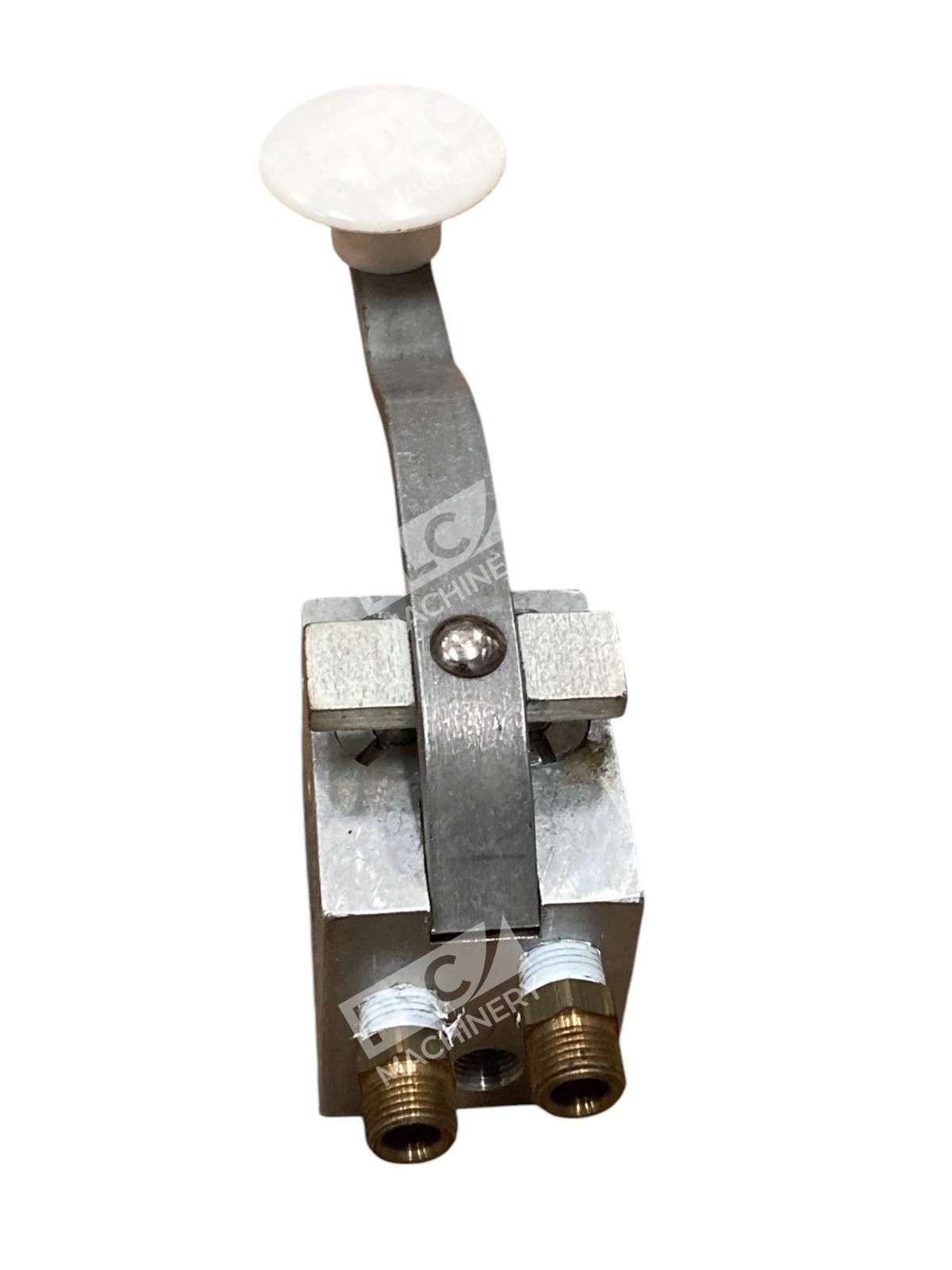

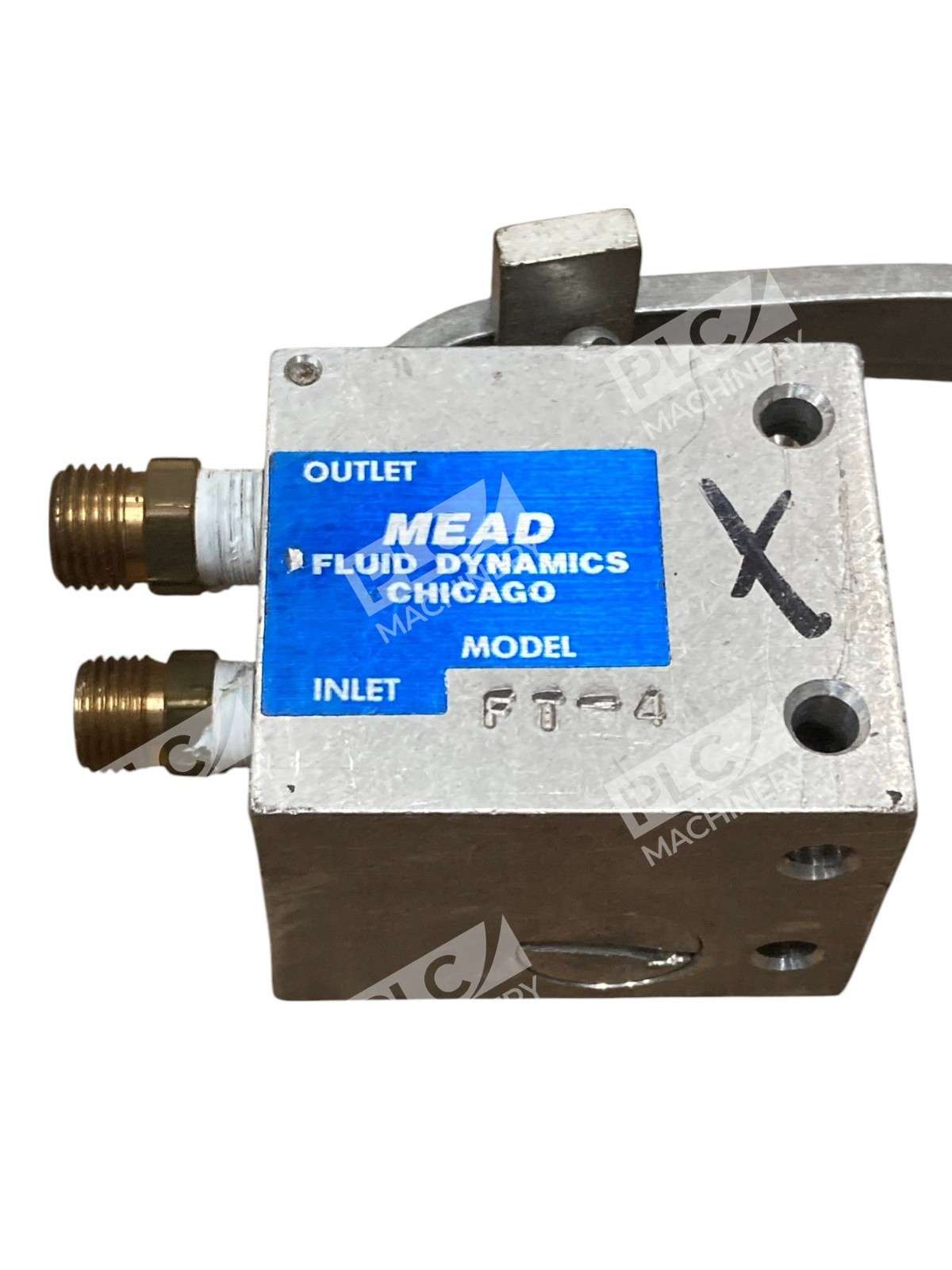

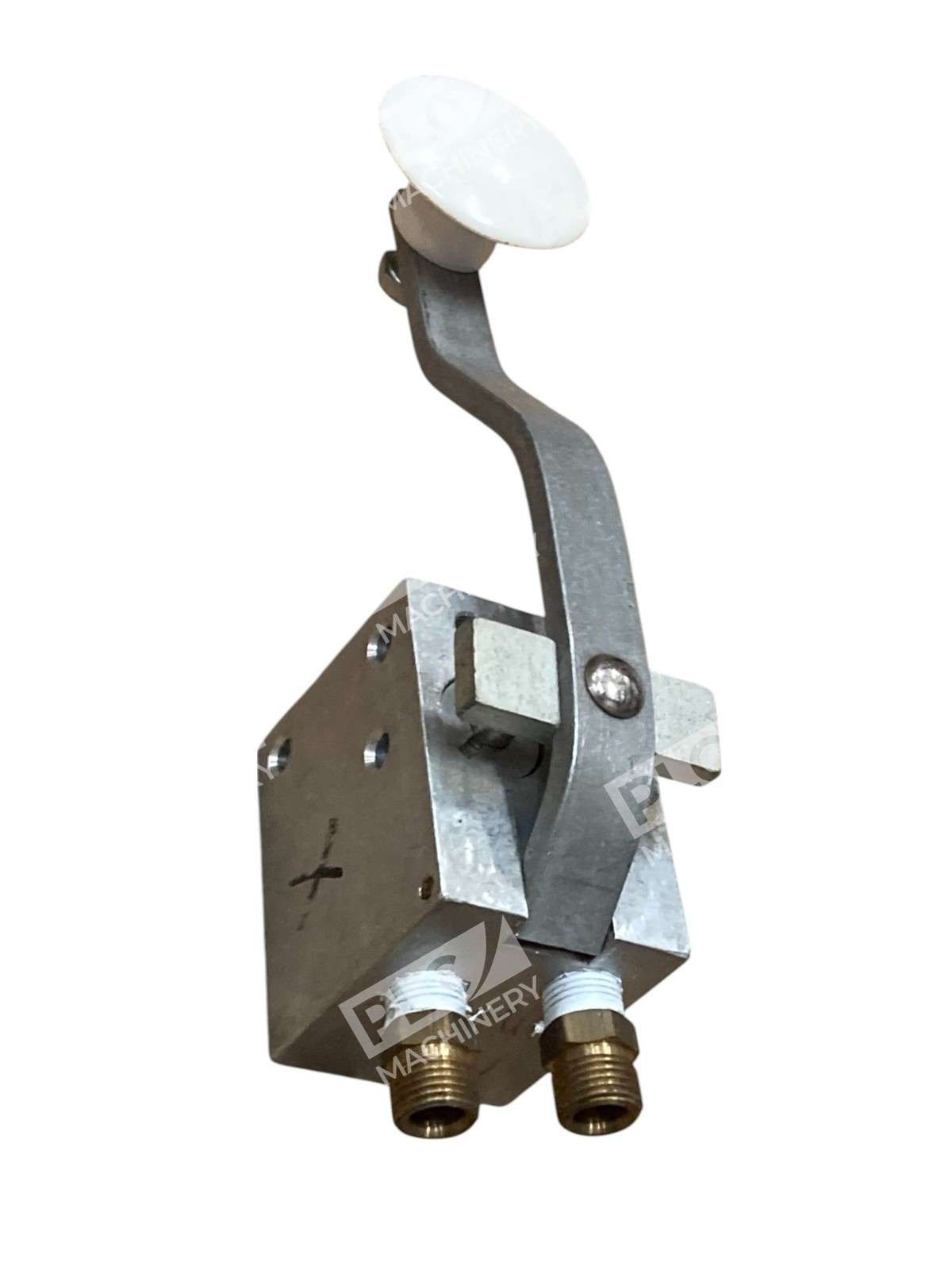

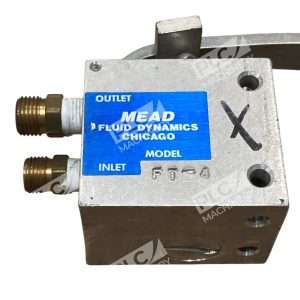

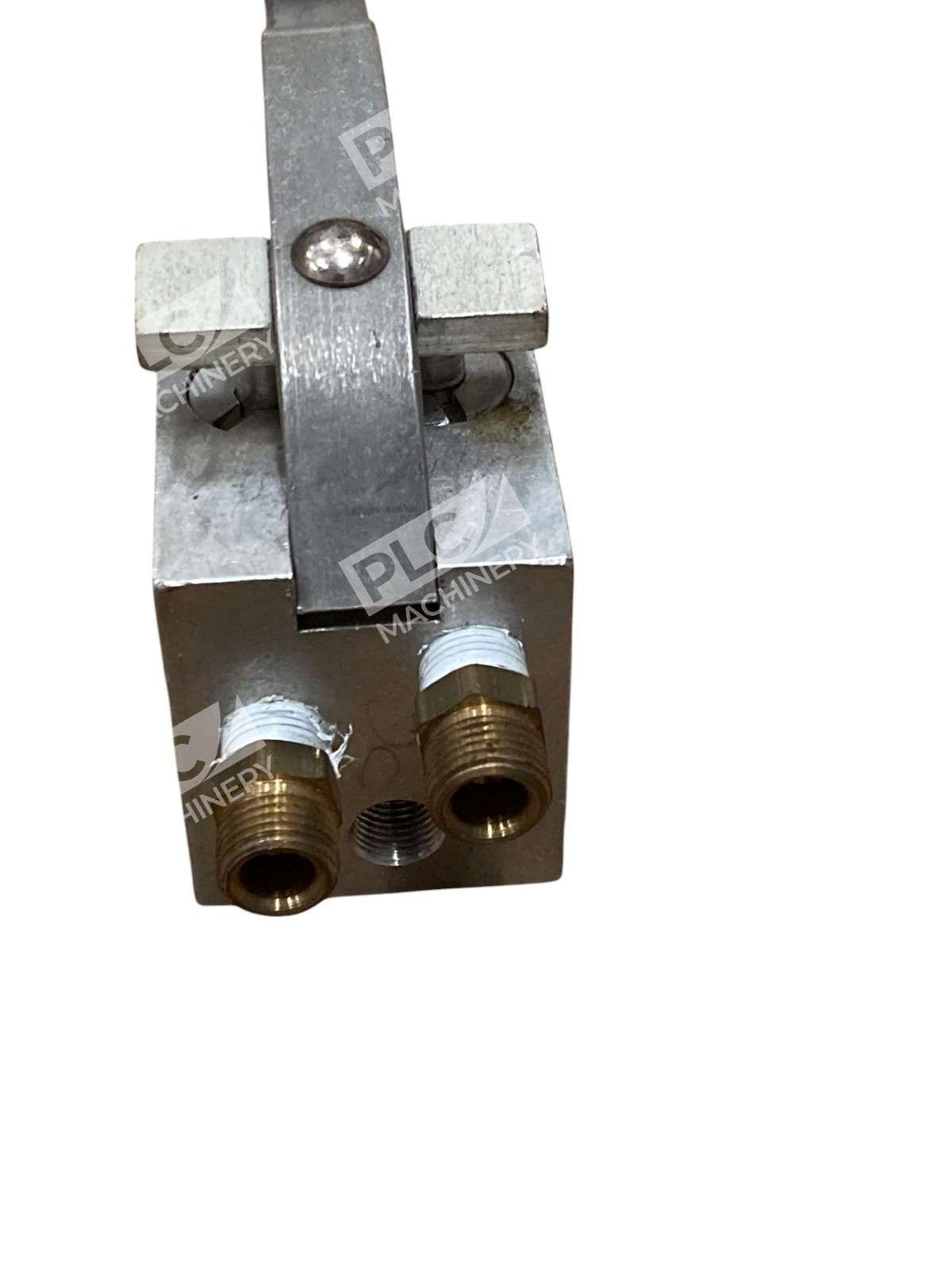

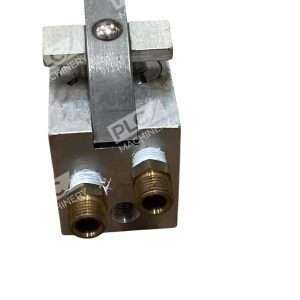

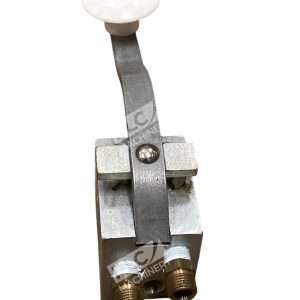

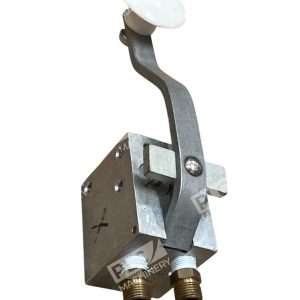

The Mead Fluid Dynamics FT-4 mechanical valve represents a trusted solution for manual control in pneumatic and hydraulic systems. Mead Fluid Dynamics FT-4 valves are compact, mechanically actuated devices designed for foot, hand, or cam-operated control. Built with precision machining and industrial-grade materials, this valve family delivers reliable on-demand flow control without requiring air pilot signal, electric solenoid, or external power sources.
Key Features
- Mechanical foot-pedal or hand-lever actuation—no solenoid or pilot signal required
- Compact aluminum body construction for durability and corrosion resistance
- Hardened steel internal components for extended service life
- Ported design for 3-way or 4-way flow configurations
- NPT and ISO porting options for flexible installation
- Proven performance in single-acting and double-acting cylinder control
Technical Specifications
Media: Compressed air (0–150 PSI typical)
Actuation: Foot pedal, hand lever, or cam mechanism
Spool Design: Sliding or poppet—verify with Mead or your system integrator
Porting: NPT (typical, verify size with manufacturer)
Temperature Range: –40°F to +250°F (–40°C to +121°C)
Spring: Stainless steel
Seals: Buna-N standard
Body Material: Aluminum or die-cast zinc (model dependent)
Mounting: Base mounting or manifold integration (verify with supplier)
Typical Applications
- Manual control of single-acting pneumatic cylinders
- Directional control for double-acting cylinder circuits
- Industrial automation requiring operator foot or hand control
- Press and assembly machinery with mechanic-friendly valve actuation
- Backup manual control in semi-automatic pneumatic systems
Compatibility & Replacements
Compatible With
- Standard pneumatic compressed air systems (0–150 PSI)
- Single-acting and double-acting pneumatic cylinders
- ISO 1219-1 pneumatic circuit symbols and standards
- NPT and ISO 6149 port threads (verify model variant)
- Industrial control manifolds and subplates
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or Mead Fluid Dynamics technical support before ordering. Mechanical valves of similar porting and actuation style may be cross-compatible; consult application drawings or contact Mead directly at [email protected] or (773) 685-6800.
Works With
- Pneumatic circuit control and sequencing
- Manual machine control panels
- Pneumatic logic and automation systems
- Foot pedal and hand lever mechanical actuation systems
- ISO and SAE subplate mounting standards
