Overview

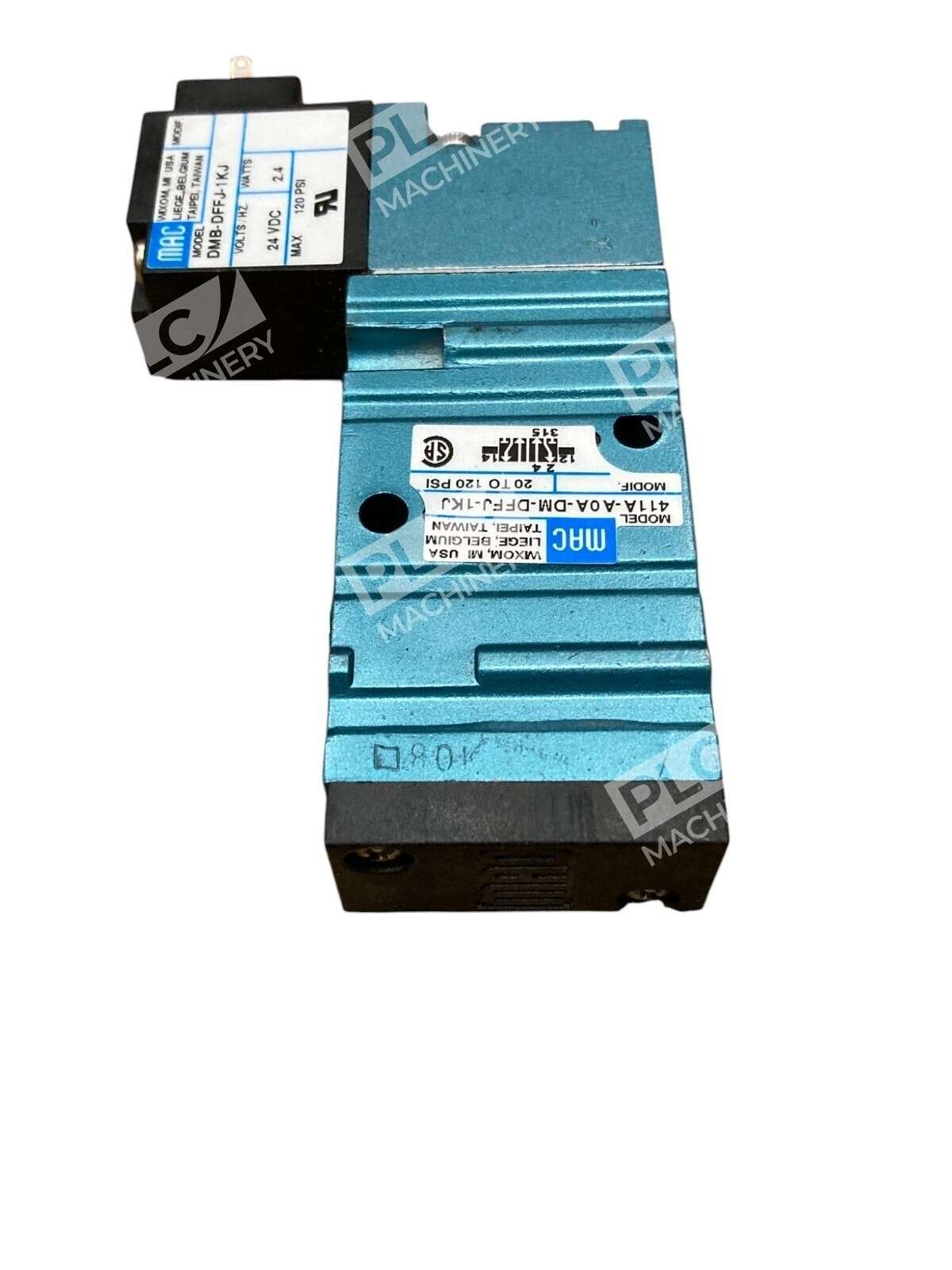

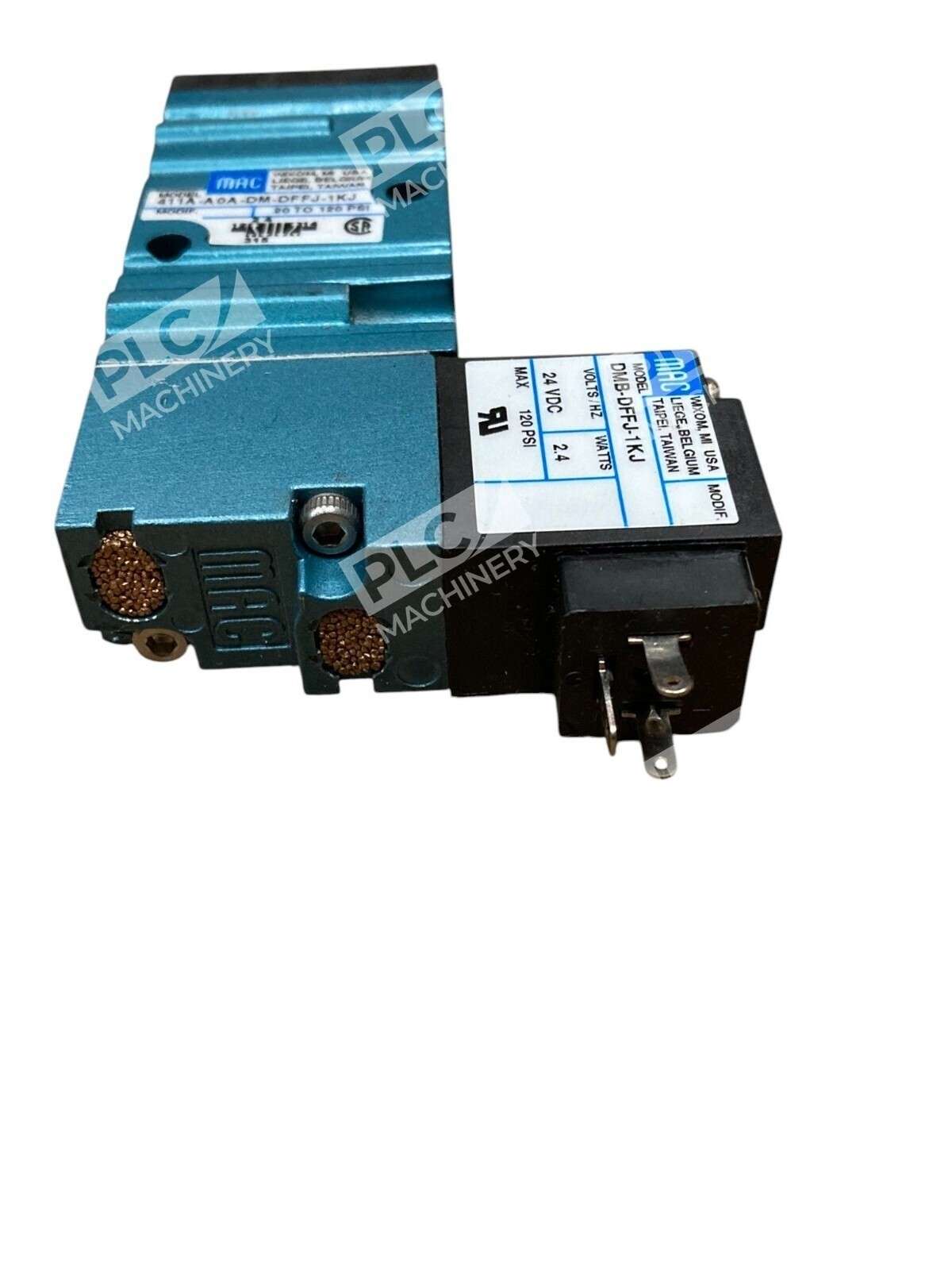

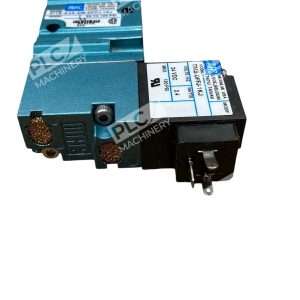

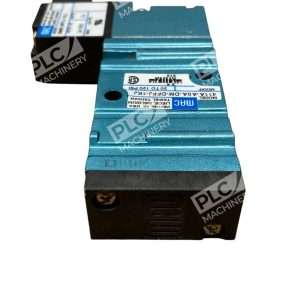

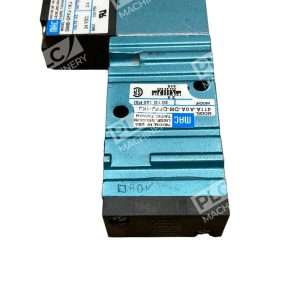

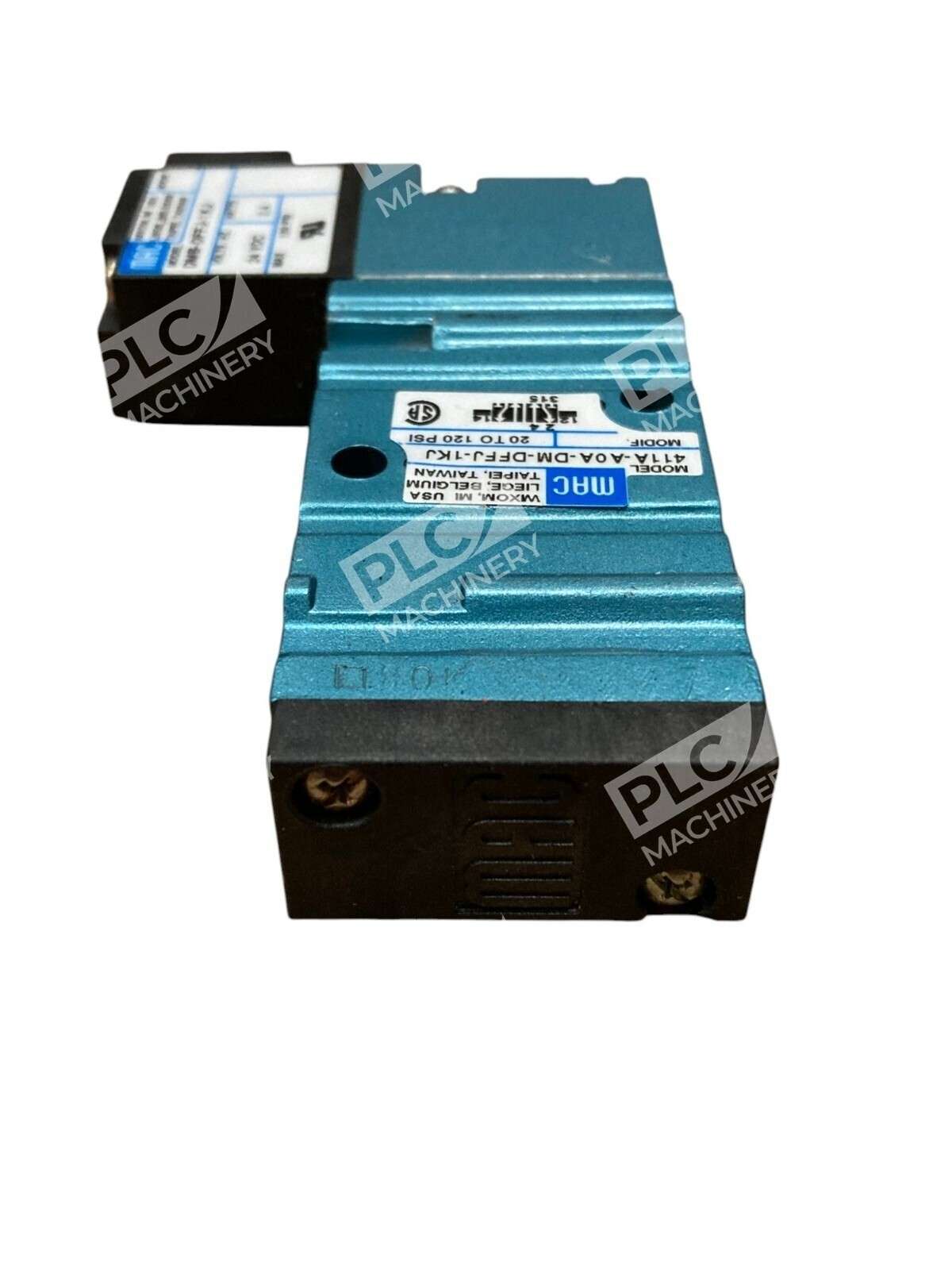

The MAC 411A-A0A-DM-DFFJ-1KJ solenoid valve is a 4-way, 5/2 directional control spool valve designed for pneumatic system actuation in industrial automation. Rated for 20–120 PSI operation, this 24VDC solenoid-pilot-operated valve provides precise directional control for cylinders and pneumatic motors. MAC’s 400 Series delivers fast response times with internal pilot air operation, making it ideal for manufacturing, packaging, and motion control applications.
Key Features
- 4-Way, 5/2 Configuration — Provides forward, neutral (center-to-tank), and reverse flow paths for bidirectional actuator control
- 24VDC, 2.4W Solenoid — Low-wattage DC coil with indicator light; operates without external pilot supply
- Internal Pilot Air — Self-piloting design leverages system pressure for smooth spool shifts
- 1/8″ NPTF Ports — Standard ported connection (5 stations: P, T, A, B, X) for inline mounting
- Non-Locking Manual Override — Recessed manual operator allows emergency directional actuation without electrical input
- Compact, Lightweight Design — Only 0.30 lbs; fits confined panel and manifold spaces
Technical Specifications
- Valve Type: 4-Way, 5/2 Spool, Monostable (Single Operator)
- Pressure Range: 20–120 PSI (1.4–8.3 bar)
- Port Size: 1/8″ NPTF Female (5 ported stations)
- Solenoid Voltage: 24 V DC
- Solenoid Power: 2.4 Watts (Class A Coil)

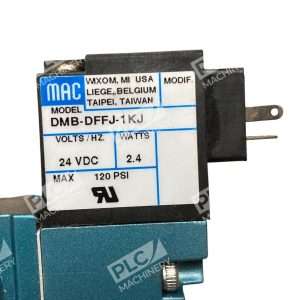

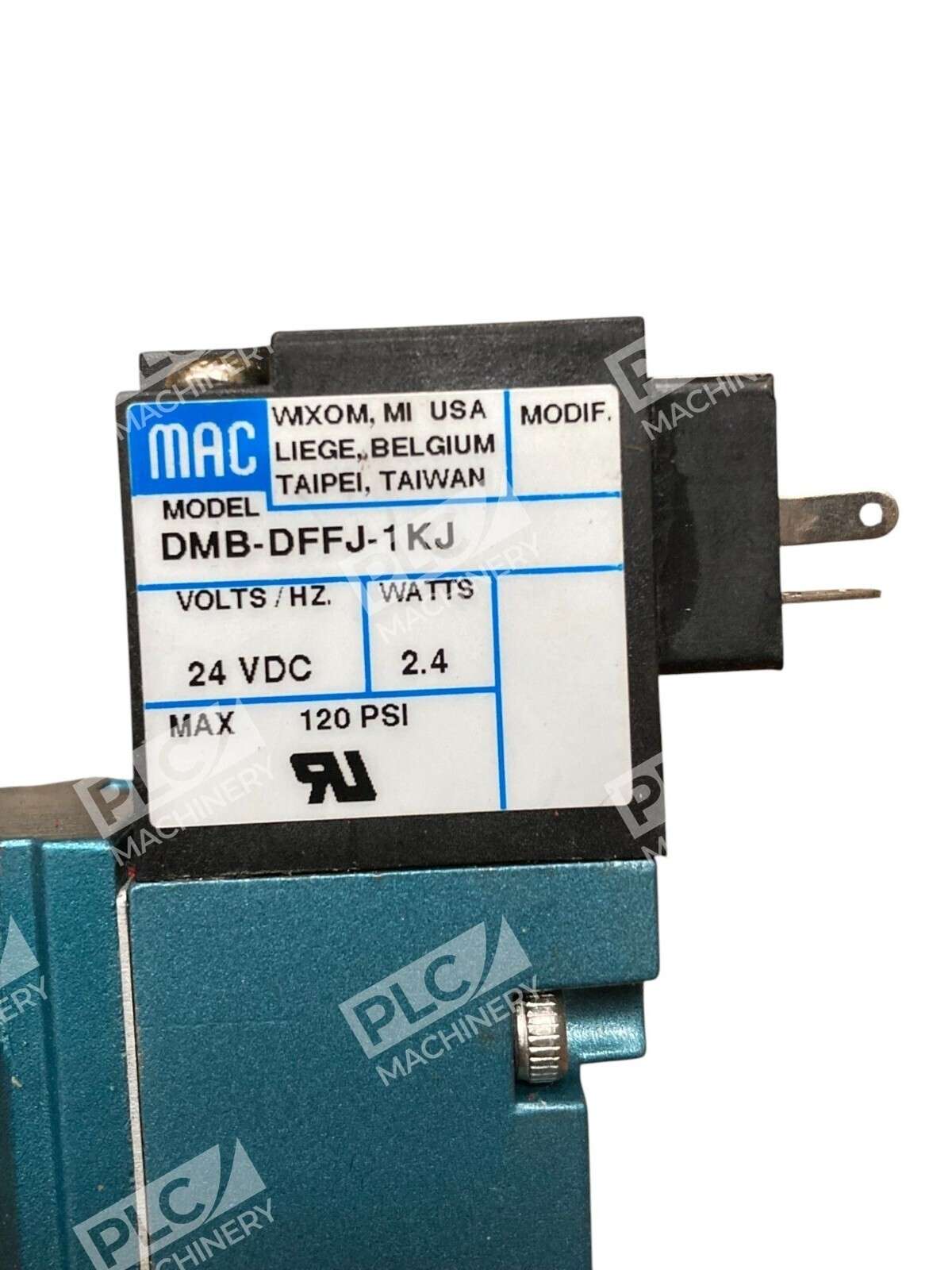

- Connector: Square Connector with Light (no wire included)
- Pilot Operation: Internal Pilot Air (self-actuated from supply)
- Manual Operator: Non-Locking Recessed
- Weight: 0.30 lbs
- Lubrication: No lubrication required; optional aniline-point lubricant 180–210°F
- Input Media: Compressed air, inert gases, vacuum
- Muffled Exhaust: Yes
Typical Applications
The MAC 411A-A0A-DM-DFFJ-1KJ is commonly used in:
- Machine Tool Automation — Directional control for fixture cylinders and clamping systems
- Packaging Equipment — Actuation of pusher, picker, and diverter pneumatic motors
- Assembly Lines — Control of work-holding and material-handling pneumatic systems
- Pneumatic Motors — Reversible motor control for rotary actuators and spindles
- General Compressed Air Systems — Utility valve for small-to-medium flow directional switching (up to ~6 CFM at full pressure)
Compatibility & Replacements
Compatible With
- Standard 24VDC control circuits (PLC outputs, relays, timers)
- Pneumatic cylinders with 1/8″ NPT ports or manifold cavity stacks
- Air compressors and filtration systems rated 20–120 PSI
- DIN 43650 square connector electrical interface
- MAC 400 Series pilot valve blocks and sandwich manifolds
Replaces / Drop-In Replacement For
- MAC 411A-A0A-DM-DFFJ-1KD (same 1/8″ NPTF, 24VDC; 1KD uses different wire connector)
- MAC 411A-B0A-DM-DFFJ-1KJ (mechanically similar; verify coil orientation and electrical specs)
- Verify compatibility with your system integrator or valve supplier before ordering replacement units
Works With
- Control Platforms: PLC ladder logic, relay circuits, discrete 24VDC solenoid drivers
- Communication: Standalone direct-wired solenoid actuation (no fieldbus required)
- Manifold Systems: Sandwich and modular cavity stacks using ISO 4401 (CETOP) cavity patterns
- Safety Systems: Emergency stop circuits (manual override for fail-safe depressurization)
