Overview

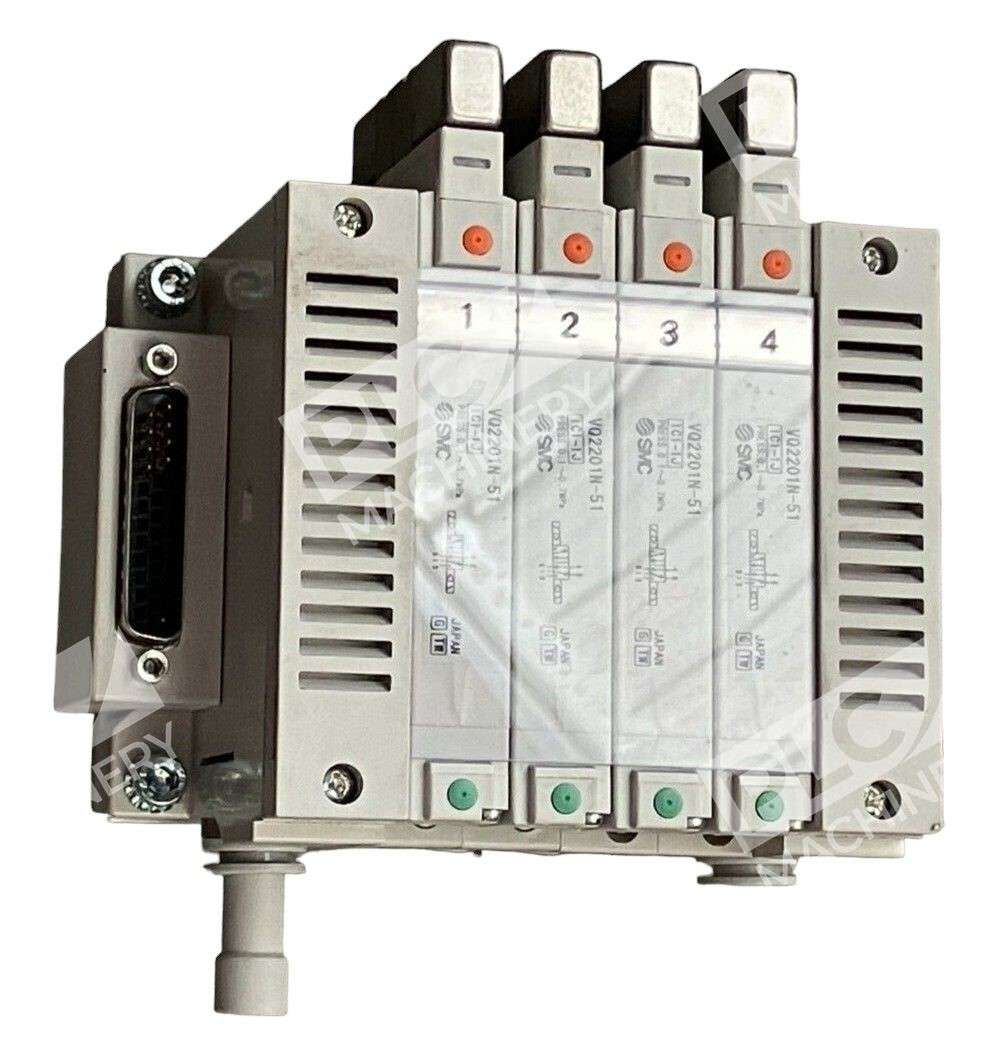

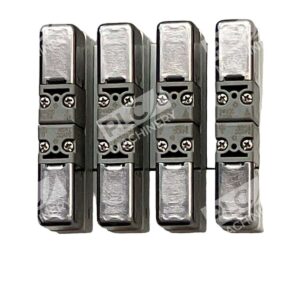

The SMC VV5Q21-04C4FU0-NS manifold is a space-saving, base-mounted plug-in unit designed for VQ series 2000 solenoid valves. This 4-station configuration includes one VQ2201N-51 solenoid valve and is ideal for pneumatic automation requiring high-speed response, frequent cycling, and reliability. The modular design allows individual valve replacement without disassembling the entire manifold.
Key Features
- 4-station base-mounted plug-in configuration

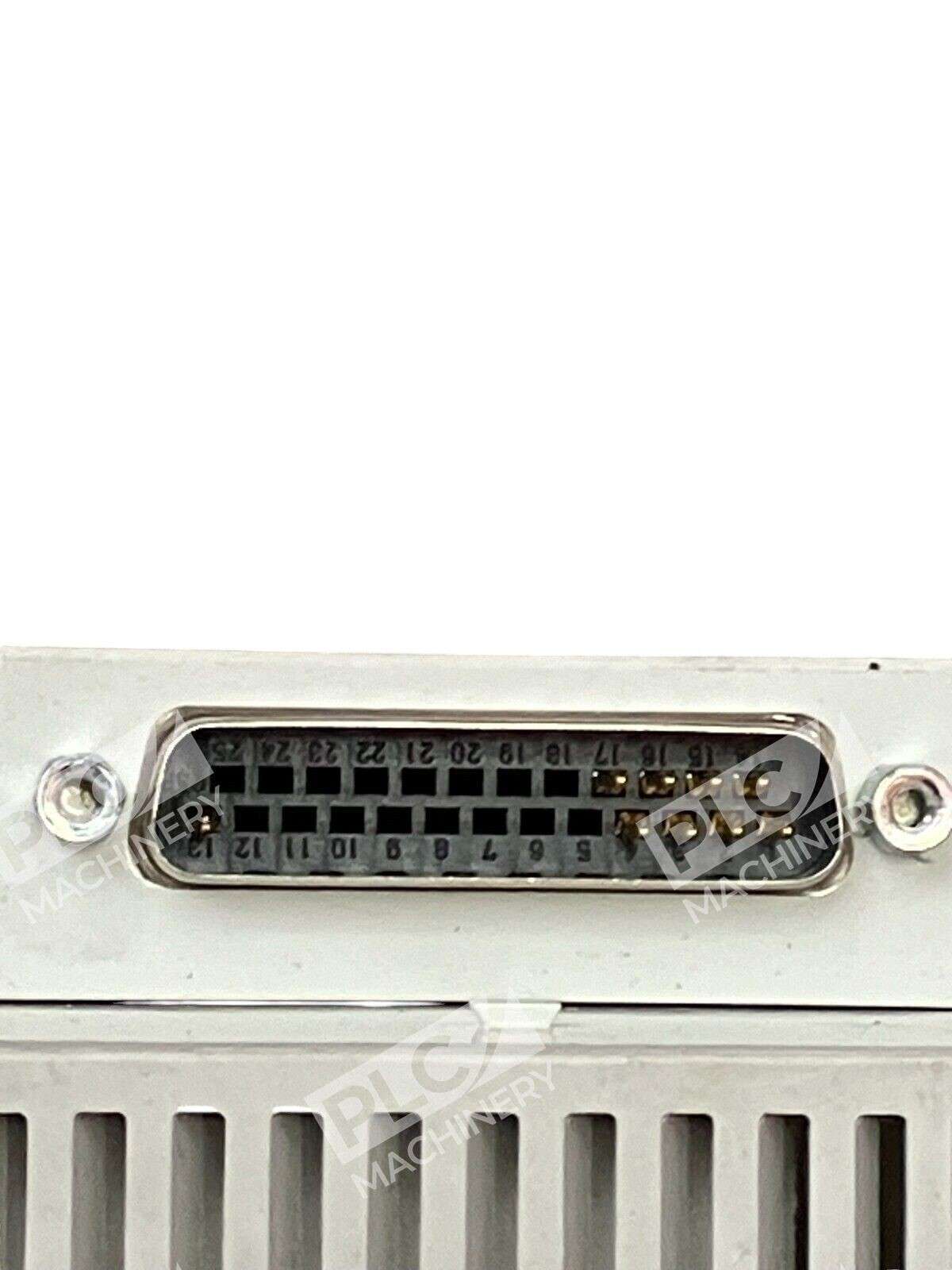

- D-sub connector (25-pin standard) for electrical integration
- Space-saving single-side solenoid and fitting layout
- Innovative clamp mounting system eliminates assembly fasteners

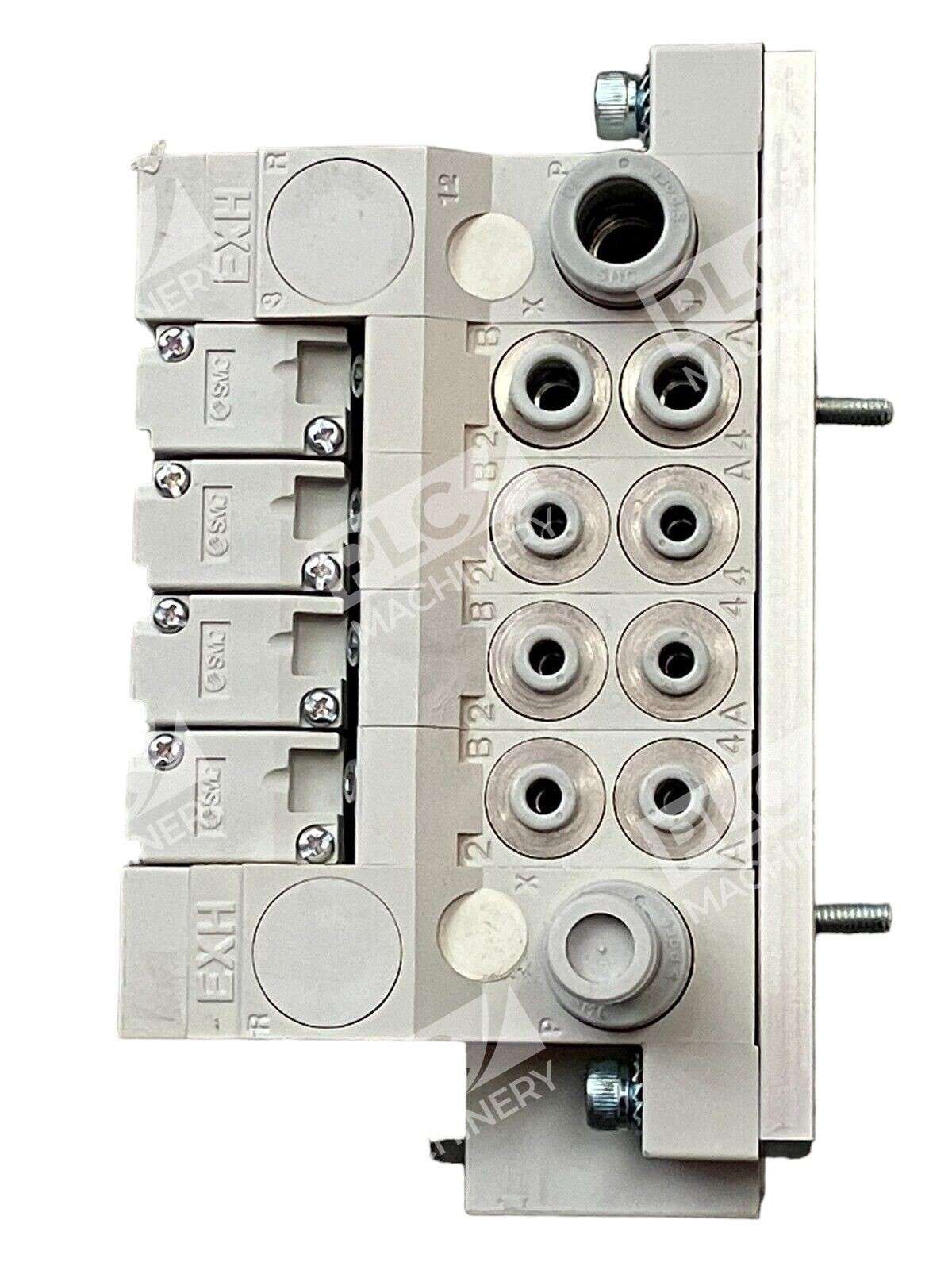

- Built-in one-touch fittings reduce piping labor and installation time
- Supports optional DIN rail mounting
- Fully modular—valves change without full disassembly
Technical Specifications
| Model | VV5Q21-04C4FU0-NS |
| Manifold Type | Base-mounted, plug-in unit |
| Number of Stations | 4 |
| Valve Series | VQ2000 |

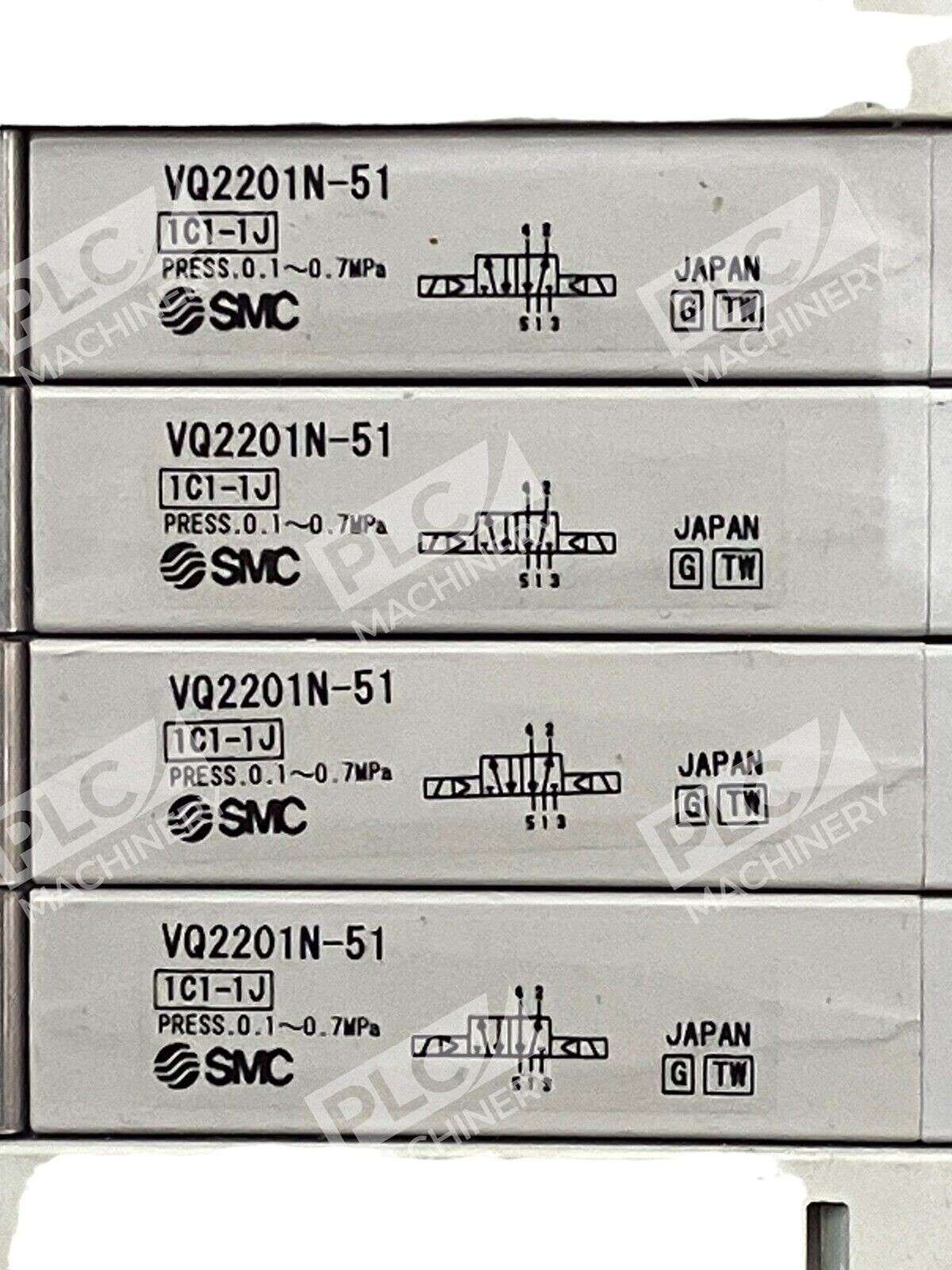

| Solenoid Included | VQ2201N-51 |
| Connector Type | 25-pin D-sub (standard) |
| Electrical Entry | Side (configurable) |
| Port Configuration | Side ported piping |
| Mounting Method | Base or optional DIN rail |
| One-touch Fittings | Included (multiple port sizes available) |
| Condition | New—No Box |
Typical Applications
- Automated manufacturing and assembly lines
- Pneumatic control systems requiring modular valve configuration
- High-frequency solenoid switching applications
- Machine tools and CNC equipment
- Industrial automation where compact manifold footprint is critical
- Systems requiring simple field valve replacement and maintenance
Compatibility & Replacements
Compatible With
- VQ2000 series solenoid valves
- VQ2100 and VQ2200 series (with appropriate mounting)
- Standard 25-pin D-sub industrial controllers and PLC systems
- ISO 4401-05 ported manifold bases
- SMC one-touch fittings (standard metric and inch sizes)
Replaces / Drop-In Replacement For
- Other VV5Q21 4-station manifolds with equivalent port and electrical configurations
- Verify specific model compatibility with your system integrator before ordering
Works With
- Standard industrial PLC and motion controller systems via D-sub connector
- 24 VDC solenoid coil voltage supply
- Pneumatic systems operating at standard industrial pressures (up to 10 bar typical)
- SMC CAD parts library and configuration tools
