Overview

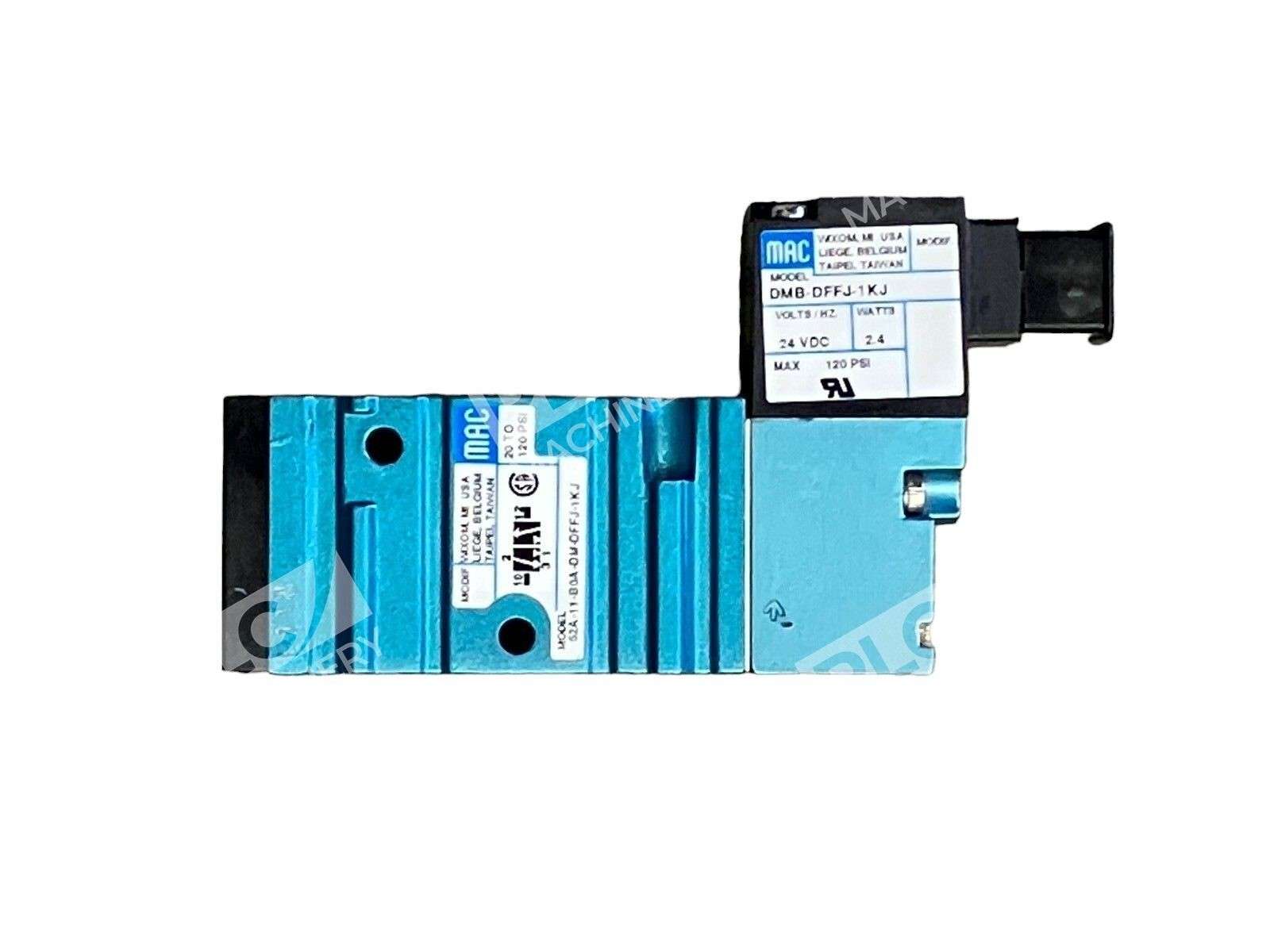

The MAC 52A-11-B0A-DM-DFFJ-1KJ solenoid valve is a pilot-operated 3-way balanced spool valve from MAC’s 52 Series. This model features a direct-operated 4-way solenoid control pilot, delivering low minimum operating pressure and smooth flow control for pneumatic applications. The valve is equipped with a 24VDC coil assembly (DMB-DFFJ-1KJ) and 1/4″ NPTF threaded ports, making it suitable for integration into existing pneumatic system layouts.
Key Features
- 3-way balanced spool design with pilot-operated actuation for consistent performance across pressure ranges
- 4-way pilot solenoid provides low minimum operating pressure and reduced control power draw
- 24 VDC coil (DMB-DFFJ-1KJ) with nominal wattage consumption
- 1/4″ NPTF ports for direct integration into standard pneumatic manifolds and systems
- Internal pilot air reference for self-contained operation
- Non-locking recessed manual override for maintenance and emergency manual control
Technical Specifications
- Part Number: 52A-11-B0A-DM-DFFJ-1KJ

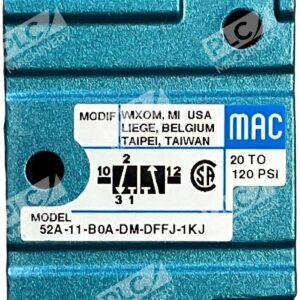

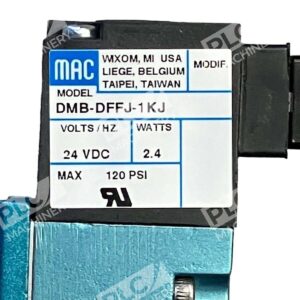

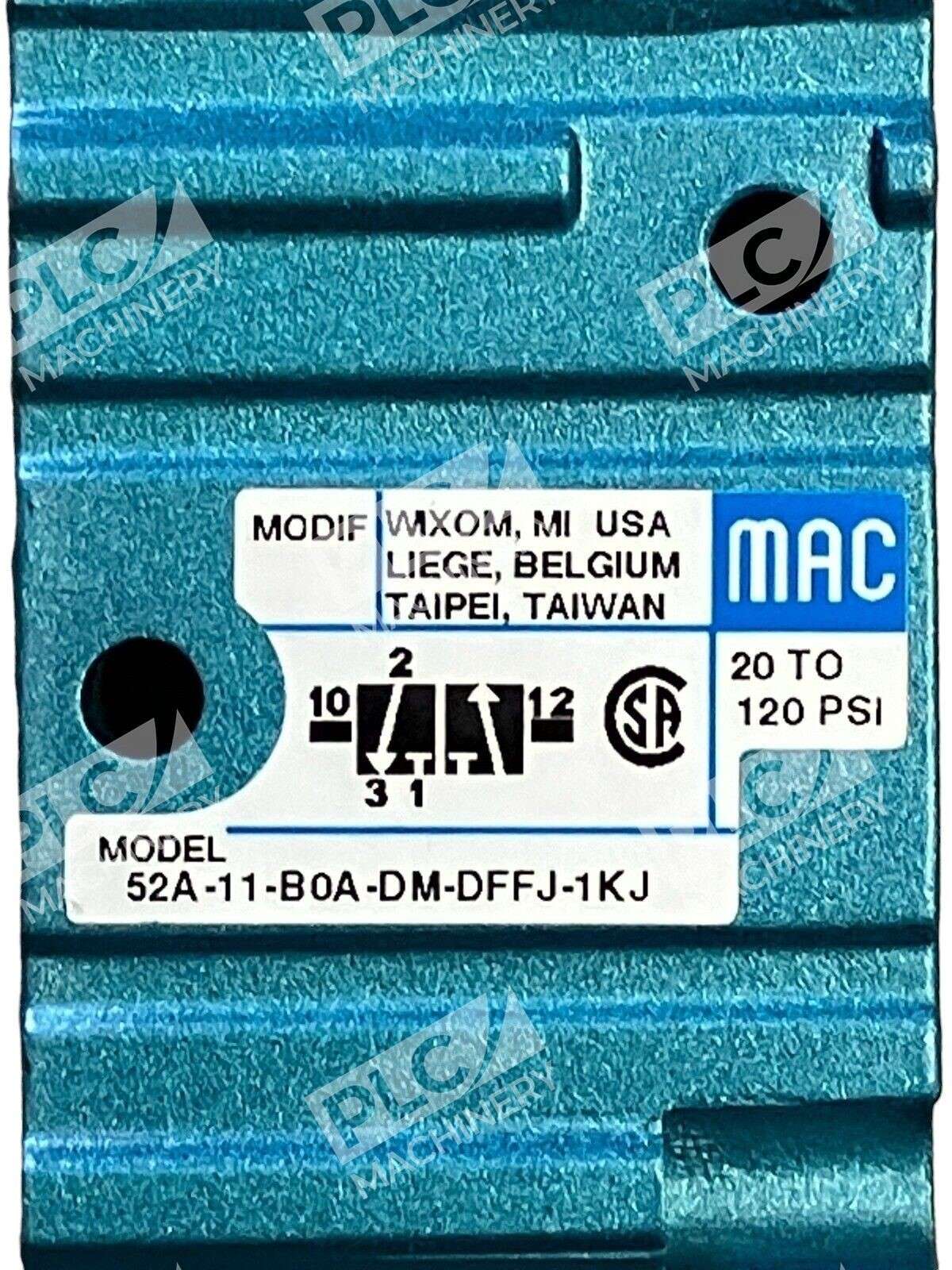

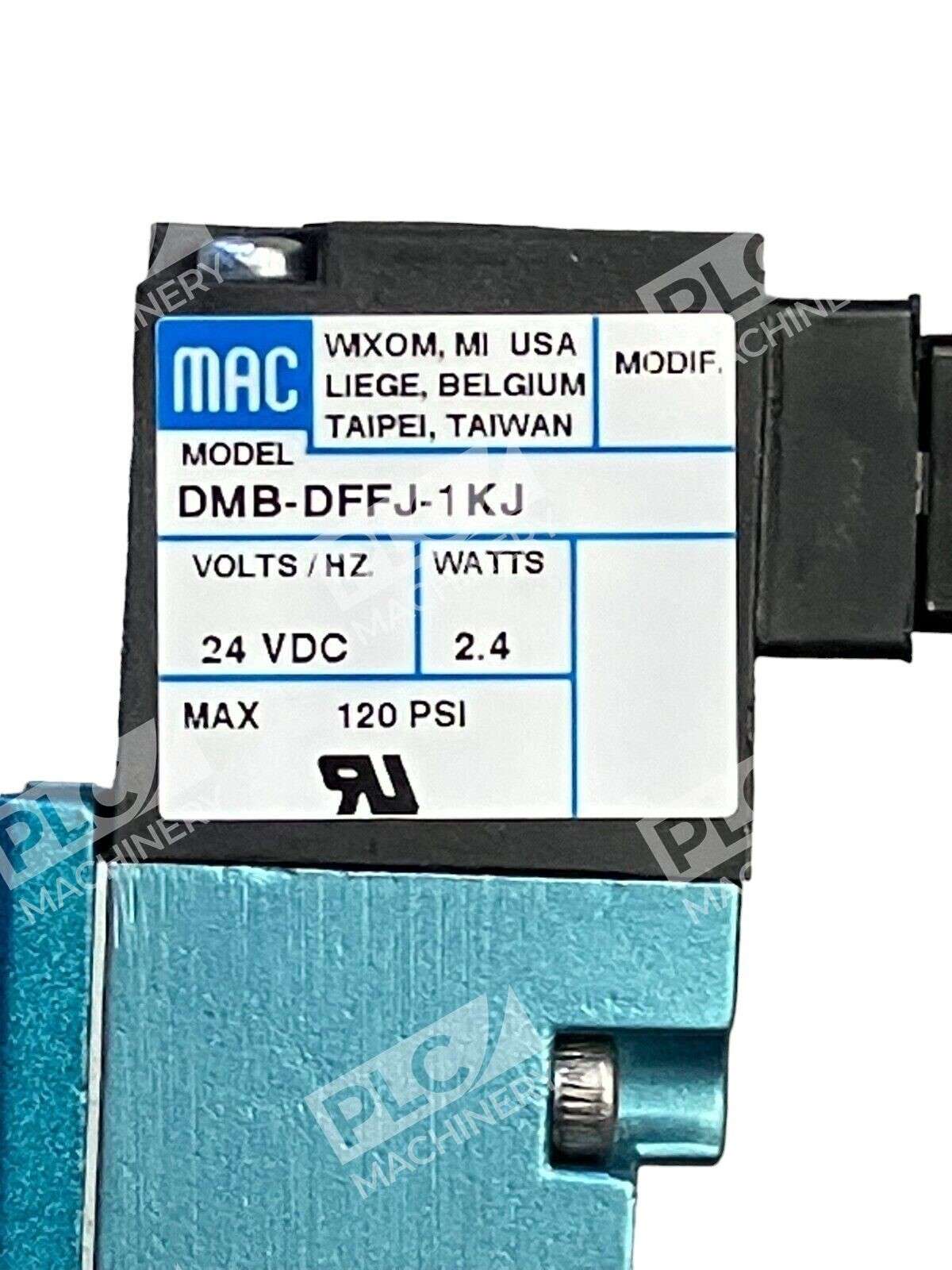

- Coil Part Number: DMB-DFFJ-1KJ
- Valve Type: 3-way, balanced spool, pilot-operated
- Solenoid: Direct-operated 4-way pilot
- Port Size: 1/4″ NPTF (National Pipe Taper Fuel)
- Voltage: 24 VDC
- Operating Pressure Range: 20–120 PSI
- Maximum Pressure: 120 PSI
- Pilot Type: Internal pilot air
- Manual Override: Non-locking recessed operator
- Weight: Approximately 2.0 lbs

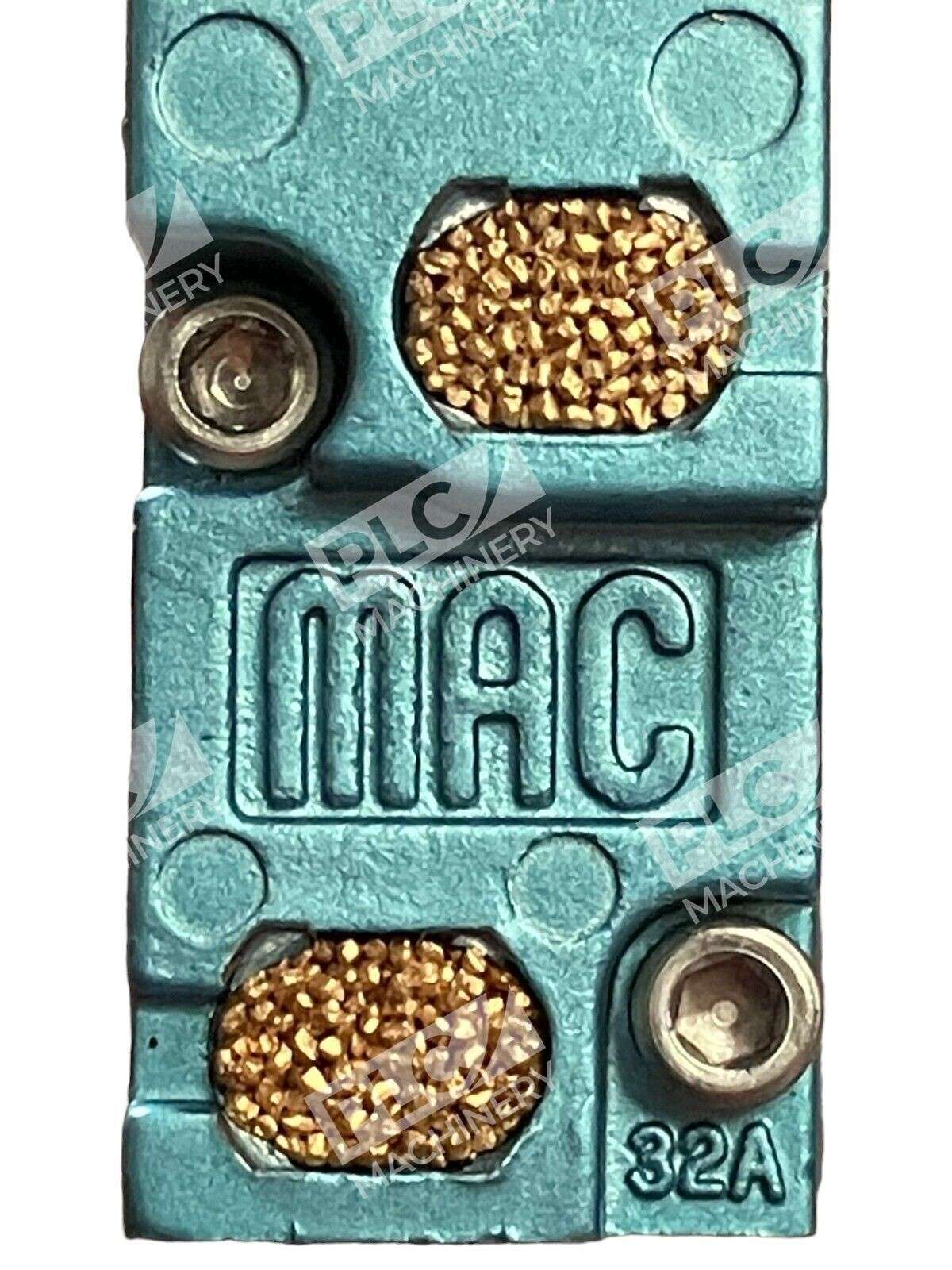

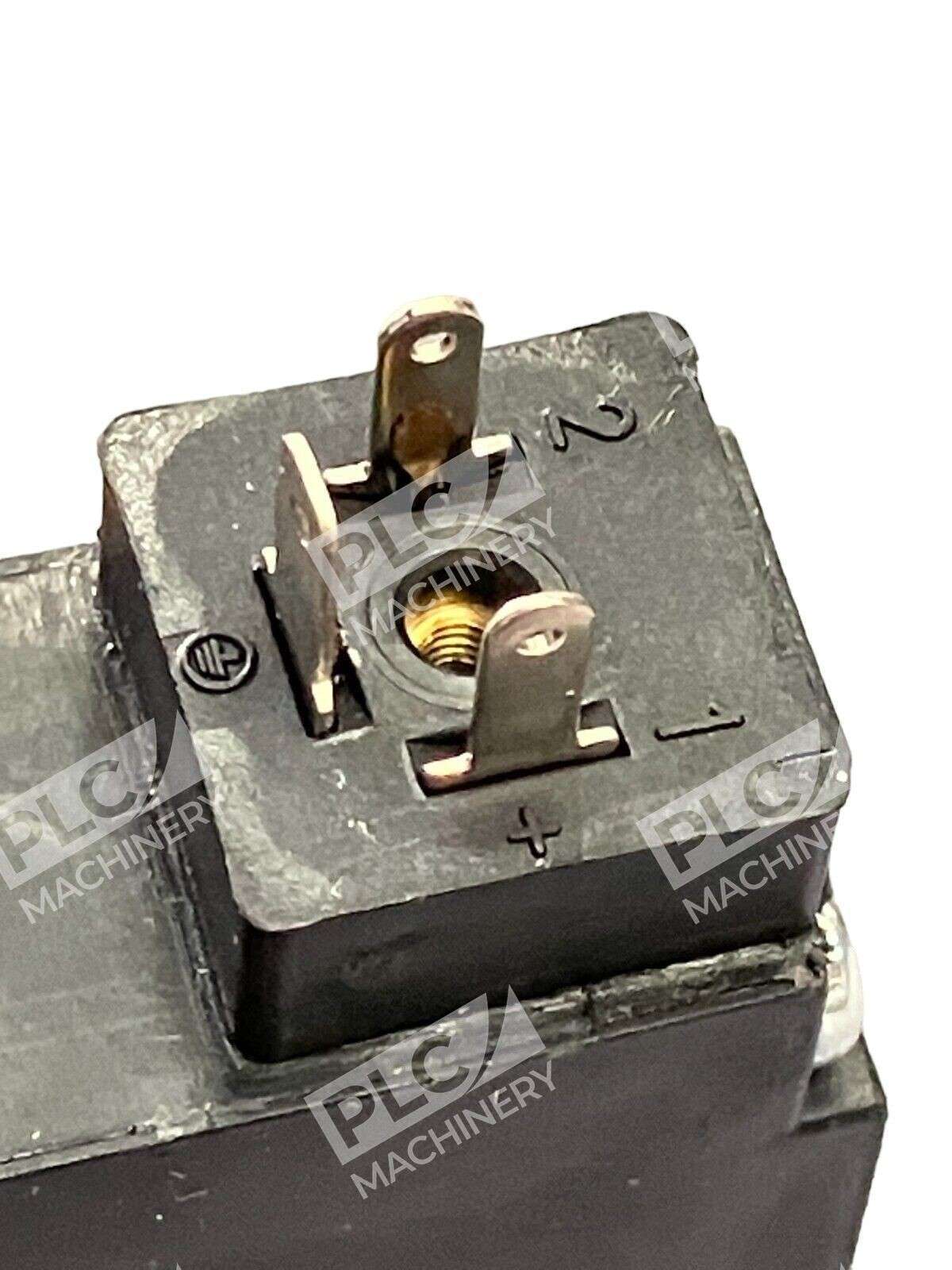

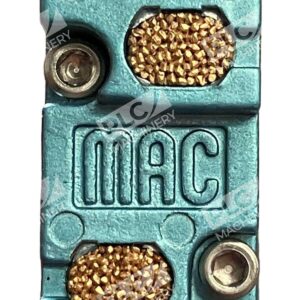

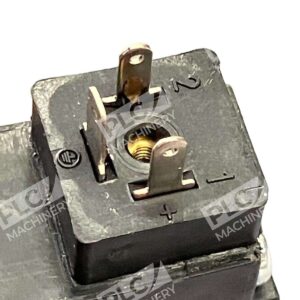

- Connector Type: Mini square connector (male)
Typical Applications
- Industrial pneumatic control circuits and automation systems
- Air-operated machinery actuation and sequencing
- Compressed air distribution and switching in manufacturing plants
- OEM equipment integration for process automation
- Pressure-relieving and meter-out control applications
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPTF threaded pneumatic systems
- 24 VDC control circuits and PLC I/O modules
- MAC manifold valve plates and cavity designs
- Industrial pneumatic actuators and cylinders
- Compressed air supply systems rated 20–120 PSI
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The MAC 52A-11-B0A-DM-DFFJ-1KJ carries a specific coil designation (DMB-DFFJ-1KJ) that may differ from earlier or variant 52 Series part numbers. Consult MAC’s product documentation or your OEM specification before substituting similar 52 Series models.
Works With
- 24 VDC solenoid coil assemblies (DMB-DFFJ-1KJ and compatible MAC coil families)
- Pneumatic control software and logic controllers
- Standard compressed air supply networks
- NPTF pipe thread adapters and reducers
- Industrial relay and timer modules for valve actuation
