Overview

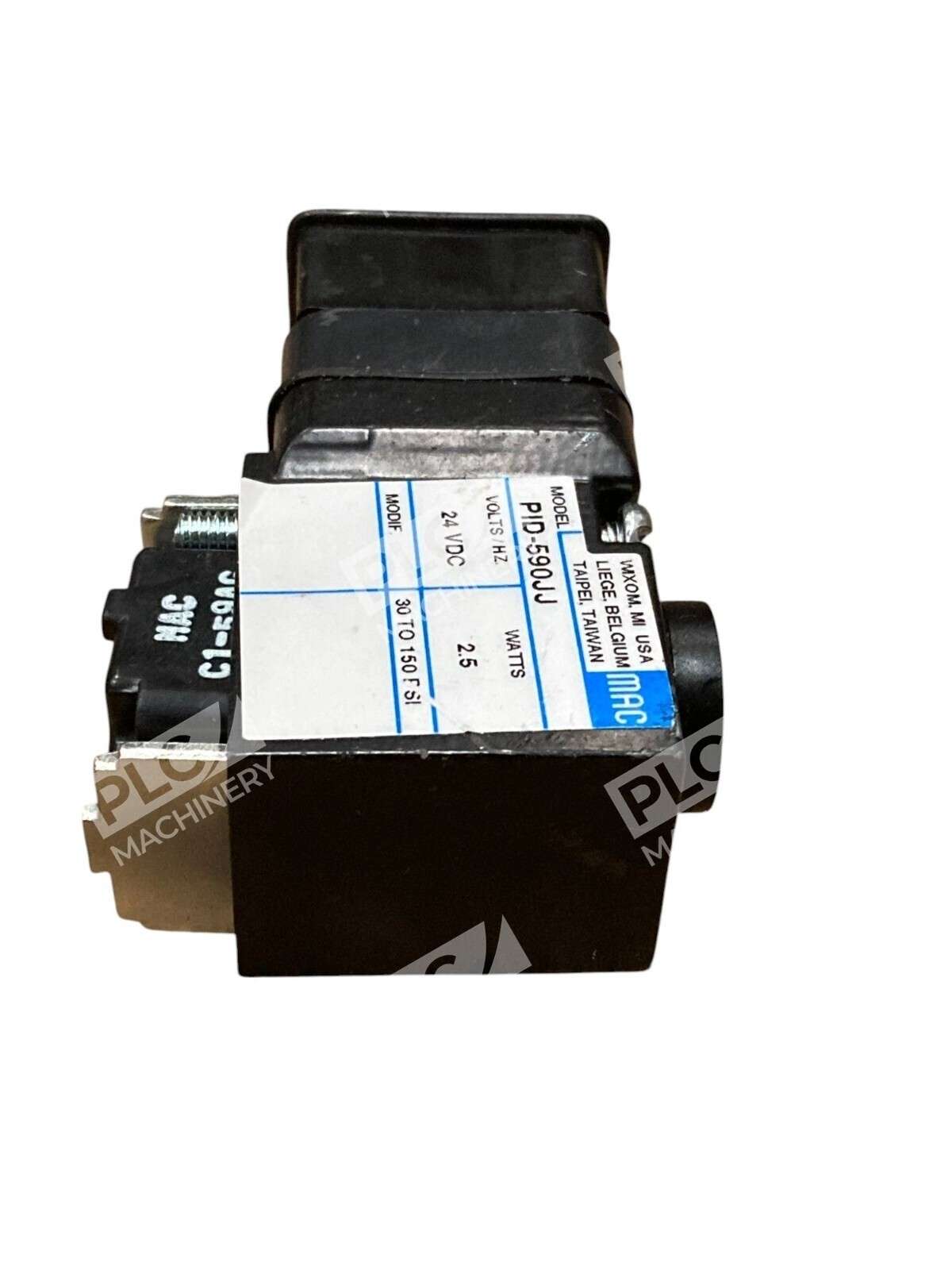

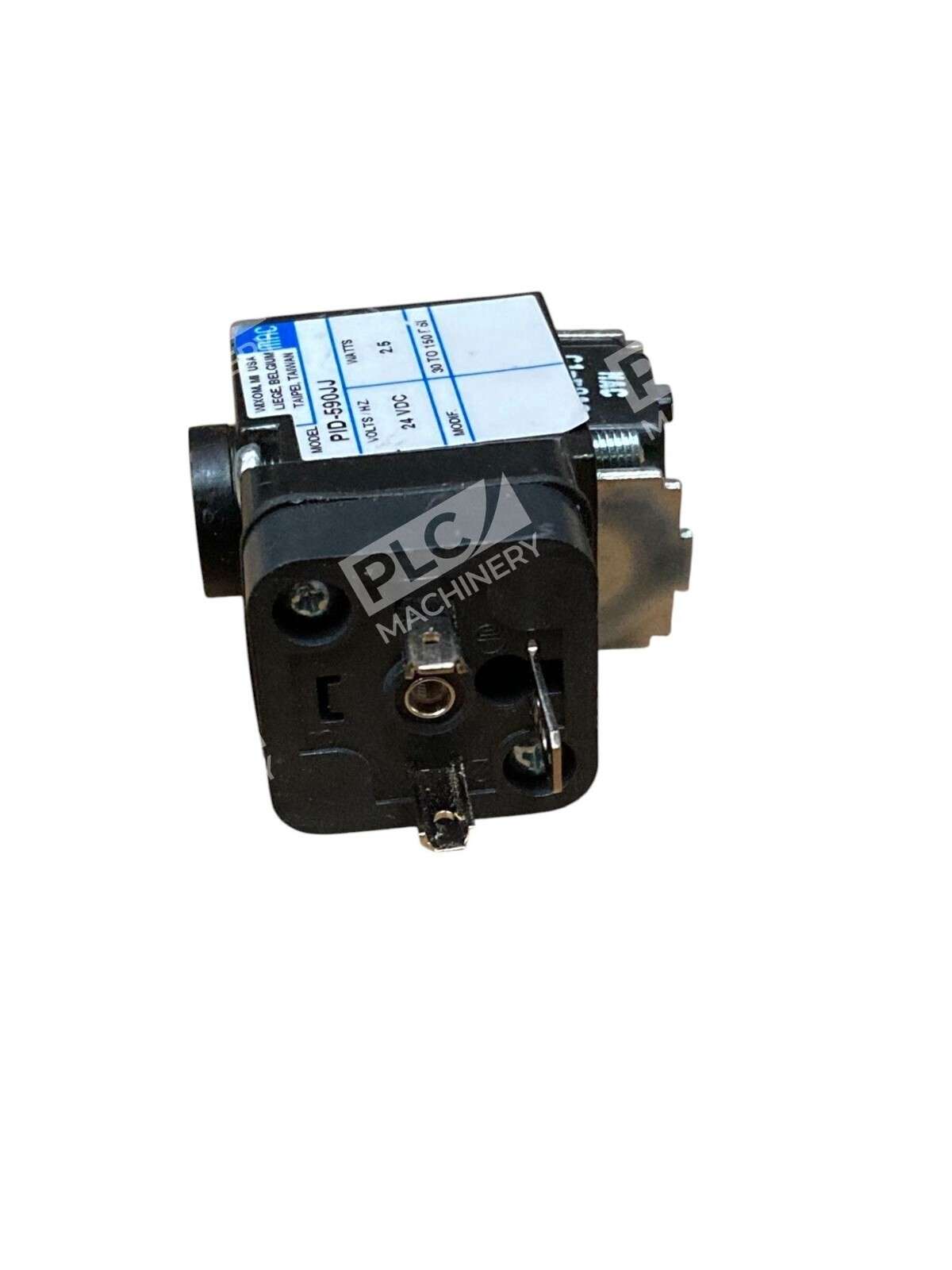

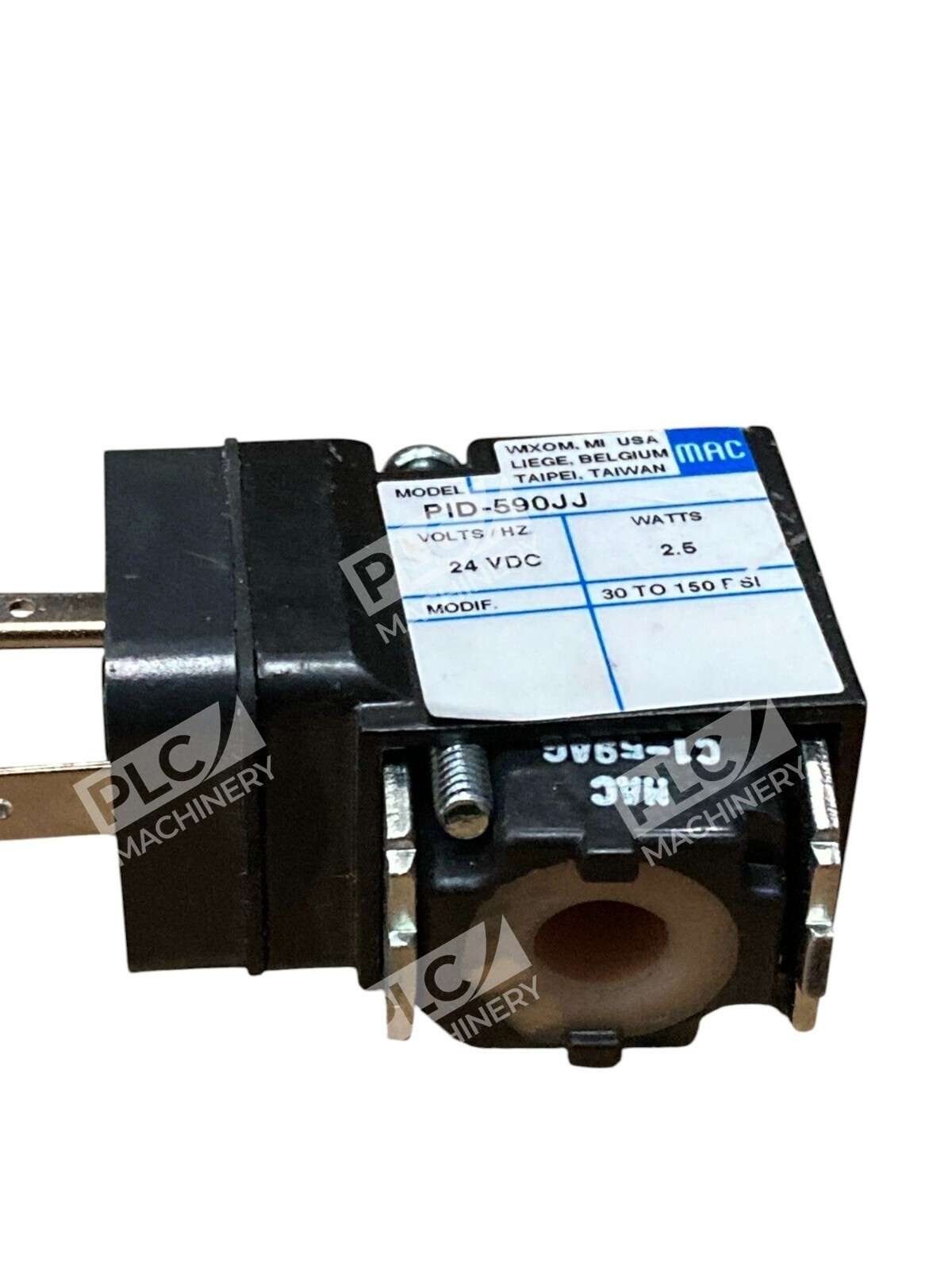

The MAC PID-590JJ pneumatic solenoid valve is a compact 3-way direct-acting solenoid valve designed for industrial air and fluid control applications. Operating from 24VDC with a pressure range of 30–150 PSI, the PID-590JJ provides fast, repeatable switching for process automation, pneumatic circuits, and equipment control. Its robust solenoid construction ensures reliable performance in demanding manufacturing, assembly, and material-handling environments.
Key Features
- 3-way solenoid valve configuration for flexible inlet/exhaust control
- Direct-acting solenoid design with fast response time
- 24VDC operating voltage for standard industrial control systems
- Pressure range: 30–150 PSI (2.1–10.3 bar)
- Compact, inline mounting footprint
- Manual operator for manual override capability
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MAC Valves |
| Model Number | PID-590JJ |
| Valve Type | 3-Way Pneumatic Solenoid |
| Solenoid Voltage | 24VDC |
| Operating Pressure Range | 30–150 PSI (2.1–10.3 bar) |
| Actuation | Direct-Acting Solenoid |
| Media | Air, Inert Gases, Liquids |
| Standard Mounting | Inline (Subplate Available) |
Typical Applications
- Pneumatic actuator control (cylinders, grippers)
- Automated assembly and test equipment
- Industrial packaging machinery
- Material handling and conveyor systems
- Process automation flow direction switching
- Machine tool control circuits
Compatibility & Replacements
Compatible With
- PLC and DCS systems with 24VDC discrete outputs
- Industrial control relays and timers
- Pneumatic circuit subplates and manifold bases (where applicable)
- Standard 1/8″ NPT and 1/4″ NPT ported equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The PID-590JJ is a legacy MAC model; confirm interchangeability with your existing equipment or application requirements.
Works With
- 24VDC industrial control systems
- Relay and logic-based automation circuits
- Pneumatic pilot-operated systems
- Manual override capability for maintenance and safety lockout
