Overview

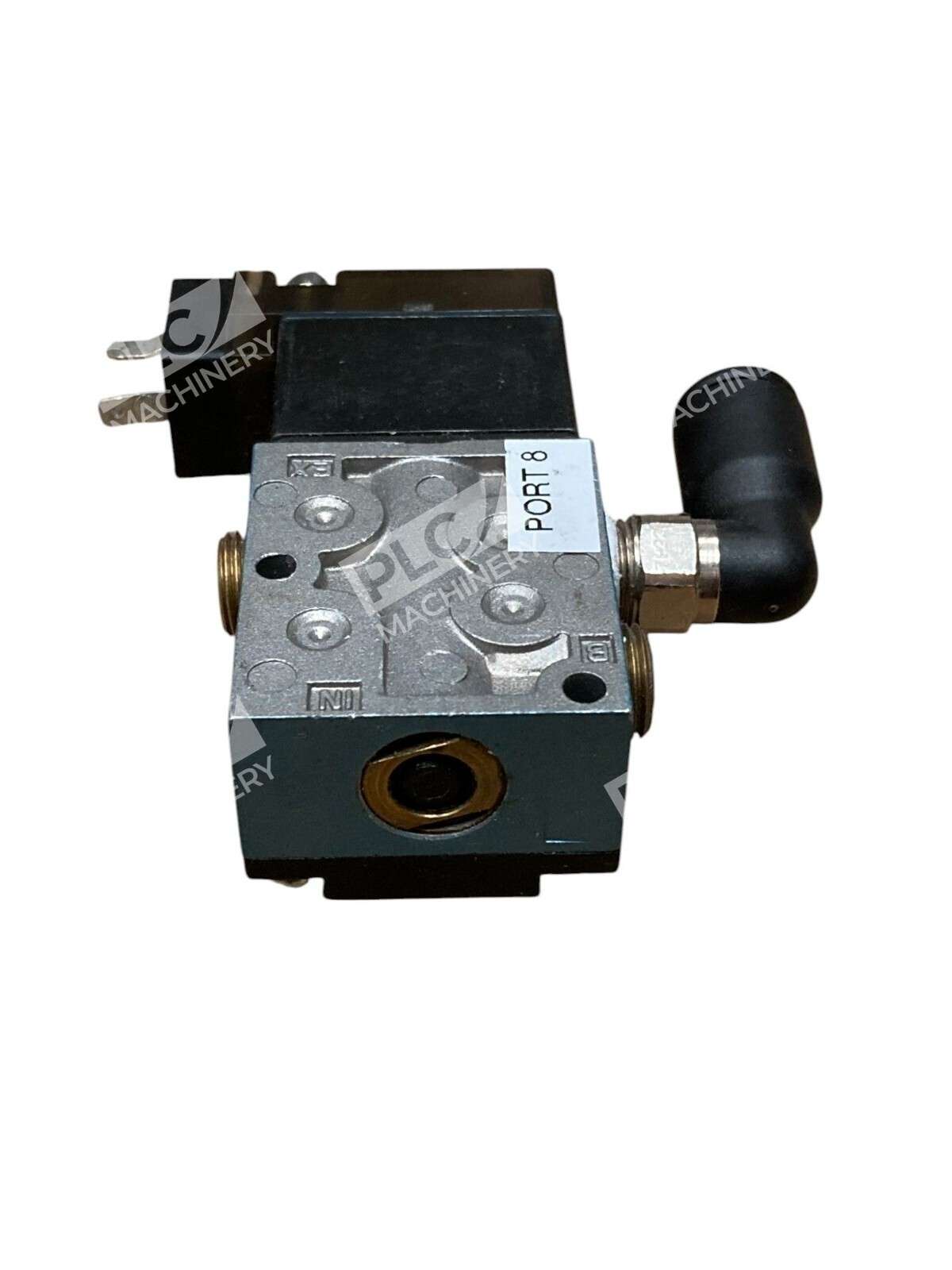

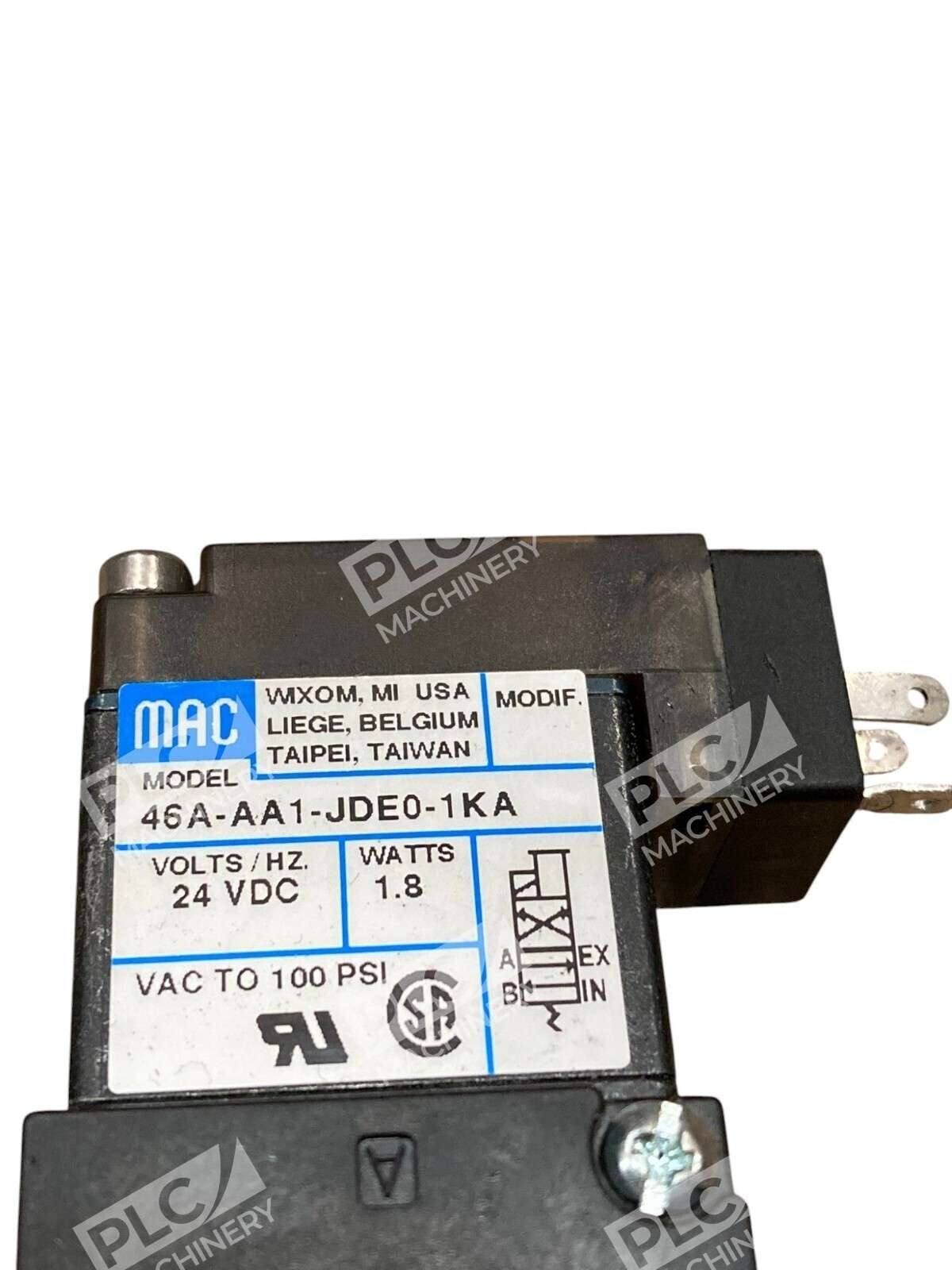

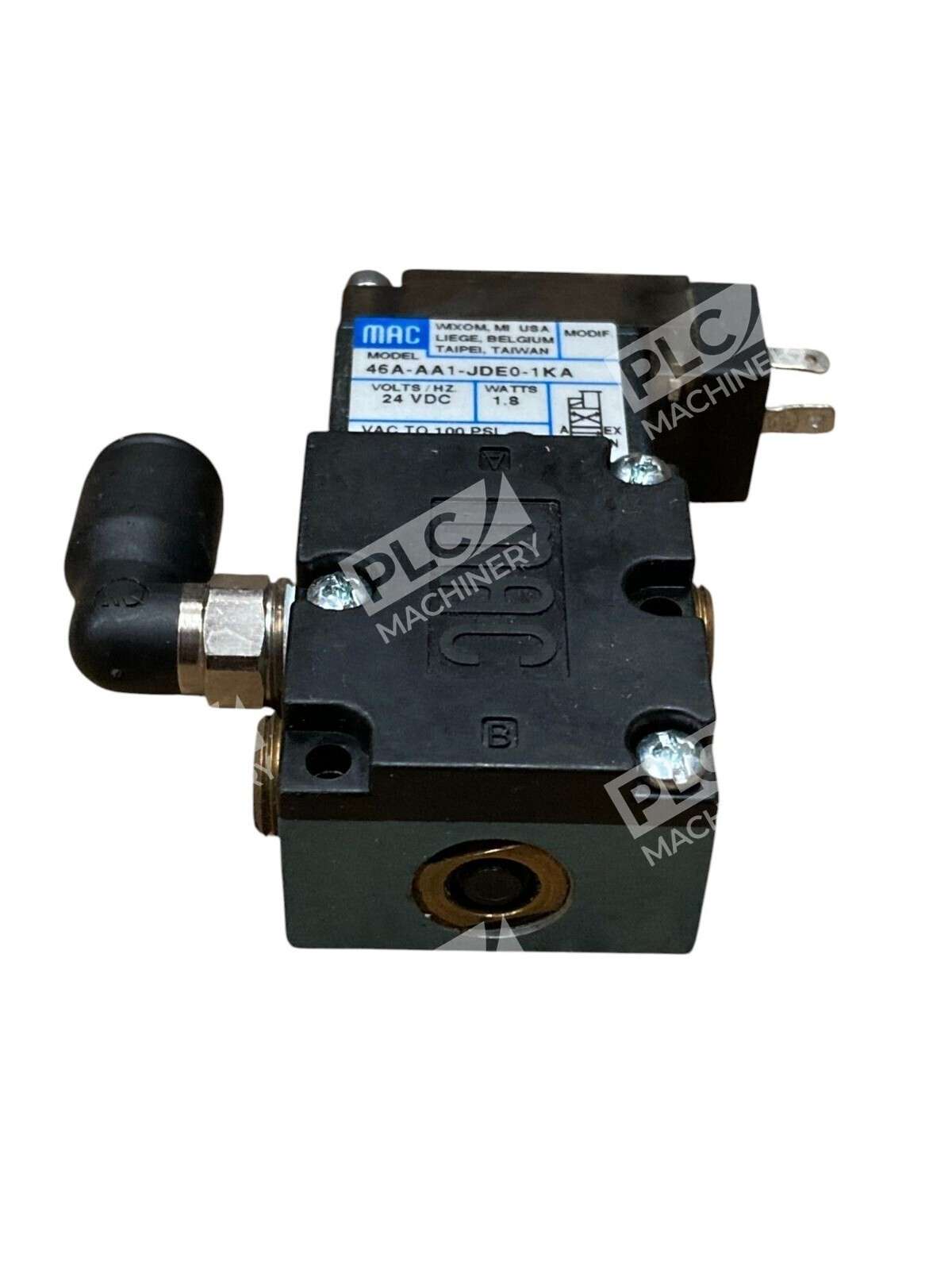

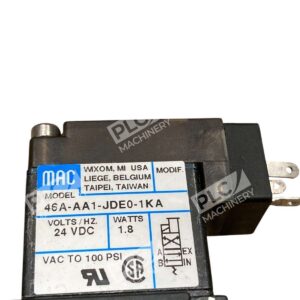

The MAC 46A-AA1-JDE0-1KA is a 4-way inline solenoid-actuated directional control valve engineered for pneumatic and hydraulic applications. Operating at 24VDC with a low power consumption of 1.8 watts, this valve delivers fast, reliable switching in a compact footprint. The 1/8″ NPTF threaded ports make it ideal for space-constrained installations requiring precise fluid control.
Key Features
- 4-way, 2-position directional control for bidirectional flow
- Low-power 24VDC solenoid (1.8W) reduces electrical load
- 1/8″ NPT port configuration for standard industrial piping
- Inline valve body design minimizes manifold footprint
- Balanced poppet and conical seat design for extended service life
- Fast response time and consistent switching performance
Technical Specifications
- Operating Voltage: 24VDC
- Power Consumption: 1.8 watts
- Valve Type: 4-Way, 2-Position Directional Control
- Port Size: 1/8″ NPTF (National Pipe Taper Fuel)
- Valve Body Style: Inline
- Solenoid Design: Single solenoid, normally closed
- Flow Coefficient (Cv): 0.15 (high-flow design)
- Connector Type: 9.4 mm DIN plug (standard industrial connector)
- Operating Temperature Range: Industrial standard (consult manufacturer for specific limits)
Typical Applications
- Pneumatic actuator control in automated assembly lines
- Hydraulic directional control for compacts cylinders and motors
- Fluid logic and sequencing circuits
- Test and measurement equipment requiring directional switching
- OEM packaging and material handling systems
Compatibility & Replacements
Compatible With
- Standard 24VDC pneumatic and hydraulic systems
- MAC Series solenoid valve manifolds and subplates
- 9.4 mm DIN connector-compatible control circuits
- Industrial PLC and automation control systems
- Fluid power systems operating at or below rated pressure and flow
Replaces / Drop-In Replacement For
- MAC 46A-AA1-JDE0-1KJ (KJ connector variant)
- Similar MAC 46 Series 24VDC inline valves with 1/8″ NPT ports
- Verify compatibility with your system integrator before ordering for critical applications
Works With
- MAC manifold systems and sandwich valve configurations
- Standard 24VDC control relay circuits and PLC outputs
- Industrial solenoid valve coil replacements (verify coil specification)
- Pneumatic and hydraulic power systems rated for 1/8″ NPT connections
- MAC-compatible accessories: pilot drain blocks, flow control cartridges, pressure regulators
