Overview

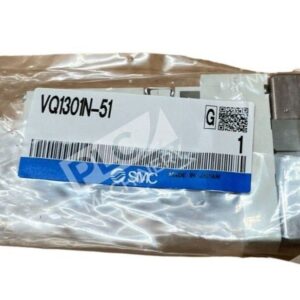

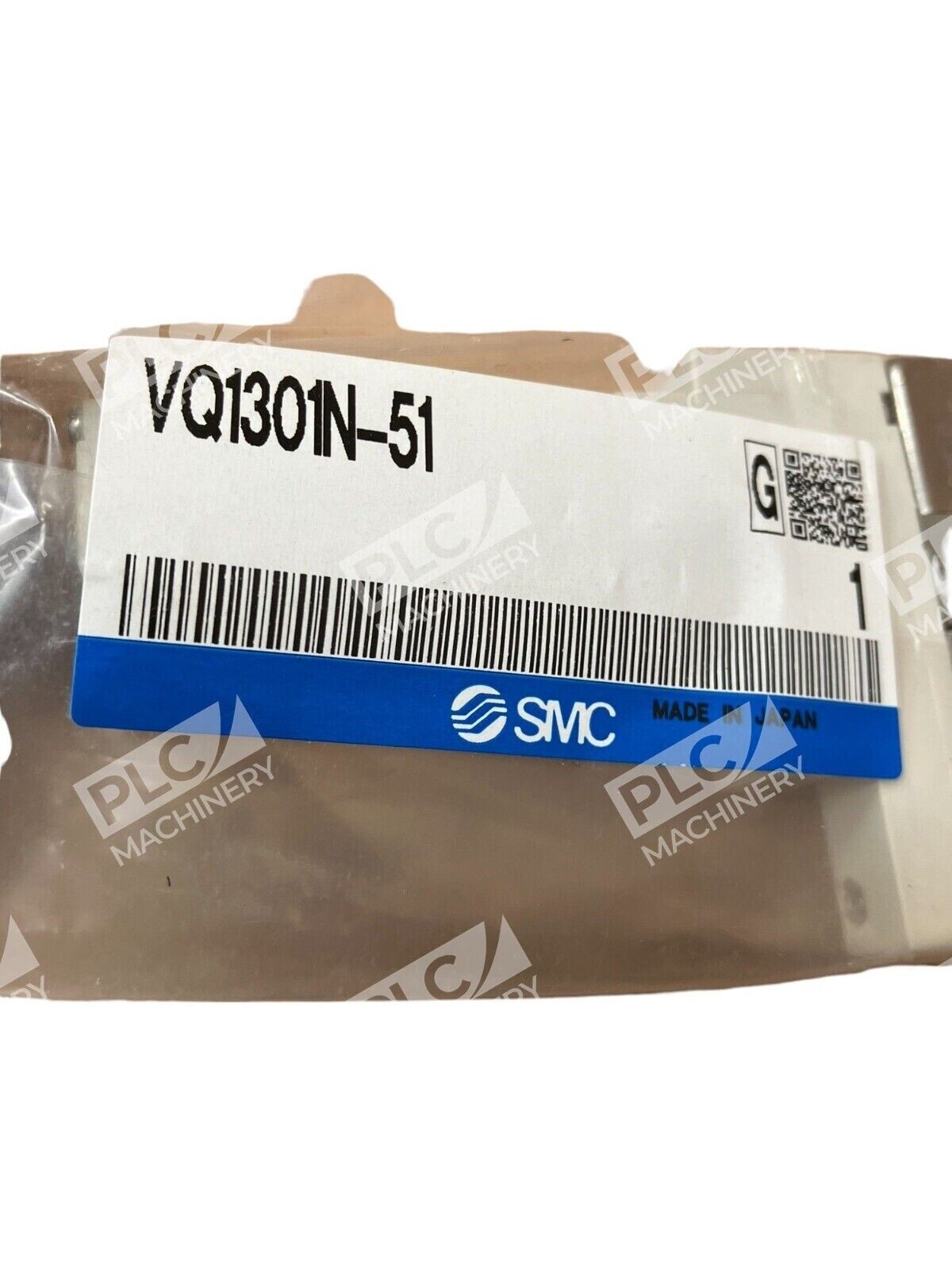

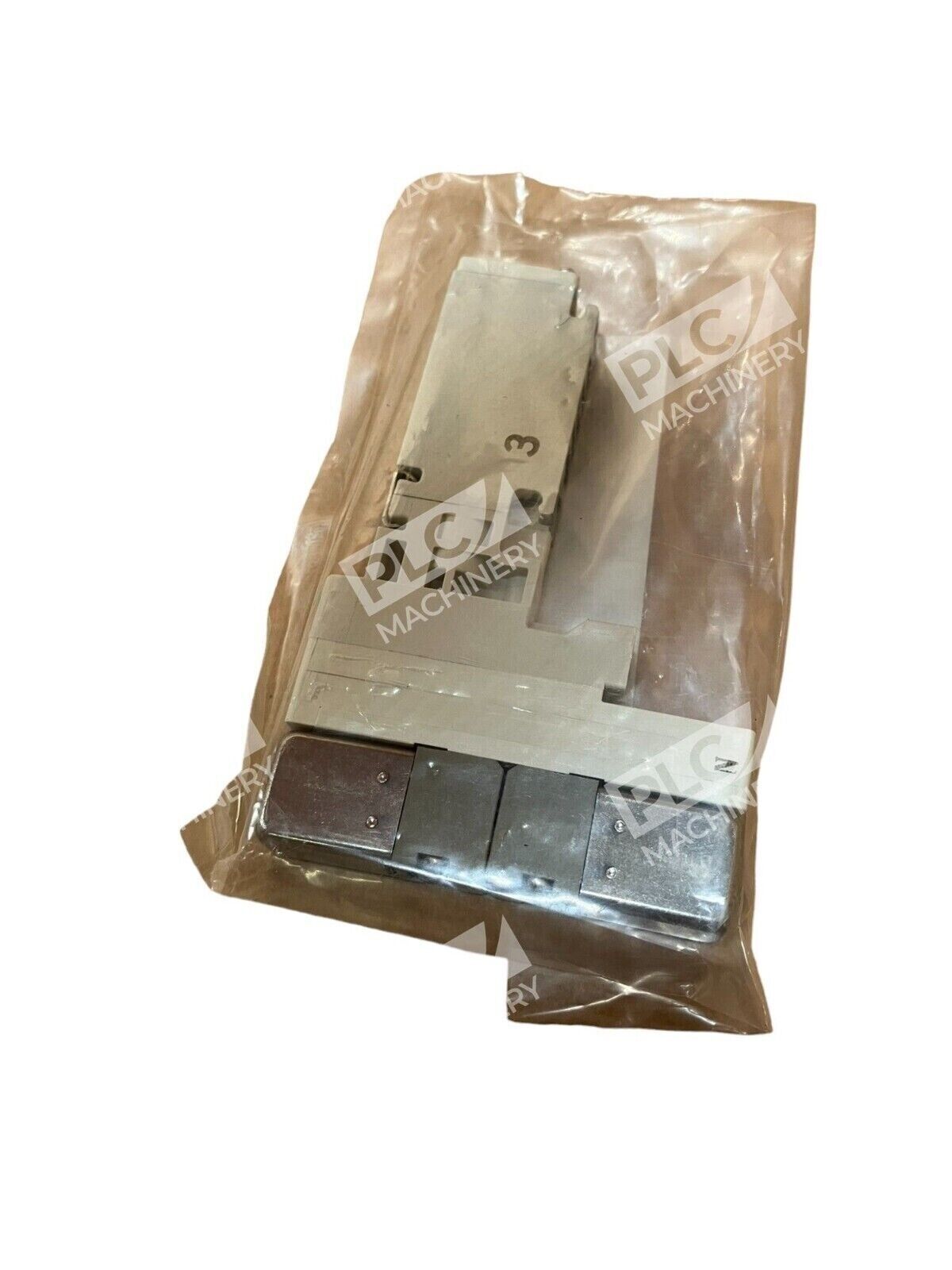

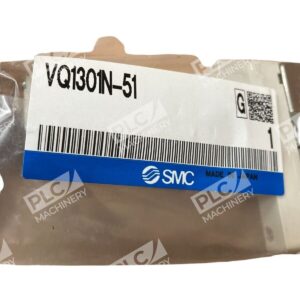

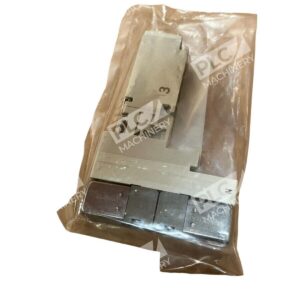

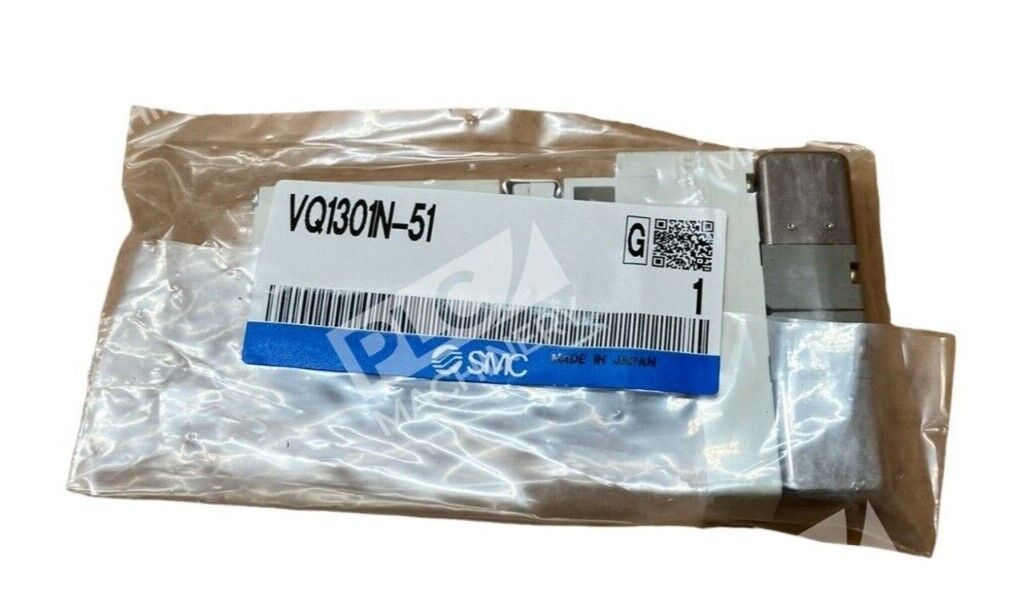

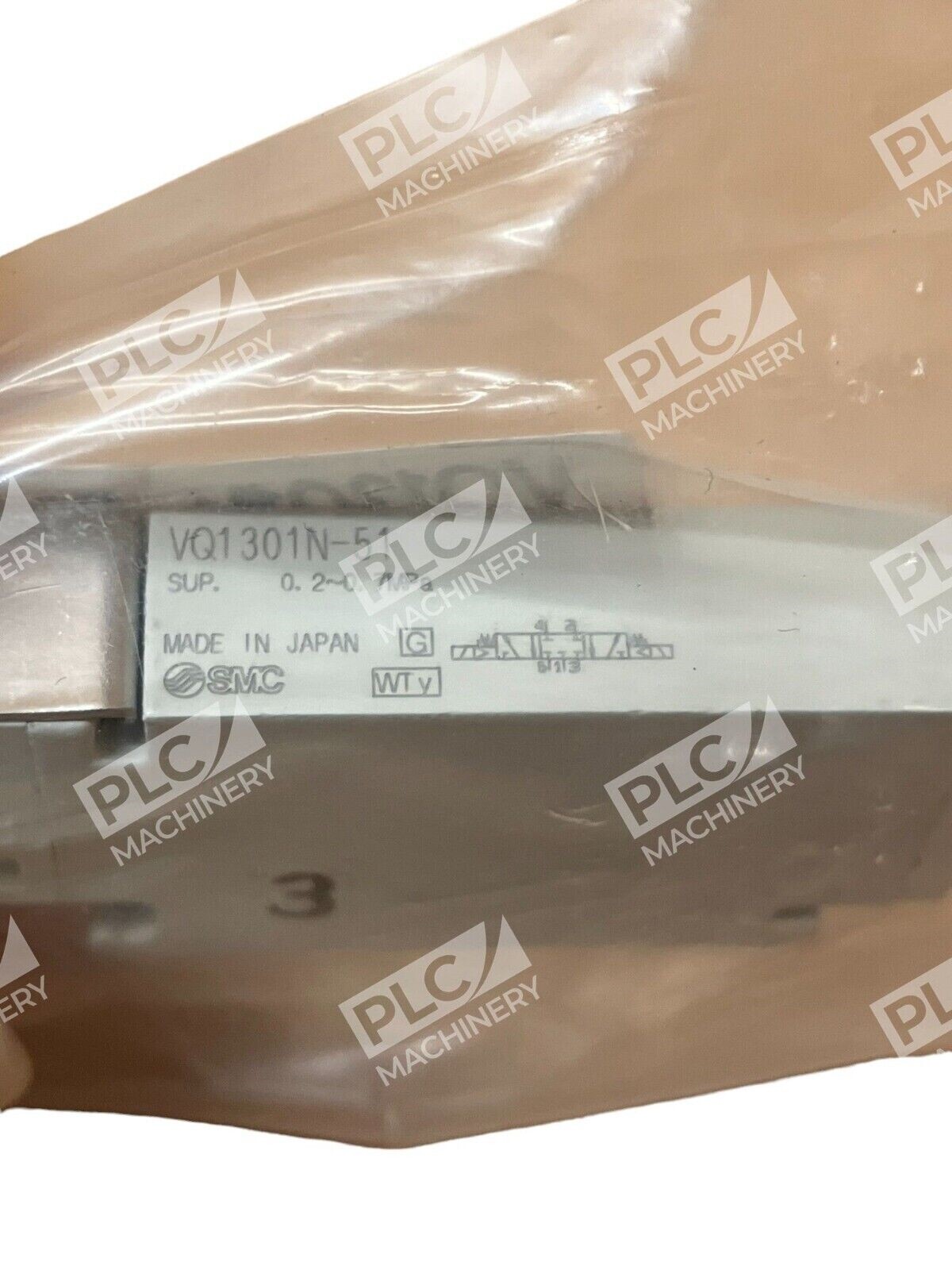

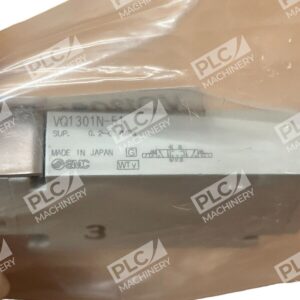

The SMC VQ1301N-51 is a high-performance 5 port solenoid valve optimized for pneumatic automation applications. This plug-in style valve features a 3 position closed center spool mechanism with dual solenoids for precise directional control. The screwless, one-clamp mounting structure enables fast valve replacement without dismantling the entire manifold—a critical advantage for maintenance and system downtime reduction.
Key Features
- 5 Port Configuration: Operating pressure range 0.1–0.7 MPa (high pressure style 1.0 MPa)
- Dual Solenoid Piloted Design: 24 V DC solenoid supply with ±10% voltage fluctuation allowance and 1 W power consumption
- One-Touch Fittings: Built-in one-touch fittings save piping time and labor
- Fast Response: 25 ms response time for demanding timing-critical applications
- Non-Locking Manual Override: Tool-required manual operation for field diagnostics and emergency control
- Compact, Space-Saving Design: Reduced envelope footprint suitable for manifold integration
Technical Specifications
- Fluid Medium: Air/inert gas
- Port Configuration: 5 port, 3 position closed center, negative common (DC)
- Solenoid Supply Voltage: 12 or 24 V DC; 100, 110, 200, 220 V AC options available
- Flow Coefficient (Cv): 0.16 Cv (P to A/B) and 0.18 Cv (A/B to R1/R2)
- Seal Material: Rubber seal
- Body Material: Zinc
- Operating Temperature Range: −10 to +50°C
- Standards Compliance: JIS B 8375-1981
- Solenoid Insulation Class: Class B
- Response Time: 25 ms
- Mounting Style: Base mounted plug-in
Typical Applications
VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Common uses include:
- Pneumatic actuator control in manufacturing automation
- Pick-and-place and material handling equipment
- Printing and packaging machinery
- Medical device assembly systems
- Industrial robotics and process automation
- Air flow switching in test and measurement rigs
Compatibility & Replacements
Compatible With
- SMC manifold bases designed for VQ1000 series plug-in valves
- Standard ISO pneumatic piping and tubing systems
- One-touch (push-fit) fittings with 4 mm, 6 mm, and 8 mm tube sizes
- DC and AC power control circuits with coil suppression
- Industrial PLC and pneumatic control systems
Replaces / Drop-In Replacement For
The VQ1301N-51 is a direct mechanical and functional replacement for other VQ1301N series valves with identical port configurations. Verify coil voltage and control circuit specifications before substitution. Similar 5 port, 3 position closed center valves from competing manufacturers may require manifold modification.
Works With
- SMC SY series solenoid valve manifold blocks
- ISO 4401-05 standard pneumatic symbols and circuit diagrams
- External coil suppression modules and surge protection relays
- 5/2 and 5/3 directional control system designs
- Automated fluid power control architectures with pilot pressure feedback
