Overview

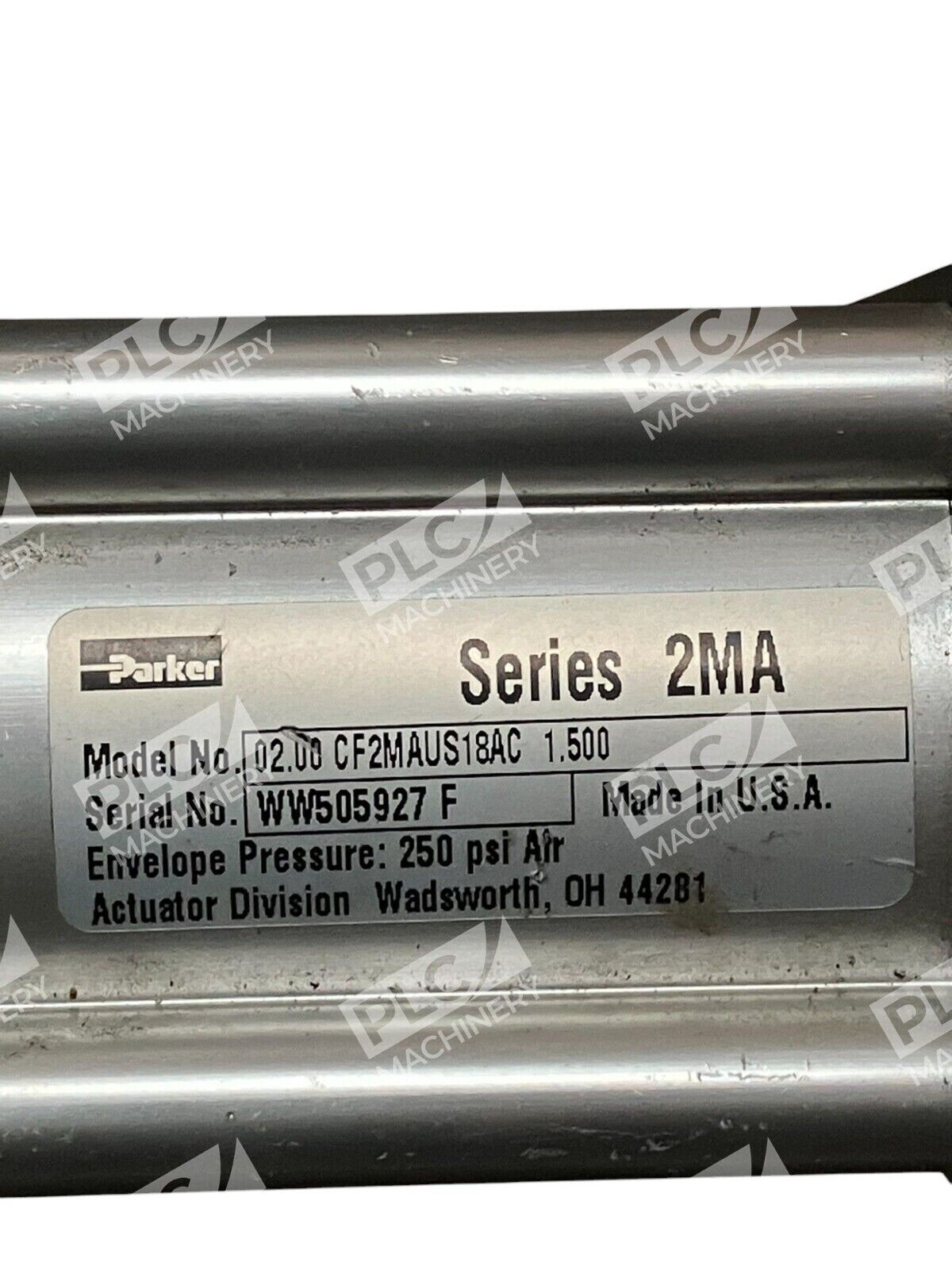

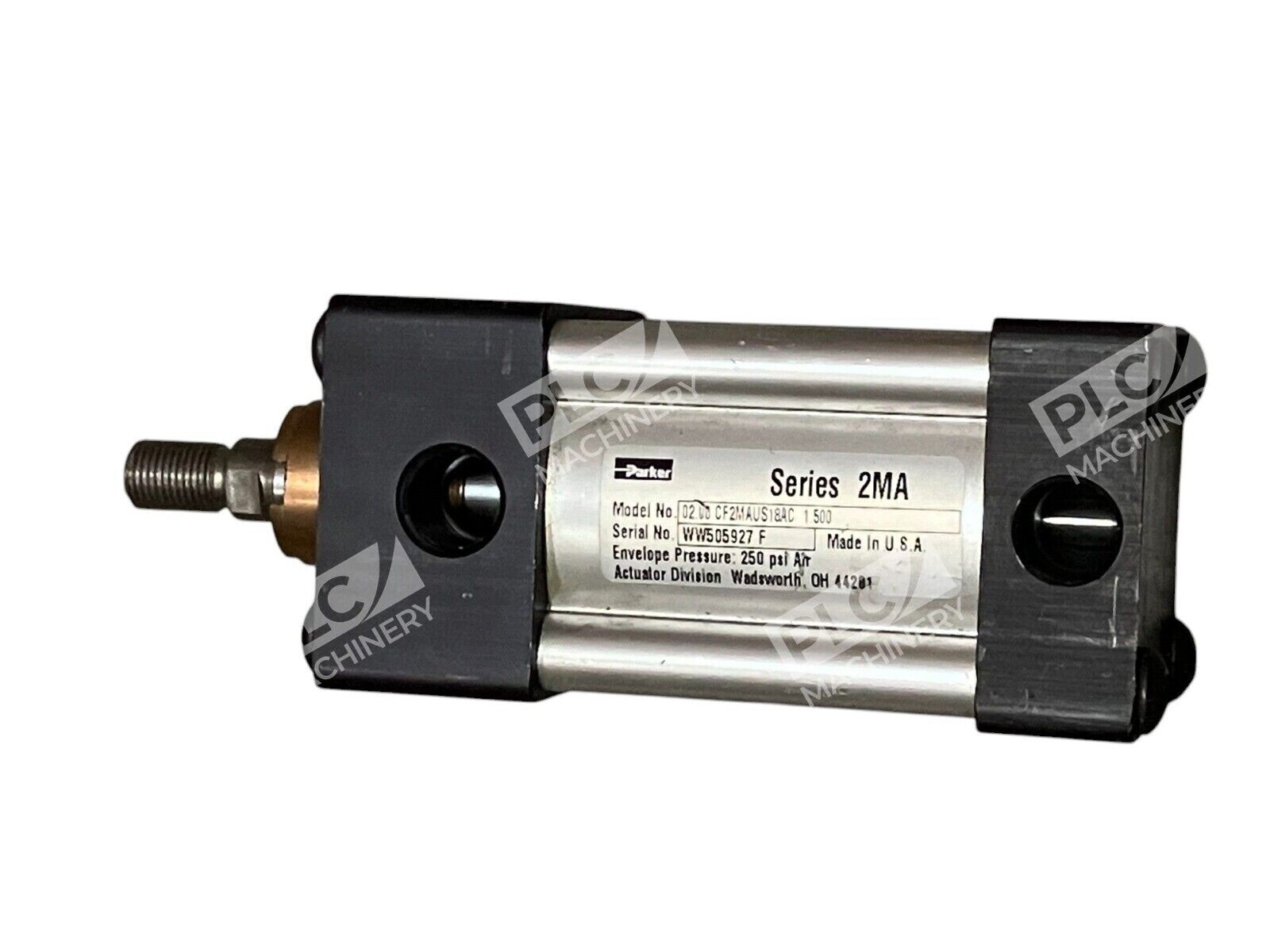

The Parker Series 2MA 02.00 CF2MAUS18AC 1.500 pneumatic cylinder is a robust, field-proven actuator built for demanding industrial environments. This 18 bar heavy-duty pneumatic cylinder conforms to ANSI and NFPA standards, with tie-rod construction that sets the standard for performance, durability and trouble-free operation with superior design and quality to ensure long cylinder service life. With a 2.00-inch bore, 1.500-inch stroke, and adjustable port configuration (U-series, A-cavity ports), this cylinder delivers consistent force and precision across manufacturing, automation, and assembly operations. The unit is fully functional and tested.
Key Features
- Heavy-duty tie-rod construction for enhanced durability and stability in harsh environments
- ANSI/NFPA B4.1 compliant design ensures industry-standard mounting and interchangeability
- 2.00-inch bore with 1.500-inch stroke length for compact, controlled actuation
- 18 bar rated operating pressure suitable for general pneumatic applications
- Adjustable port configuration (CF2MAUS style) allows flexible integration into existing manifold systems
- Multiple mounting options (pivot, flange, side lug kits) accommodate diverse installation requirements
Technical Specifications
| Bore Size | 2.00 inch |
| Stroke Length | 1.500 inch |
| Rated Pressure | 18 bar (261 psi) |
| Port Configuration | Adjustable U-cavity ports (CF2MAUS) |
| Construction Type | Tie-rod heavy-duty |
| Mounting Styles | Pivot, flange, side lug, end-angle kits available |
| Seals | Synthetic elastomer (serviceable) |
| Standards Compliance | ANSI B4.1, NFPA T3.6.7 |
| Series | Parker Series 2MA |
| Condition | Used, tested, fully functional |
Typical Applications
- Manufacturing & Assembly: Clamping, part positioning, and transfer motion in production lines
- Automation Systems: Linear actuation in automated machinery and control systems
- Material Handling: Lift, lower, and push-pull operations in industrial environments
- Testing & Inspection Equipment: Precise force application and part manipulation
- Packaging & Printing: Feed, stack, and eject functions where pneumatic actuation is preferred over hydraulic
Compatibility & Replacements
Compatible With
- Parker pneumatic systems and control networks
- Standard 18 bar industrial compressed air supply (250 psi maximum)
- ANSI B4.1 compliant manifold blocks and sub-base systems
- Pneumatic valve stations with SAE/NFPA cavity mounting patterns
- Modular automation platforms requiring ISO/ANSI cylinder compatibility
Replaces / Drop-In Replacement For
- Other Parker Series 2MA 2.00-inch bore cylinders with 1.500-inch stroke length
- Equivalent ANSI B4.1-compliant heavy-duty cylinders in same bore/stroke configuration from other manufacturers (verify port compatibility with system integrator)
- This unit may replace earlier or alternative 2MA models where bore, stroke, and mounting patterns align
Works With
- Pneumatic control systems (PLC-integrated or standalone air valve logic)
- Industrial pneumatic hoses and fittings (SAE, NPT, ISO thread sizes)
- Pneumatic service units (regulators, filters, lubricators)
- Position sensors (LVDT, reed switch, or proximity switches) for feedback and monitoring
- Pressure gauges and flow controls for system diagnostics
