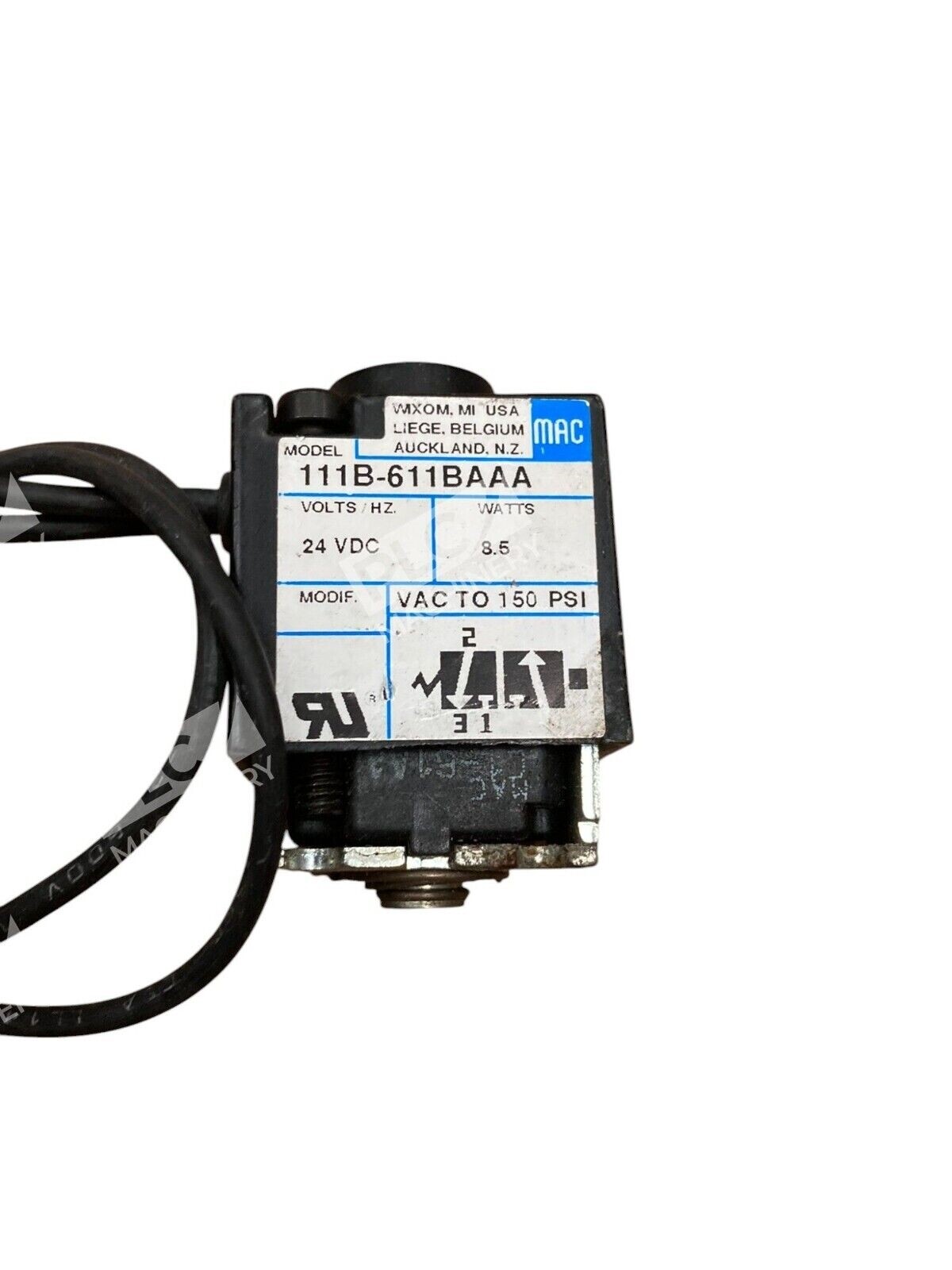

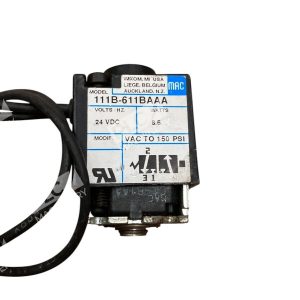

MAC 3-Way 100 Series Solenoid Valve 111B-611BAAA

MAC 3-Way 100 Series Solenoid Valve 111B-611BAAA

The MAC 3-Way 100 Series Solenoid Valve, model 111B-611BAAA, is a direct solenoid-operated poppet valve designed for high performance and versatility in pneumatic applications. Its balanced poppet design ensures consistent operation, while the powerful return spring provides reliable performance over an extended lifespan.

Key Features

• Configuration: 3-way, 2-position valve capable of normally open (NO) or normally closed (NC) operation.
• Port Size: 1/8-inch NPTF, facilitating easy integration into various pneumatic systems.
• Electrical Specifications: Operates on 24 VDC with a power consumption of 8.5 watts, ensuring energy-efficient performance.
• Flow Capacity: Maximum Cv of 0.18, providing efficient airflow for a range of applications.
• Operating Pressure: Supports up to 150 PSI, accommodating high-pressure requirements.
• Temperature Range: Functions effectively within a temperature range of 0 to 140 degrees Fahrenheit, suitable for diverse environments.
• Manual Operator: Equipped with a non-locking recessed manual operator for convenient manual control when necessary.
• Electrical Connection: Features an 18-inch wire length with flying leads, allowing flexible installation options.

Applications

The 111B-611BAAA solenoid valve is ideal for controlling the flow of air in pneumatic systems, including:

• Actuating single-acting cylinders.
• Operating as a pilot valve for larger diaphragm or piston-operated valves.
• Serving in vacuum, diverter, or selector applications due to its versatile design.

Design and Construction

Constructed with a durable aluminum body and nitrile rubber (NBR) seals, the valve ensures longevity and reliable sealing. The balanced poppet design allows for versatility in piping configurations, enabling the valve to function effectively in various setups.

Certifications

For information regarding certifications such as UL, CSA, RoHS, and CE, please refer to the manufacturer’s support resources.

The MAC 3-Way 100 Series Solenoid Valve 111B-611BAAA combines robust construction with flexible functionality, making it a dependable choice for a wide range of pneumatic control applications.
