Overview

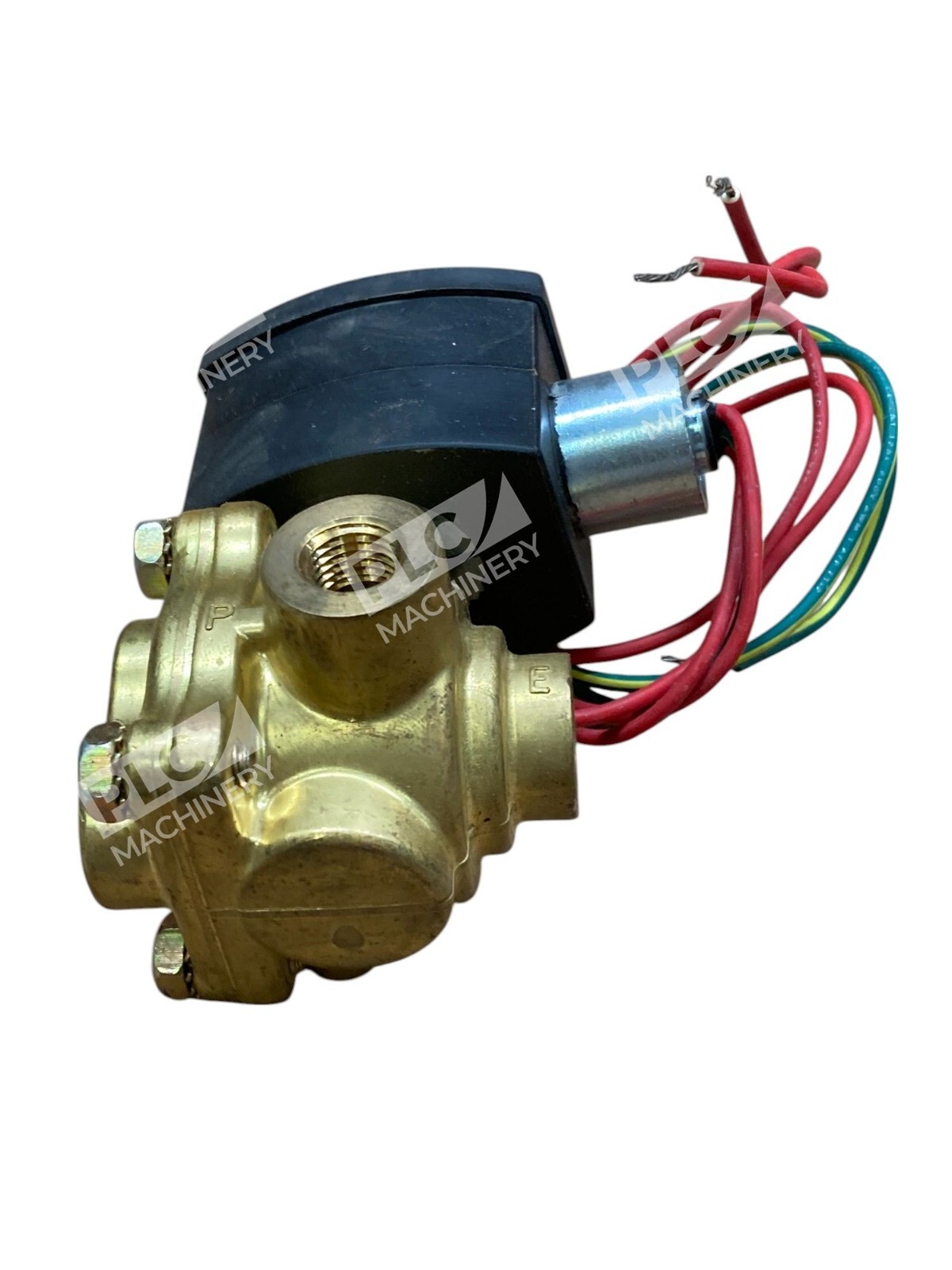

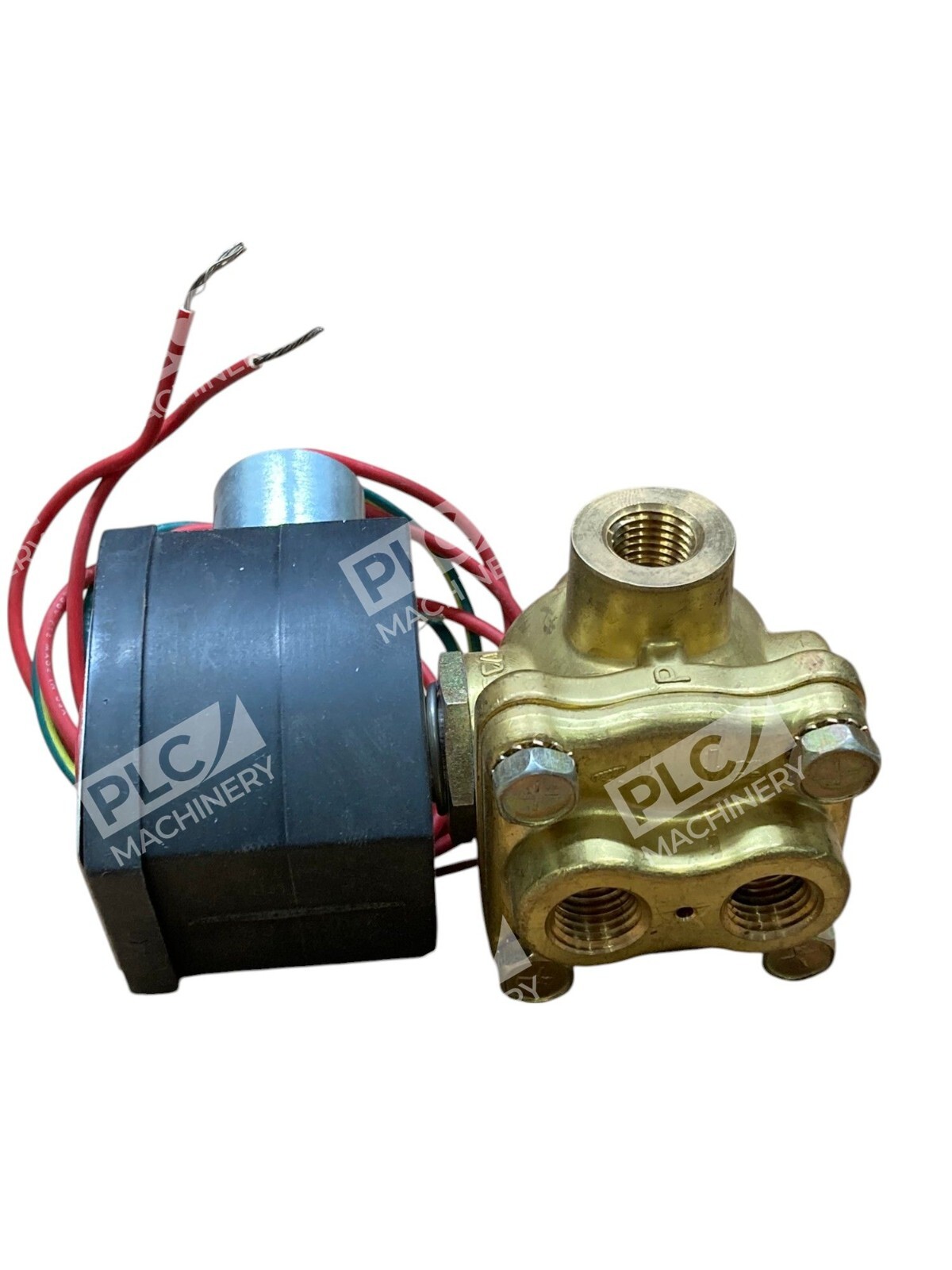

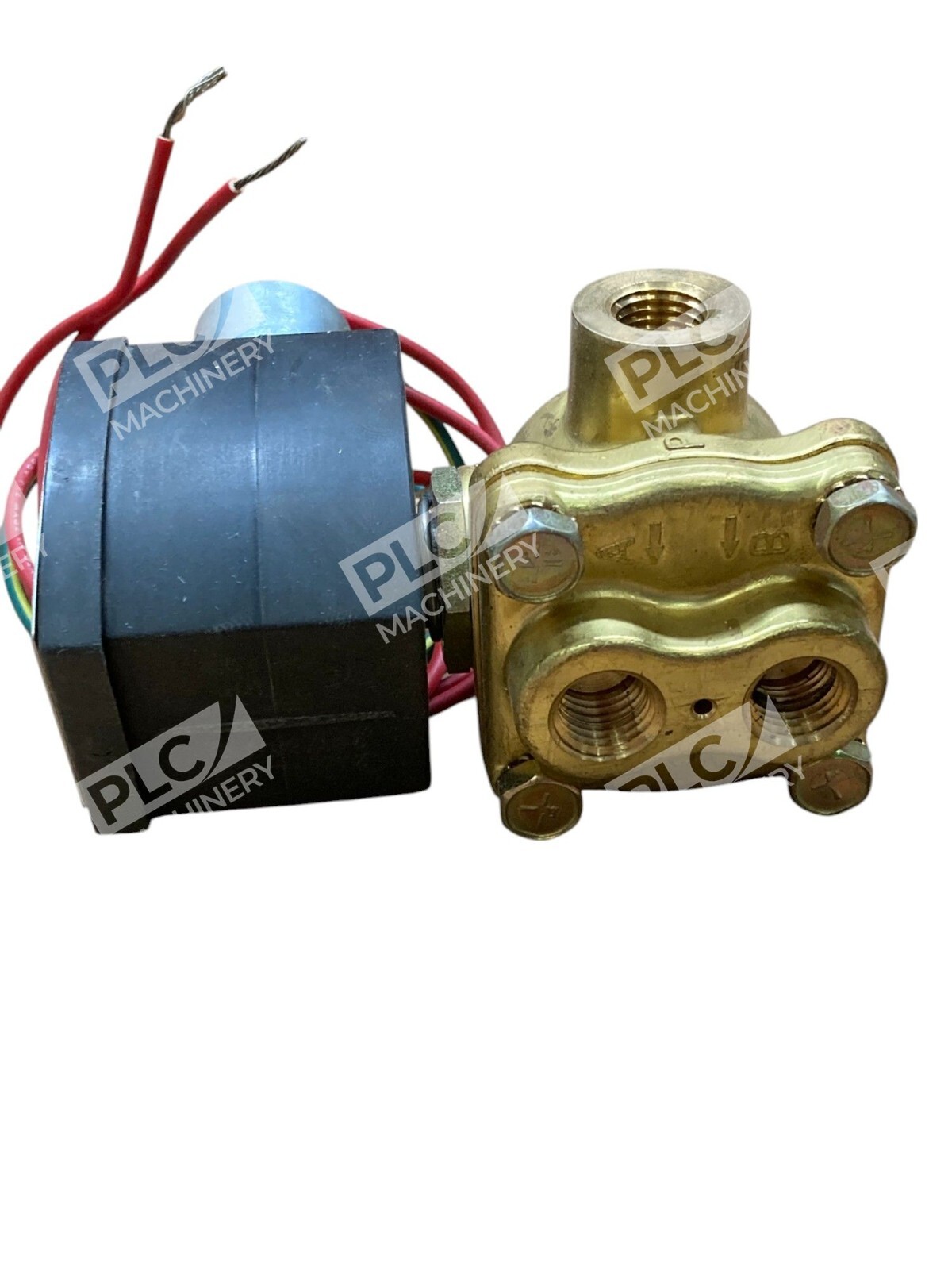

The Asco EF8342G1 (model EF8342G001-240) is a 4-way direct-acting solenoid valve from the Red Hat II series. Built with a brass body and 1/4 inch NPT threaded connections (FNPT × FNPT), this valve is engineered for pneumatic and general service applications where reliable flow control is critical. The EF8342G1 requires no minimum operating pressure or flow to operate, making it ideal for on-off control in air, water, and light oil systems.
Key Features
- Direct-Acting Design: Operates without pilot pressure, eliminating dependency on minimum pressure differentials
- 4-Way Valve Configuration: Provides full flow switching capability for pneumatic cylinders and actuators
- Hazardous Location Rated: NEMA 7 and NEMA 4X certified for use in classified environments
- NBR and PA Seals: Durable seal materials ensure tight shutoff and long service life
- CSA & UL Listed: Meets applicable CE directives and general purpose valve standards
- Compact Brass Construction: Lightweight yet durable for industrial automation and control systems
Technical Specifications
- Port Size: 1/4 inch NPT
- Body Material: Brass
- Valve Style: 4-Way, Direct-Acting
- Connection Type: Female NPT (FNPT × FNPT)
- Solenoid Voltage: 120V AC (standard) / 240V available

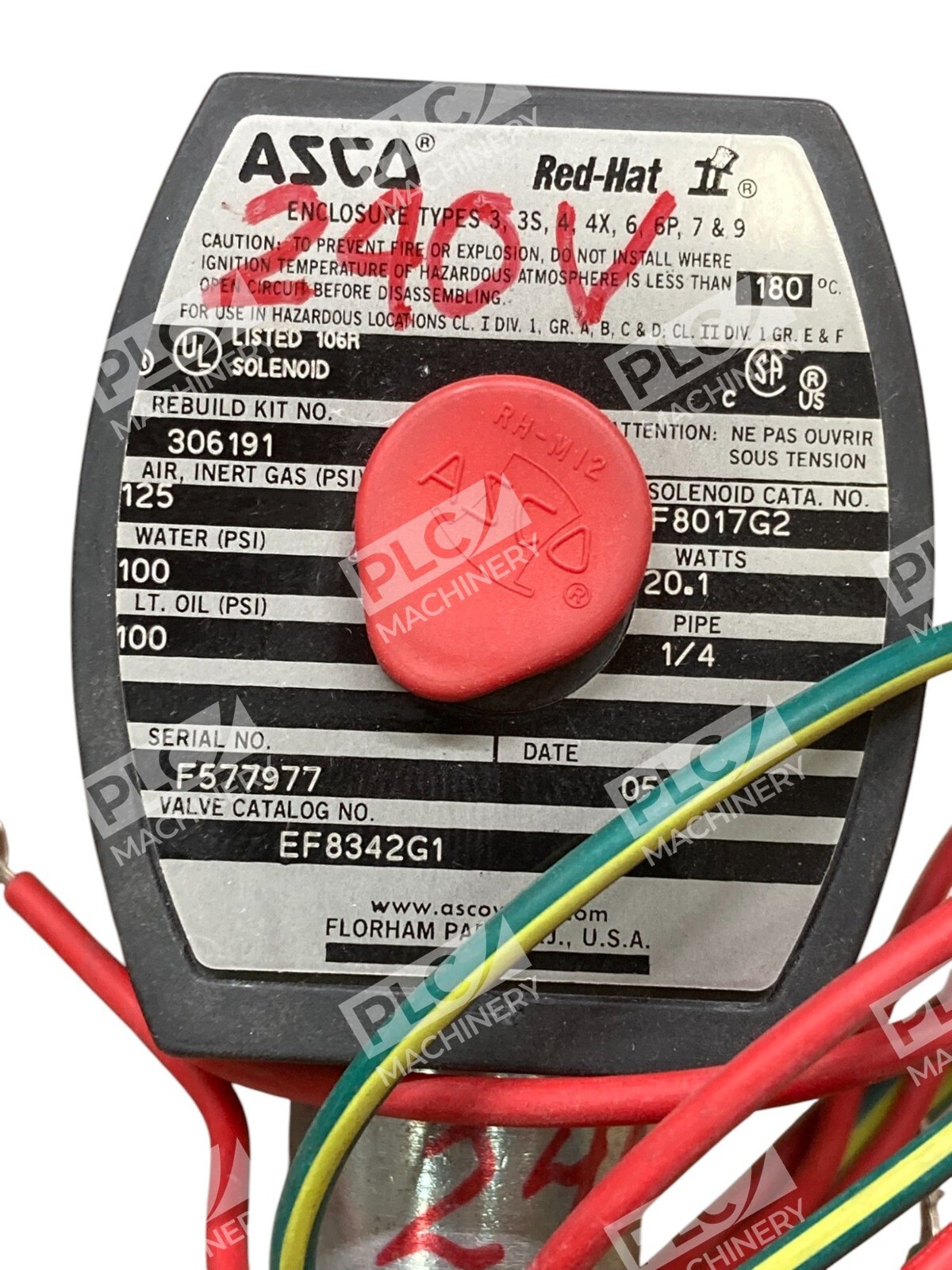

- Watt Rating: 20.1 watts
- Air Pressure Range: 0–125 psi
- Water Pressure Range: 0–100 psi
- Light Oil Pressure Range: 0–100 psi
- Seals: NBR and PA
- NEMA Rating: NEMA 7 (Hazardous Location), NEMA 4X
- Certifications: CSA Certified, UL Listed as General Purpose Valve
- Weight: 3.5 lbs
- Series: Red Hat II Series 8342
Typical Applications
The Asco EF8342G1 is widely used in:
- Pneumatic cylinder and actuator control in manufacturing and automation
- Air flow switching in process control systems
- HVAC and heating system valve actuation
- Industrial compressed air distribution networks
- Water and light oil service applications in industrial settings
- On-off solenoid switching in hazardous (classified) locations
Compatibility & Replacements
Compatible With
- Standard 1/4 inch NPT pneumatic manifold blocks and subplates
- Direct mount and sandwich mounting systems
- Pneumatic control circuits using 120V AC or 240V AC power supplies
- General service air, water, and light oil systems
- Industrial automation PLCs with 120V or 240V solenoid outputs
Replaces / Drop-In Replacement For
- Asco EF8342G001-120/60 (120V AC variant)
- Asco EF8342G1MS (stainless steel variant)
- Other Asco Series 8342 4-way direct-acting solenoid valves with equivalent voltage and port size
Works With
- Standard 1/4 inch NPT pneumatic hoses and fittings
- Industrial control relays and contactors rated for solenoid loads
- HVAC control systems and boiler management systems
- Pneumatic actuator and cylinder systems
- 24V DC, 120V AC, and 240V AC control circuits (coil voltage dependent)
- Verify compatibility with your system integrator before ordering.
