Overview

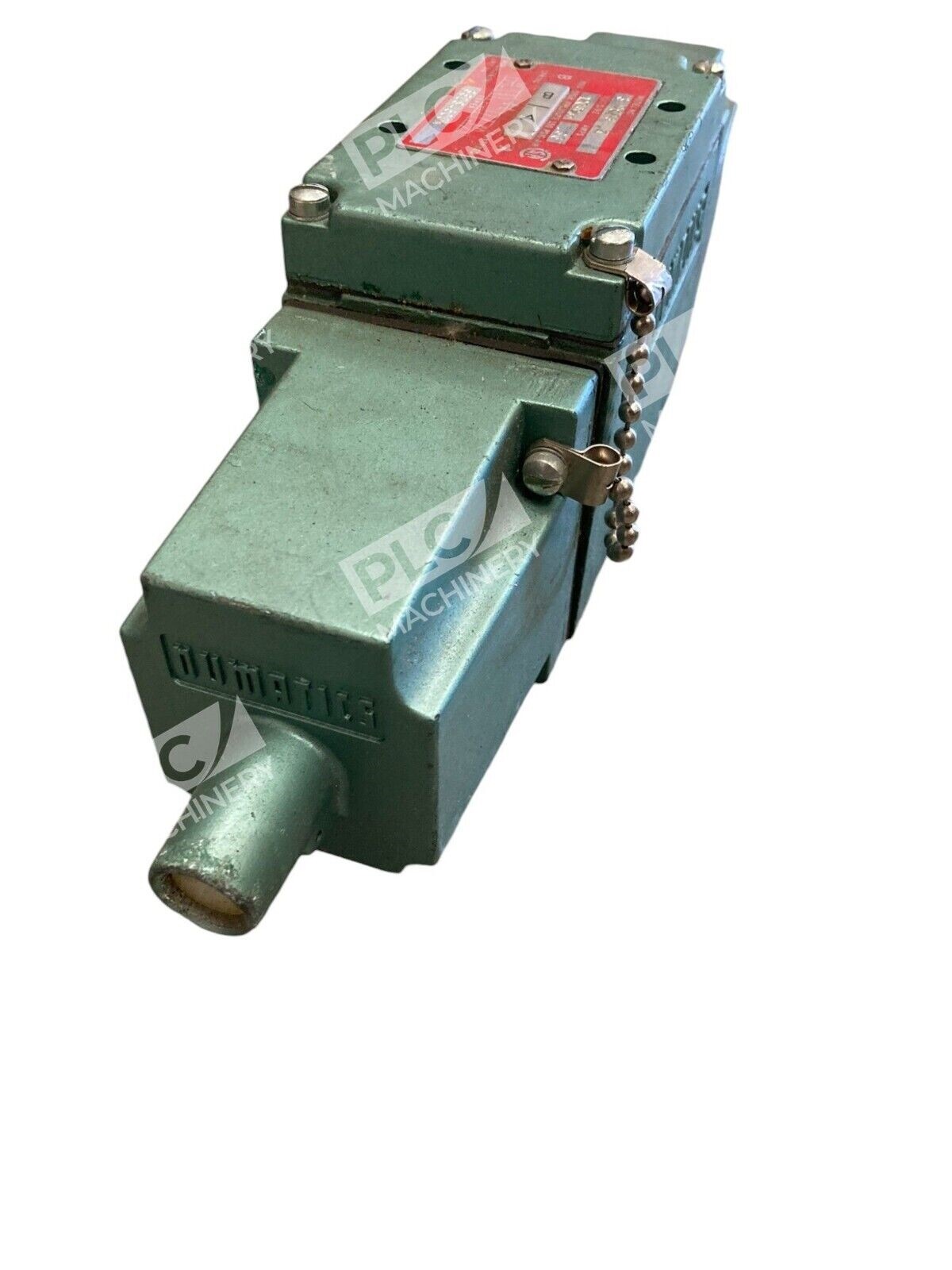

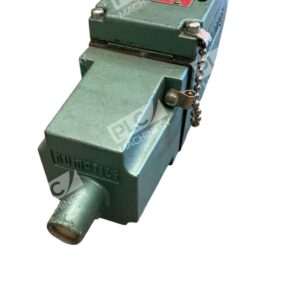

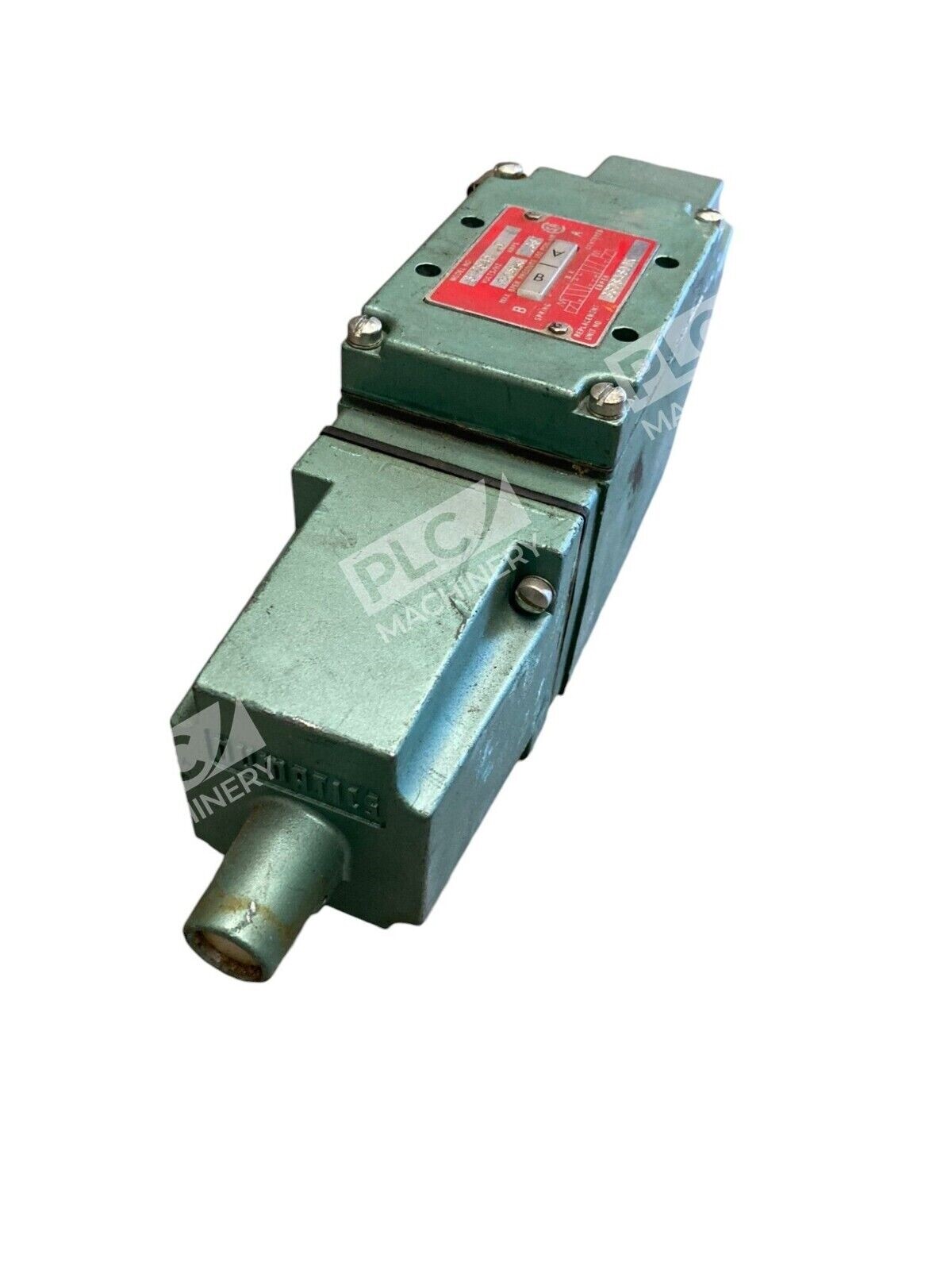

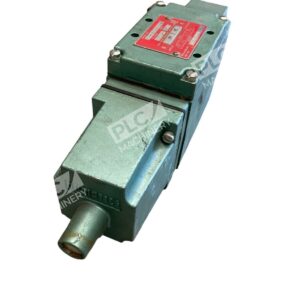

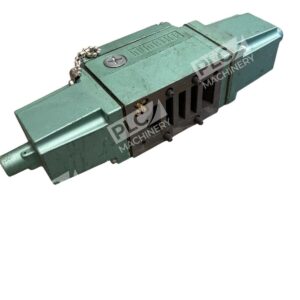

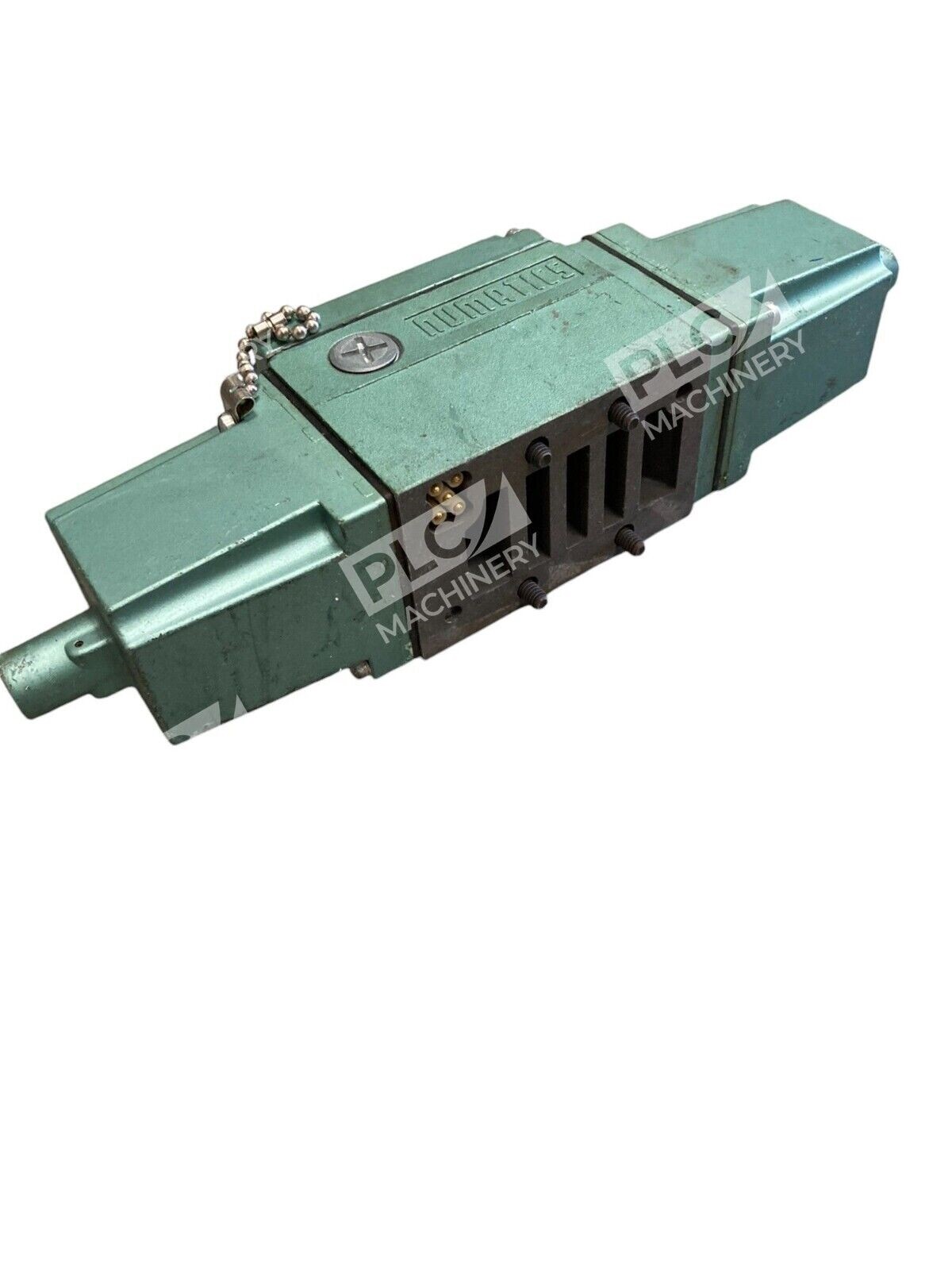

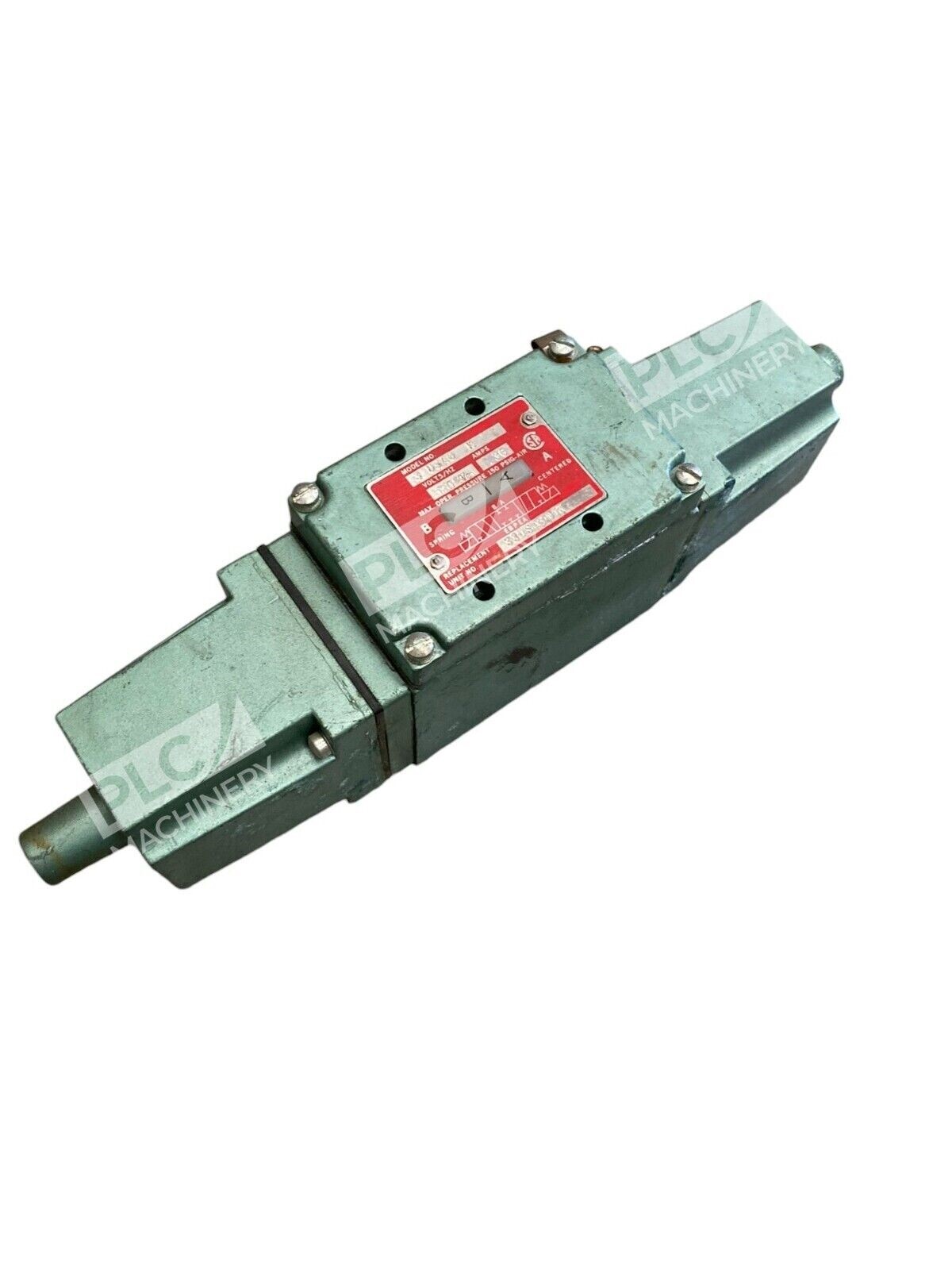

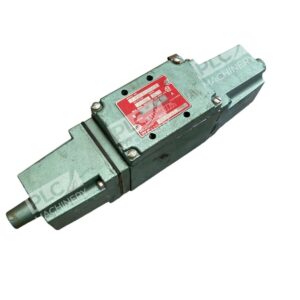

The ASCO 3DSA6K is a solenoid-operated directional control valve from the Numatics product line. This unit is rated for 120V AC 50/60Hz operation at 0.36A and is designed for pneumatic and hydraulic fluid control in industrial automation and process applications. The 3DSA6K provides dependable switching action and is suitable for machinery requiring efficient solenoid actuation at standard North American line voltage.
Key Features
- 120V AC 50/60Hz solenoid coil rated at 0.36A
- Solenoid-operated directional control design for air, inert gas, or light fluid service
- Compact, industrial-grade construction for integration into control systems
- Direct replacement for legacy Numatics automation equipment
- Durable, proven architecture suitable for high-cycle applications
Technical Specifications

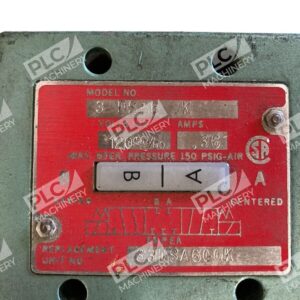

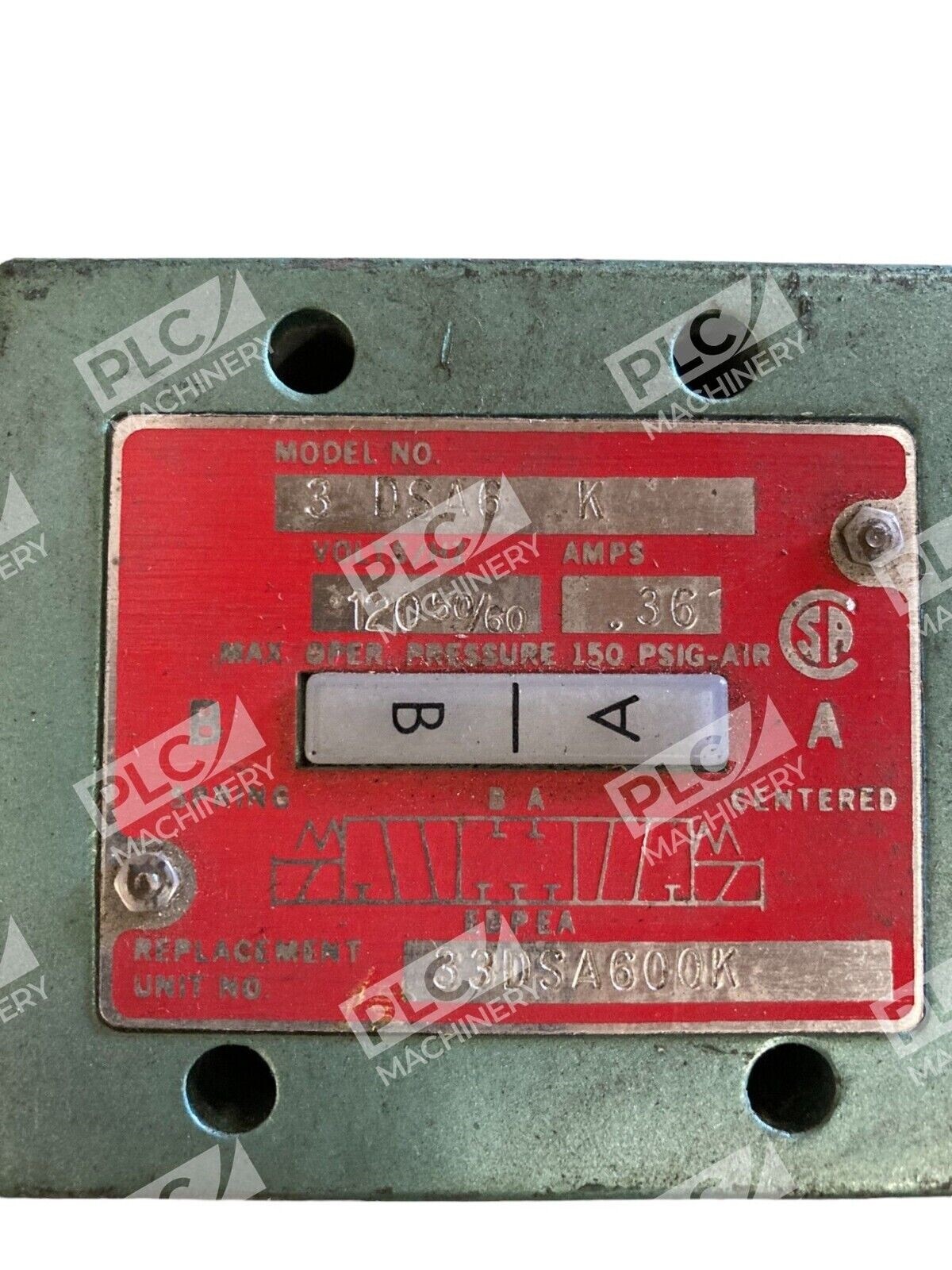

- Coil Voltage: 120V AC, 50/60Hz
- Coil Current: 0.36A
- Power Rating: ~43 watts (VA)
- Manufacturer: ASCO (Emerson Automation)

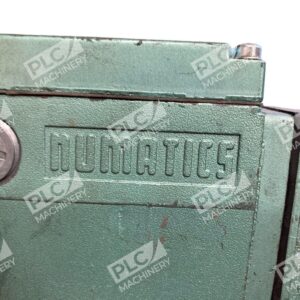

- Product Line: Numatics Solenoid Valves
- Model Number: 3DSA6K
- Condition: Used, tested, fully functional
- Application: Pneumatic and hydraulic directional control
Typical Applications
The ASCO 3DSA6K is used in industrial automation, manufacturing equipment, and process control systems. Common applications include:
- Machine tool actuation and directional control
- Pneumatic automation circuits in production lines
- Hydraulic system pilot control and switching
- Equipment retrofit and replacement in legacy systems
Compatibility & Replacements
Compatible With
- Standard 120V AC industrial control systems and power supplies
- 50/60Hz three-phase and single-phase power networks
- Pneumatic tubing and manifold assemblies (verify port sizing)
- Hydraulic and air pilot valve systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. ASCO Numatics legacy equipment and systems using 3DSA6K series directional valves may accept this unit; however, port configurations and sealing materials should be confirmed.
Works With
- Industrial solenoid coil control circuits and PLC outputs
- Standard 120V AC industrial relays and contactors
- Pneumatic and hydraulic subbase manifold systems
- Manual override and isolation valve assemblies
