Overview

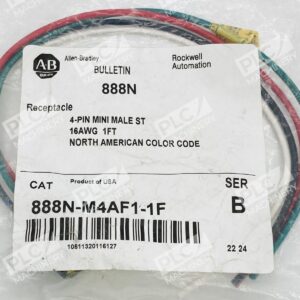

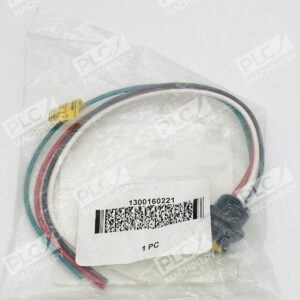

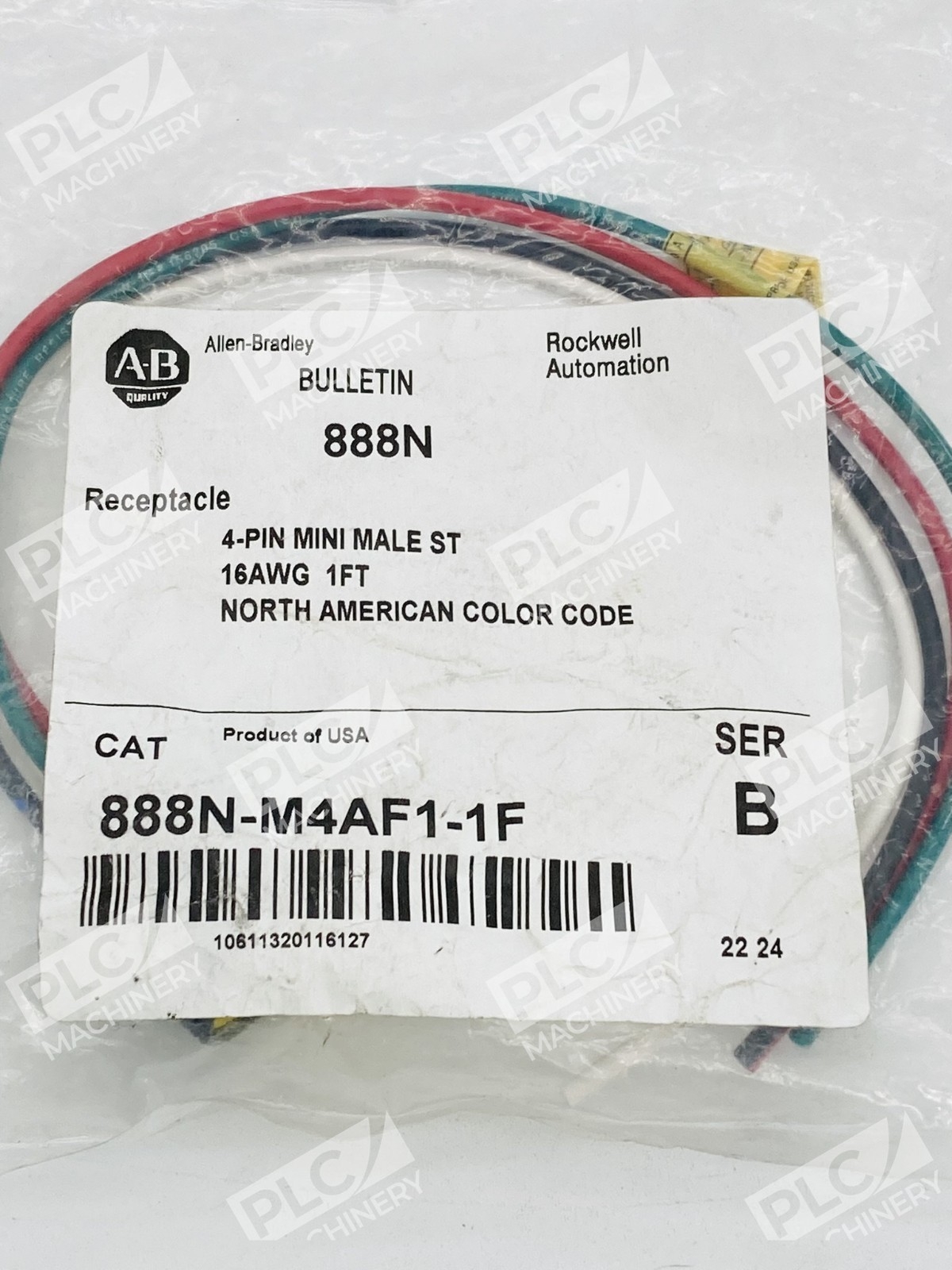

The Allen-Bradley 888N-M4AF1-1F is a male mini receptacle cable designed for industrial automation and control applications. This 4-pin straight connector features 16AWG PVC insulation and U.S. industry standard color coding, making it suitable for rapid connection and disconnection in machine control, sensor networks, and distributed I/O systems. The 1-foot cable length provides flexible routing and connection options on compact control panels and machinery.
Key Features
- 4-pin male straight connector with mini receptacle housing
- 16AWG PVC cable construction for durability and flexibility
- U.S. industry standard color coding for quick identification
- 1-foot (0.3 meter) cable length for tight installations
- Industrial-grade connector designed for repeated connect/disconnect cycles
- Compatible with standard mini and mini-plus receptacle female connectors
Technical Specifications
- Connector Type: Mini Receptacle, Male, Straight
- Pin Configuration: 4-Pin
- Wire Gauge: 16 AWG
- Cable Material: PVC
- Cable Length: 1 foot (0.3 meters)
- Color Code: U.S. Industry Standard
- Thread Size: 1/2 x 14 NPT
- Connector Housing: Standard Materials
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Part Number: 888N-M4AF1-1F
Typical Applications
The 888N-M4AF1-1F mini receptacle cable is commonly used in:
- PLC and controller I/O module connections
- Distributed sensor and actuator networks
- Machine tool control systems
- Compact panel-mounted installations requiring quick disconnect capability
- Fixed facility wiring where space constraints require short cable runs
- Industrial safety systems and emergency stop circuits
Compatibility & Replacements
Compatible With
- Allen-Bradley mini and mini-plus female receptacle connectors
- Rockwell Automation distributed I/O modules
- Industrial PLC systems utilizing 4-pin mini connector standards
- Equipment designed for 1/2 x 14 NPT connection interfaces
Replaces / Drop-In Replacement For
This cable serves as a direct component match for systems originally configured with the 888N-M4AF1-1F male receptacle connector. Verify the exact connector configuration (pin count, gender, thread size) with your system documentation before ordering.
Works With
- Allen-Bradley 888-series connector line
- Mini and mini-plus receptacle female connectors (888N-F4AF1-1F, 888N-F4AF1-3F)
- Standard industrial automation PLC I/O networks
- EtherNet/IP and PROFINET-enabled control systems using mini connector breakouts
