Overview

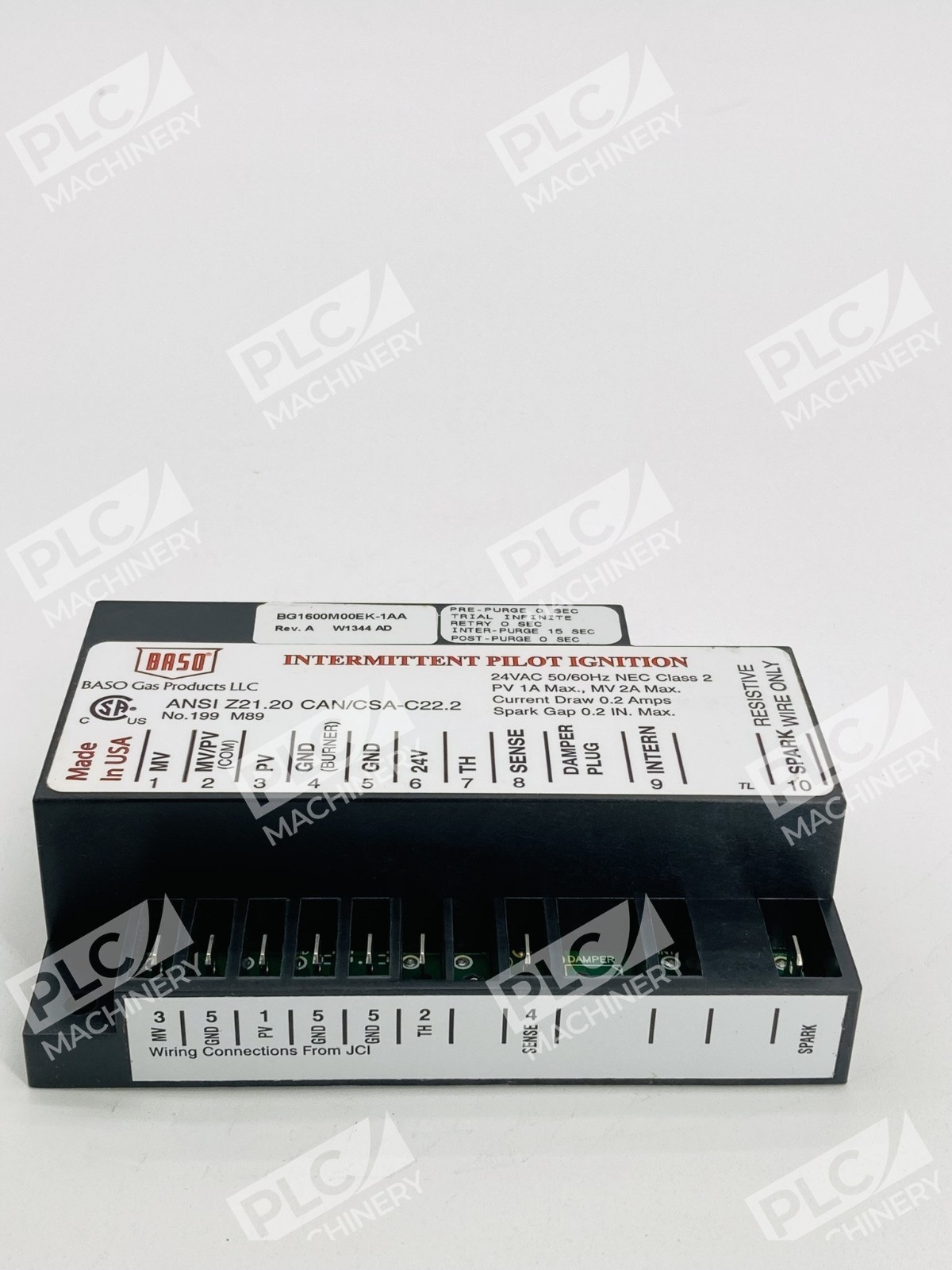

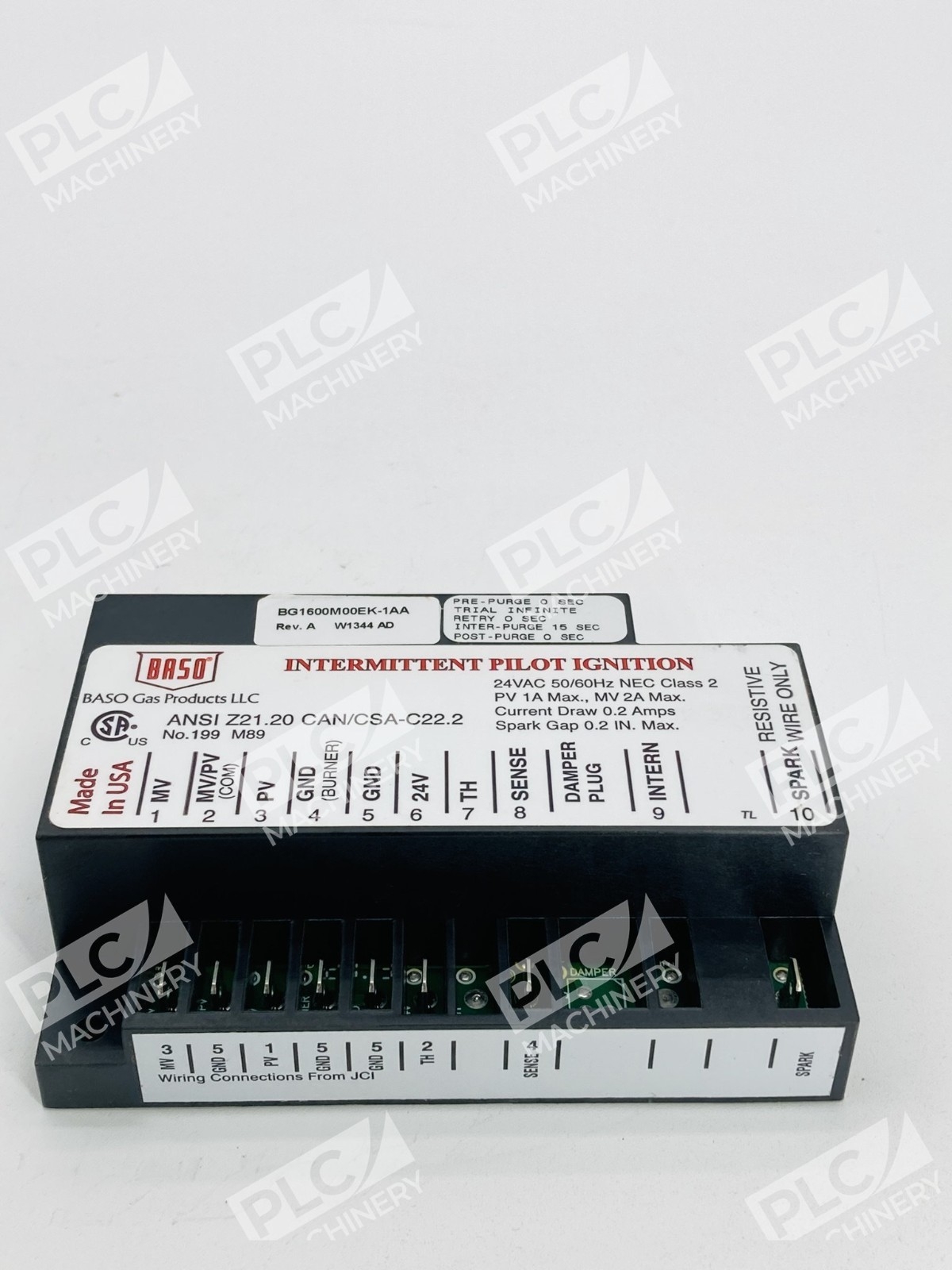

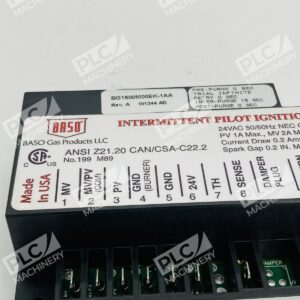

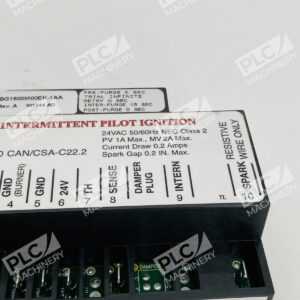

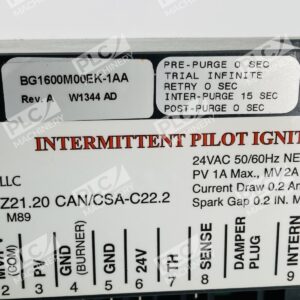

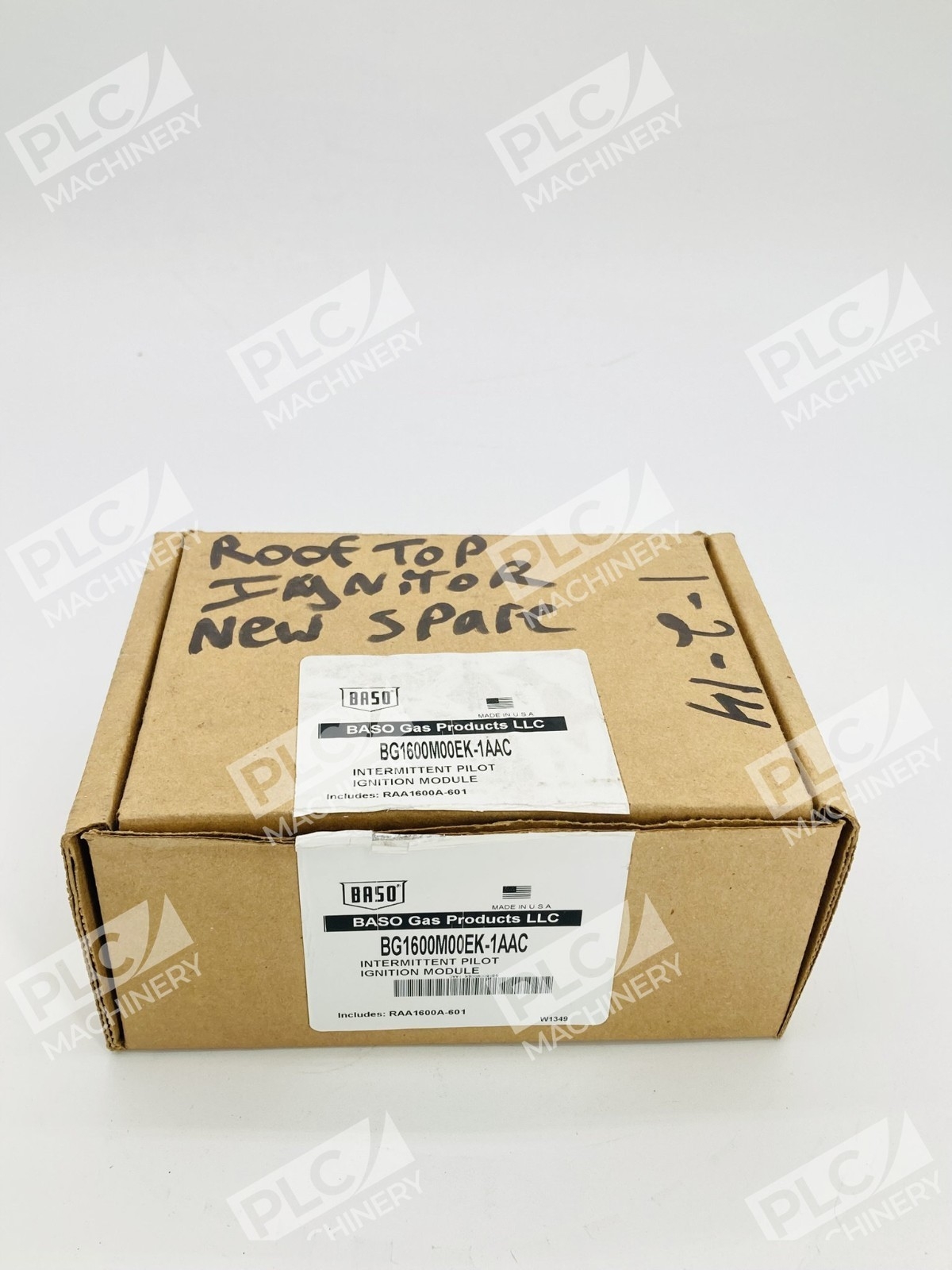

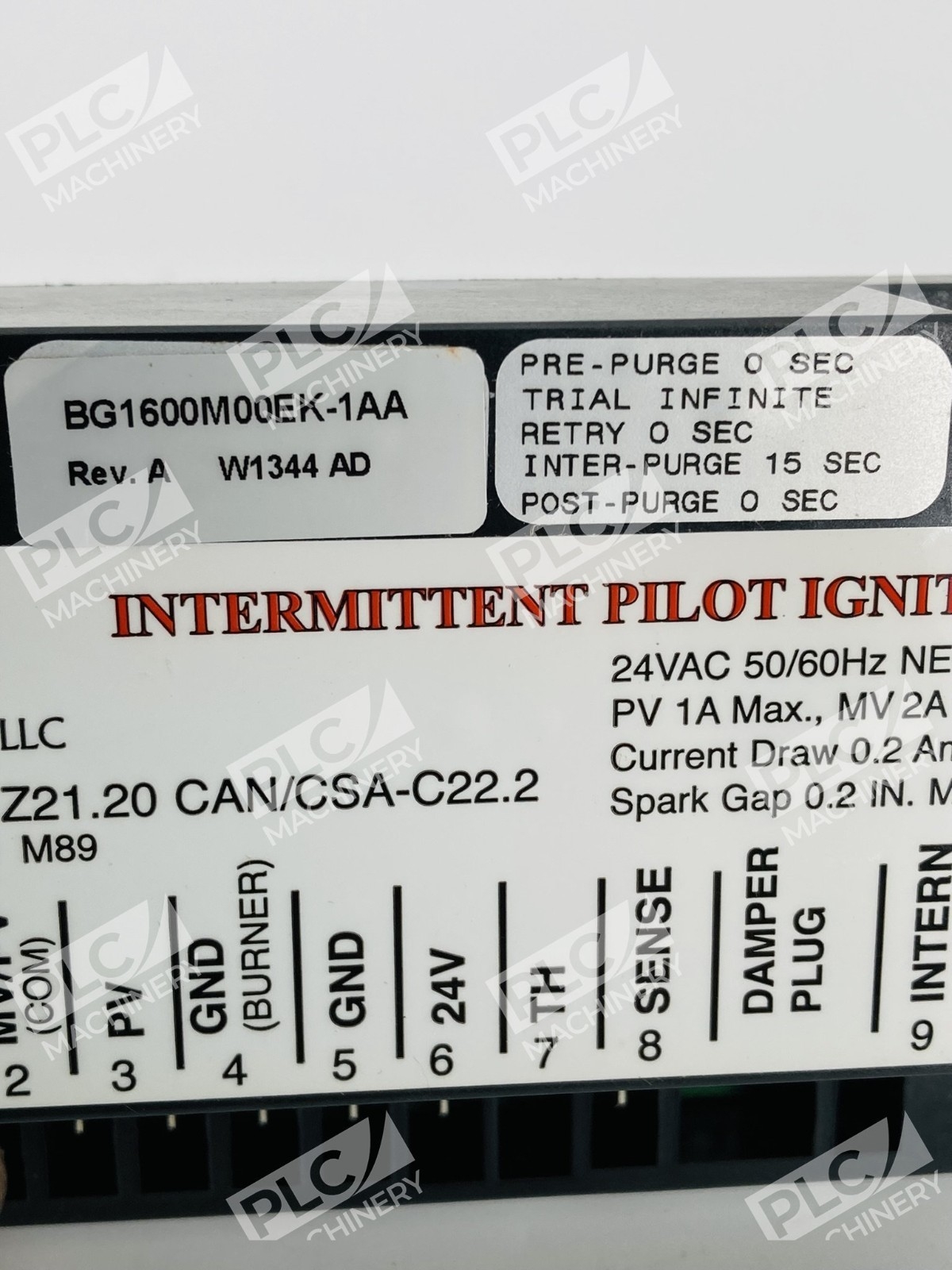

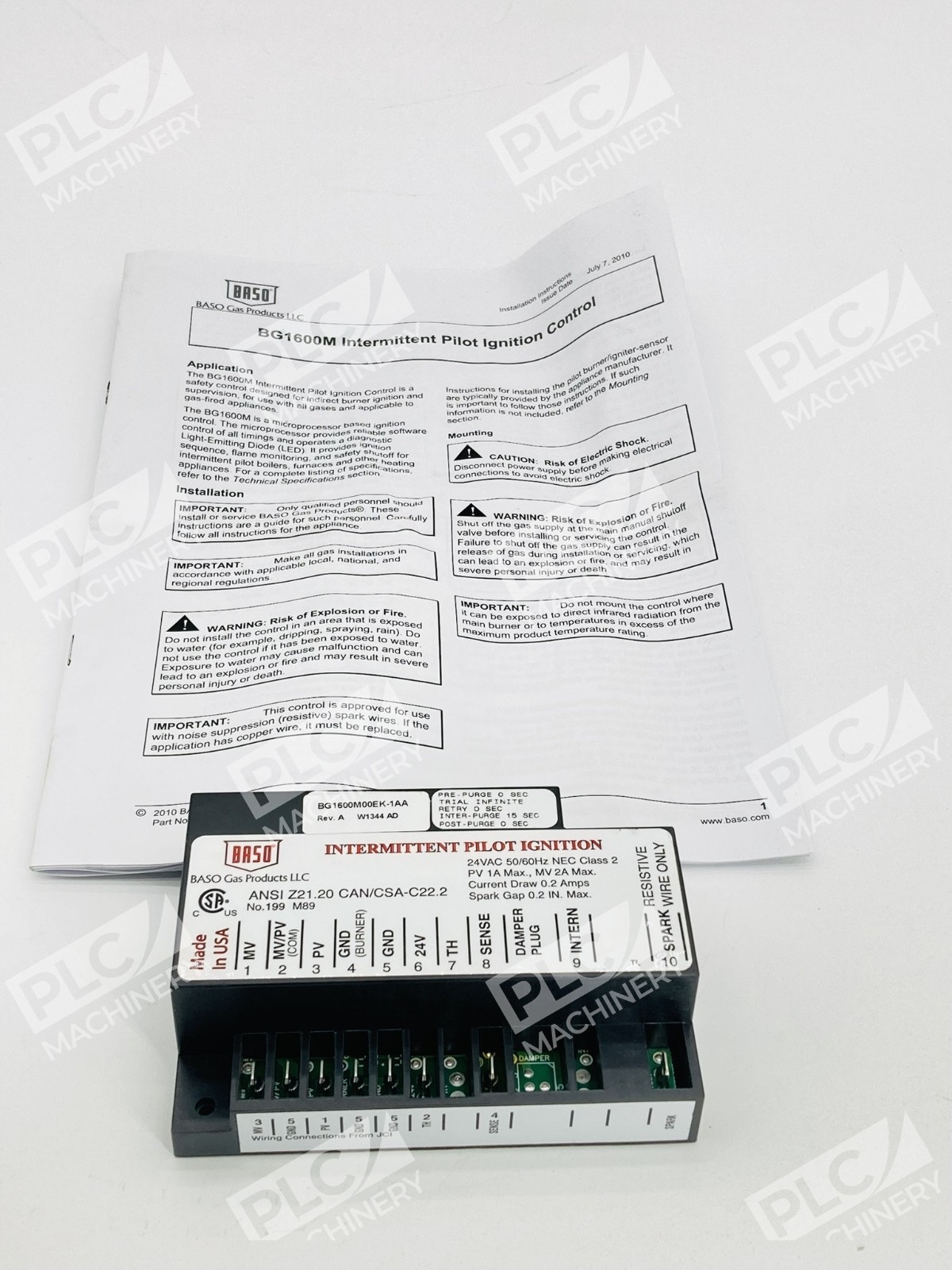

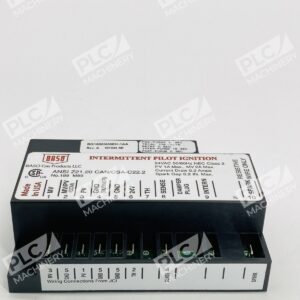

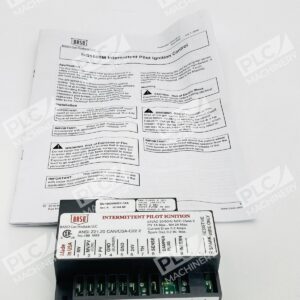

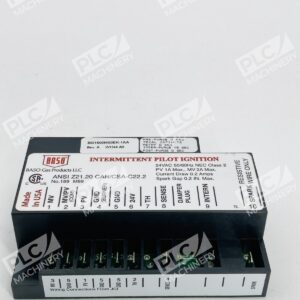

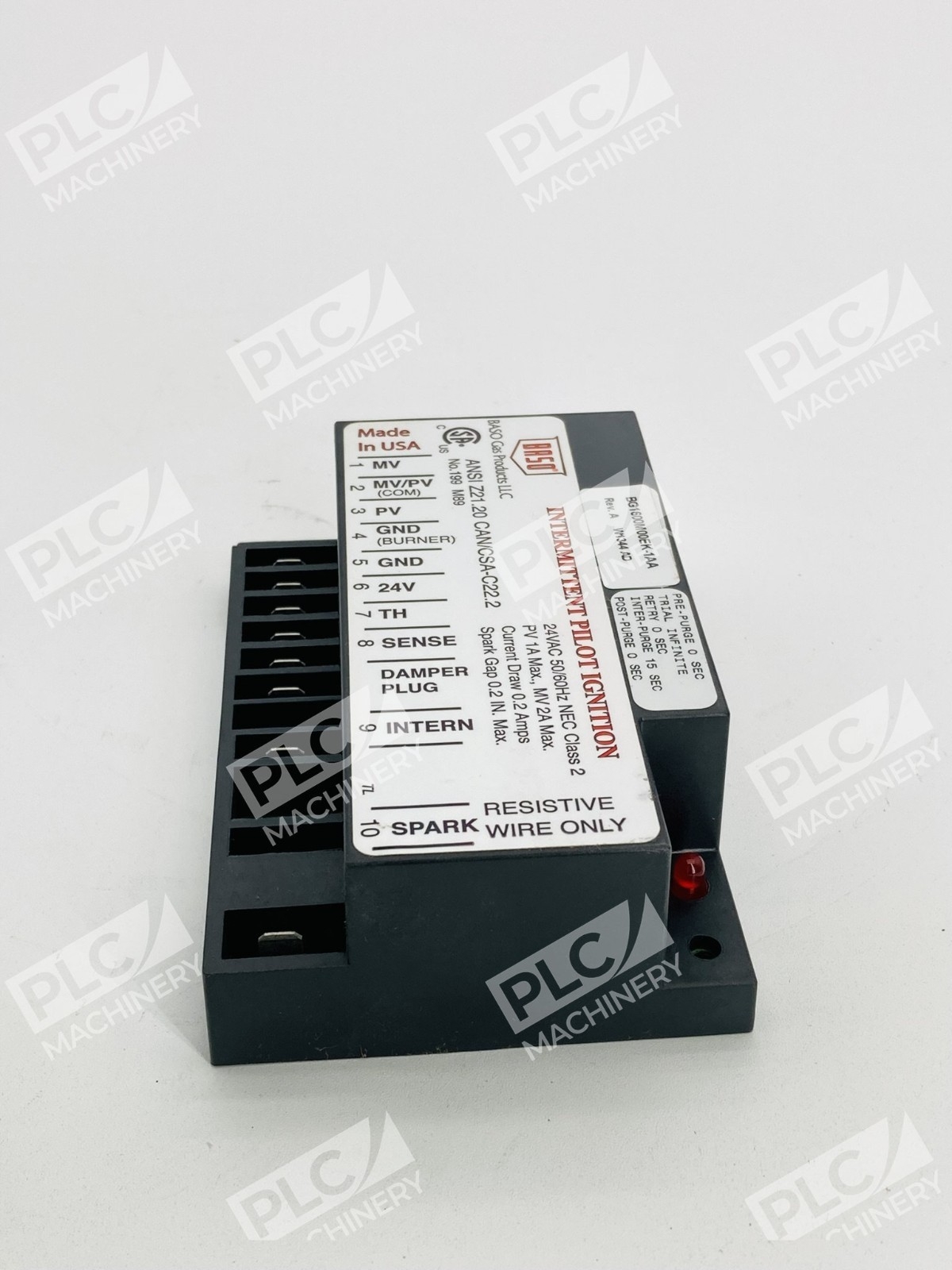

The Baso BG1600M00EK-1AAC is an intermittent pilot ignition control module engineered for commercial gas appliances, furnaces, boilers, and heating systems. This module delivers dependable ignition sequencing, continuous flame monitoring, and automatic safety shutoff to ensure safe and efficient operation in demanding industrial and commercial settings. Built as a direct replacement for Johnson Controls G67AG-3 units, the BG1600M00EK-1AAC meets industry safety standards and is compatible with natural gas, liquefied petroleum (LP), and mixed gas systems.
Key Features
- 24 VAC operation at 50/60 Hz with ±20% voltage tolerance
- 25-second trial-for-ignition time with 100% shutoff on failure
- 5-minute automatic recycle delay prevents rapid restarts
- Maximum firing rate: 400,000 BTU/hr (117 kW)
- Compatible with natural gas, LP gas, manufactured gas, and mixed gas-air mixtures

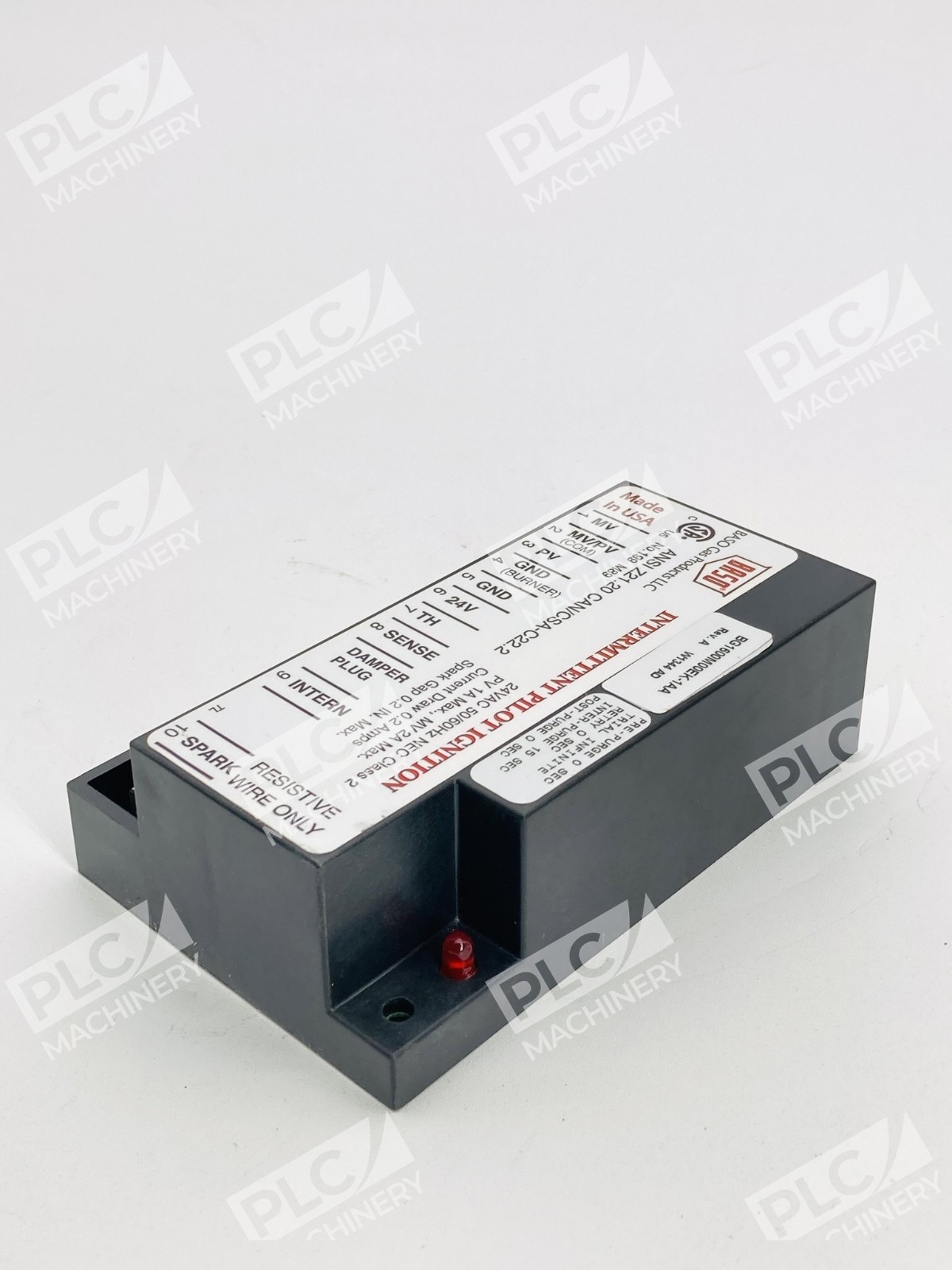

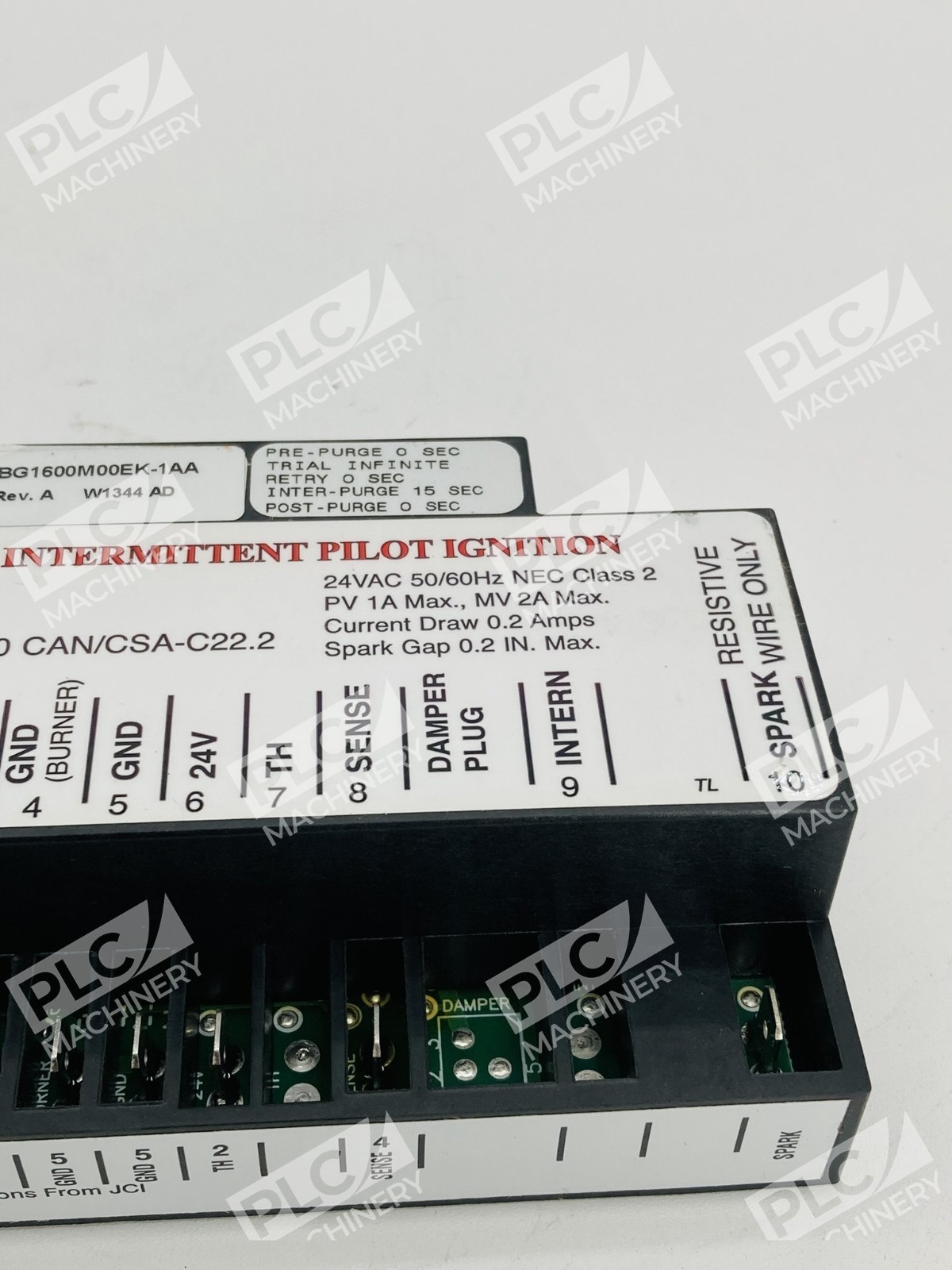

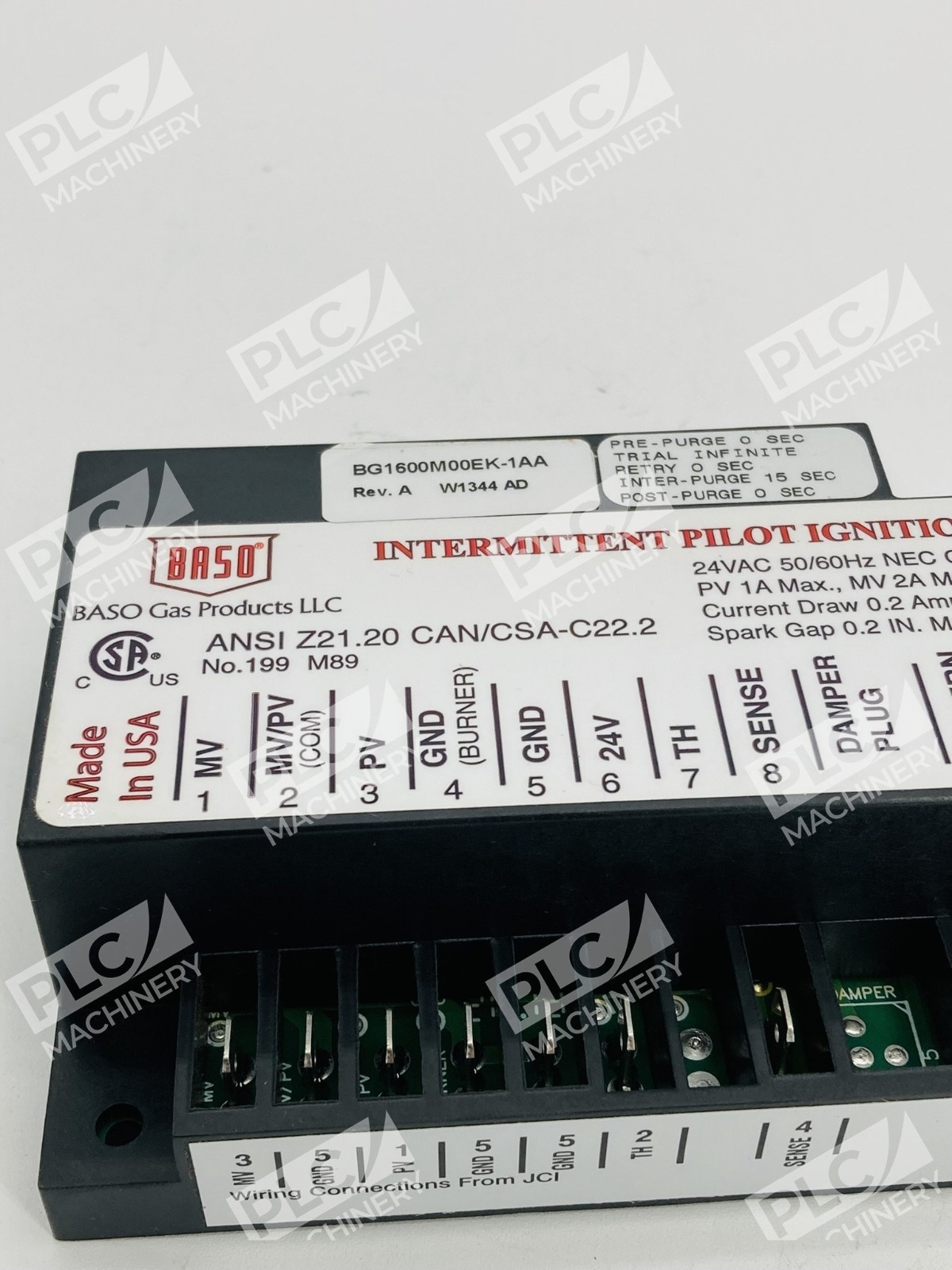

- Compact black module design for straightforward integration into existing equipment
- Remote flame sensing for enhanced safety monitoring
Technical Specifications
| Model Number | BG1600M00EK-1AAC |
| Manufacturer | Baso Gas Products (formerly Johnson Controls) |
| Power Supply | 24 VAC (±20%), 50/60 Hz |
| Operating Current | 0.2 A nominal + valve current |
| Control Type | Intermittent Spark Ignition |
| Trial-for-Ignition Time | 25 seconds, then 100% shutoff |
| Recycle Delay | 5 minutes automatic |
| Maximum Firing Rate | 400,000 BTU/hr (117 kW) |
| Operating Temperature | -40°F to 170°F (-40°C to 77°C) |
| Humidity Rating | 95% RH noncondensing |
| Dimensions (W×D×H) | 2.75″ × 4.75″ × 2.25″ |
| Weight | 0.62 lbs |
| Wiring Connections | 1/4″ (6.35 mm) male spade terminals |
| Gas Compatibility | Natural, LP, Manufactured, Mixed, or LP Gas-Air Mixture |
| Agency Certification | CAN/CSA-C22.2 No. 199 |
Typical Applications
- Commercial convection ovens (Garland, Lang, US Range, and similar brands)
- Industrial gas furnaces and boilers requiring intermittent pilot ignition
- Foodservice equipment with electronic ignition requirements
- Heating systems in commercial kitchens and institutional settings
- Equipment requiring automatic flame monitoring and safety shutoff control
Compatibility & Replacements
Compatible With
- Garland commercial ovens (natural gas convection models)
- Lang gas cooking equipment including GCCO-SII models (serial #F7933 and later)
- US Range oven series CG, SDG1, SDG2 (natural gas versions)
- Johnson Controls G67AG-3 legacy control systems
- Standard 24 VAC gas ignition and safety control circuits
- Remote flame sensing rod applications
Replaces / Drop-In Replacement For
- Johnson Controls G67AG-3
- Original BG1600M00EK-1AA module (Lang, Garland, and US Range installations)
Works With
- 24 VAC control transformers (disconnect and overload protection required)
- Remote ignition spark terminals (includes round post terminal A3534 #85-1063)
- Standard pilot and main gas solenoid valves (2 A and 1 A rated contacts respectively)
- Limit controllers and safety shutdown circuits operating at 24 VAC
- National Electrical Code (NEC) compliant gas appliance control wiring
