Overview

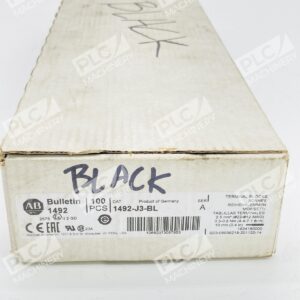

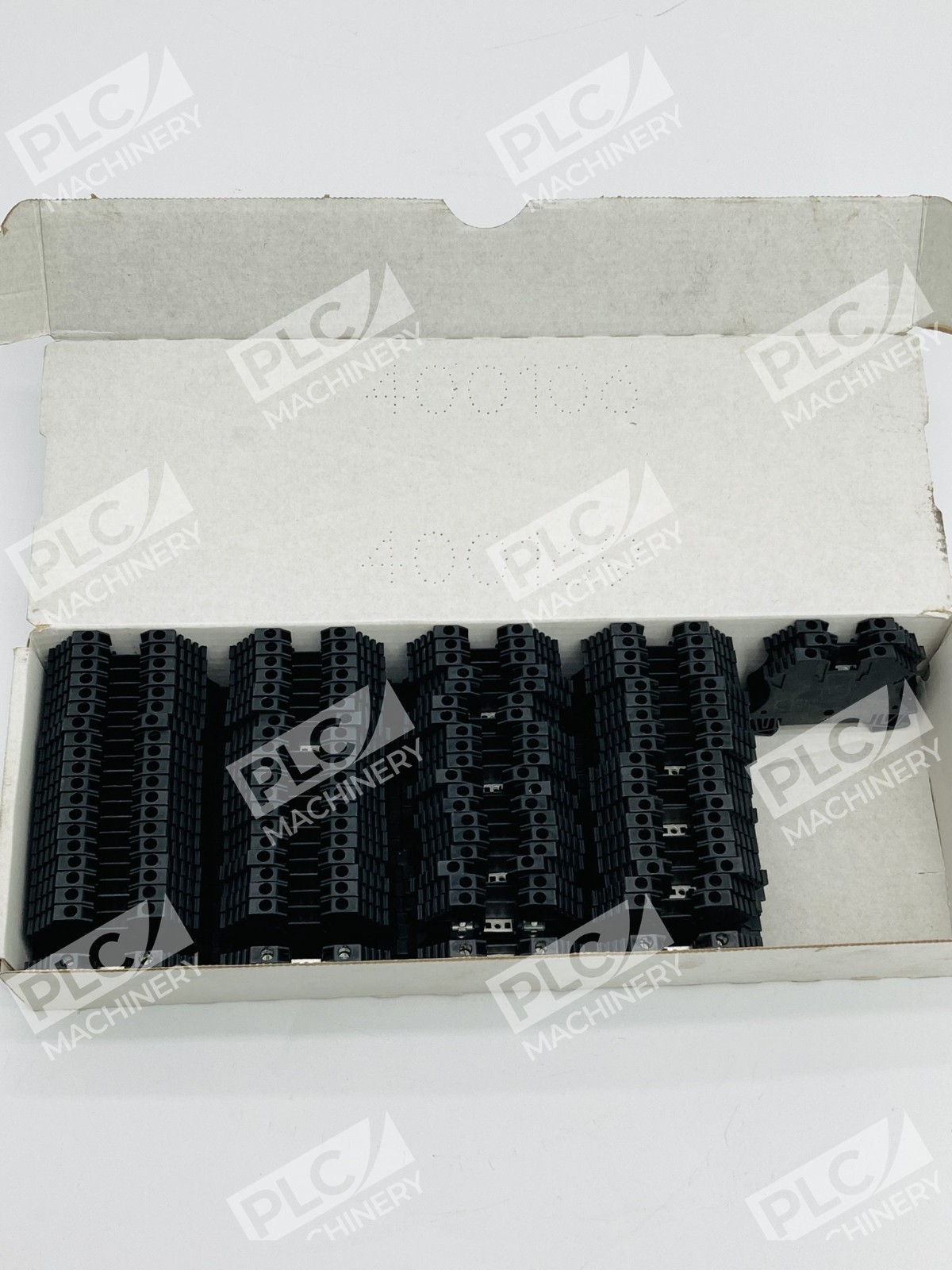

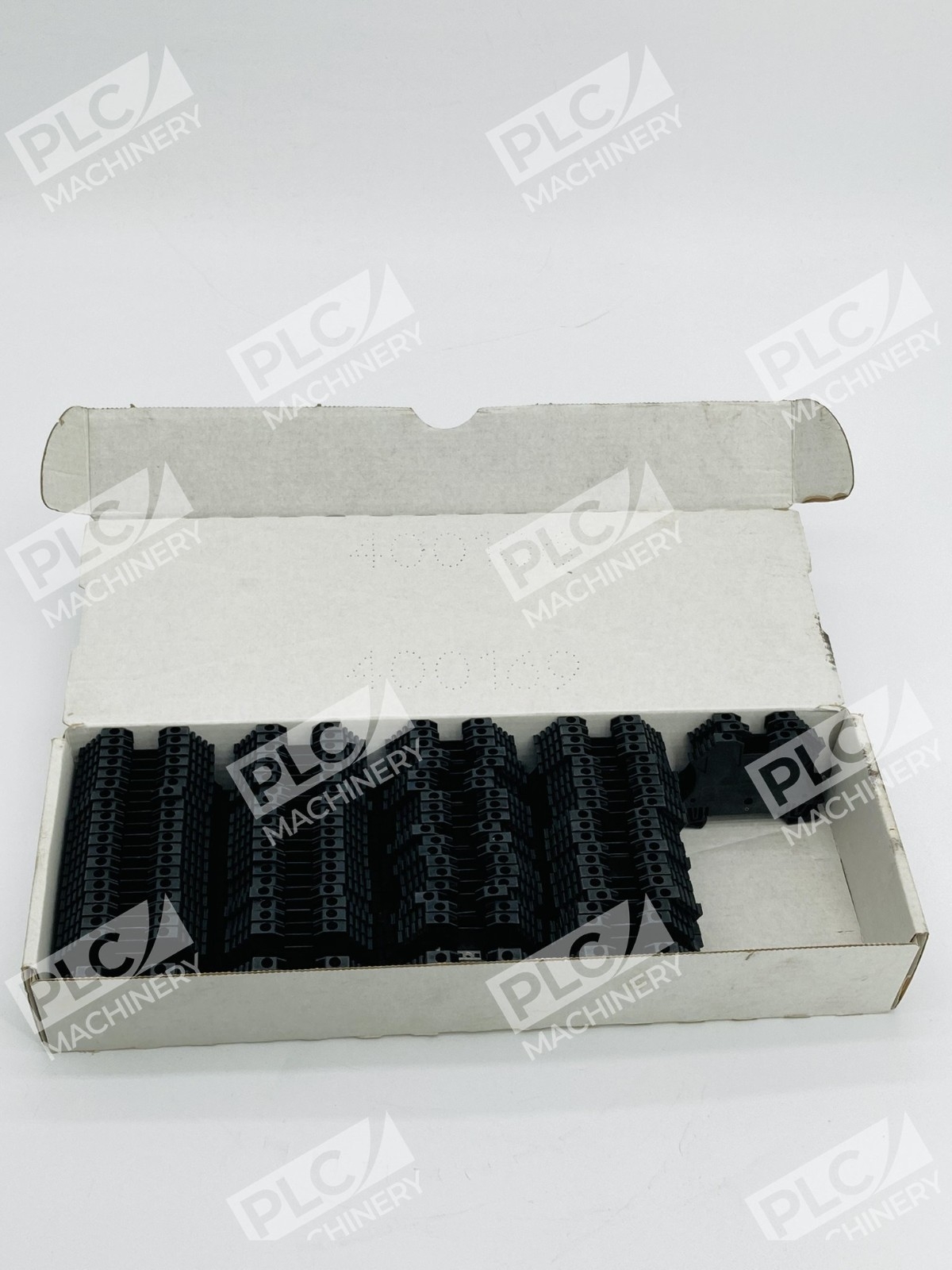

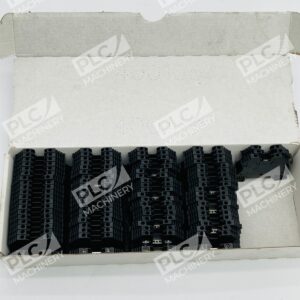

The Allen-Bradley 1492-J3-BL is a feed-through terminal block from Rockwell Automation’s industry-leading Bulletin 1492 family of IEC-standard terminal blocks. Engineered for reliable single-pole electrical connections in industrial control cabinets and automation systems, this black terminal block combines screw-connection simplicity with proven durability. Each unit measures 5.1 × 60 × 39.5 mm and accepts 24–12 AWG conductors, making it ideal for field wiring, panel integration, and system upgrades.
Key Features
- Feed-through screw terminal design enables fast, secure wire connections on both sides
- IEC-compliant construction with UL, CSA, CE, and CUL certifications
- Color-coded black insulator for clear circuit identification and phase management
- 35 mm DIN rail mounting for standard industrial control enclosures
- Wide voltage rating accommodates AC and DC applications
- Compact footprint (2.5 mm² cross-section) optimizes panel space
Technical Specifications
- Conductor Size: 24–12 AWG (14–2.5 mm²)
- Maximum Current Rating: 25 A (UL), 20 A (CSA)
- Voltage Rating: 600 V AC/DC (UL/CSA), 800 V AC/DC (IEC), 550 V AC/DC (ATEX)
- Connection Type: Screw (M3.5)
- Mounting: 35 mm symmetrical DIN rail
- Terminal Type: Feed-through (one pole)
- Operating Temperature: –50 to 120 °C
- Dimensions: 5.1 × 60 × 39.5 mm (0.20 × 2.36 × 1.56 in)
- Color: Black
- Certifications: UL, CSA, CUL, CE, CCC, KC, MARINE
Typical Applications
The 1492-J3-BL is widely used in:
- Control cabinet wiring and panel assembly
- Motor control centers and variable frequency drives
- Safety relay circuits and emergency-stop systems
- General-purpose industrial automation enclosures
- Distribution and switchgear systems where single-pole connections are required
Compatibility & Replacements
Compatible With
- 35 mm DIN rail mounting systems (standard and symmetrical)
- Rockwell Automation control cabinets and enclosure kits
- All industrial automation PLCs and motor control devices with DIN rail integration
- IEC 61076 compliant wiring systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 1492-J3-BL is the black variant of the standard 1492-J3 and may replace gray (1492-J3), red (1492-J3-RE), blue (1492-J3-B), green (1492-J3-G), and other color variants in applications where color coding is non-critical or customizable.
Works With
- DIN rail mounting brackets and rail spacers (199-DR1, 1492-DR5)
- Terminal block accessories including jumpers and marker labels
- All major PLC platforms (Allen-Bradley CompactLogix, ControlLogix, SLC 5/05)
- Industry standard motor control and switchgear ecosystems
