Overview

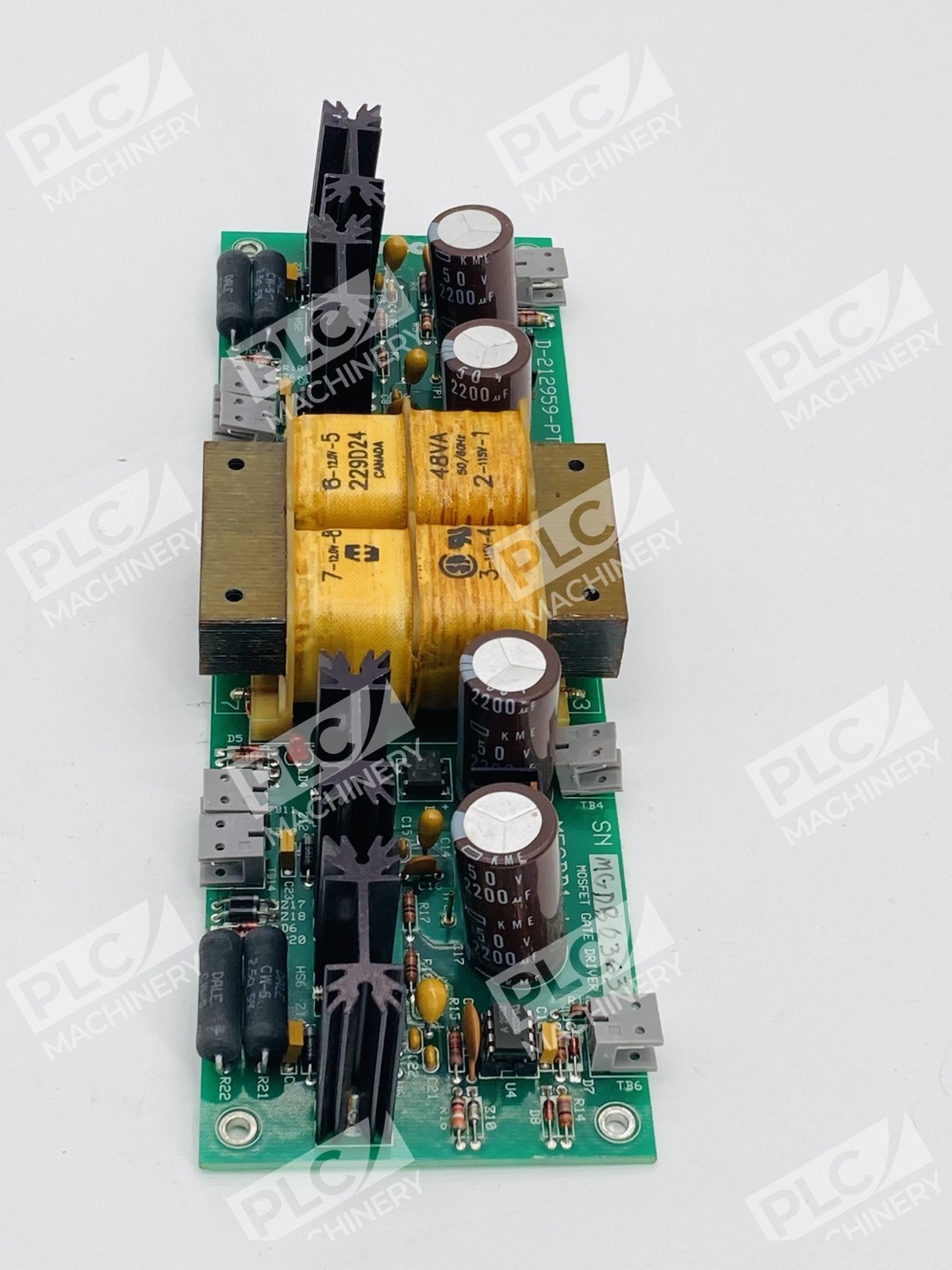

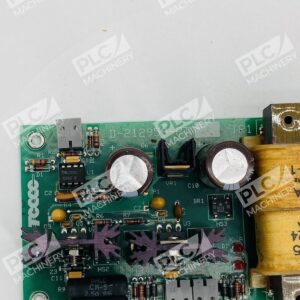

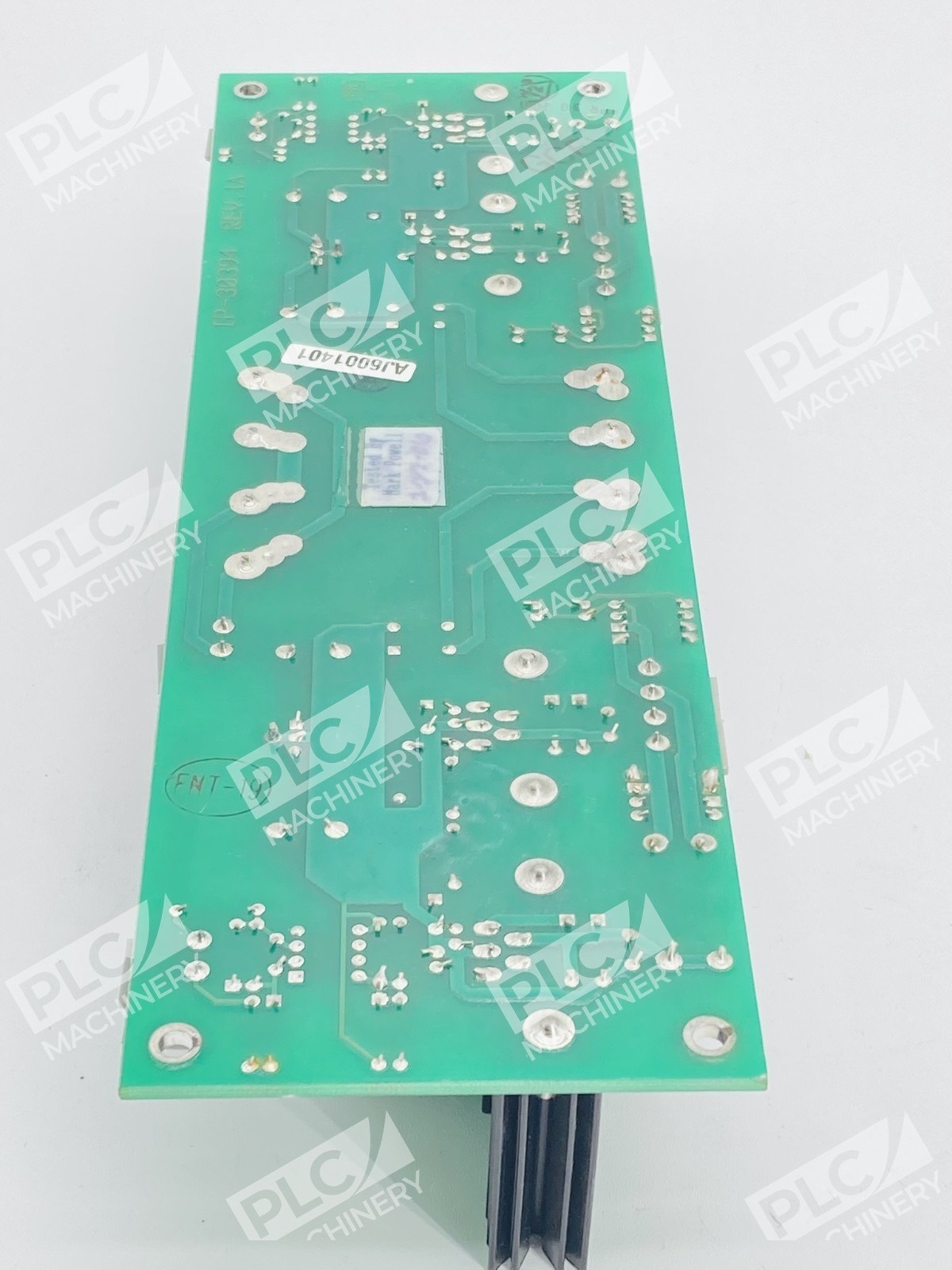

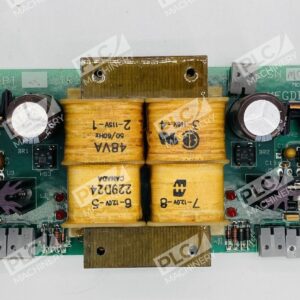

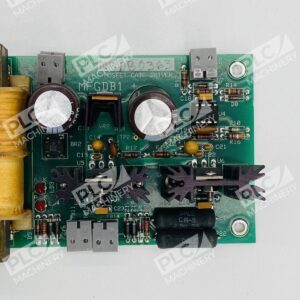

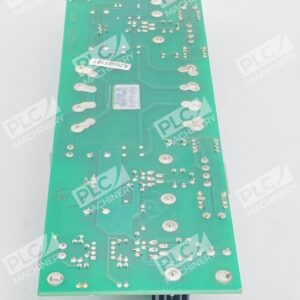

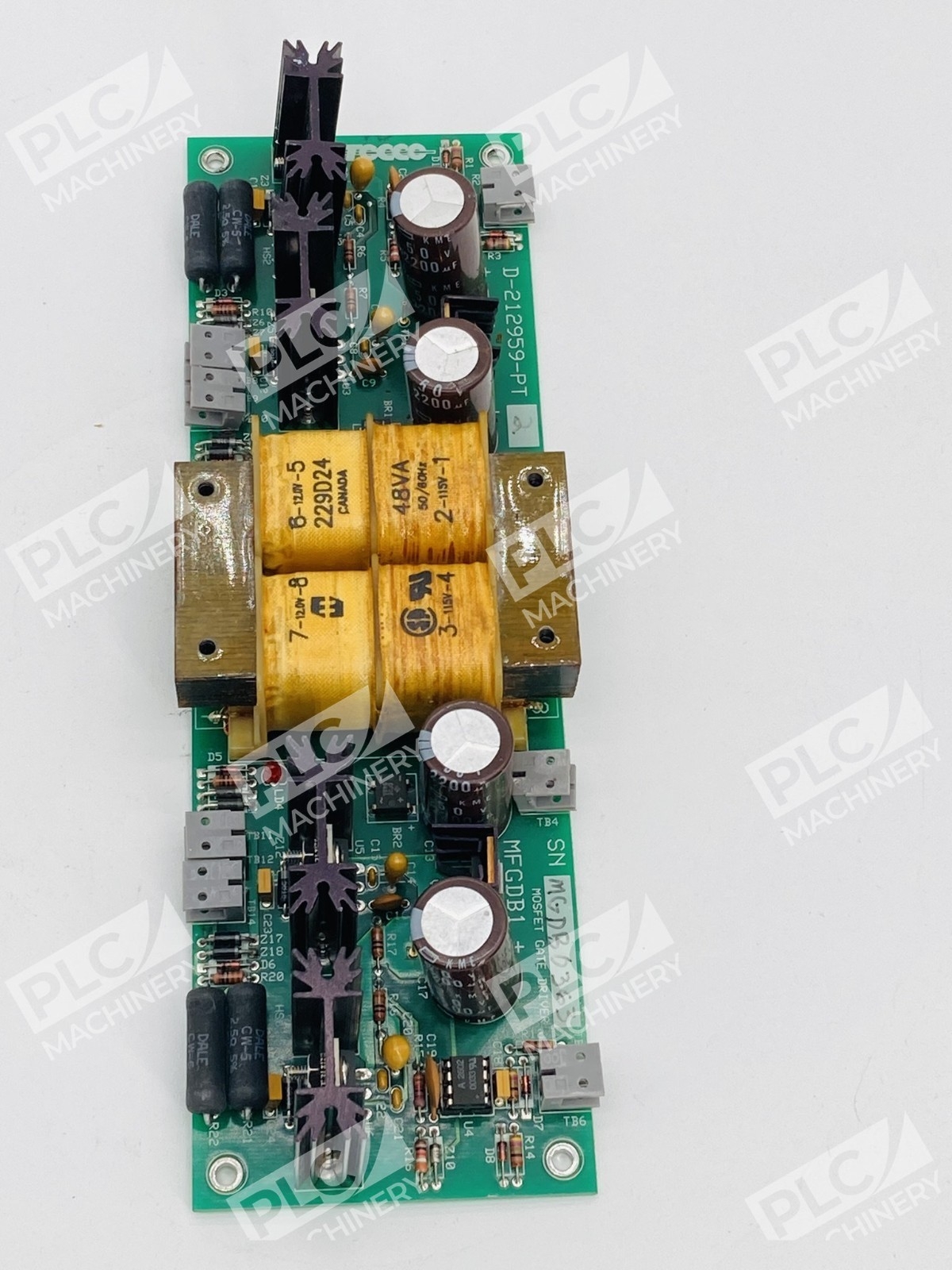

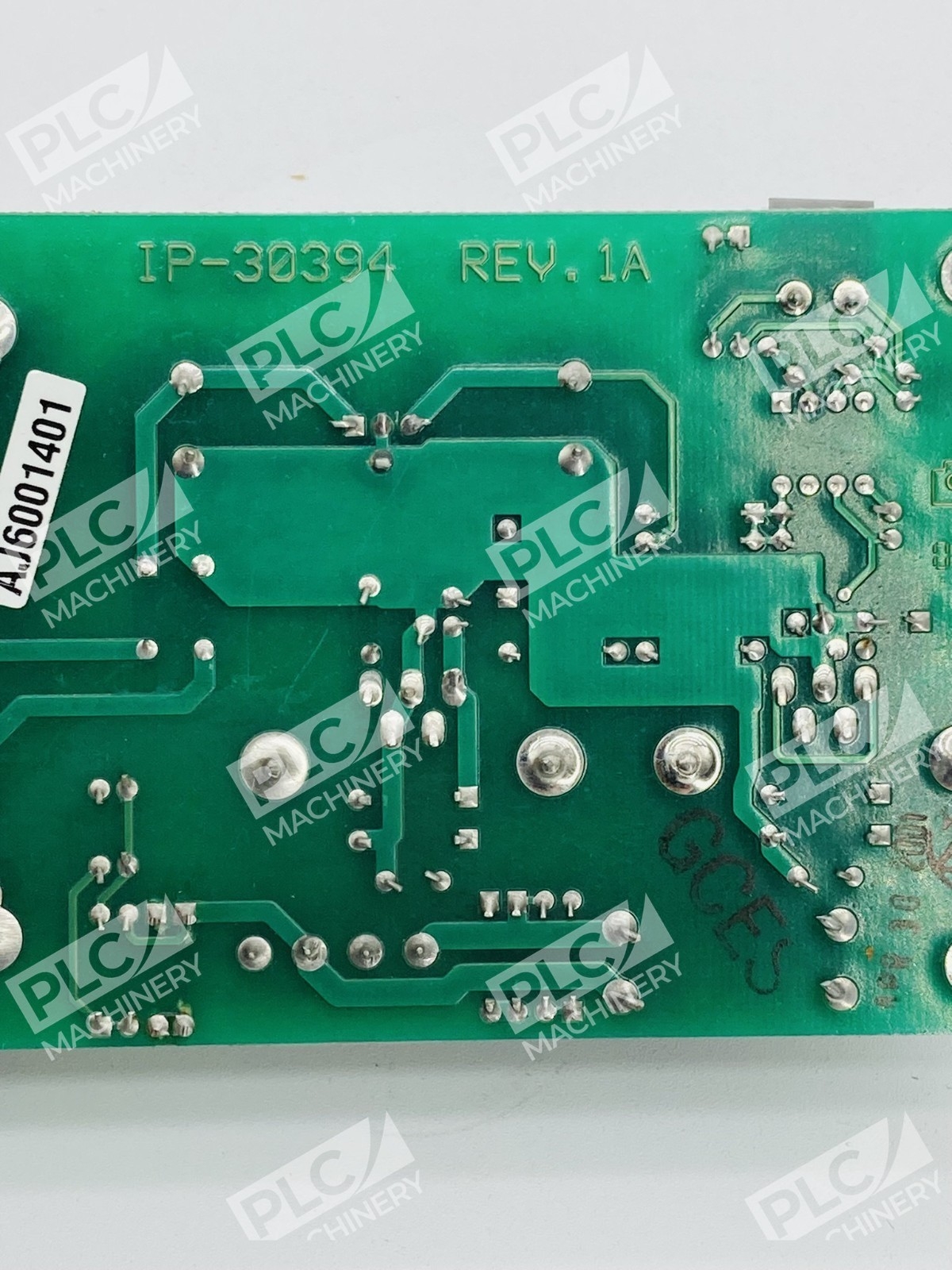

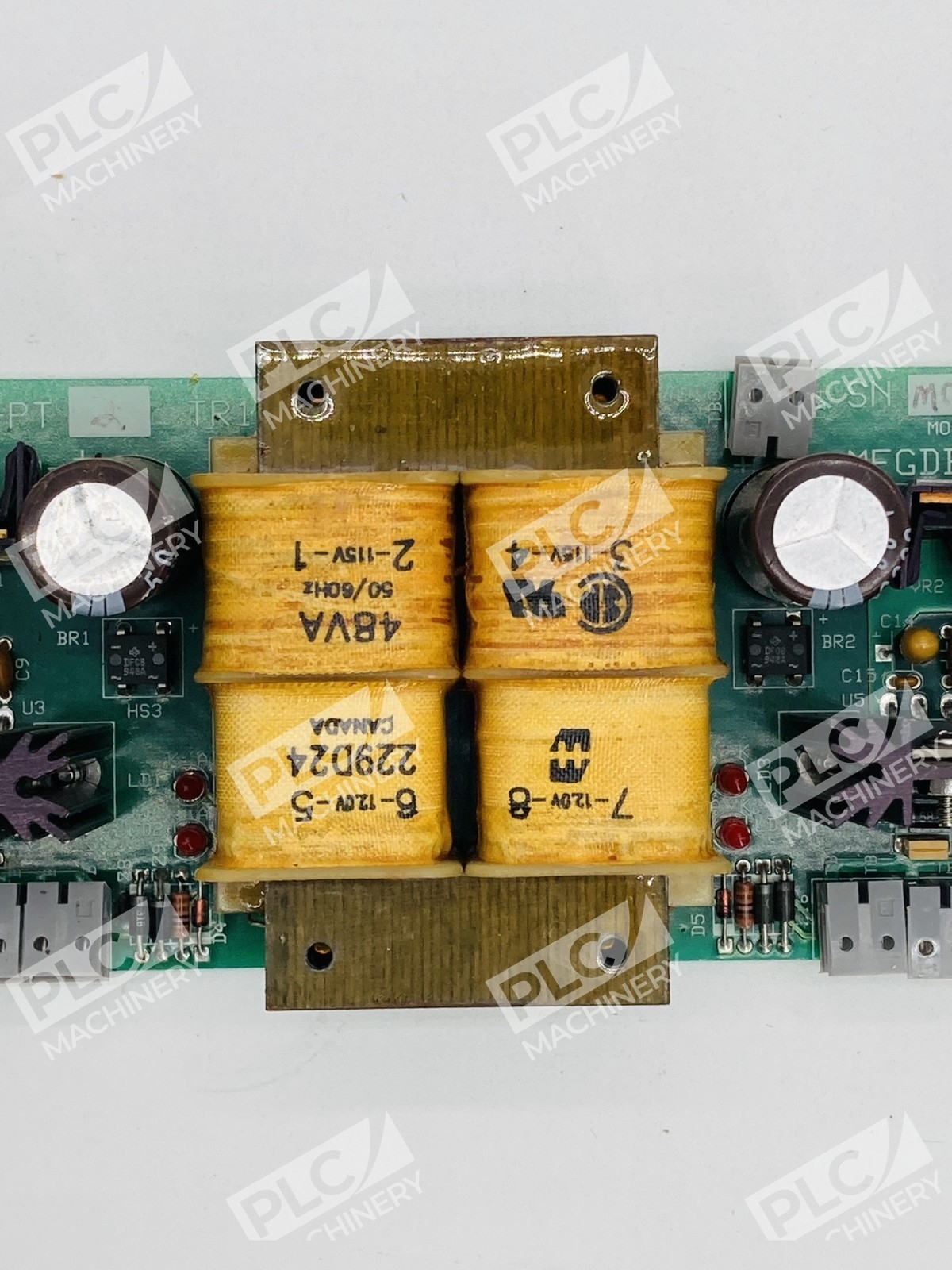

The Ajax TOCCO D-212959-PT2 gate driver board is a critical control component designed for induction heating and melting systems. This dual-voltage gate driver (115/230V) manages power semiconductor switching in medium and high-frequency induction power supplies, ensuring reliable and precise thermal processing. As a replacement or spare part for Ajax TOCCO Toccotron and similar induction heating platforms, this board delivers dependable performance in demanding industrial heating applications.
Key Features
- Dual-voltage input: 115/230V AC operation
- Gate driver circuit for IGBT/thyristor switching control
- Designed for induction heating and melting applications
- Compatible with Ajax TOCCO thermal processing systems
- Compact PCB design for direct board-level replacement
- Industrial-grade construction for high-temperature environments
Technical Specifications
The following specifications apply to the D-212959-PT2 gate driver board:
- Input Voltage: 115/230V AC (dual-voltage capable)
- Function: Gate driver for power semiconductor control
- Application: Induction heating power supplies
- Manufacturer: Ajax TOCCO Magnethermic
- Part Number: D-212959-PT2
- Condition: Used, fully functional
Typical Applications
This gate driver board is used in:
- Toccotron AC and medium-frequency induction power supplies
- Induction melting furnaces and crucible systems
- Billet heating and forging applications
- Bar and tube induction heating systems
- Thermal metal processing equipment
- High-frequency inverter-based heating systems
Compatibility & Replacements
Compatible With
- Ajax TOCCO Toccotron AC power supplies
- Ajax TOCCO Magnethermic induction heating systems
- Medium and high-frequency induction power platforms
- Systems using IGBT or thyristor-based power switching
- Industrial thermal processing and metal heating equipment
Replaces / Drop-In Replacement For
The D-212959-PT2 is a direct replacement gate driver board for Ajax TOCCO induction heating power supplies. If you are upgrading or repairing a Toccotron or similar control system, verify the board serial number and connector type with your system documentation before ordering.
Works With
- Ajax TOCCO system control panels and microprocessor boards
- Induction heating power supplies (medium/high frequency)
- Industrial SCADA and process control systems
- Standard 115/230V AC facility power
- Remote monitoring and diagnostic interfaces compatible with Ajax TOCCO equipment
